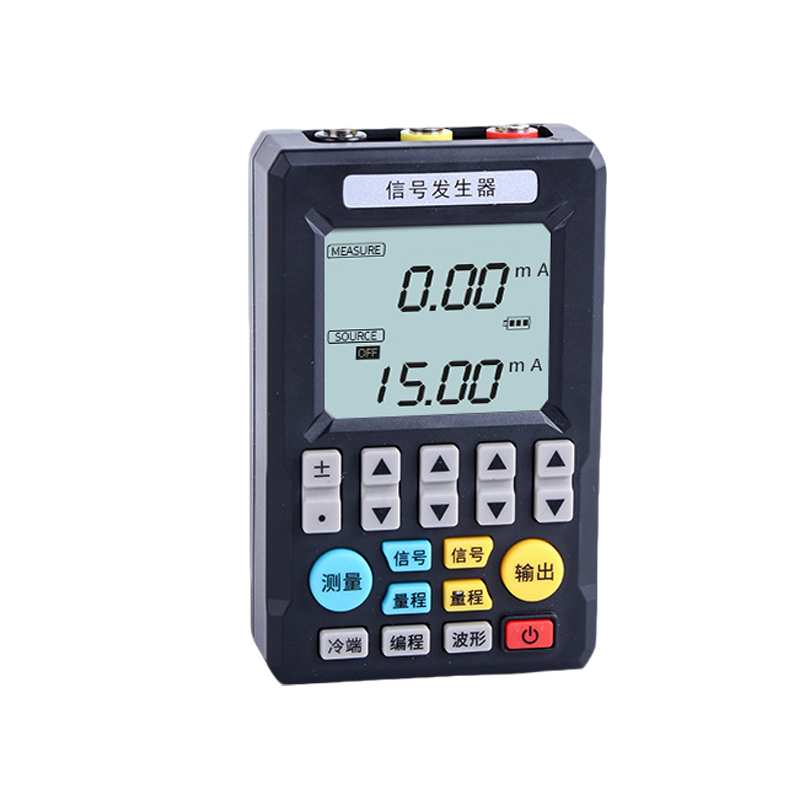

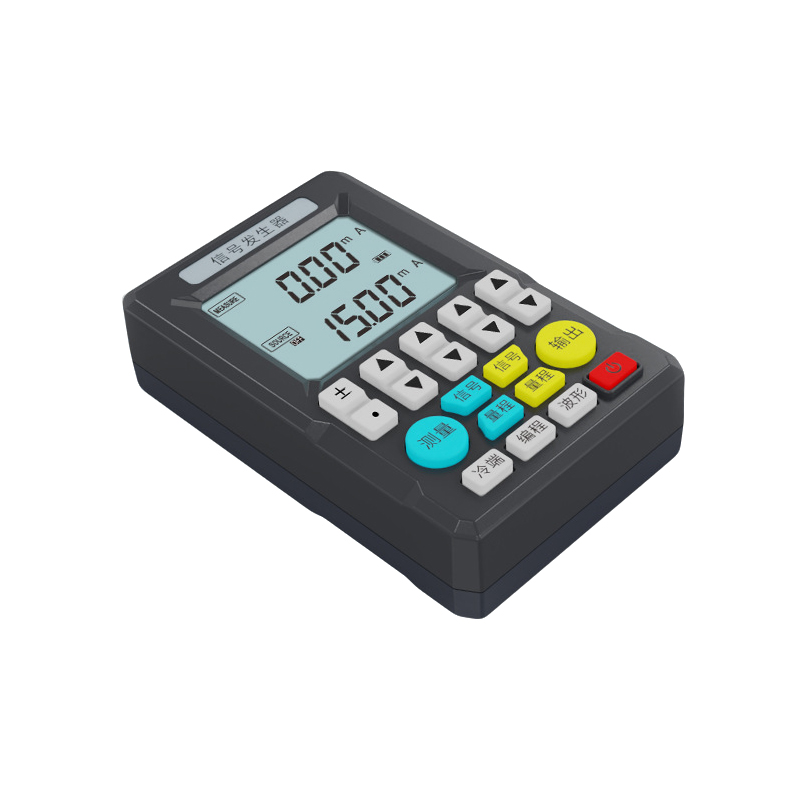

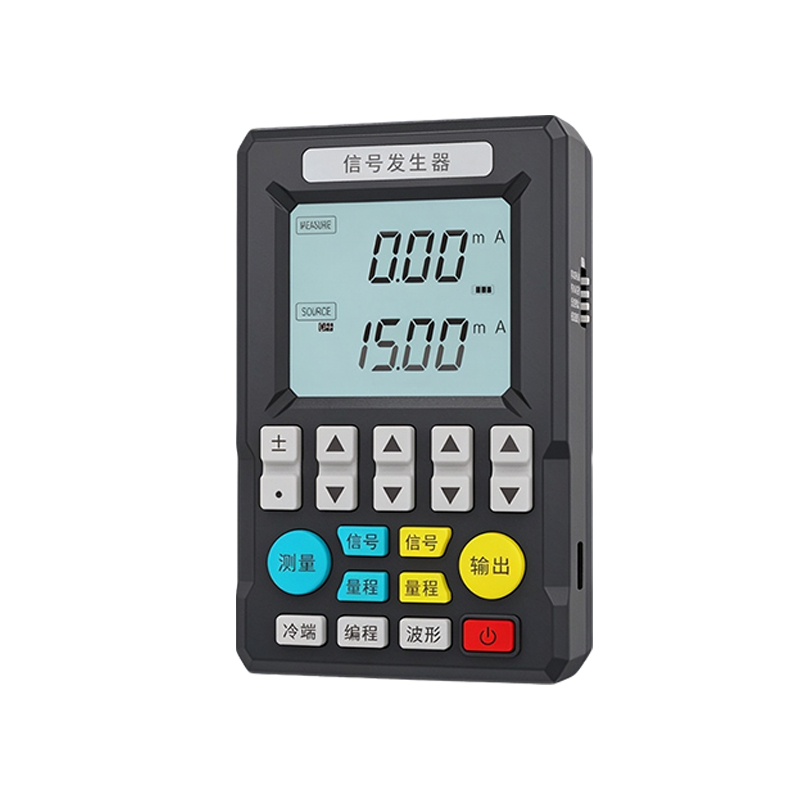

Handheld Multi-Functional Signal Generator, Portable 4-20mA Current Signal Calibrator with HD Display, Dry Battery Powered

  • Product Name: Signal Generator

  • Output Signals:

    Voltage Signal (0–15V, 0–24mV, 1–100mV)

    Current Signal (0–24mA, Passive 0–20mA)

    Thermocouple (K, E, J, T, R, B, S, N)

    RTD (PT100)

  • Operating Environment:

    Temperature: -10°C ~ 55°C

    Humidity: 20–80% RH (non-condensing)

  • Storage Temperature: -20°C ~ 70°C

  • External Dimensions: 115 x 71 x 30mm

  • Power Supply: 4 x AAA batteries or external phone charger / power bank

  • Power Consumption: 300mA

  • Battery Life: 7–10 hours at full load

  • Current Protection: 30V


Product Code:  07584

Description

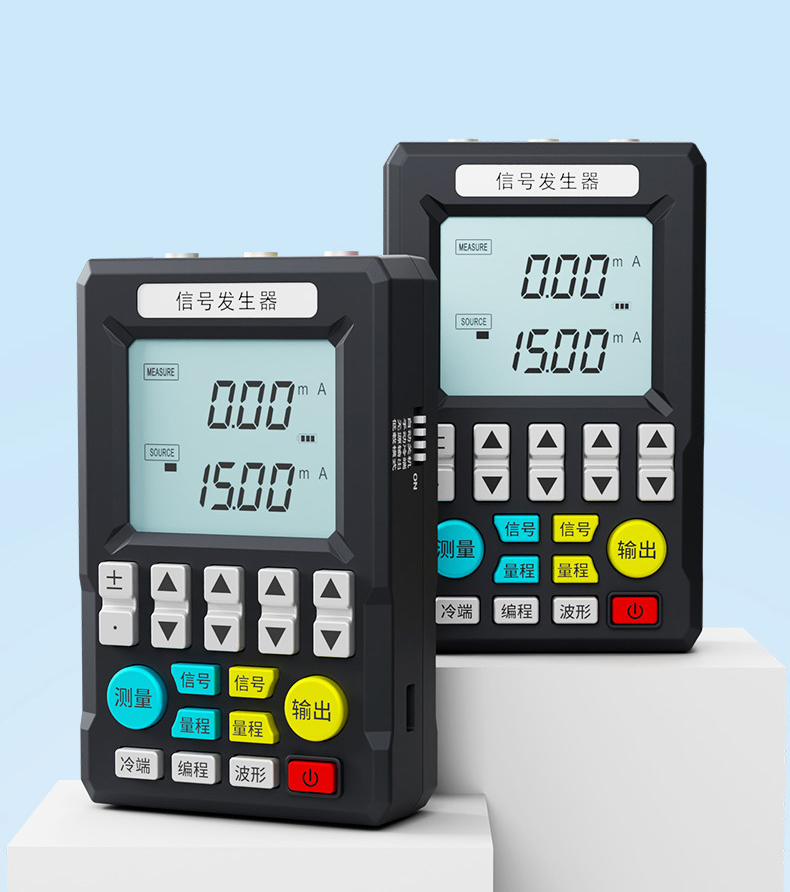

Multi-Functional Signal Generator

The Debugging Tool Engineers Trust


Genuine Materials – Quality You Can See

  • Terminal Block

  • HD Large Display Screen

  • Flexible DIP Switch

  • Conformal Coating Layer

  • SMT Mounting

  • Silicone Buttons

  • Dry Battery Powered

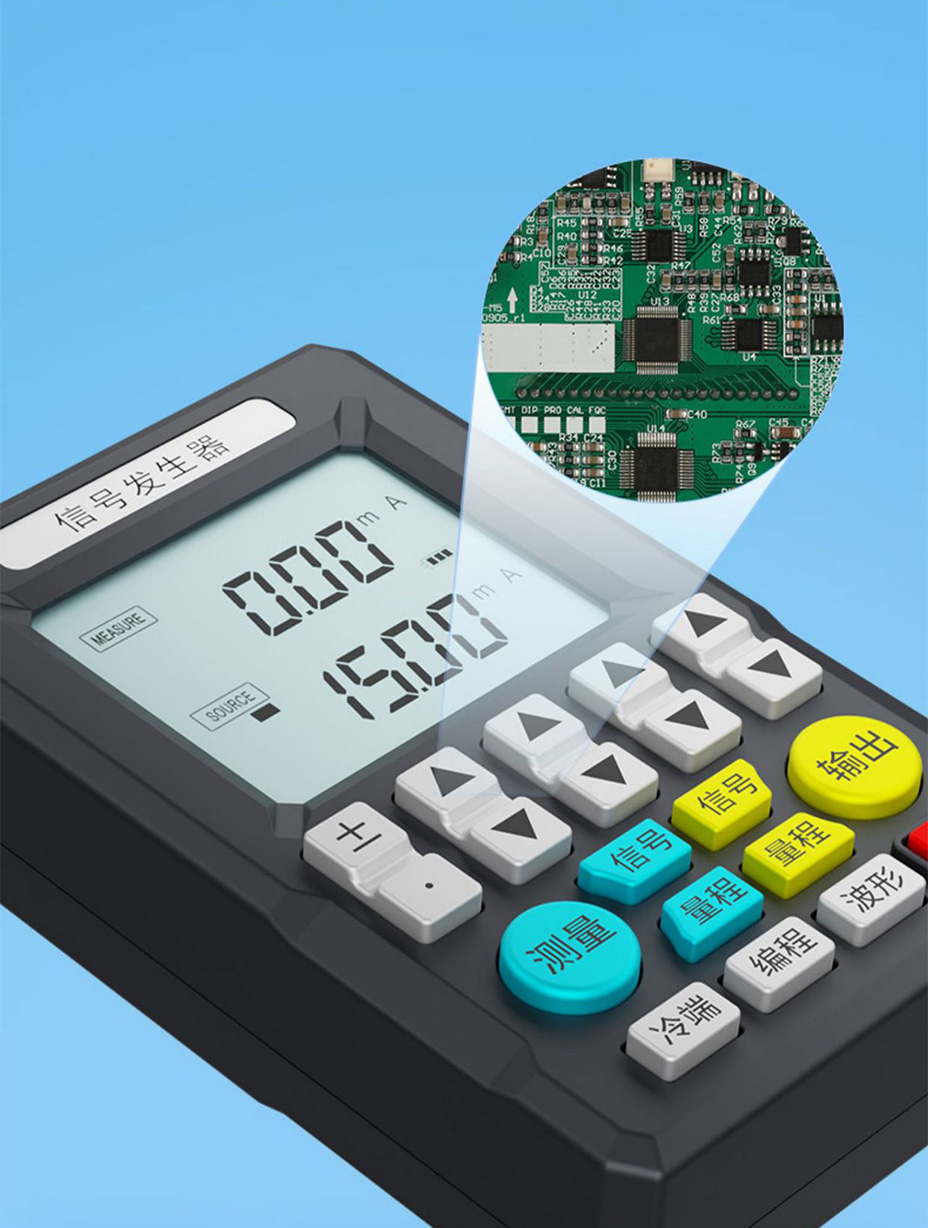

Selected Components & SMT Mounting

Conformal coating – waterproof and moisture-proof for greater stability


No More Charging Worries

Dry battery power solves on-site low battery issues

* Includes 4 x AAA batteries with your order

  • Battery Port: Can be powered via power bank for extended runtime

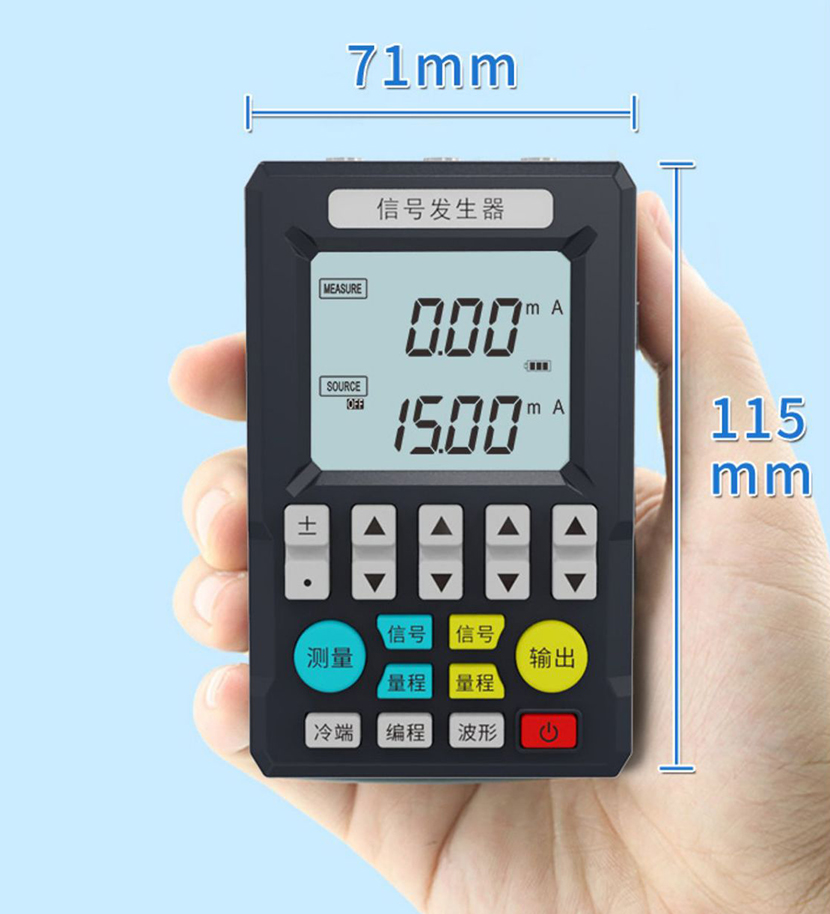

Compact Body – Powerful Performance

Multiple Signal Types Handled by One Machine

Dimensions: 71 x 115mm
