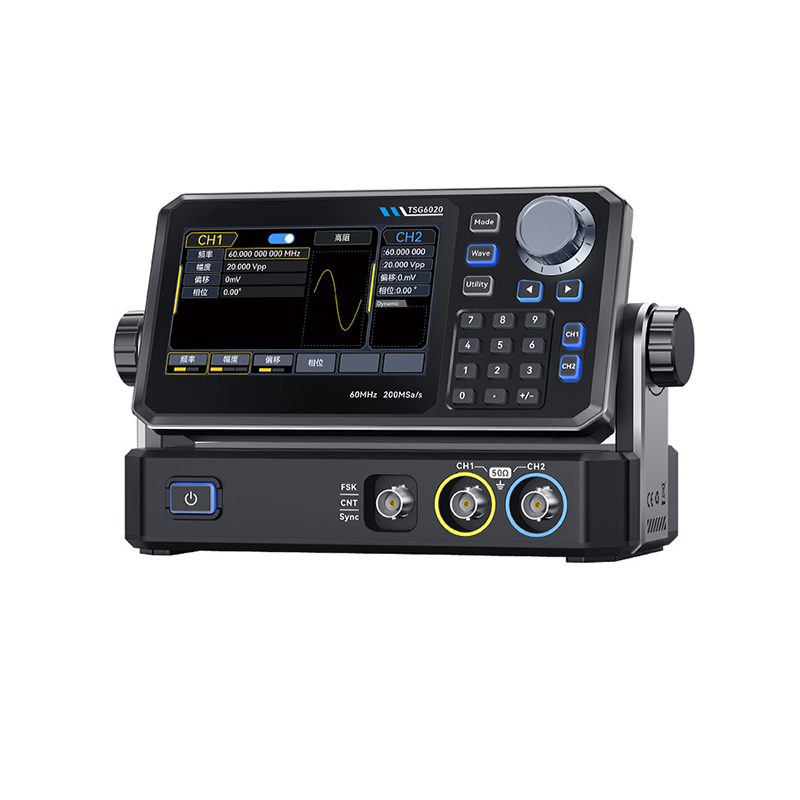

Dual Channel Function Signal Generator, 60MHz 200MSa/s Arbitrary Waveform Generator with 4.3 Inch Adjustable HD Touch Screen

  • Product Name: Signal Generator

  • Maximum Output Frequency: 60MHz

  • Sampling Rate: 200MSa/s

  • Vertical Resolution: 14-bit

  • Number of Channels: 2

  • Built-in Frequency Counter: 7-digit

  • Sine Wave Frequency: 1μHz ~ 60MHz

  • Square Wave Frequency: 1μHz ~ 24MHz

  • Pulse Wave Frequency: 1μHz ~ 24MHz

  • Modulation Functions: AM, FM, PM, FSK, ASK, PSK, Linear, Logarithmic

  • Maximum Output Amplitude: 20Vpp

  • Display: 4.3-inch TFT LCD, 480 horizontal x 272 vertical


Product Code:  07583

Description

Dual-Channel Function Signal Generator

60MHz Output Frequency

  • 200MSa/s Sampling Rate

  • 6 Modulation Functions

  • 14-bit Vertical Resolution

  • 7-Digit High-Precision Frequency Counter


Multiple Functions – All in One Machine

  • Output Frequency

  • Sampling Rate

  • Vertical Resolution

  • Dual-Channel Output

  • VeriPoint Technology

  • 4.3-inch HD Large Screen

  • Dual Operating System

  • ZeroSurge Technology

  • 7-Digit Frequency Counter

  • Frequency Sweep Function

  • Multi-Waveform Arbitrary Output

  • Touchscreen & Keyboard Dual Control

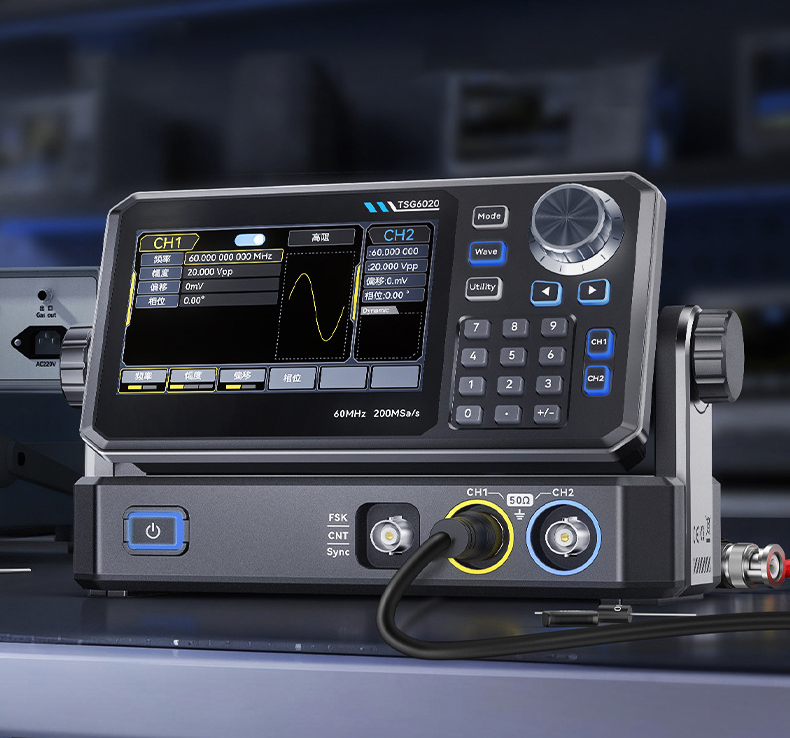

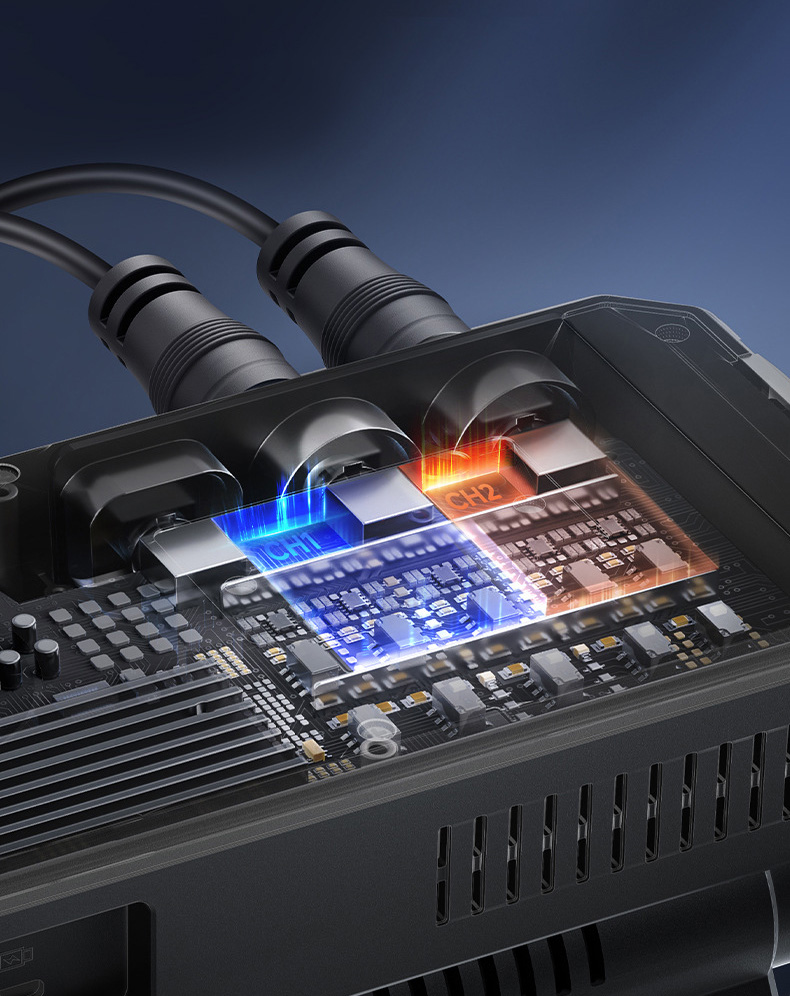

Equal-Performance Dual Channels – Precise Output

High-frequency high-amplitude output capability: at 60MHz frequency, still guarantees dual-channel 20Vpp full-amplitude output

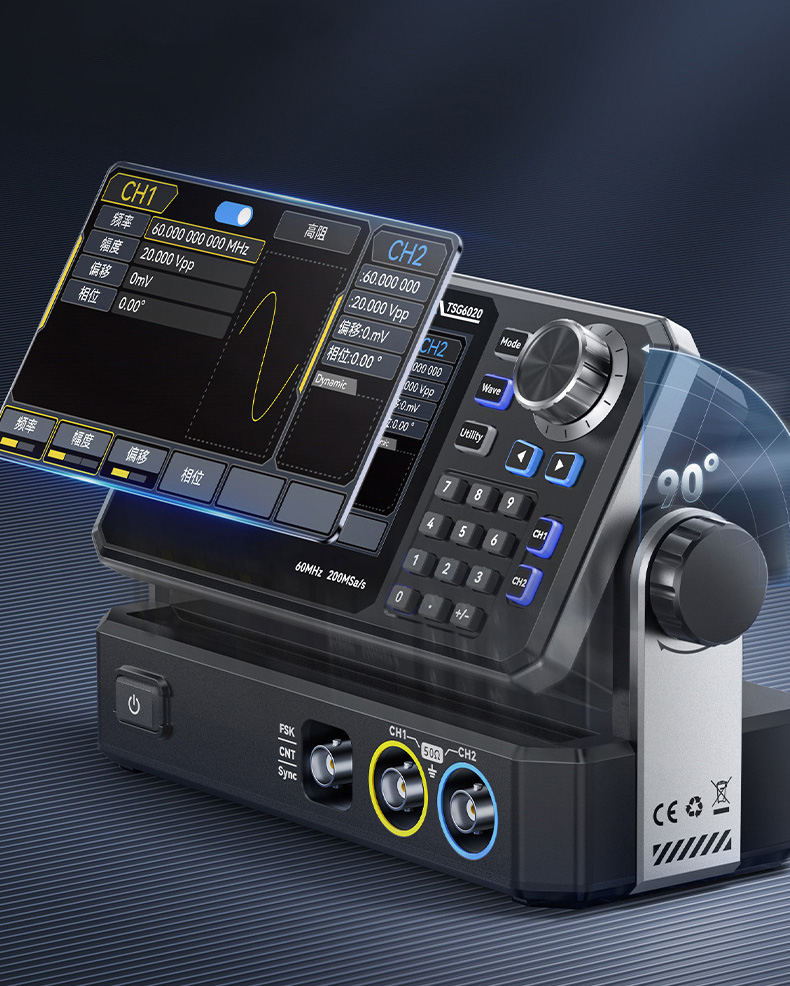

HD Large Screen Display – Adjustable Angle as You Wish

4.3-inch HD color screen for clearer display – 90° adjustable – more convenient for viewing and debugging

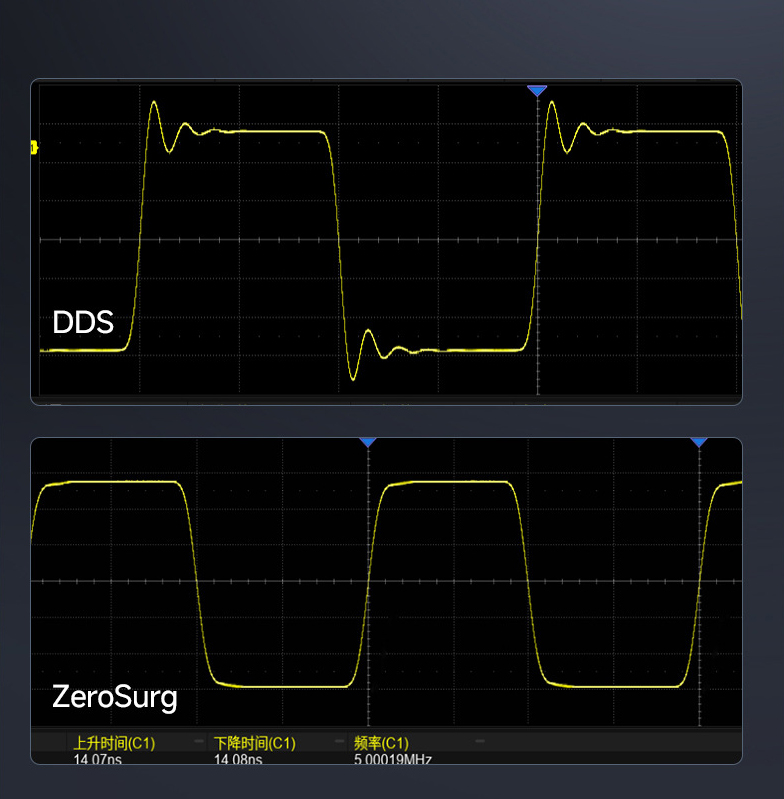

ZeroSurge Technology

Lower overshoot, faster edges, and higher precision for square/pulse/ramp wave output. Duty cycle, pulse width, edge, and symmetry are finely adjustable – overcoming the inherent defects of DDS in outputting pulses and arbitrary waves.

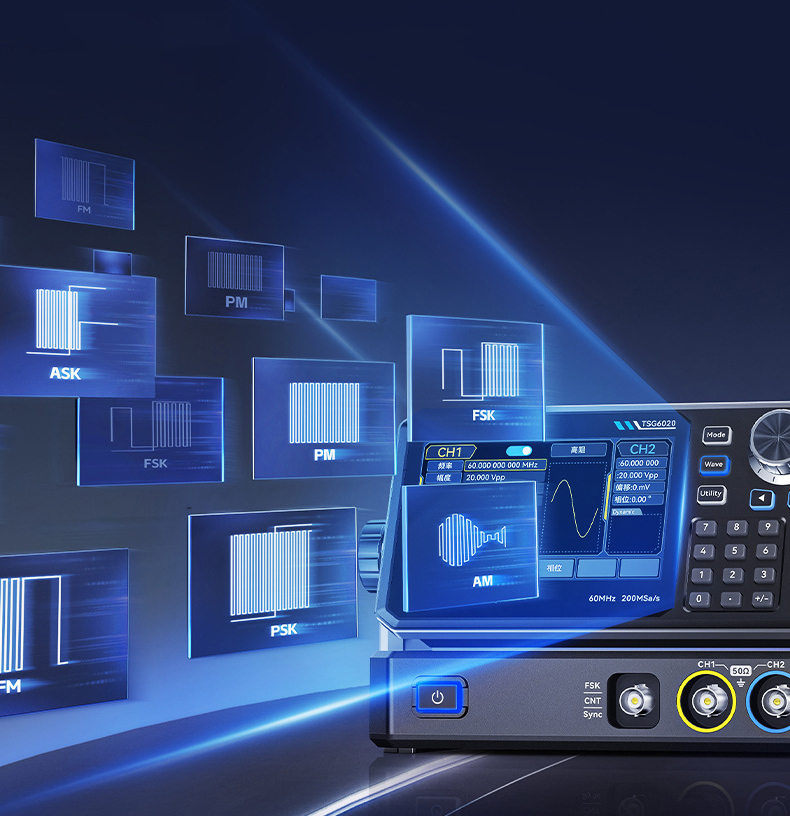

Rich Modulation Functions – Debug the Waveform You Want

Supports multiple modulation methods including AM, FM, FSK, ASK, PSK, and FSK

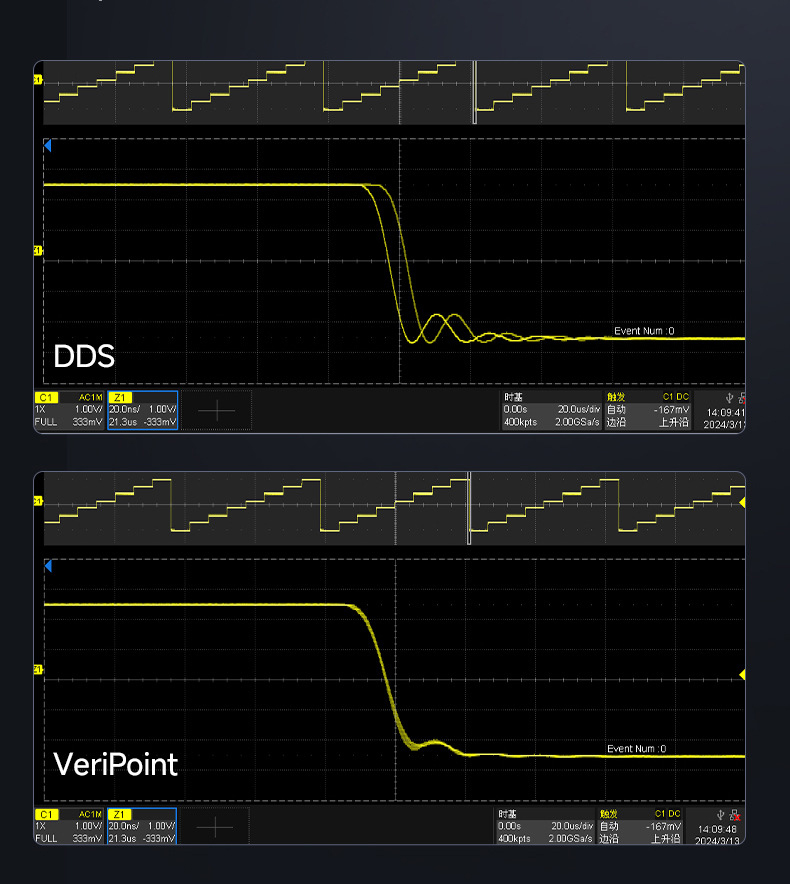

VeriPoint Technology

Adopts innovative VeriPoint technology – point-by-point arbitrary waveform output – with 1μSa/s ~ 200MSa/s stepless variable sampling rate – outputs low-jitter waveforms within 4Kpts length – retains all waveform details.

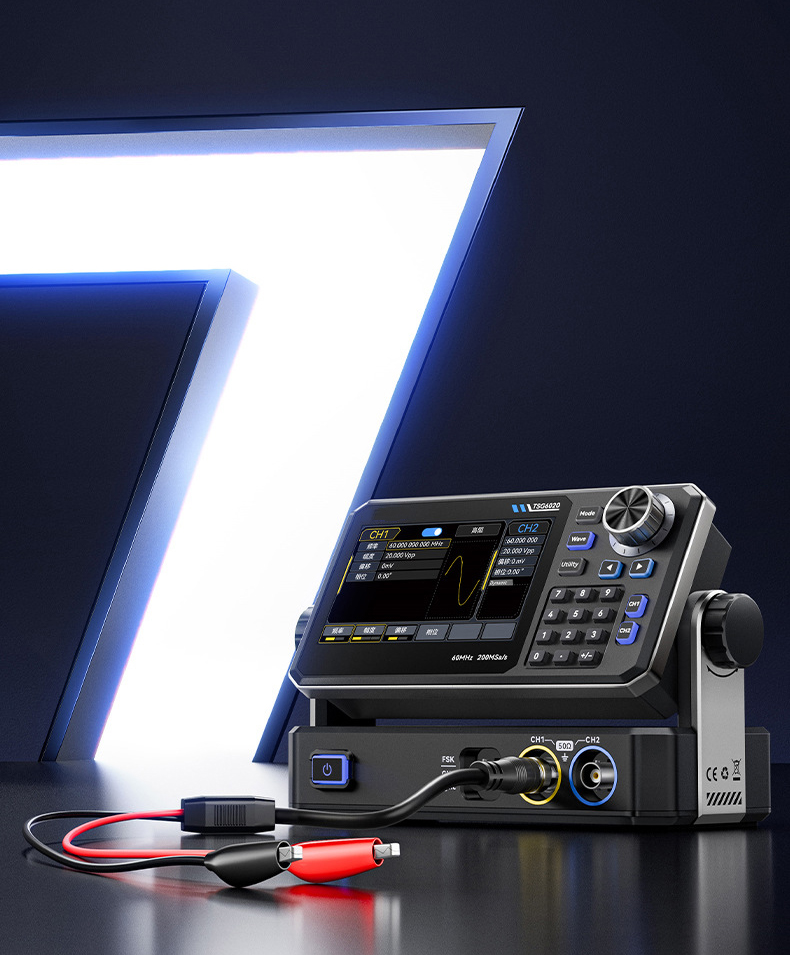

7-Digit High-Precision Frequency Counter

Compatible with TTL level signals

100mHz to 100MHz

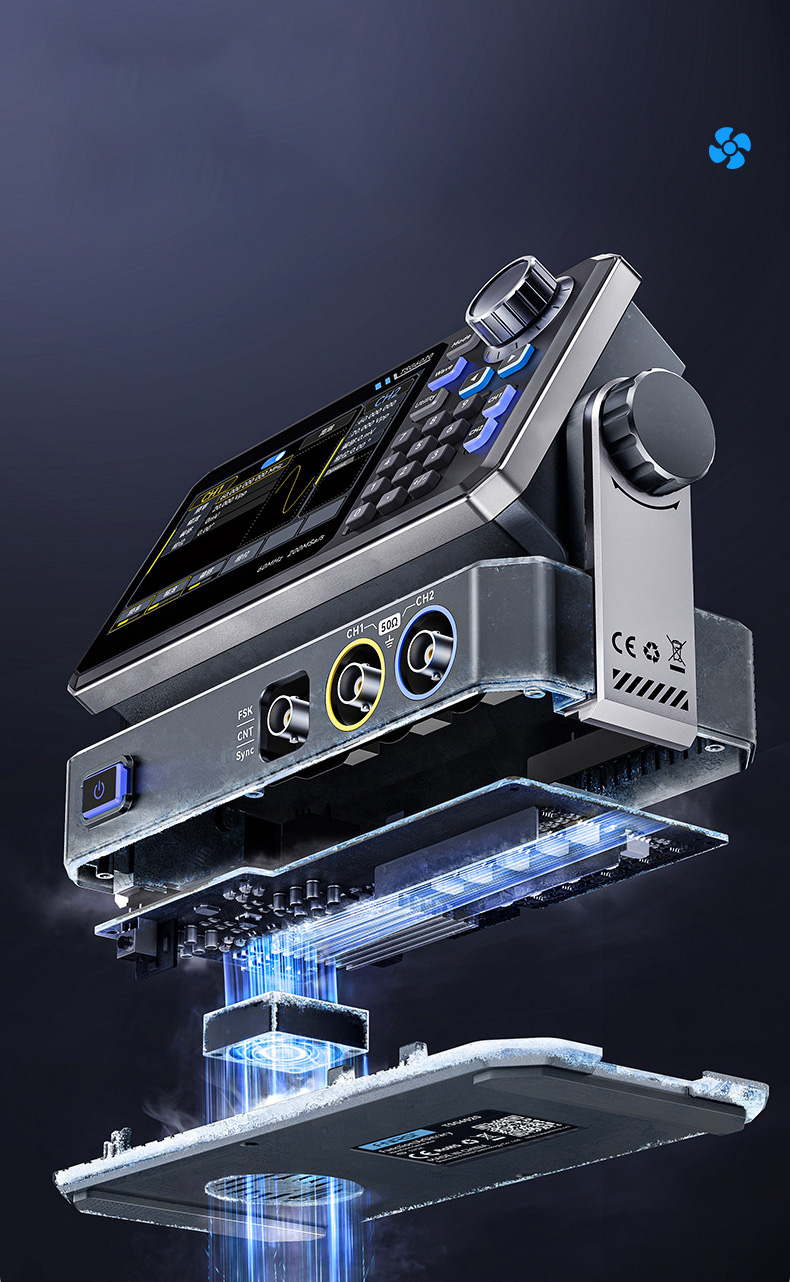

Powerful Heat Dissipation – Efficient Output

High-performance fan paired with aluminum alloy heat dissipation module – fast heat dissipation – always maintains optimal condition


Standard Type-C Power Supply

Bring a power bank and use it anytime, anywhere – meets on-site testing needs

  • 5V 2A Standard Power Supply

  • Mobile power bank – power supply anytime
