Infrared Thermometer

  • Product Name: Infrared Thermometer

  • Measurement Range: -50°C ~ 380°C (-58°F ~ 716°F)

  • Resolution: 0.1°C / 1°C (0.1°F / 1°F)

  • Accuracy: ±2% or ±2°C

  • Display: 4-digit (1999 count) LCD with backlight

  • Polarity: Check polarity when installing batteries – (–) indicates negative.

  • Emissivity: Fixed value – 0.95

  • Field of View (Distance-to-Spot Ratio): D/S ≈ 12:1 (D = distance, S = spot size) – (minimum 90% of focused energy)

  • Laser: Output < 1mW – wavelength 630–670nm – Class 2 laser

  • Infrared Response: 6–14μm

  • Auto Power-Off: Automatically shuts down after 7 seconds of inactivity.

  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)

  • Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)

  • Relative Humidity: 10%–90% RH operational – <80% RH for storage

  • Power Supply: 9V battery – NEDA1604A or IEC6LR61 or equivalent

  • Weight: 180g

  • Dimensions: 180 x 107 x 40 mm


Description

Specializing in Industrial Temperature Measurement

HTI Infrared Laser Thermometer – Fast Measurement – Minimal Temperature Deviation

Precision Non-Contact Thermometer

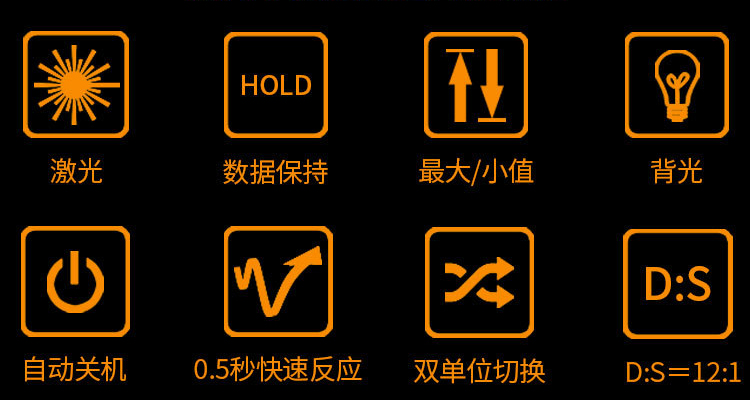

Laser Non-Contact Infrared Thermometer

  • Laser targeting

  • Data hold

  • Max / Min value display

  • Backlit display

  • Auto power-off

  • 0.5-second fast response

  • Dual unit switching (°C/°F)

  • D:S = 12:1


One-Button Operation – Comfortable Grip

Simple operation · One-touch control · Anti-slip design

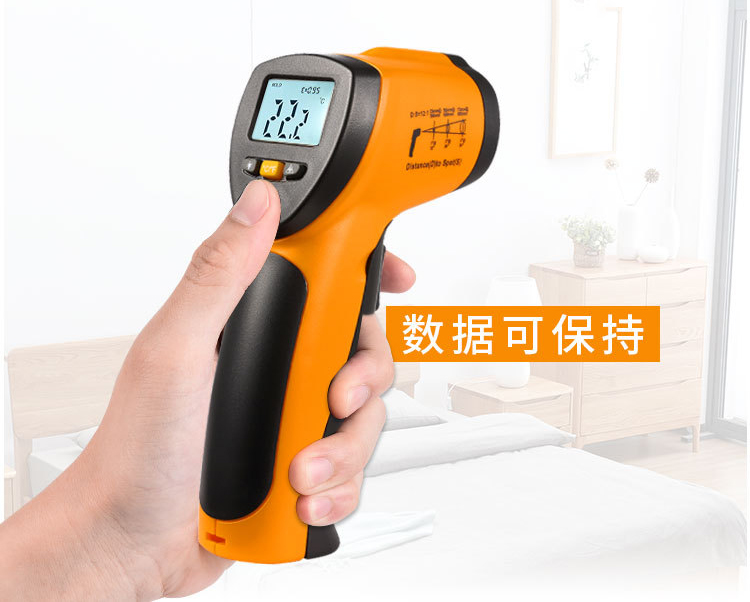

Data hold function

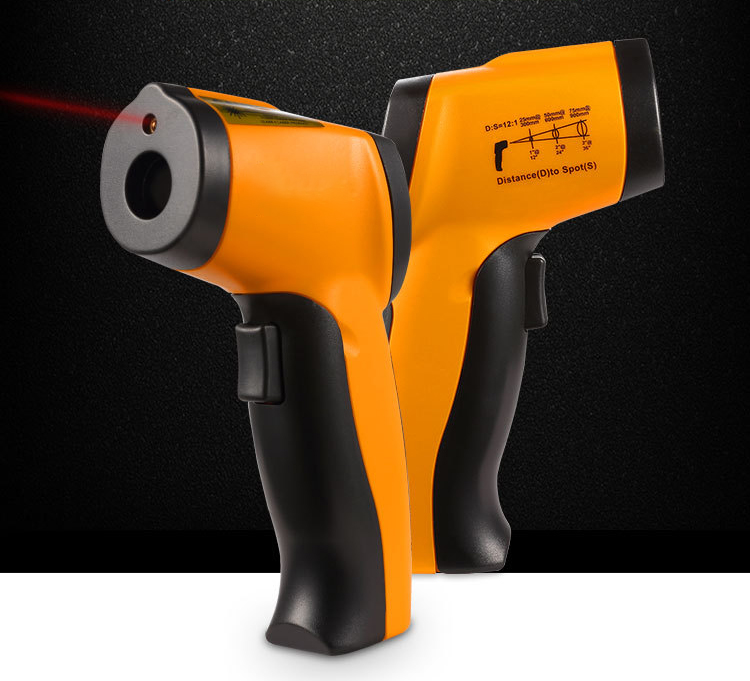

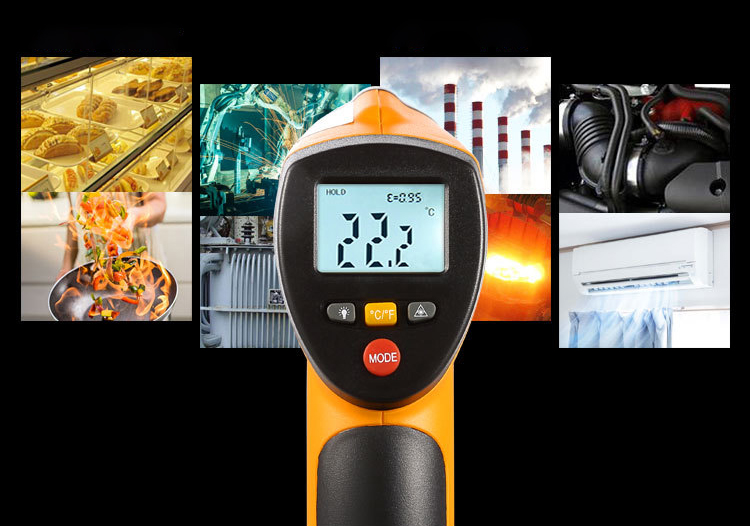

Laser Non-Contact Temperature Measurement – Mastering Various Fields

Laser-assisted targeting for quick and accurate centering of the measurement spot – non-contact measurement keeps you safely away from high-temperature objects.

  • Baking & Cooking

  • Industrial & Mechanical

  • Chemical & Smelting

  • Auto Repair & HVAC


Breaking Tradition – Built-in Backlight Function

Clear readings even in the dark

Measurement anytime, day or night

Convenience you can see

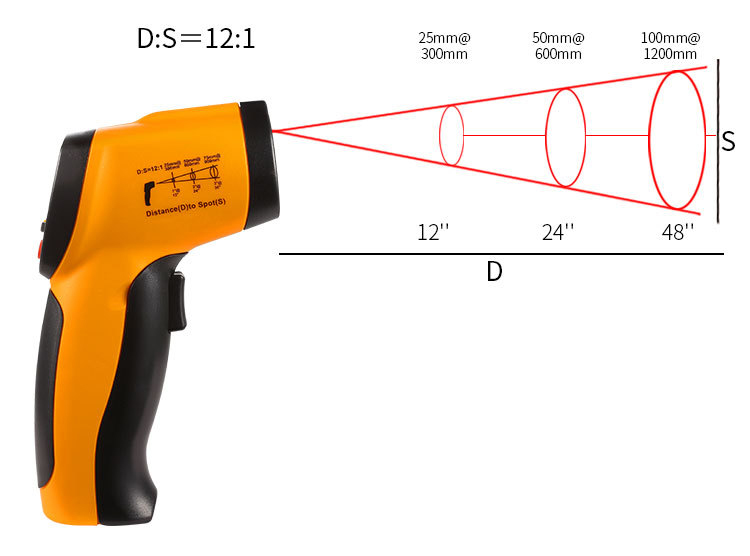

D:S Ratio Up to 12:1

Longer effective measurement distance – safer testing

  • Distance-to-Spot Ratio:

    The laser emissivity ratio is 12:1 – this means that if the target object is 12 inches away, the target size must be at least 1 inch in diameter.

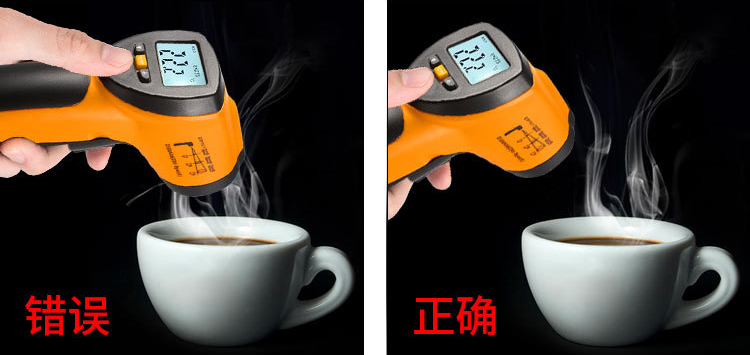

Measurement Method Guide

When measuring boiling liquids, do not allow smoke or water vapor to come into contact with the sensor. Hold the thermometer at a 45°–60° angle to the liquid surface with the sensor hole facing the liquid.


Industrial Thermometer (Not for Human Body Use)

Do not use for measuring human body temperature!

Do not point the laser directly at the eye or at reflective surfaces that could redirect the laser toward the eye, as this may cause injury!

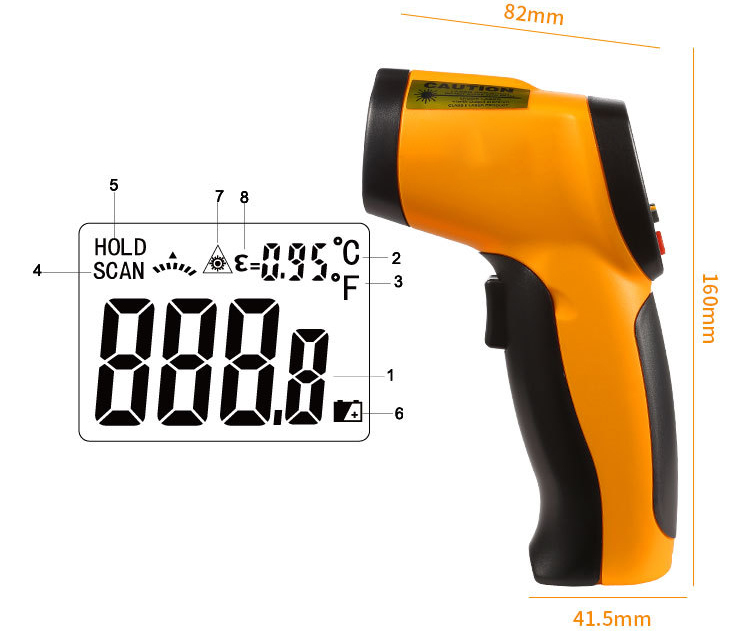

  1. Measurement Display Reading

  2. Temperature °C

  3. Temperature °F F

  4. Measurement indicator

  5. Data hold

  6. Low battery

  7. Laser on indicator

  8. Fixed emissivity 0.95

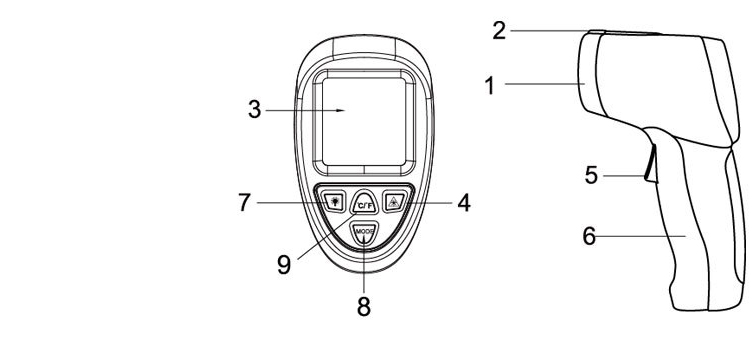

  1. Infrared sensor

  2. Laser sight / Laser pointer

  3. LCD display

  4. Laser button

  5. Measurement trigger

  6. Battery cover

  7. Backlight button

  8. MODE button

  9. Temperature unit switch button
