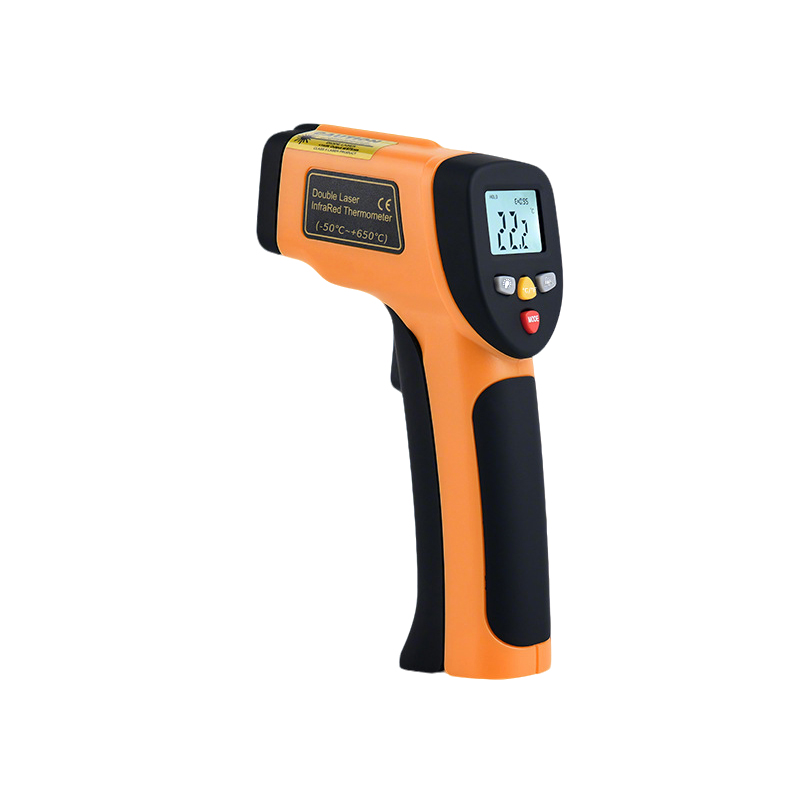

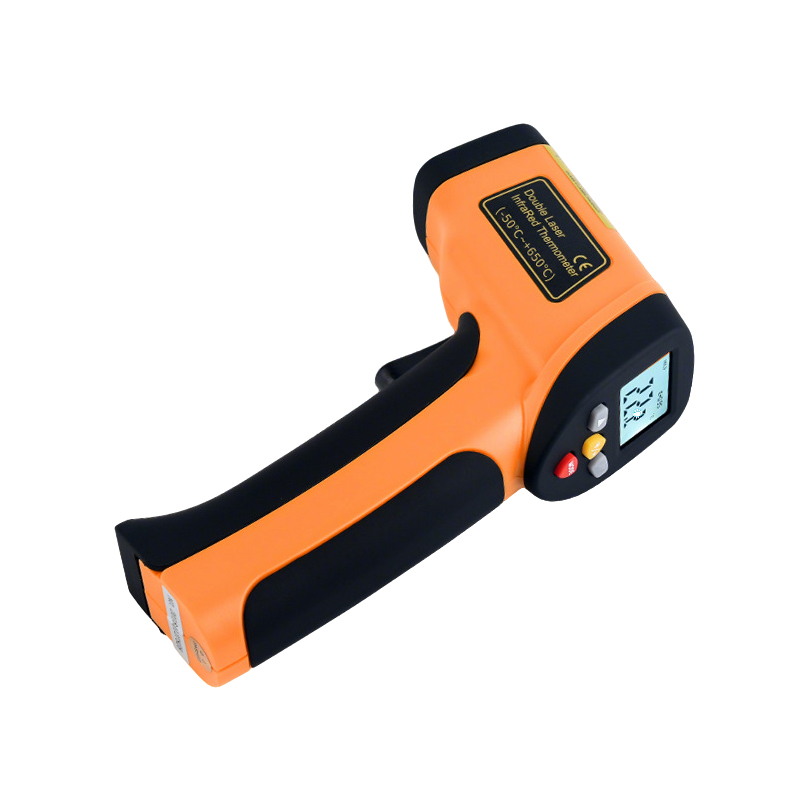

Infrared Thermometer

  • Product Name: Infrared Thermometer

  • Measurement Range: -50°C ~ 650°C

  • Resolution: 0.1°C

  • Accuracy:

    -50°C to -20°C: ±5°C

    -20°C to 650°C: ±2°C

  • Display: 3-1/2 digit (1999 count)

  • Sampling Rate: 2.5 times/second

  • Polarity: Automatic – positive not indicated – “-” indicates negative

  • Emissivity: Fixed emissivity 0.95

  • Field of View (Distance-to-Spot Ratio): 12:1

  • Laser Power: < 1mW

  • Spectral Response: 6–14μm

  • Auto Power-Off: Automatically shuts down after approximately 7 seconds

  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)

  • Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)

  • Relative Humidity: 10%–90% RH storage – <80% RH operational

  • Power Supply: 9V battery – NEDA1604A or IEC6LR61 or equivalent

  • Weight: 130g

  • Dimensions: 31mm x 90mm x 165mm


Description

We Specialize in Industrial Temperature Measurement

HTI Infrared Laser Thermometer – Fast Measurement – Minimal Temperature Deviation

Precision Non-Contact Thermometer


Why Choose Us

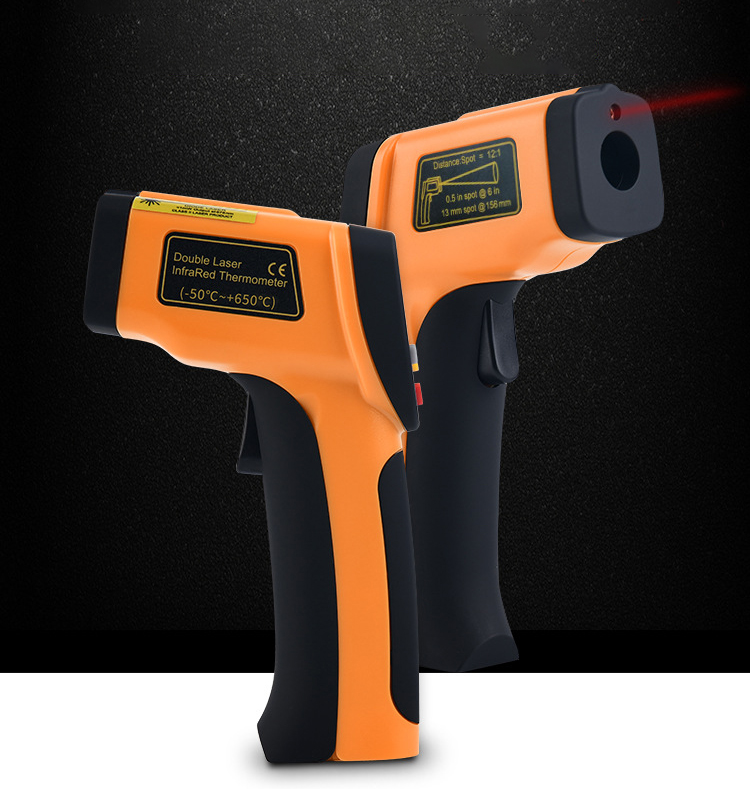

Laser Non-Contact Infrared Thermometer

  • Laser targeting

  • Data hold

  • Max / Min value display

  • Backlit display

  • Auto power-off

  • 0.5-second fast response

  • Dual unit switching (°C/°F)

  • D:S = 12:1

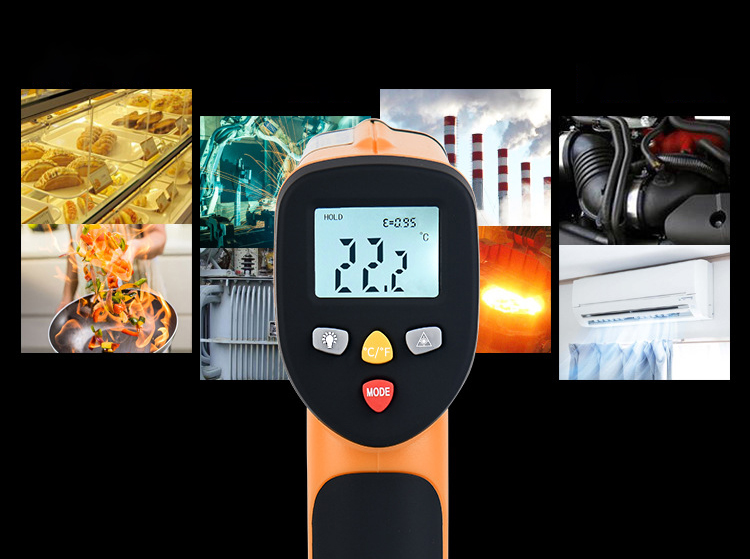

Laser Non-Contact Temperature Measurement – Mastering Various Fields

Laser-assisted targeting for quick and accurate centering of the measurement spot – non-contact measurement keeps you safely away from high-temperature objects.

  • Baking & Cooking

  • Industrial & Mechanical

  • Chemical & Smelting

  • Auto Repair & HVAC

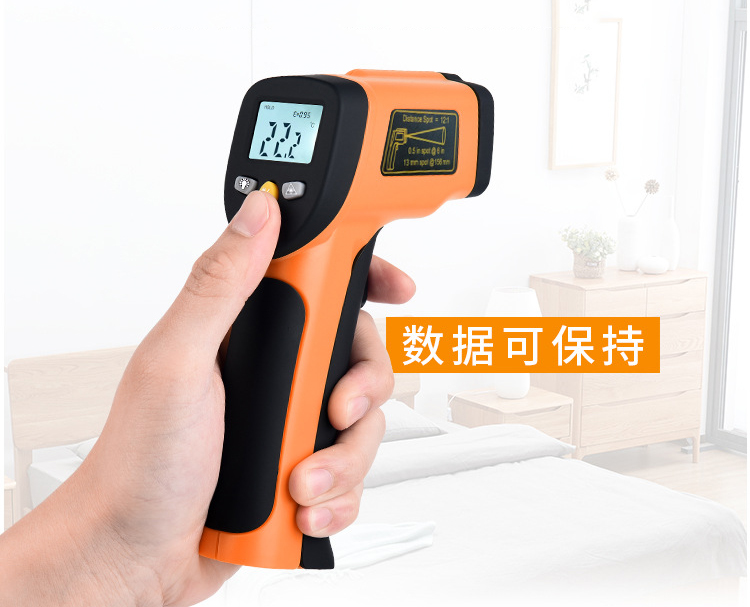

One-Button Operation – Comfortable Grip

Simple operation · One-touch control · Anti-slip design

Data hold function


Auto-ranging

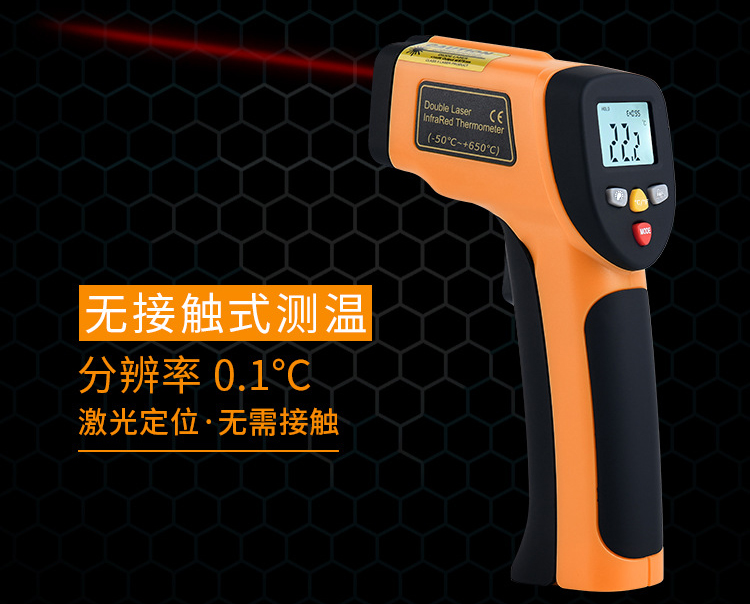

Non-contact temperature measurement

0.1°C resolution

Laser targeting · No contact required


Breaking Tradition – Built-in Backlight Function

Clear readings even in the dark

Measurement anytime, day or night

Convenience you can see

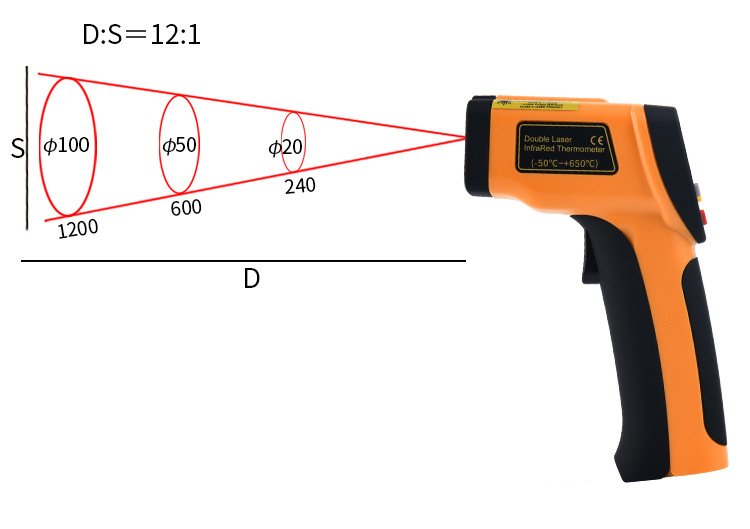

D:S Ratio Up to 12:1

Longer effective measurement distance – safer testing

Distance-to-Spot Ratio:

The spot diameter (S) represents the 90% energy circle. The spot diameter (S) increases as the measurement distance (D) increases.

Optimum measurement distance: 20cm – ensure the target size is larger than the spot size during measurement.


Measurement Method Guide

When measuring boiling liquids, do not allow smoke or water vapor to come into contact with the sensor. Hold the thermometer at a 45°–60° angle to the liquid surface with the sensor hole facing the liquid.


Industrial Thermometer (Not for Human Body Use)

Do not use for measuring human body temperature!

Do not point the laser directly at the eye or at reflective surfaces that could redirect the laser toward the eye, as this may cause injury!

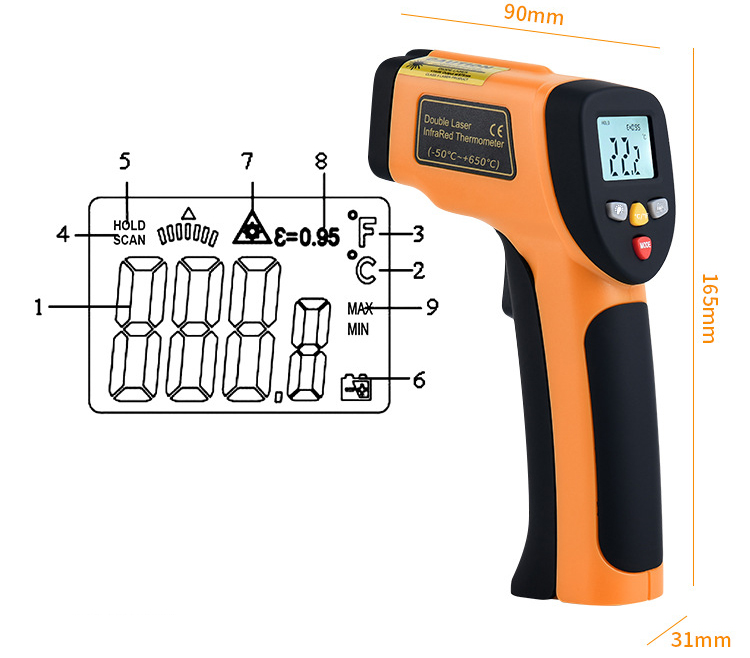

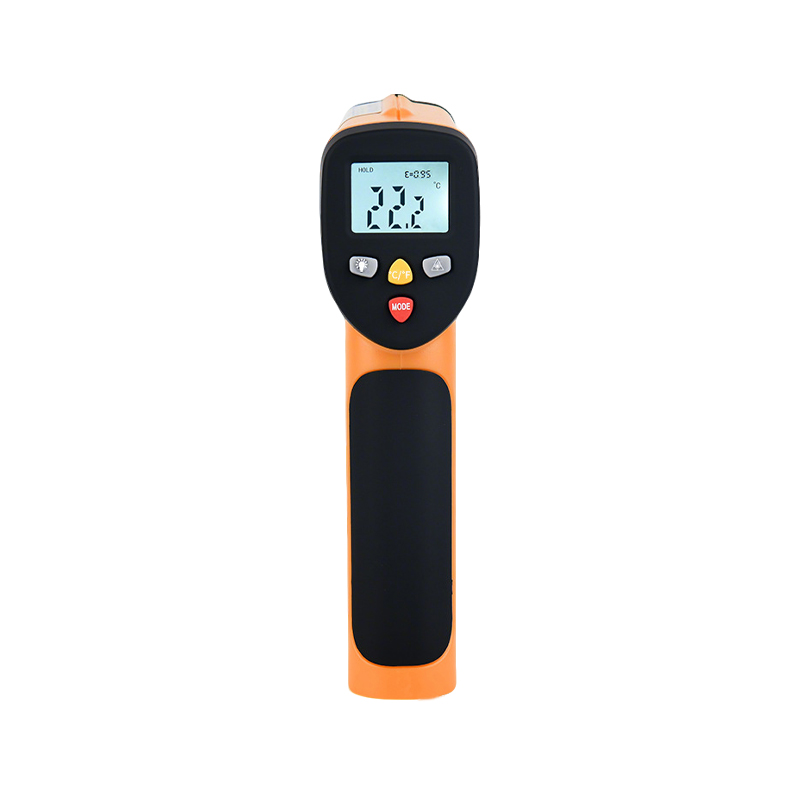

  1. Measurement Display Reading

  2. Temperature °C

  3. Temperature °F

  4. Measurement display

  5. Data hold

  6. Low battery

  7. Laser on indicator

  8. Fixed emissivity 0.95

  9. Max / Min value

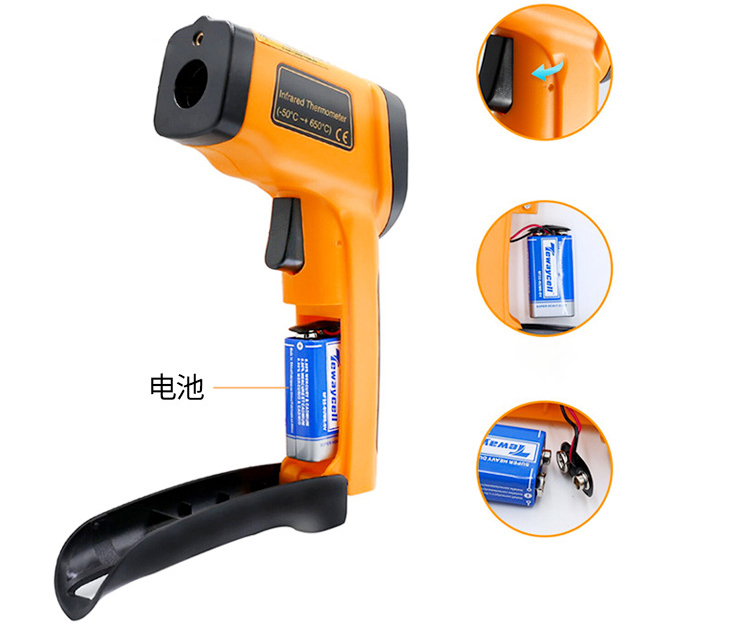

  • Battery

  1. Open the battery cover.

  2. Insert the battery into the battery compartment.
