Law Enforcement Body Camera
Product Name: Law Enforcement Body Camera
Max Photo Resolution: 16MP (4608 x 3456)
Max Video Resolution: 1080P / 720P HD recording
LED Night Vision Infrared LEDs: 5 high-brightness 850nm infrared LEDs – 1 high-brightness white LED fill light
Memory: 32GB (external expansion up to 128GB)
Lens: Ultra-wide angle – 105°
Charger: 5V / 2A fast charger adapter
Interfaces: Mini 5-pin USB port / Multi-function port (supports external camera connection)
Exterior Dimensions: 99mm x 61mm x 26mm
Battery Capacity: 2850mAh polymer battery
Protection Rating: IP67 (all-weather use)
Description

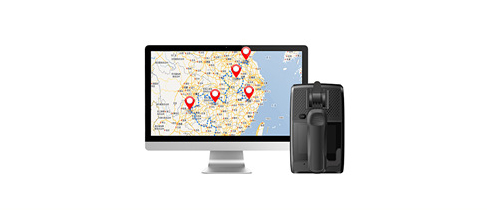

Global Positioning + Movement Track Playback
The 4G body camera can be equipped with a built-in Beidou/GPS module – Beidou/GPS positioning information can be embedded in the videos and photos captured by law enforcement personnel – providing accurate shooting location data for future file review. It also transmits real-time location data to the backend server – through the backend management software, supervisors can monitor personnel locations in real time and replay their movement tracks.

High-Level Triple Protection – IP67
IP67 dustproof and waterproof – high-precision structure – stable quality and strong durability – the product's texture, performance, and protection rating have reached a high standard.

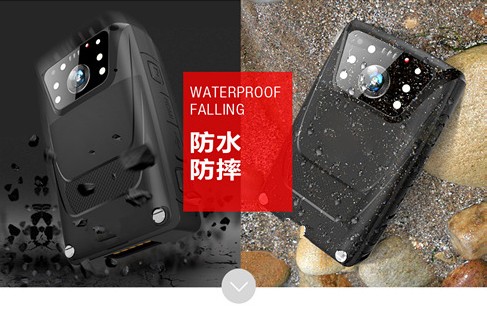

Waterproof & drop-resistant

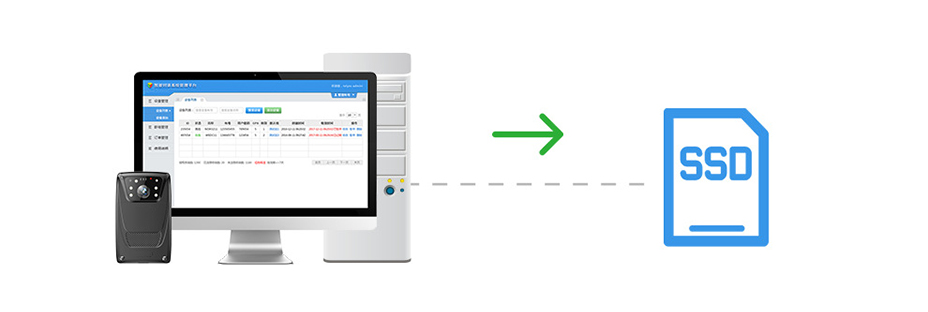

Triple Data Storage
Supports triple storage – device storage, PC client storage, and server storage – also supports log query functionality.

105° Wide-Angle Lens + 16MP Photo Resolution
The T5 features an imported built-in lens with over 105° wide-angle – effectively ensures distortion-free recording – paired with a new-generation high-end movie CCD sensor – automatically adjusts white balance and light sensitivity – produces high-definition image quality.

Key File Marking + One-Key Alarm Function

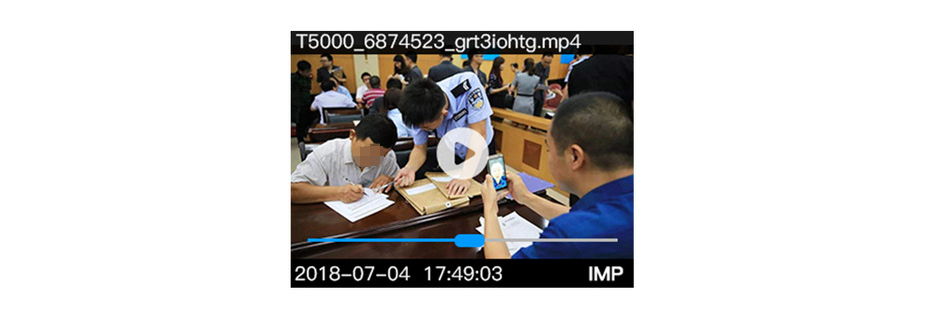

During recording, important video files can be marked by pressing the corresponding button – generated files are prefixed with "IMP" – ensuring important files are prioritized for collection, upload, and long-term preservation without being overwritten. Long press the key marking button for more than 3 seconds – the backend window icon flashes a warning status + alarm sound alert + forced opening of the video window – enabling the command center to respond accordingly and save data.

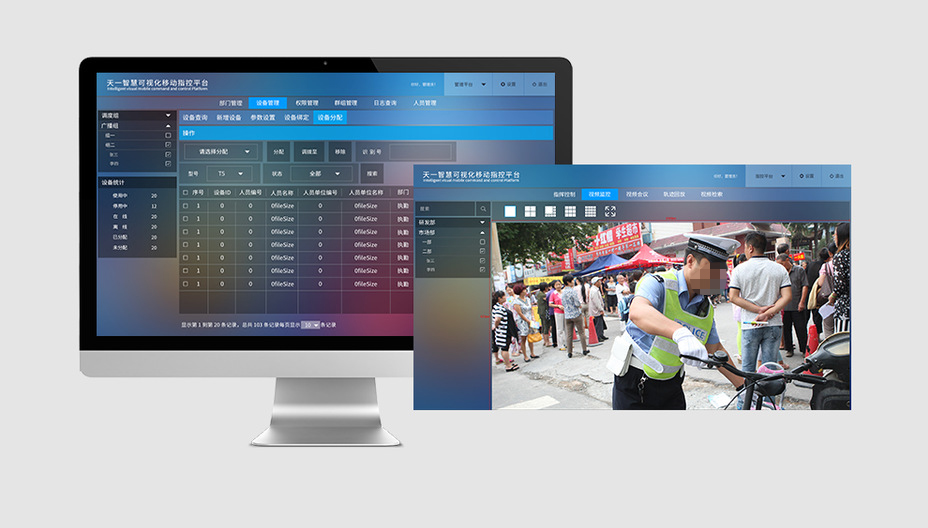

Platform Remote Data Retrieval
The software system allows authorized supervisors to remotely log in to the server via the network – retrieve and view audio/video files stored on the server – through online playback and analysis – truly reconstruct the scene of the incident.

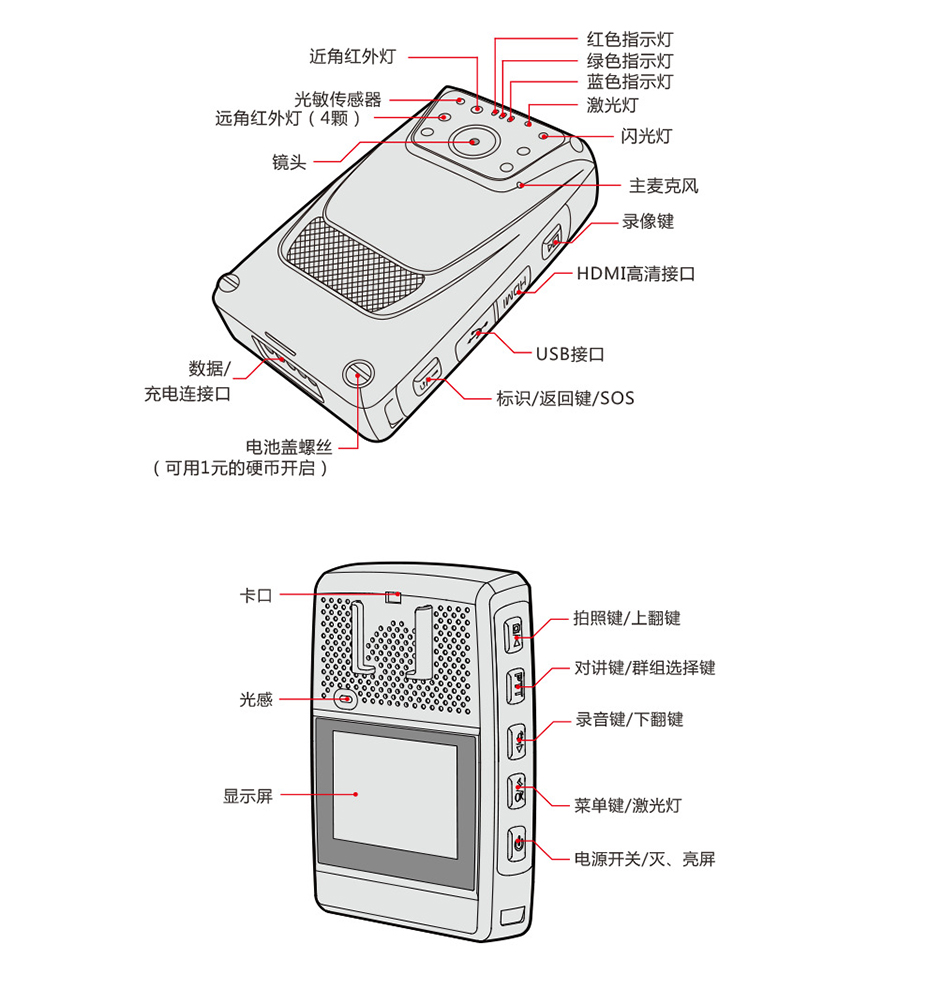

Component Guide
Near-angle infrared light
Red indicator light
Green indicator light
Blue indicator light
Light sensor
Laser light
Far-angle infrared lights (4 units)
Flashlight / Flash
Lens
Main microphone
Record button

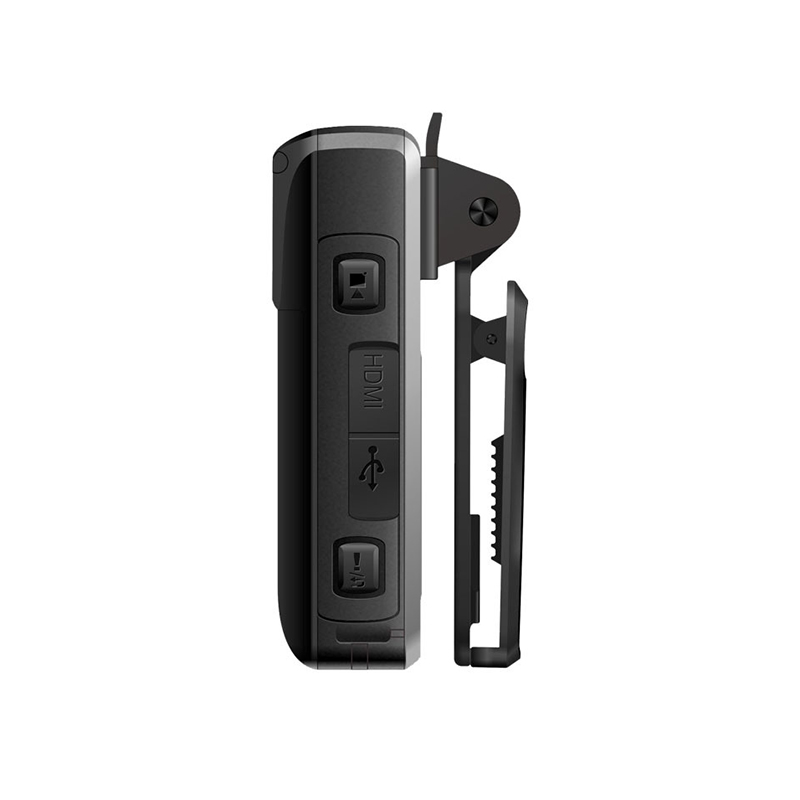

HDMI port
USB port
Data / Charging connector
Mark / Back / SOS button
Battery cover screw (can be opened with a 1-yuan coin)

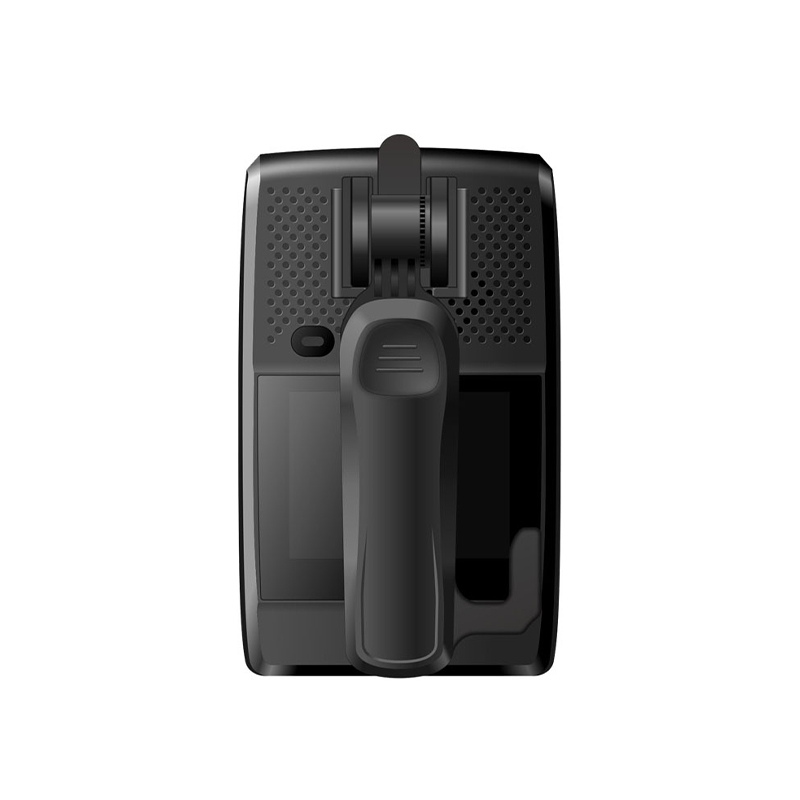

Mount / Bracket Slot
Light Sensor
Display

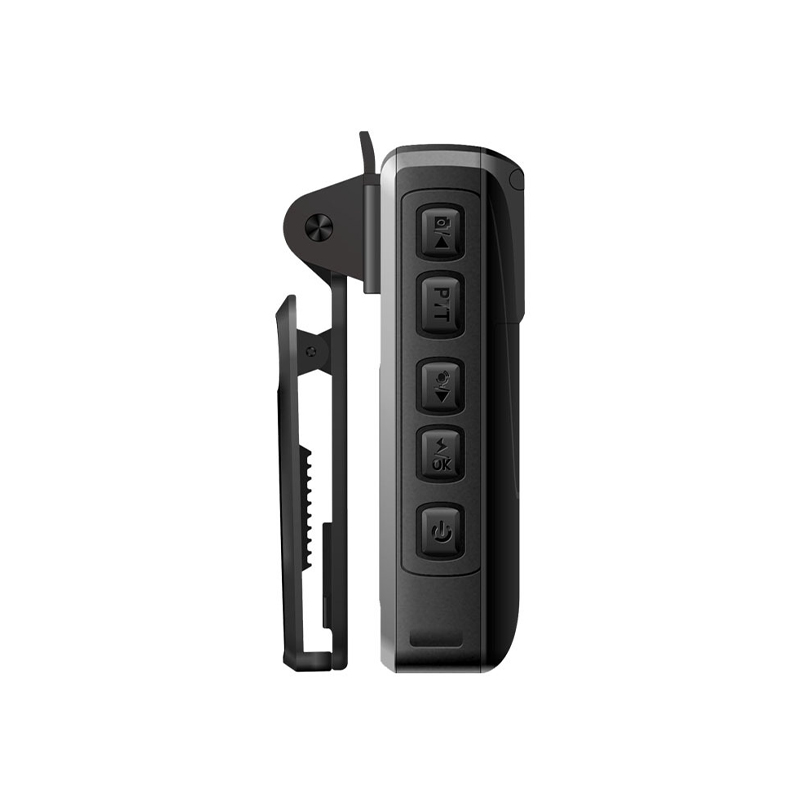

Photo Button / Up Button
Intercom Button / Group Selection Button
Audio Record Button / Down Button
Menu Button / Laser Light
Power Switch / Screen On/Off
