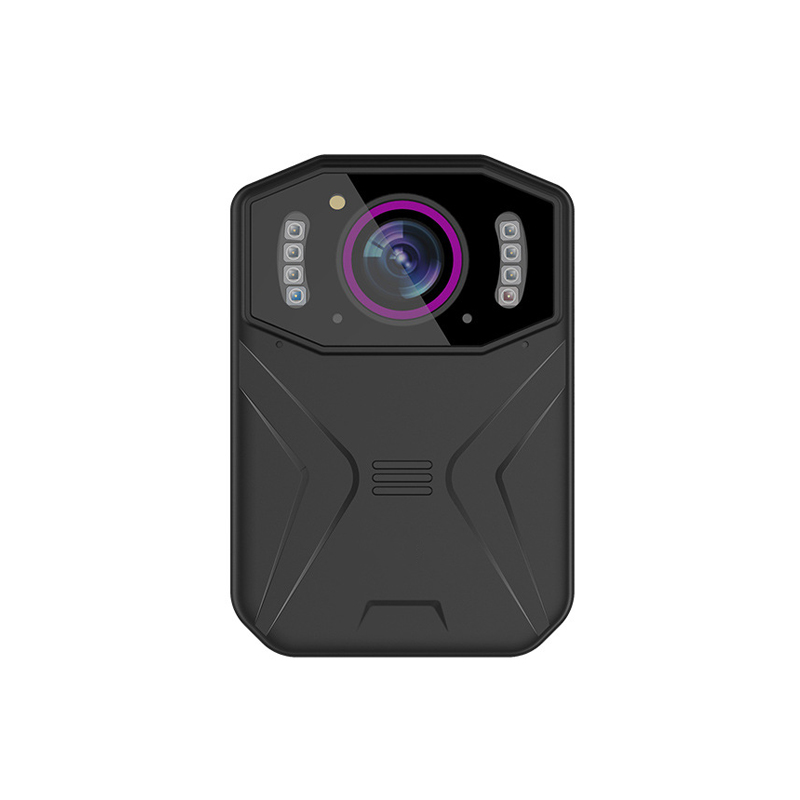

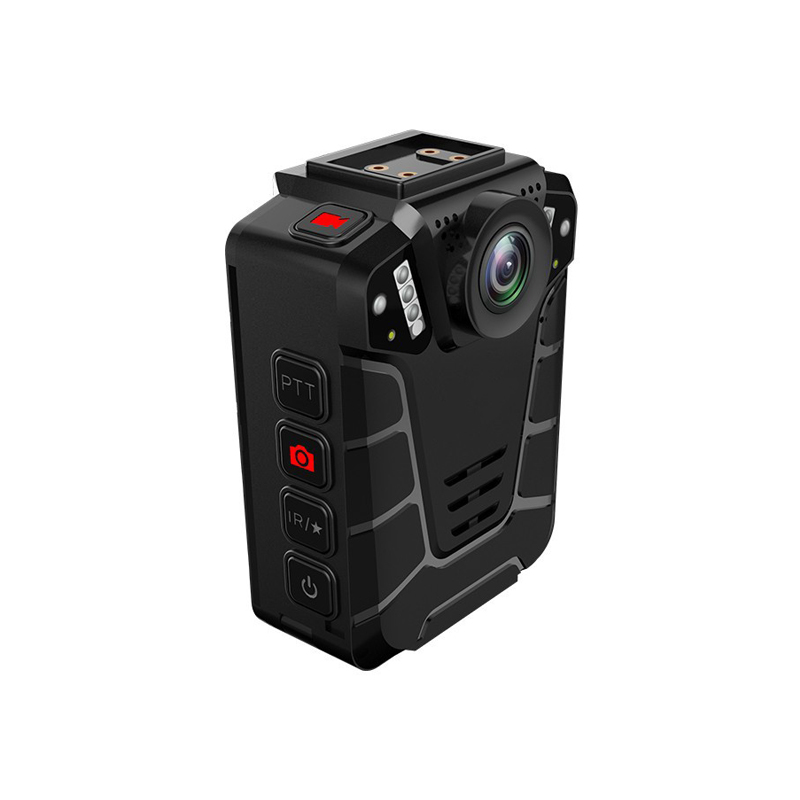

Law Enforcement Body Camera

  • Product Name: Law Enforcement Body Camera

  • Reference Recording Time (32GB):

    Stereo recording mode: approx. 44 hours

    Long-duration recording mode: approx. 160 hours

  • Built-in Memory Type: C10 TF card

  • Mass Storage (PC): Yes

  • Mass Storage: Supports up to 128GB (max)

  • Headphone Jack: 2.5mm

  • HDMI: HDMI type D

  • AV Input: 2.5mm

  • AV Output: 2.5mm

  • Removable Lithium Battery: 1950mAh

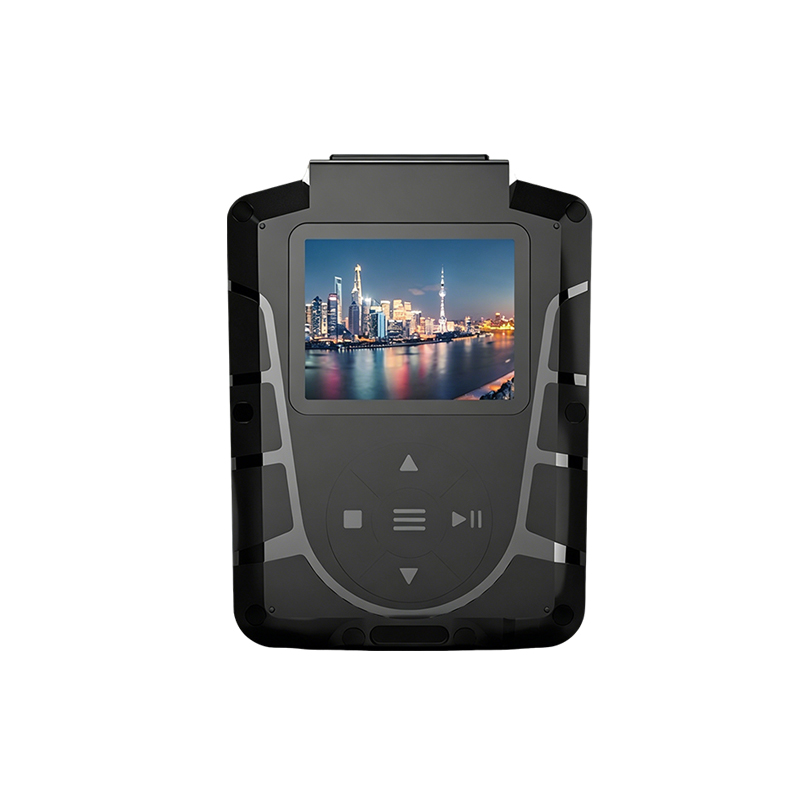

  • HD High-Brightness Display: 1.5 inches

  • Night Vision Infrared LEDs: 4

  • Light Sensor: Eco-friendly photoresistor

  • Laser Positioning: Class II

  • Recording Audio Types: Stereo, Long-duration

  • Video Resolutions: 1920x1080 @ 30fps, 1280x720 @ 60fps, 1280x720 @ 30fps, 848x480 @ 60fps, 848x480 @ 30fps

  • Wide-Angle Lens: 170° wide angle

  • Photo Resolution: 32MP

  • Compatible Operating Systems: Windows 10/8/7/XP/Vista/2000, Mac OS, Linux

  • Menu Languages: Simplified Chinese, Traditional Chinese

  • Dimensions: 59 x 28 x 79 mm

  • Weight (with battery): 170g

  • Temperature Range: -30°C to 55°C

  • Humidity: 10% – 90%, non-condensing


Description

Recording for Evidence Collection

Restores the truth / On-site reality

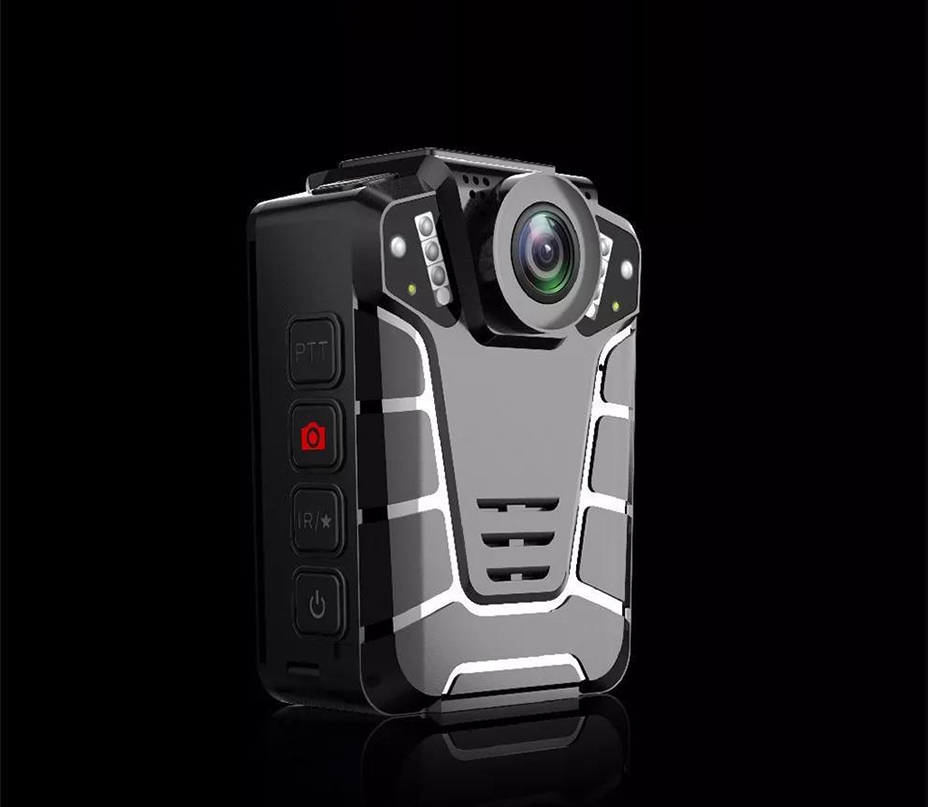

Powered by the Ambarella A7 main control chip – military-grade triple-protection design – true IP68 protection. The innovative bottom-clip reinforcement provides a rock-solid wearing experience.

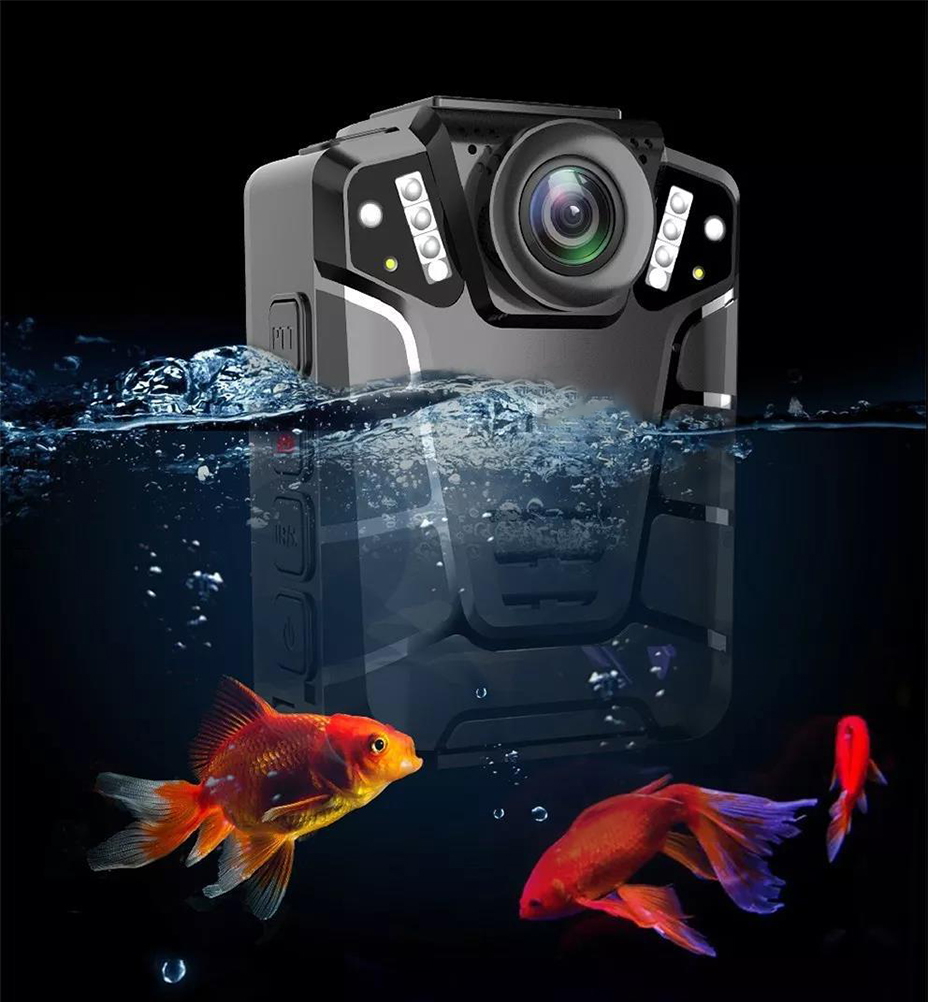

True IP68 Protection Rating

The device meets IP68 requirements (Level 6 dustproof / Level 8 waterproof) – whether in sandstorms, heavy rain, or water immersion – operates safely and normally – protects components and data.

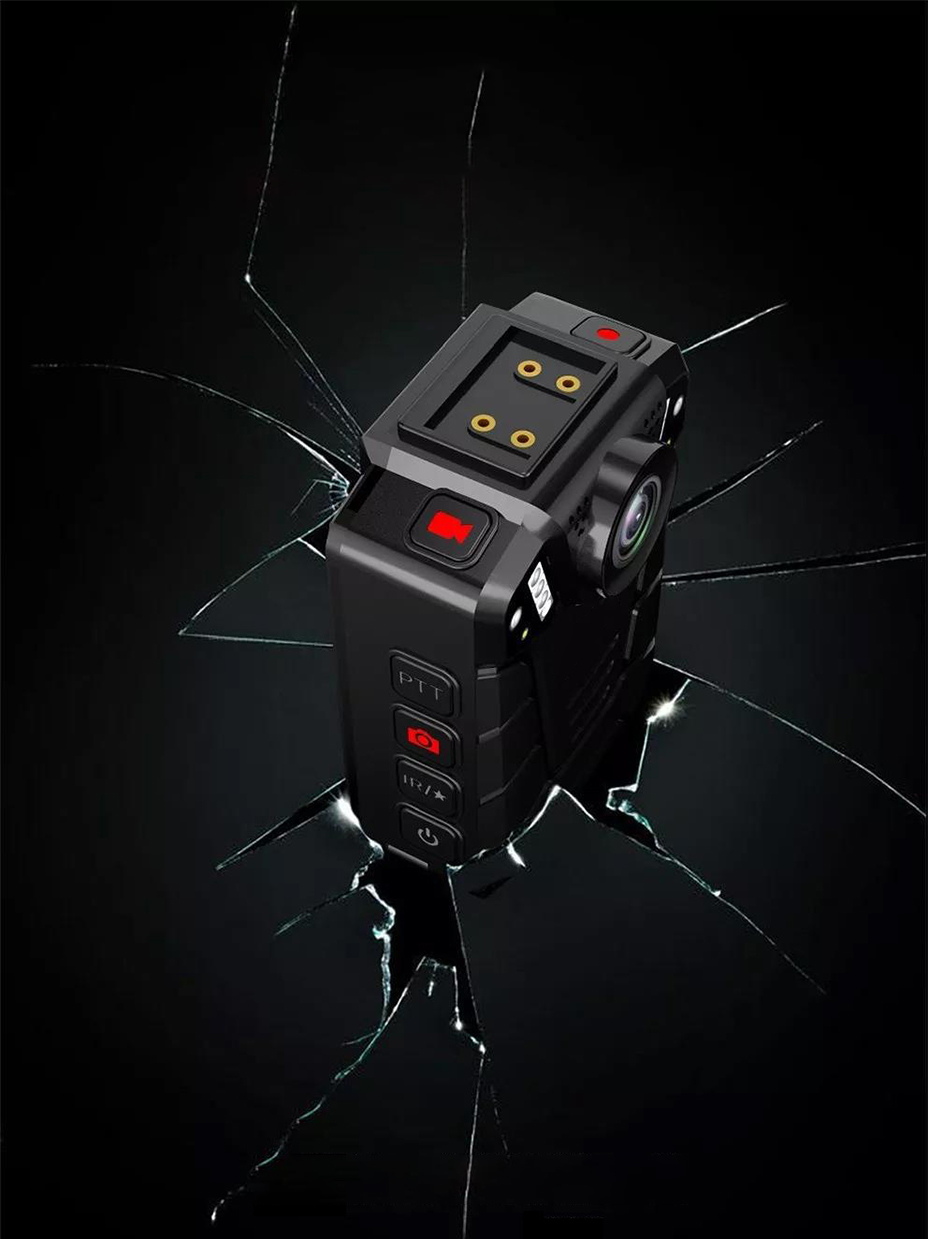

Premium Dual-Color Mold Manufacturing Process

The housing uses advanced dual-color injection molding technology – high-precision structural design – protects the internal core – 3-meter shock and drop resistance – stable quality – strong durability. As a result, the product's texture, performance, and protection rating have reached industry-leading standards.

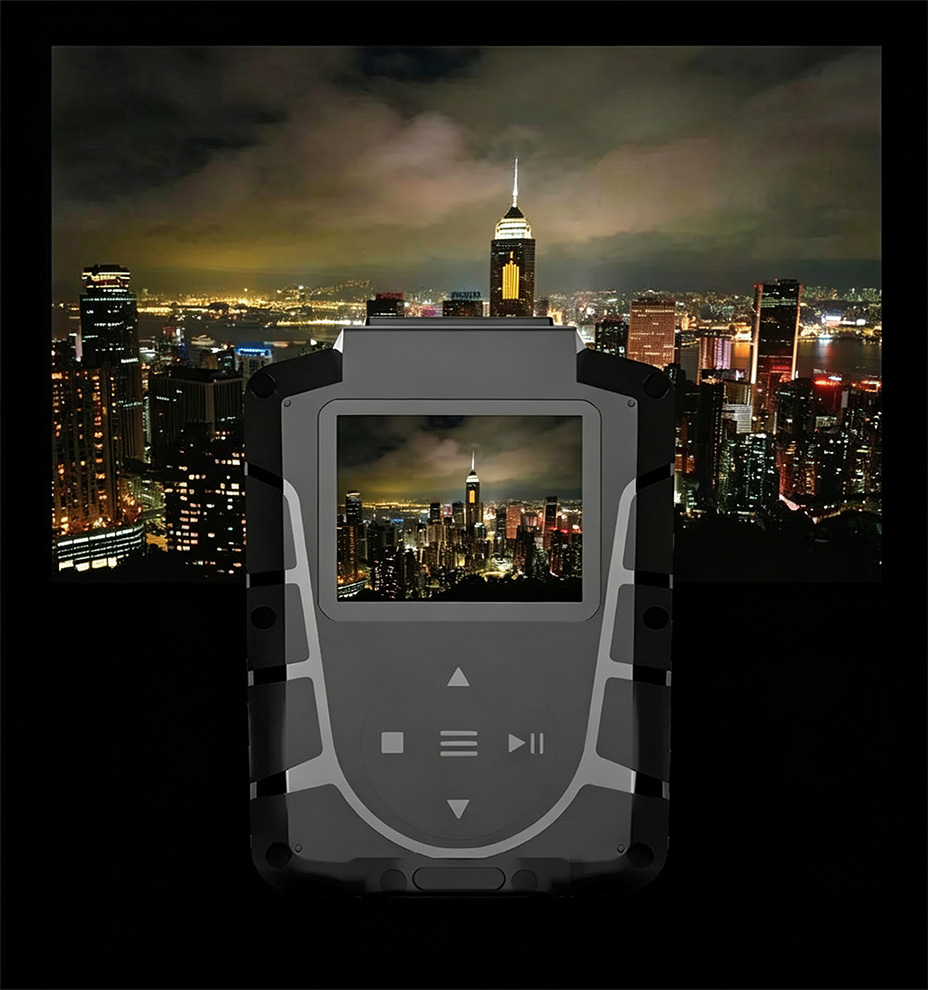

Full-Speed HD Recording

Full HD 1080P recording – captures fine details – captures every disappearing moment – precisely records work scenarios. Playback on the device itself or via PC connection – provides true and complete restoration of the work scene – captures every moment.

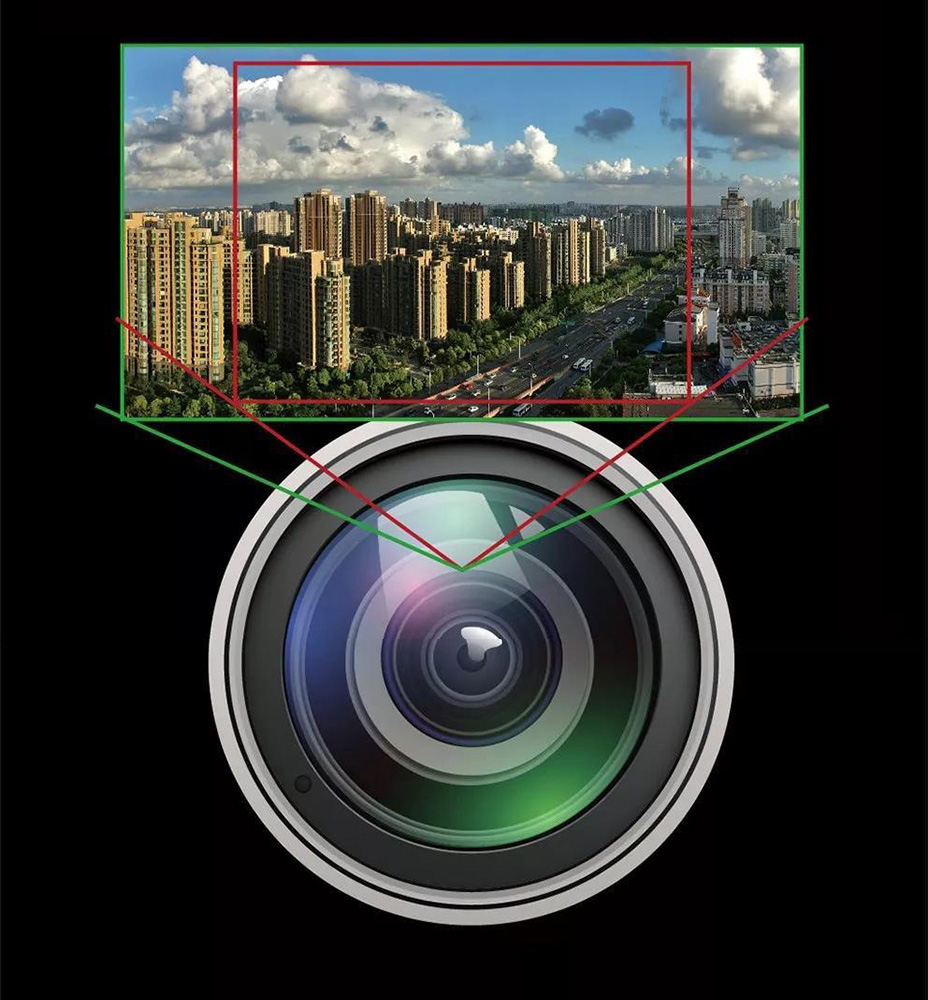

170° Wide-Angle / F1.8 Large Aperture Lens

Combines 170° wide-angle lens and F1.8 large aperture – captures every detail of the work scene – clear and transparent image quality – no blind spots – maximizes on-site evidence collection – restores the true scene.

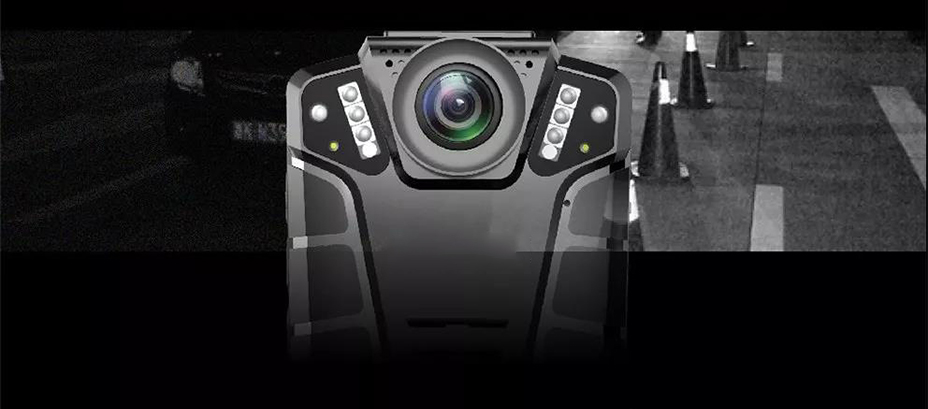

Night Vision Function

Built-in 4 high-performance infrared LEDs – improves nighttime performance – ensures clear image recording even in low-light conditions.

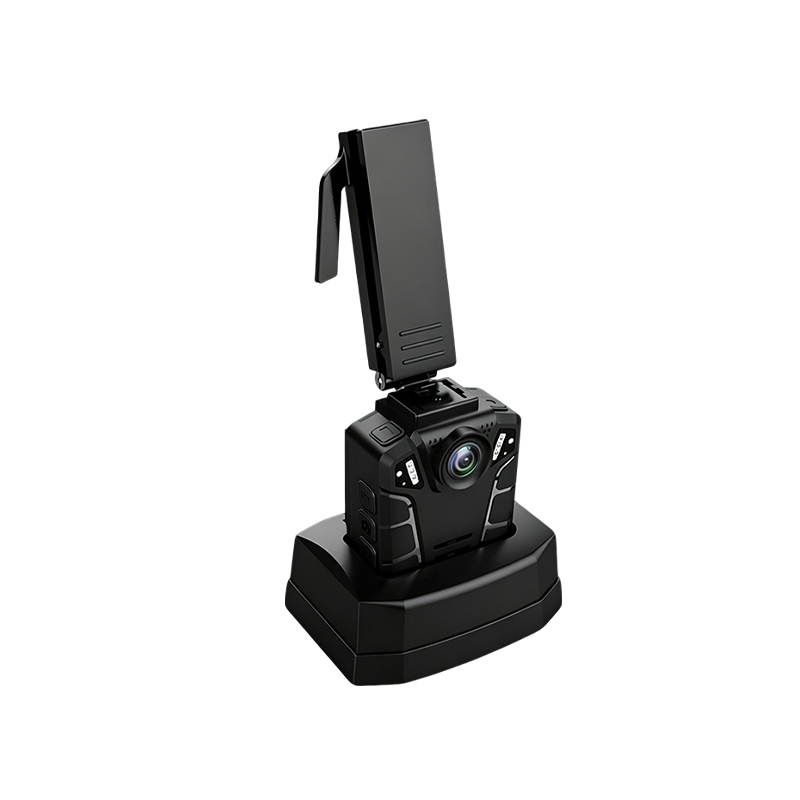

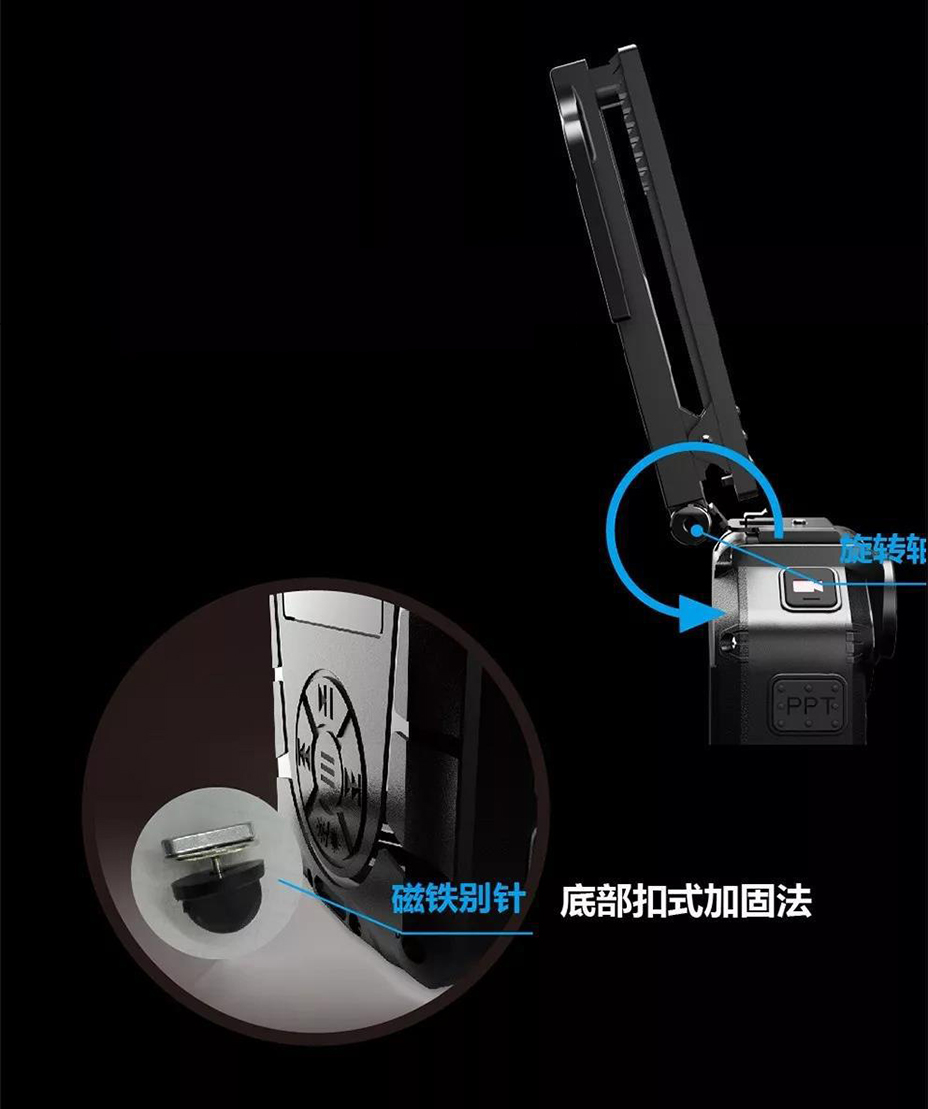

Innovative Back Clip Wearing Method

Innovative back clip with bottom-clip reinforcement – provides a rock-solid wearing experience – ensures smooth and complete video recording – effectively solves the industry challenge of image shake during recording.

  • Rotating shaft

  • Magnetic pin

    Bottom-clip reinforcement

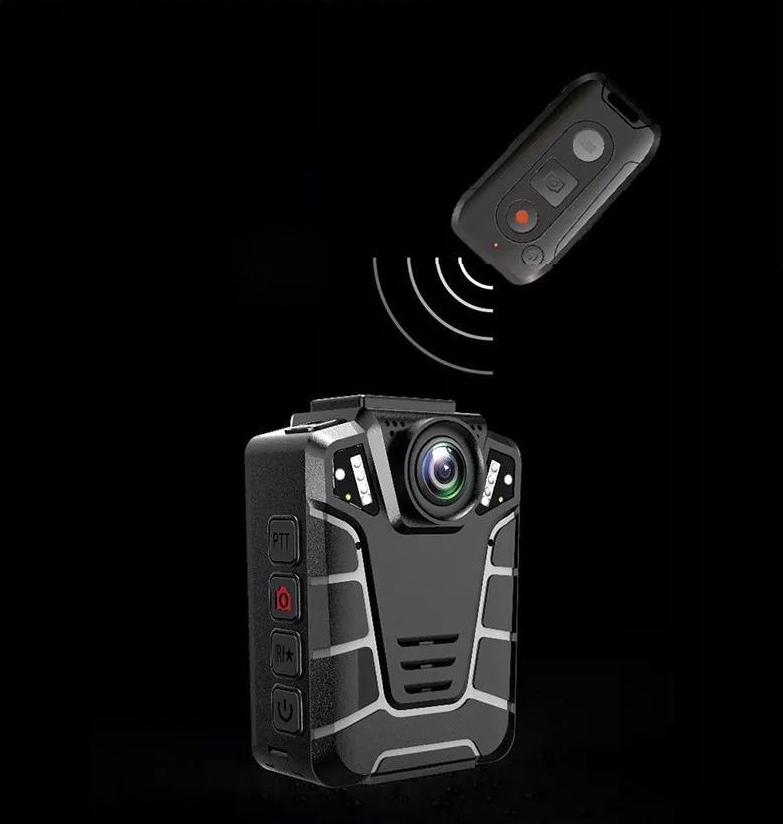

Optional Remote Control (Factory Option)

External remote control – one-key remote start of photo/video capture – convenient for on-site video recording – enables long-distance real-time operation – easily manages the on-site recording process.

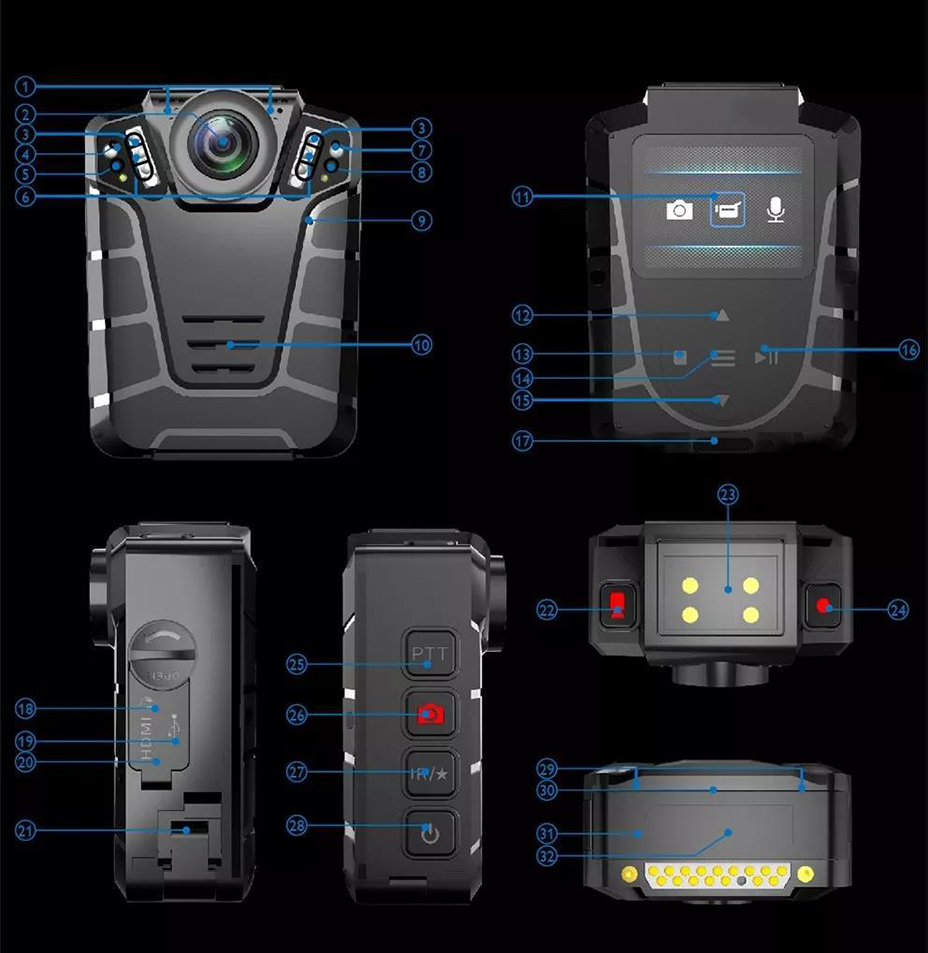

Component Guide

  1. Microphone

  2. Lens

  3. Illumination Light

  4. Status Indicator Light

  5. Light Sensor

  6. Infrared Light

  7. Remote Control Indicator Light

  8. Laser Light

  9. Intercom Microphone

  10. Speaker

  11. Display

  12. Menu Selection / File Selection / Volume Up

  13. Stop / Back / Illumination Light Button

  14. Menu / Menu Selection Button

  15. Menu Selection / File Selection / Volume Down

  16. Play / Pause / Confirm Button

  17. Magnet Slot

  18. Headphone Jack

  19. USB Port

  20. HDMI Port

  21. Battery Cover Latch

  22. Record Button

  23. Back Clip Slot

  24. Audio Record Button

  25. Talk / Transmit Button

  26. Photo Button

  27. Infrared / Star Marking Button

  28. Power / Screen Off Button

  29. Multi-Function Port Alignment Hole

  30. Multi-Function Port

  31. Battery Cover

  32. Nameplate / Rating Label
