Data Docking Station

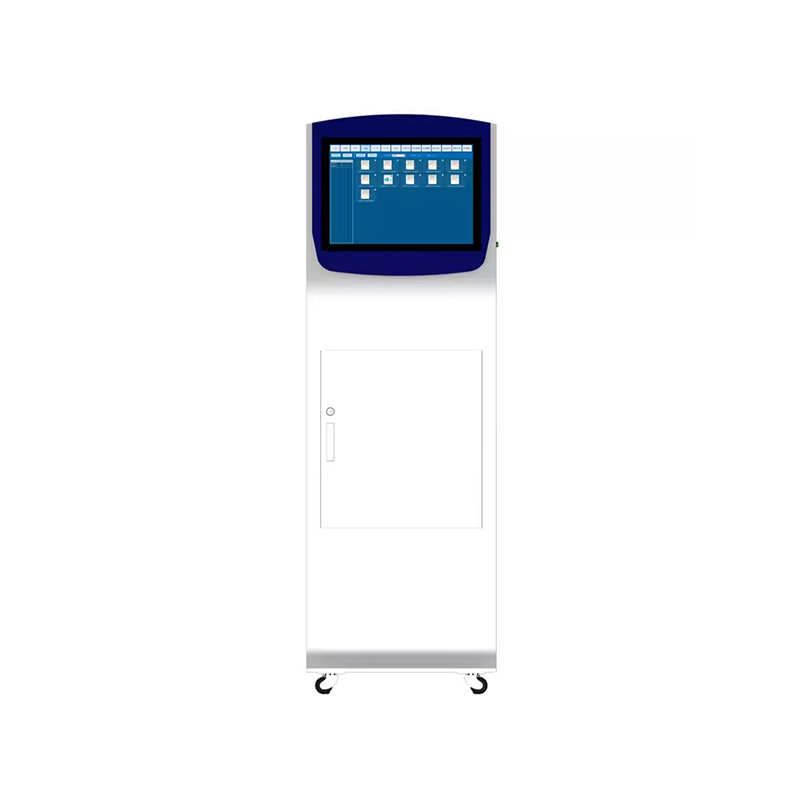

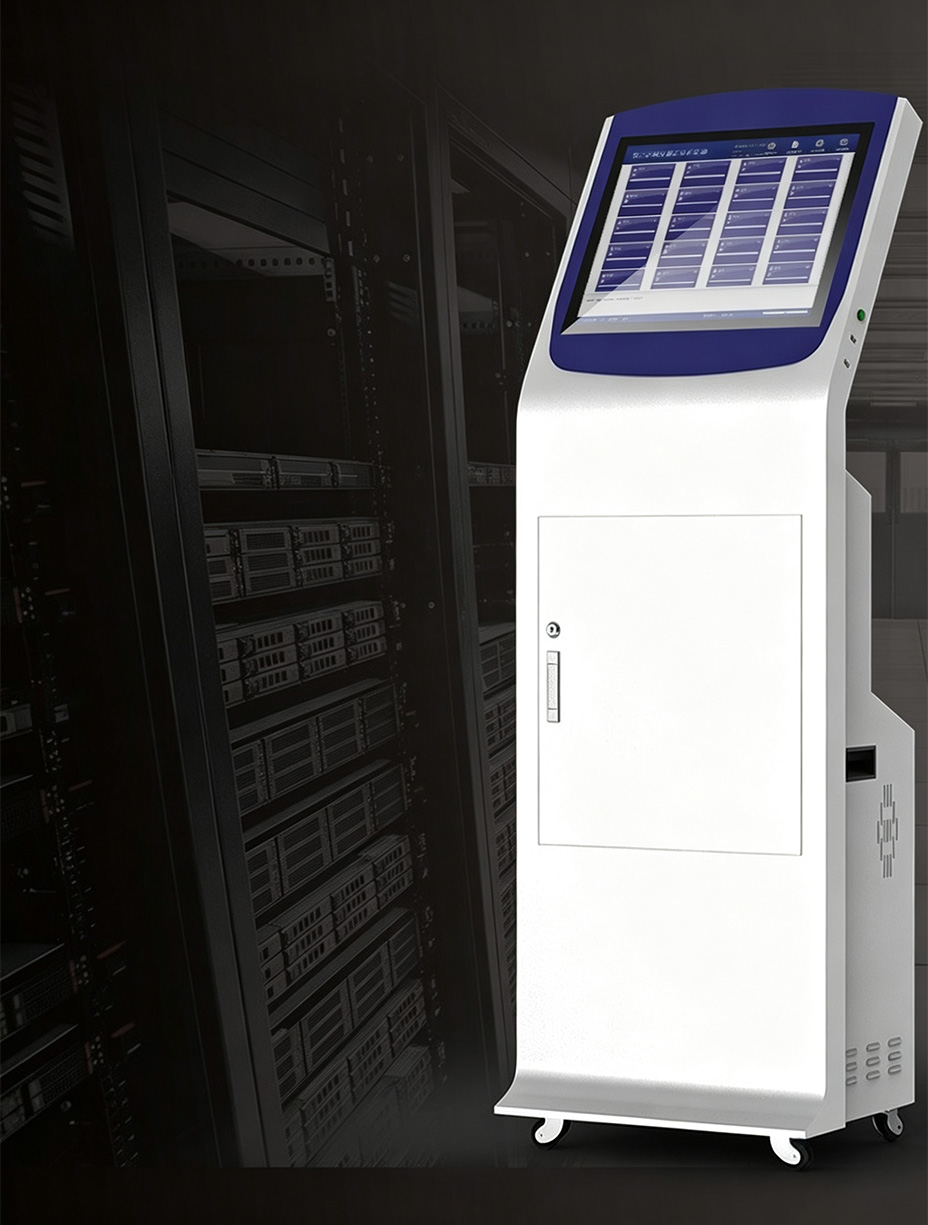

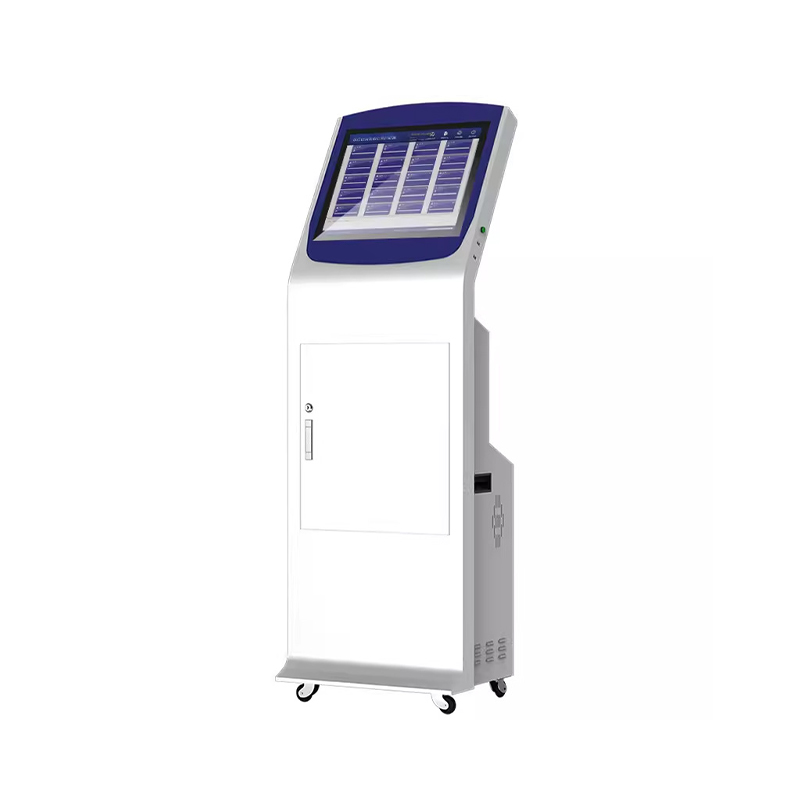

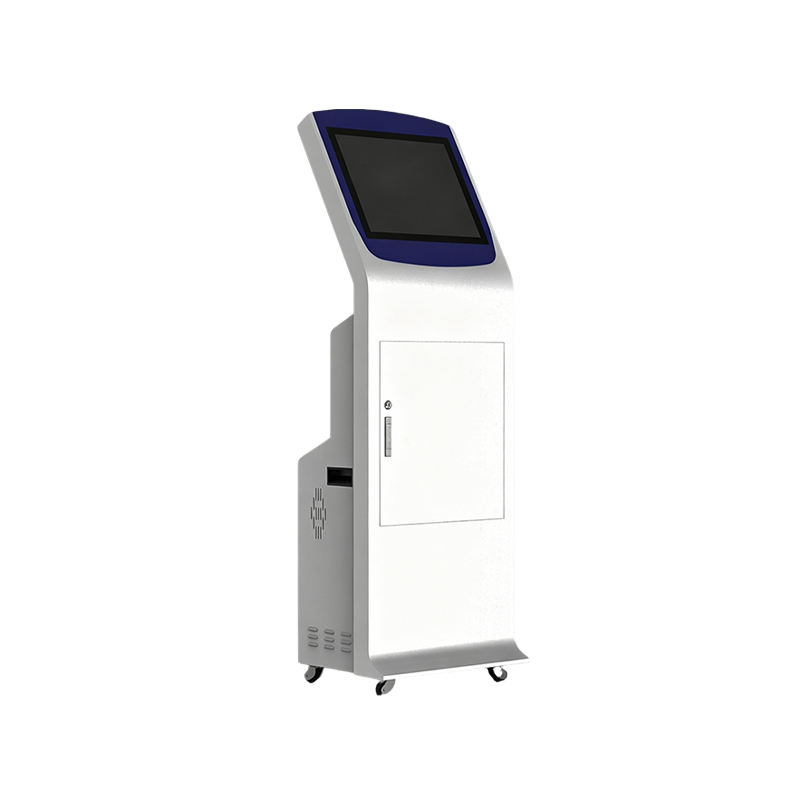

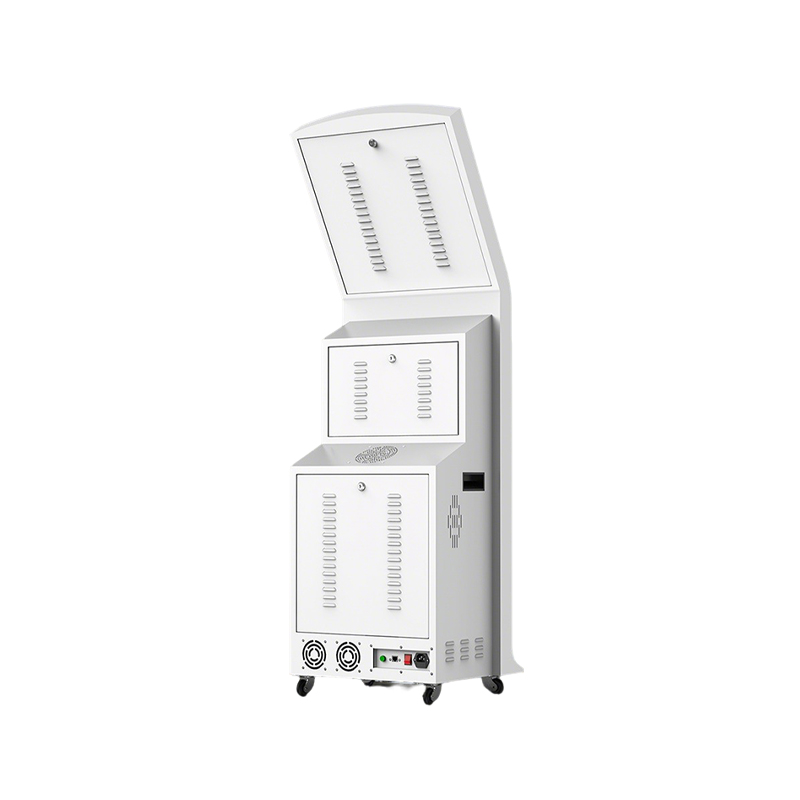

Product Name: Data Docking Station

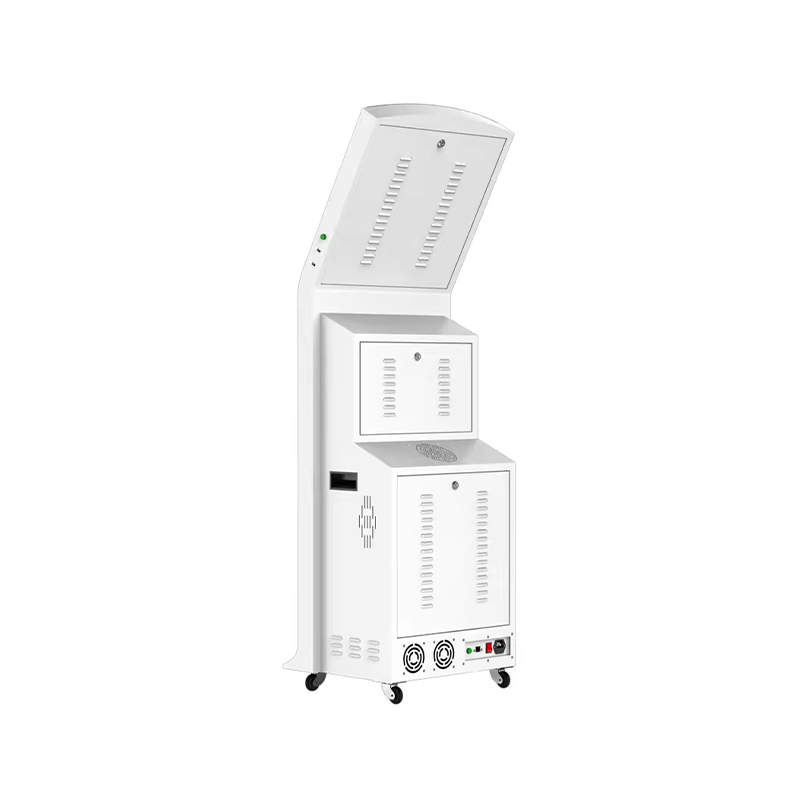

Housing: Vertical integrated cabinet – automotive baking paint finish
Screen Size: 19-inch LCD display
Resolution: 1280 x 1024
Contrast Ratio: 1000:1
Color Depth: 16.2M
Brightness: 250 cd/m²
Touchscreen: Yes
CPU: Intel G1340 – dual-core – 3.6GHz
RAM: 4GB
Solid State Drive: 60GB
Storage Hard Drive: Surveillance-grade hard drive – 4TB (with multiple additional hard drive slots for storage expansion)
Power Supply: Great Wall 500W high-power power supply
Hard Drive Accessory: PCI to high-speed large-capacity 4-port SATA card
VGA Port: DB-15 interface
USB Ports: 20-port industrial HUB – independent identification and power supply – single port current 1.6A – additionally equipped with 2 x USB 2.0 ports
PS2 Ports: 2
Audio: Integrated Realtek ALC887 8-channel audio chip
Network Interface: Onboard Realtek RTL8111F Gigabit Ethernet
Operating Environment: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Power Supply: 110–220V AC
Operating System: Default Win7 – XP/Win8/Win10 optional
Unit Weight: 30kg
Exterior Dimensions: 1500mm x 500mm x 380mm
Specifications (Portable / Carry Type):
8-port docking station
10-port docking station
20-port docking station

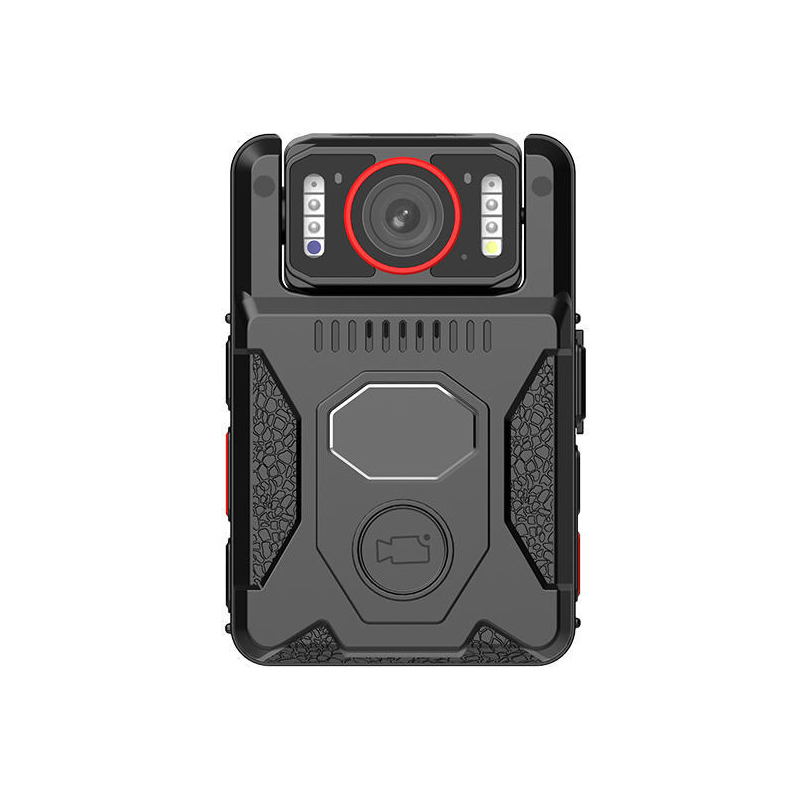

Professional-Grade Universal Data Docking Station for Law Enforcement Body Cameras

Fully Automatic Unattended – Efficient and Convenient

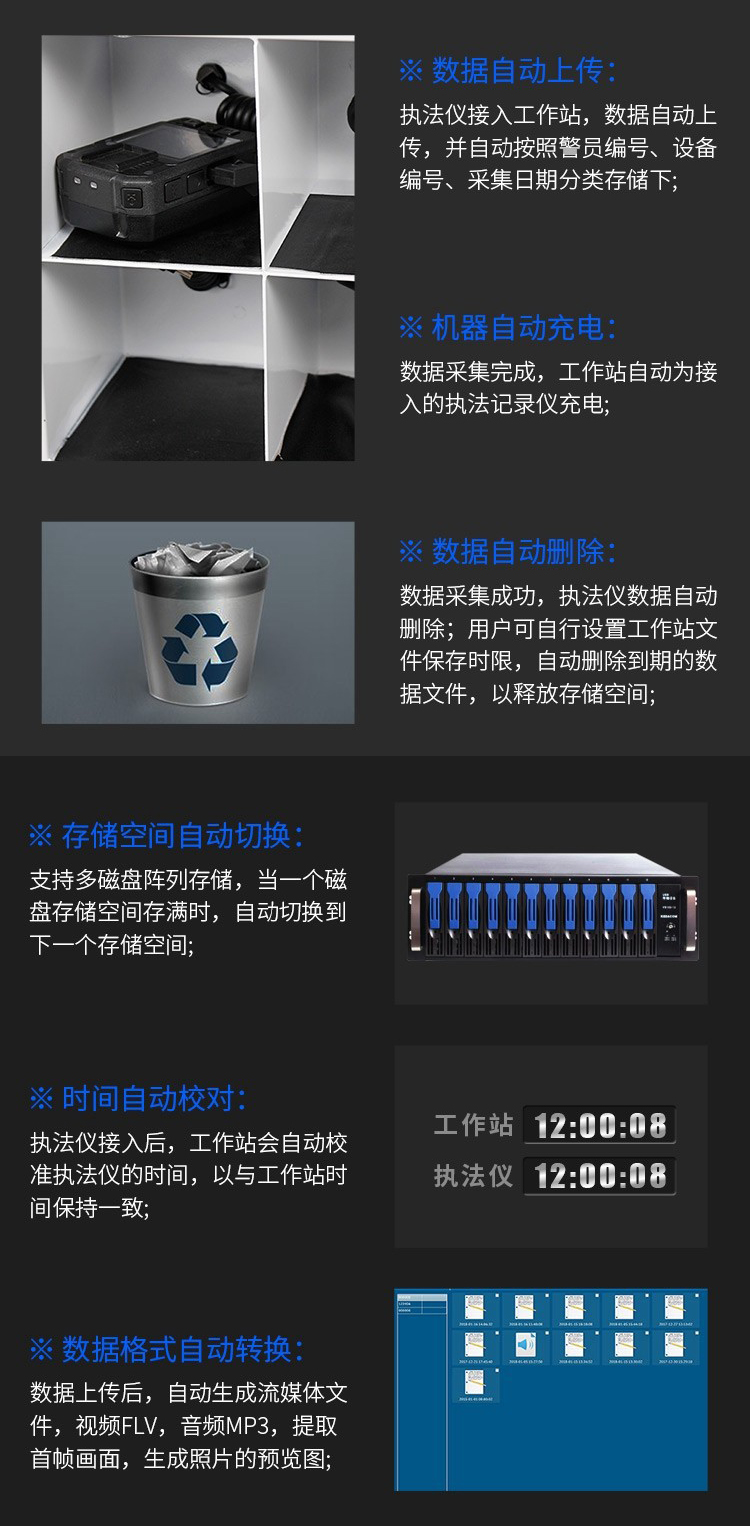

Automatic Data Upload: When a body camera is connected to the docking station, data is automatically uploaded and stored by officer ID, device ID, and collection date.
Automatic Charging: After data collection is complete, the docking station automatically charges the connected body cameras.
Automatic Data Deletion: After successful data collection, data on the body camera is automatically deleted. Users can set a file retention period on the docking station – expired data files are automatically deleted to free up storage space.
Automatic Storage Switching: Supports multi-disk array storage – when one disk is full, the system automatically switches to the next available storage space.
Automatic Time Synchronization: When a body camera is connected, the docking station automatically calibrates the device's time to match the docking station's time.
Automatic Data Format Conversion: After upload, data is automatically converted – video to FLV format, audio to MP3 format – with the first frame extracted to generate thumbnail preview images.

Industrial-Grade Hardware – Stable System Operation

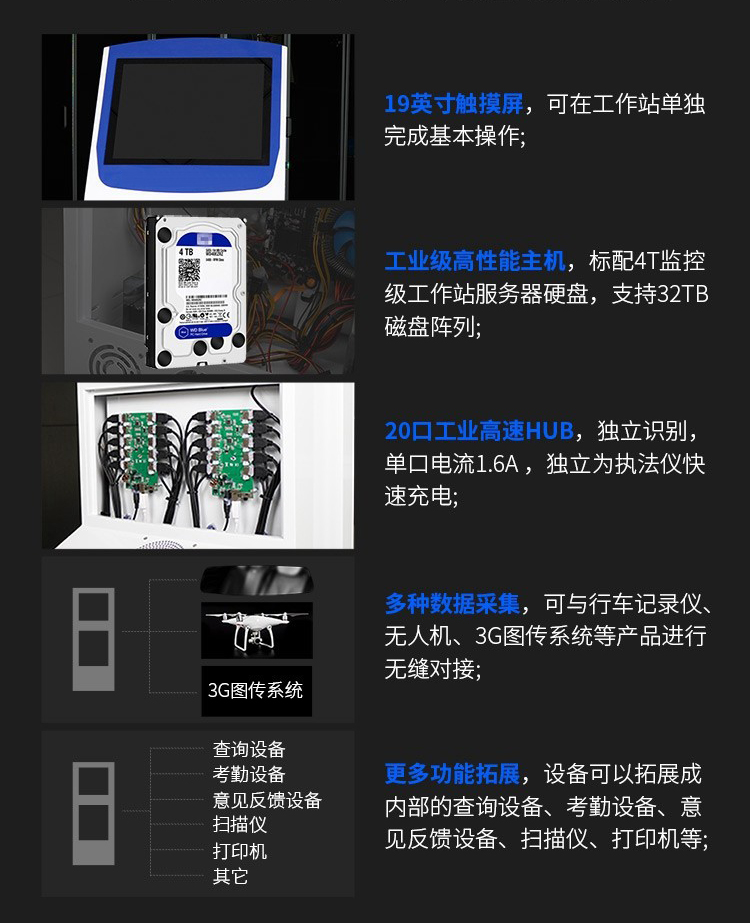

19-inch touchscreen – basic operations can be performed directly on the workstation.
Industrial-grade high-performance host – standard configuration includes 4TB surveillance-grade server hard drive – supports up to 32TB disk array storage.
20-port industrial high-speed HUB – independent identification – single port current 1.6A – provides fast charging for connected body cameras.
Multiple data collection compatibility – can seamlessly connect with dashcams, drones, 3G video transmission systems, and other devices.
More functional expansion – the device can be expanded into internal inquiry terminals, attendance systems, feedback collection devices, scanners, printers, and more.

Priority Upload Function – Any connected body camera can be designated as priority – that device uploads data first – other devices are paused and wait.
High-Speed Data Transmission – Users can configure single-device upload or simultaneous multi-device upload – fully utilizes the multi-threaded upload performance of the docking station hardware.
Security Level Expansion – Supports expansion with ID card readers, IC card readers, and fingerprint devices – supports encrypted authorization management – secure and reliable data protection.
Public Security Internal Network Compatibility – Compliant with public security internal network standards – collected body camera data can be seamlessly integrated with the internal network through the management platform – full data association.
