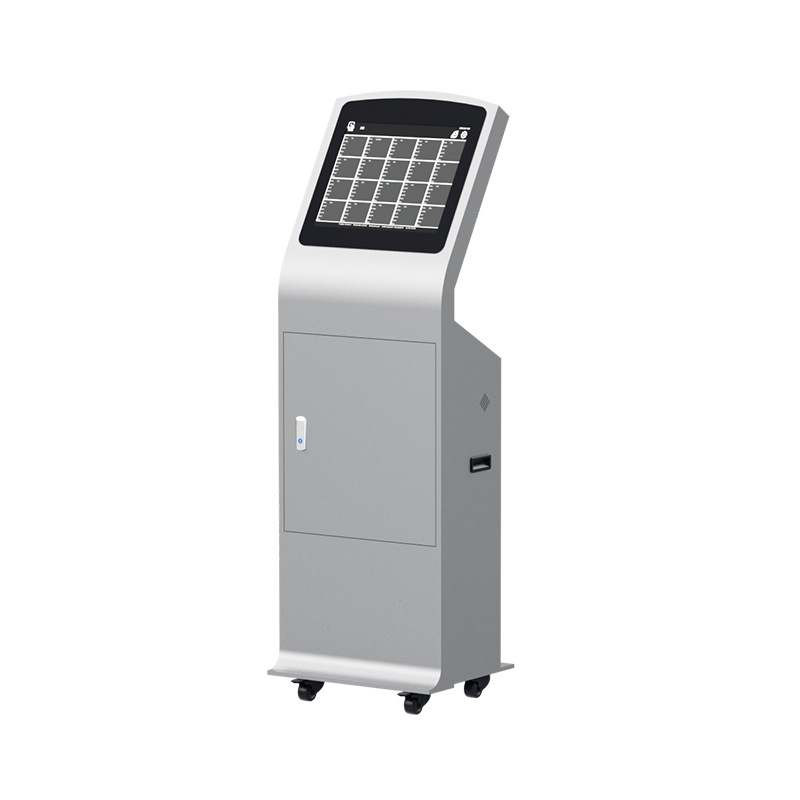

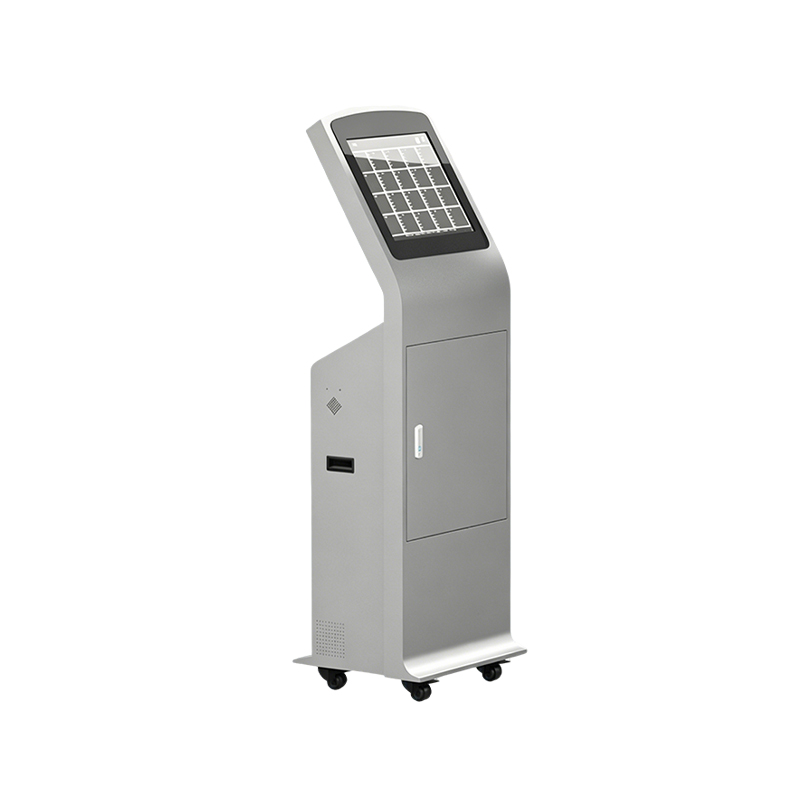

Data Docking Station

  • Product Name: Data Docking Station

  • Exterior Dimensions: 500 x 470 x 1560 mm

  • Net Weight: Approx. 35kg

  • Housing Material: All-metal housing – anti-static, anti-magnetic, anti-strong electric field interference

  • Power Consumption: ≤ 400W

  • Operating Temperature: -20°C ~ 60°C

  • Operating Humidity: < 90%

  • Operating System: Win7 64-bit (Win10 64-bit optional)

  • Database: MySQL

  • Collection Software: Mobile Law Enforcement Electronic Evidence Management System

  • Display: 19-inch LCD touchscreen – physical resolution 1280 x 1024

  • Main Chipset: Dual-core CPU – Intel chipset – other Intel series processors optional

  • Memory Capacity: 4GB DDR 1600/1333/1066 MHz (8–32GB optional)

  • System Hard Drive: 60GB SSD

  • Collection Ports: Mini/Micro USB – 20 ports (16, 21, 22, 24, 25, 30 ports optional)

  • Collection Management:

    Resumable file transfer support

    Dynamic status display – devices correspond to on-screen display positions

    Automatic device collection with customizable simultaneous collection quantity

    Compliant with public security industry standard interface certification rules

    Video files are saved in original uncompressed quality

  • Data Processing:

    Automatic classification – automatic upload to designated server – upload policies configurable

    Automatic time synchronization – automatic verification of collection completion status – automatic data clearing

  • Storage Management: Storage policy management – storage space management – storage status display – scheduled database backups – distributed evidence download and viewing

  • Data Security: Unauthorized users have no data operation permissions

  • Data Synchronization: Active + passive interaction with management platform – two-way database synchronization with fault tolerance

  • Permission Management: Infinite hierarchical permission management


Description

Data Docking Station

  • Automatic collection

  • Plug and play

  • Automatic upload

  • Full touchscreen

  • Data protection

  • SDK development support

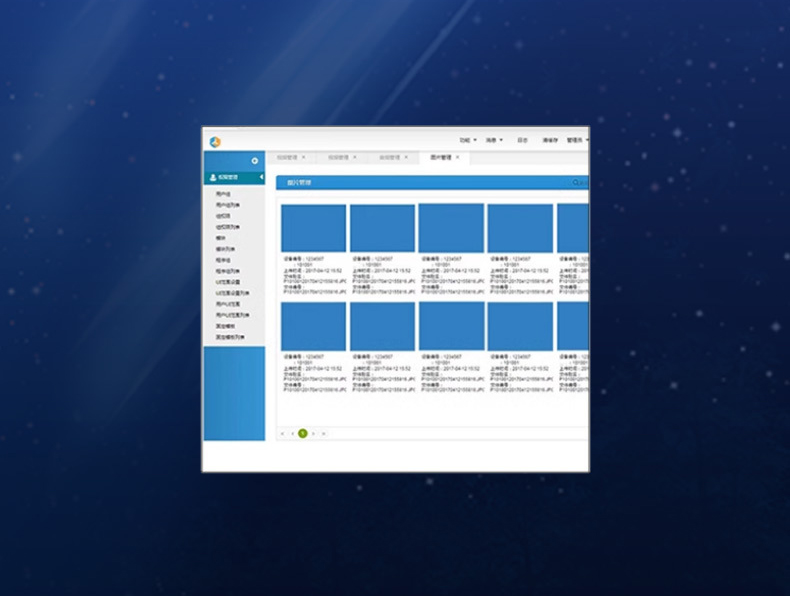

Cloud Data Management

The docking station can directly connect to the cloud data management platform – enabling online functions such as file management, police alert transmission, performance evaluation and supervision – can read and write officer ID and device number to the body camera

  • Data Management

  • Device Management

  • Permission Management

  • Operation Logs

  • Data Annotation

  • Data Locking

  • File Security

  • Secondary Development


High-Speed Data Transmission – No More Lag

  1. High-Speed Data Upload

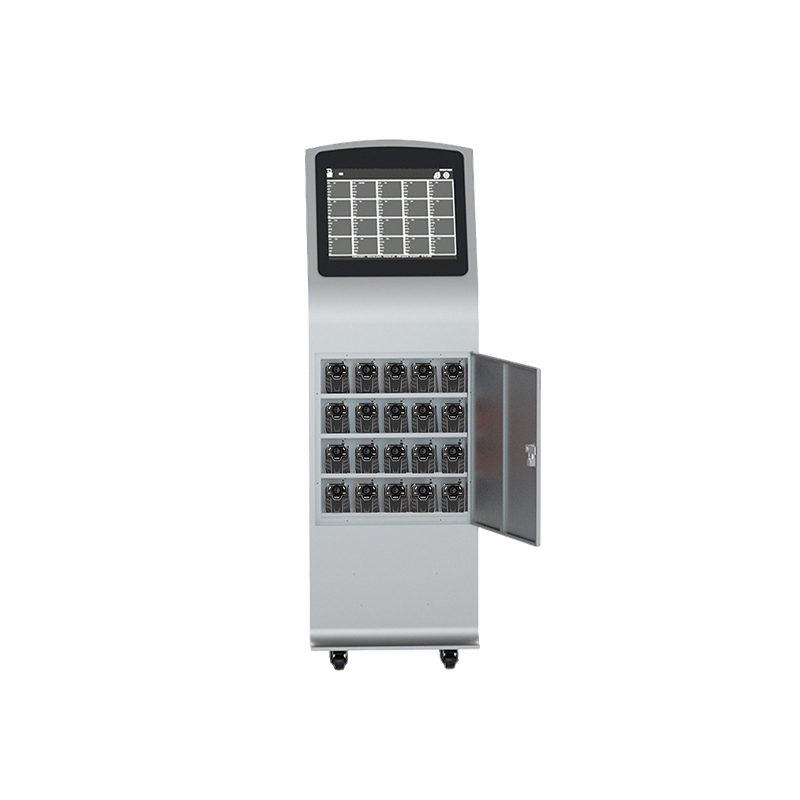

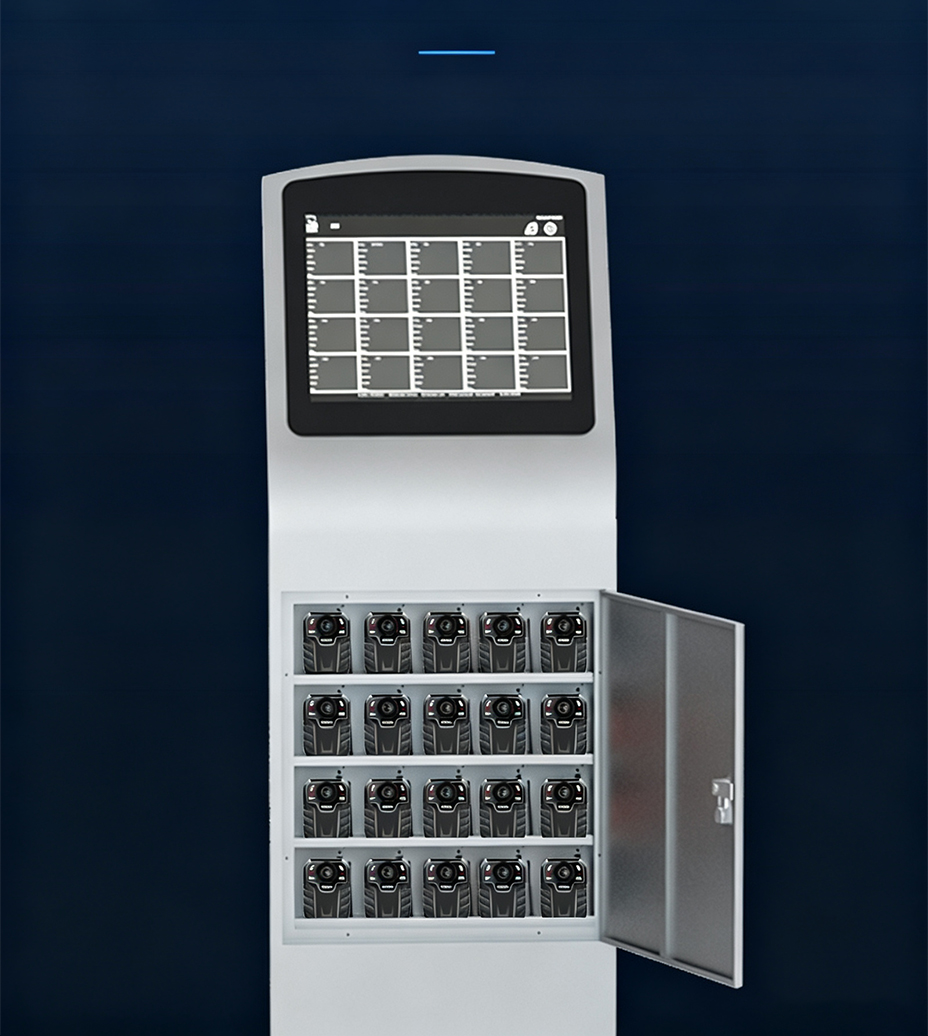

    Supports simultaneous insertion of 20 body cameras – 20 units with 16GB of recorded data can be fully uploaded within 50 minutes

  2. Supports Large File Upload

    Large file upload capability – system supports transmission, download, and playback of files larger than 2GB

  3. Supports Resumable File Transfer

    If data transmission is interrupted due to unexpected events – upon reconnection, data transfer resumes from the point of interruption – avoids retransmission errors


Industrial-Grade Host Configuration

Powerful performance – stable operation

  1. Touchscreen Operation

    19-inch LCD display – resolution 1280 x 1024 – 4-point infrared touchscreen

  2. Industrial-Grade Motherboard

    Industrial-grade motherboard – high-performance CPU – 4GB RAM – 1600/1333/1066MHz (8–32GB optional)

  3. Large Storage Configuration

    (2TB, 4TB, up to 64TB storage capacity optional)

  4. Platform Operating System

    Win7 64-bit (Win10 64-bit optional)


Plug and Play – Convenient Operation

Fully Automatic High-Efficiency Collection

  1. Automatic Data Upload – Automatically uploads generated index files to the server database

  2. Automatic Power On/Off – Supports scheduled automatic startup and shutdown to protect the docking station

  3. Automatic Charging – Body cameras automatically charge while uploading data when connected to the docking station

  4. Automatic Data Clearing – After collection is complete, the body camera memory can be automatically cleared

  5. Automatic Time Synchronization – The docking station automatically calibrates the body camera's time for synchronization

  6. Smart Drive Detection – The docking station automatically detects and allocates available storage space


Dual Data Protection

System Recovery Function – Automatic backup prevents data loss

Backup System Recovery USB Drive – Connect and self-recover the system without data loss

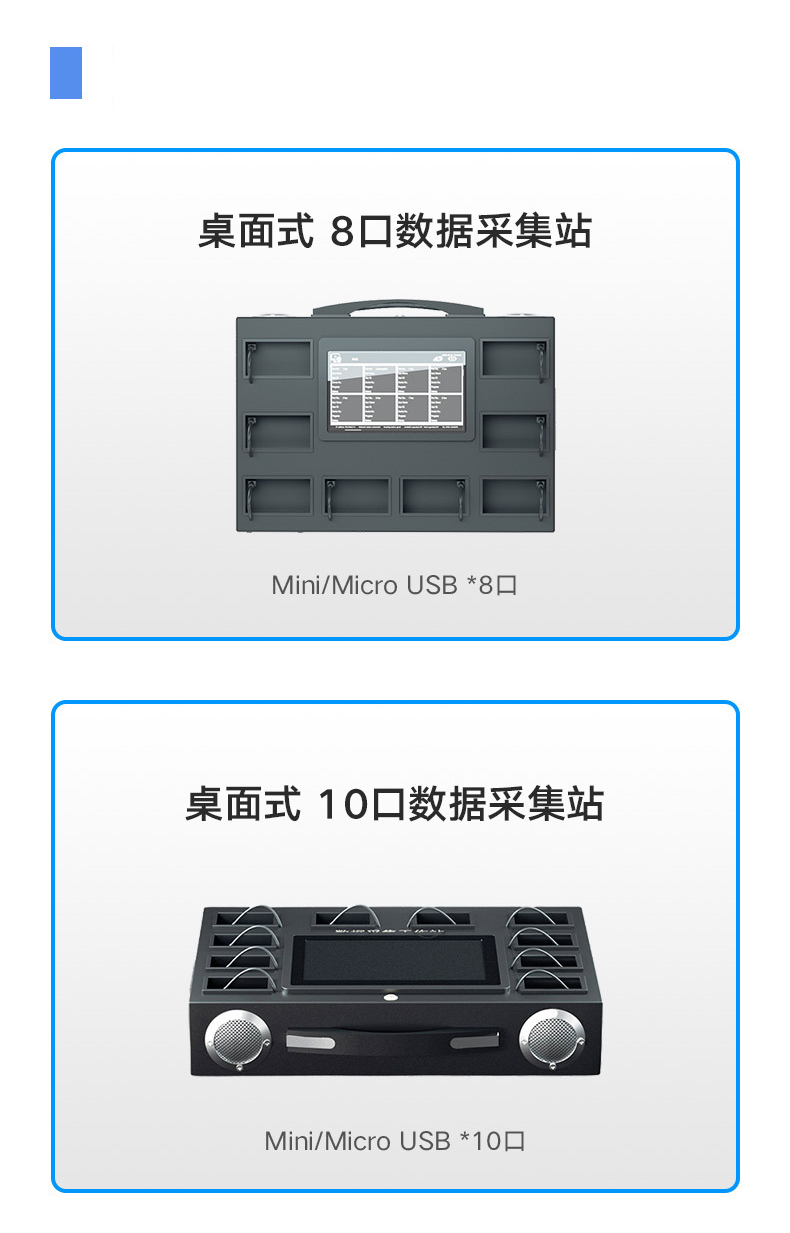

More Configurations Available

  • Desktop 8-Port Data Docking Station – Mini/Micro USB x 8 ports

  • Desktop 10-Port Data Docking Station – Mini/Micro USB x 10 ports


Smart Compatibility

Suitable for various brands of body cameras – simple and convenient – secure access for all compatible brands
