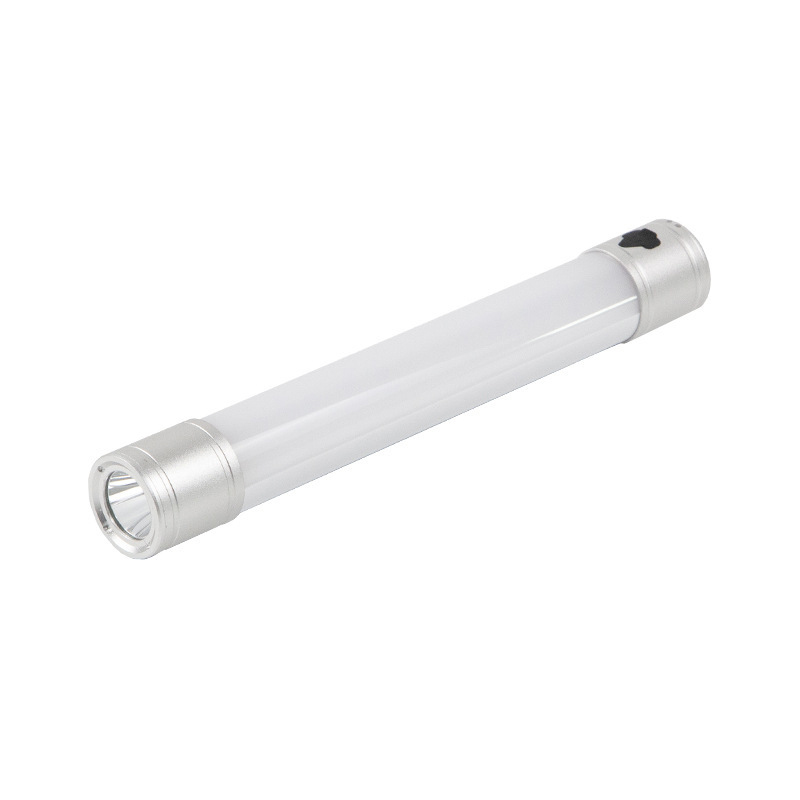

Magnetic LED Inspection Tube Work Light, Aluminum Alloy+PC Body, Dual Switch for Spot Flood & Red Blue Warning Light

  • Product Name: Explosion-Proof LED Bar/Tube Light

  • Rated Voltage: 3.7V

  • Rated Capacity: 2.2Ah

  • Battery Service Life: Approx. 1,000 charge cycles

  • Light Source Type: LED

  • Rated Power:

    Flashlight: 3W / 1W

    Flood: 5W / 3W

  • Average Service Life: 100,000 hours

  • Flashlight Operating Time:

    High Light: ≥ 8 hours

    Working Light: ≥ 16 hours

  • Flood Operating Time:

    High Light: ≥ 5 hours

    Working Light: ≥ 10 hours

  • Charging Time: ≥ 6 hours

  • External Dimensions: Diameter 32 x 226mm

  • Product Weight (including battery): 150g

  • Explosion-Proof Marking: Ex ib IIC T4 Gb

  • Protection Rating: IP65


Product Code:  07509

Description

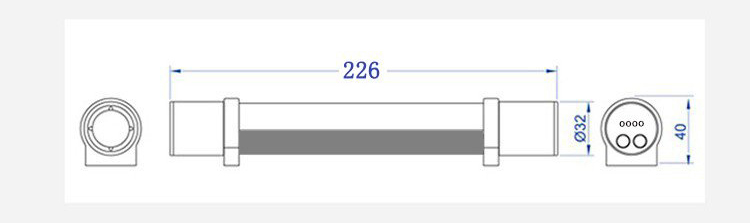

External Dimensions Diagram

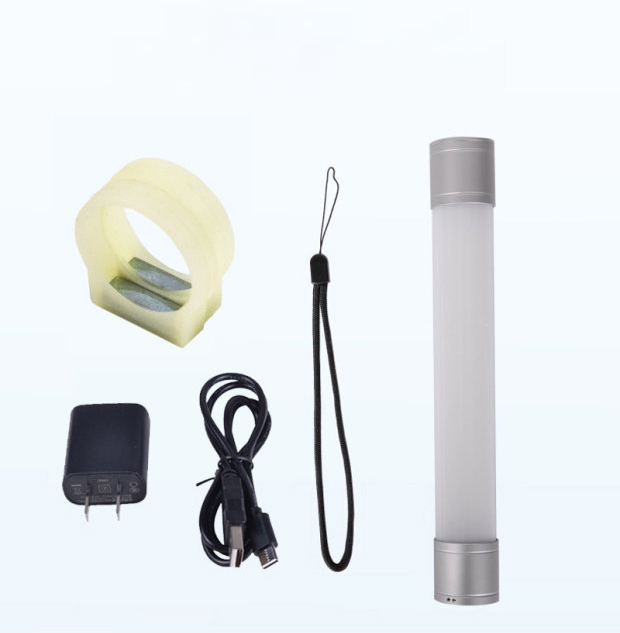

Aluminum Alloy + PC Material Lamp Body

  • Tail Lanyard

  • USB Charging Head

  • Type-C Charging Data Cable

  • Magnetic Silicone Ring

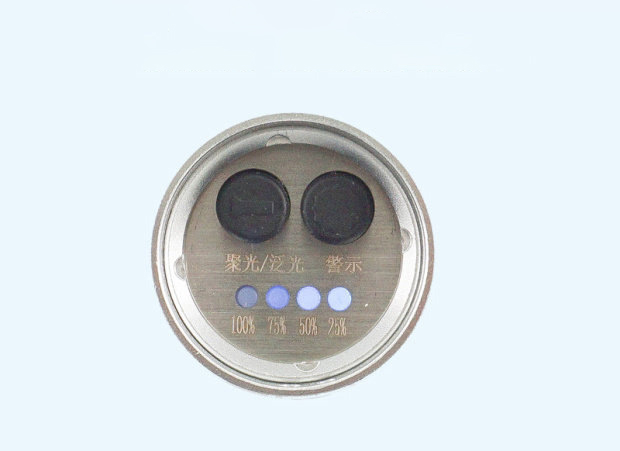

Dual-Switch Button Design

Left side: Spot/Flood lighting mode

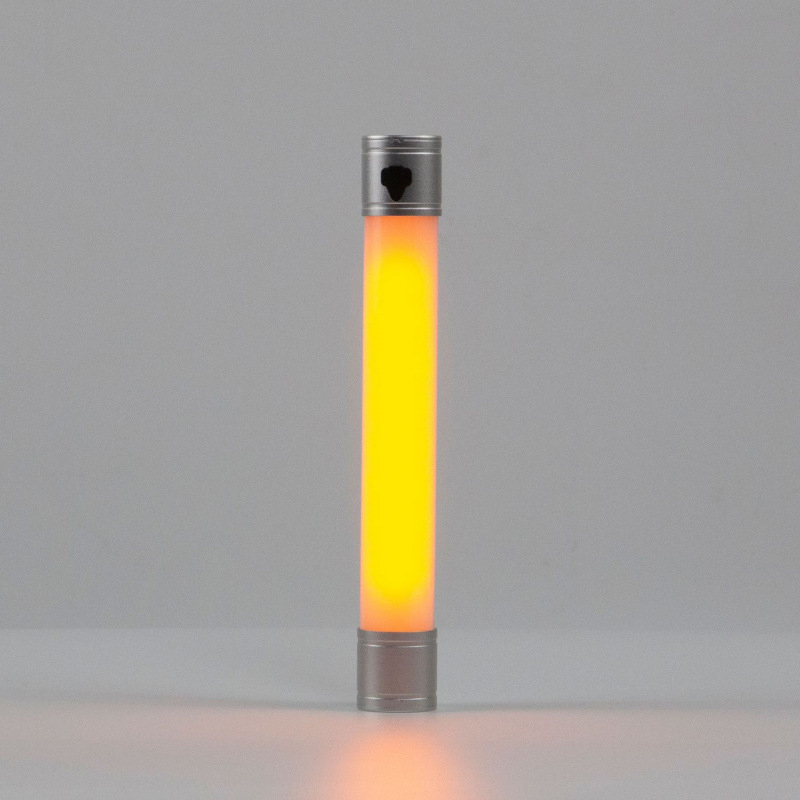

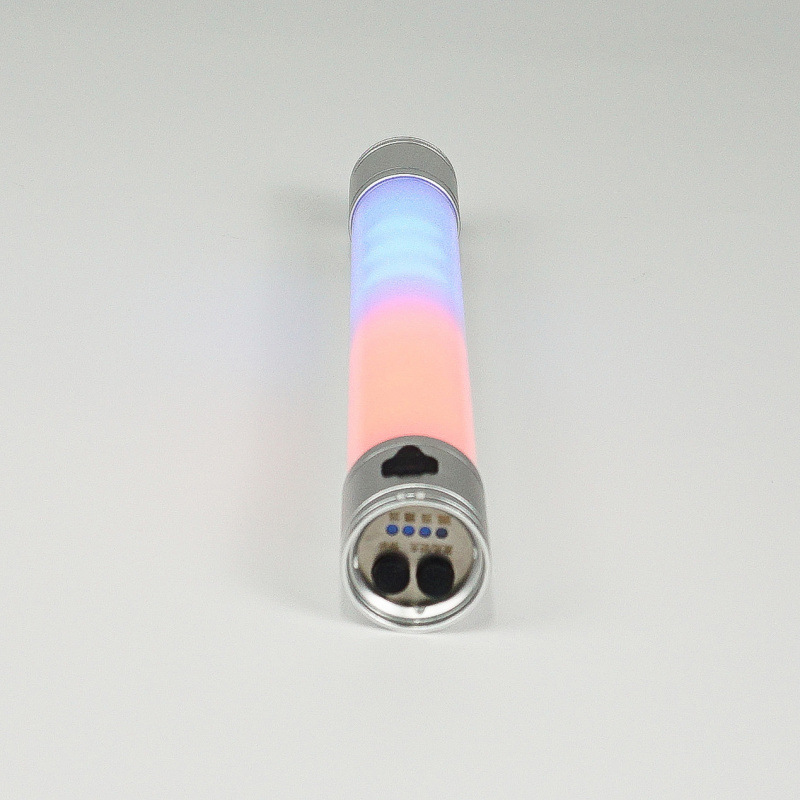

Right side: Yellow light / Red-blue alternating warning light


Details Showcase – Not Afraid of Close-Up Scrutiny

  • The lamp head uses aluminum alloy material – excellent heat dissipation – multiple waterproof structures – good waterproof performance, good corrosion resistance.

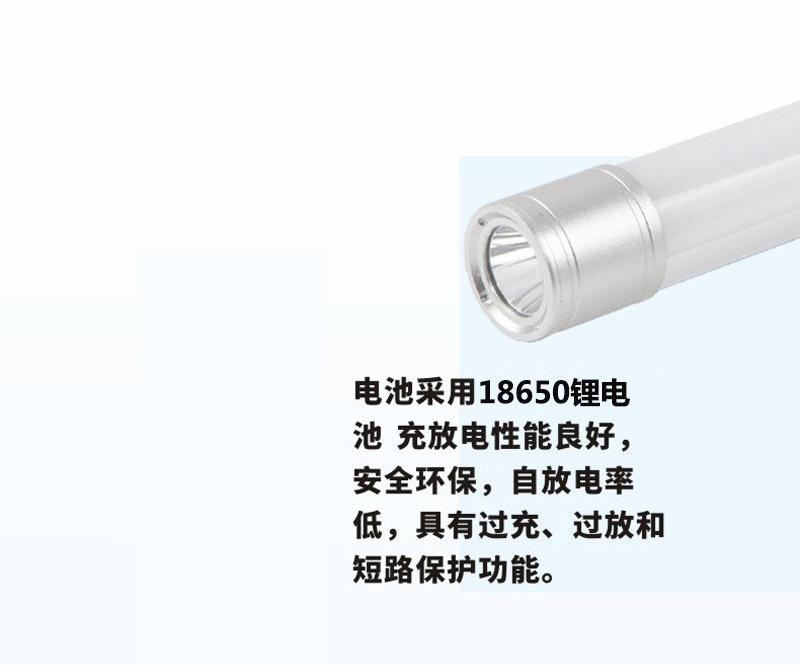

  • The battery uses an 18650 lithium battery – excellent charge/discharge performance – safe and eco-friendly – low self-discharge rate – features overcharge, over-discharge, and short-circuit protection.
