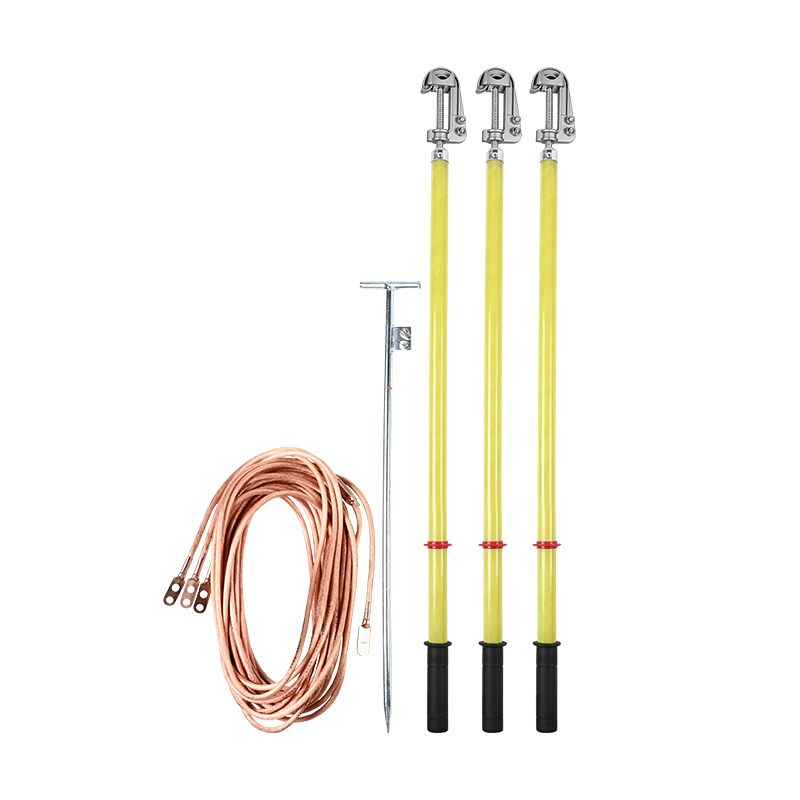

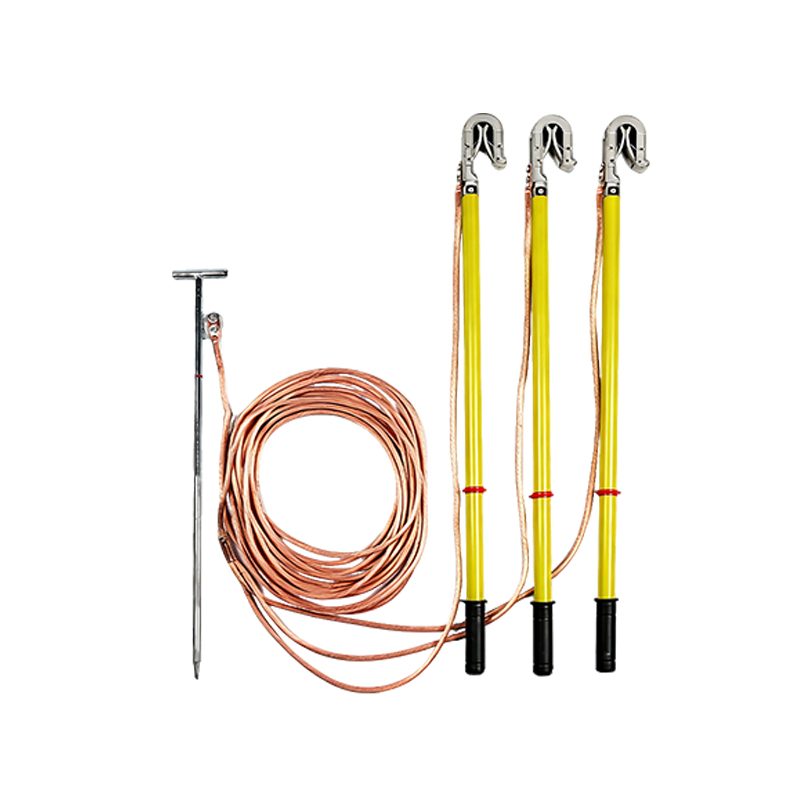

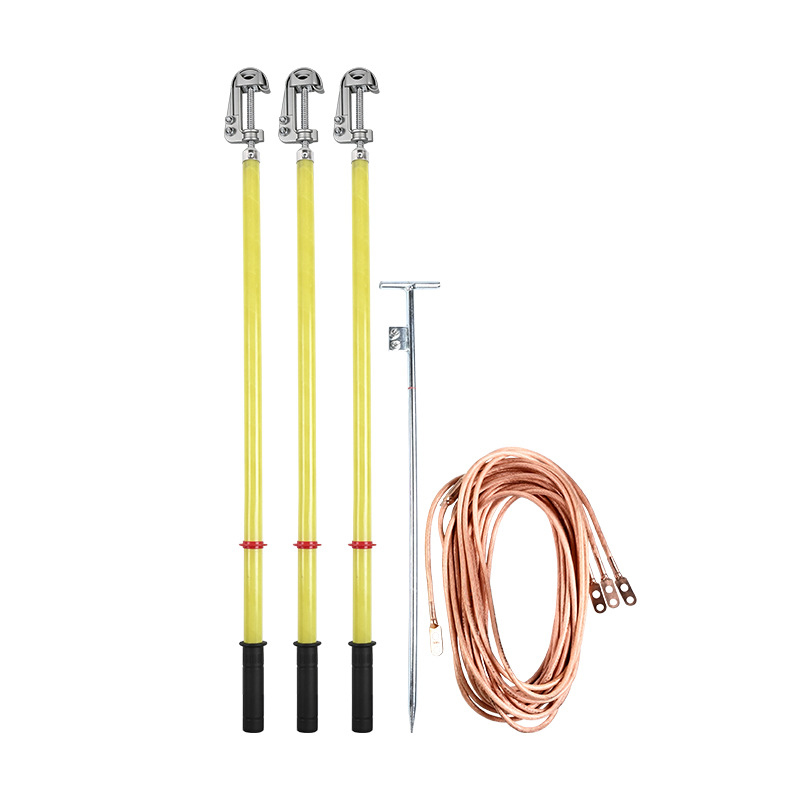

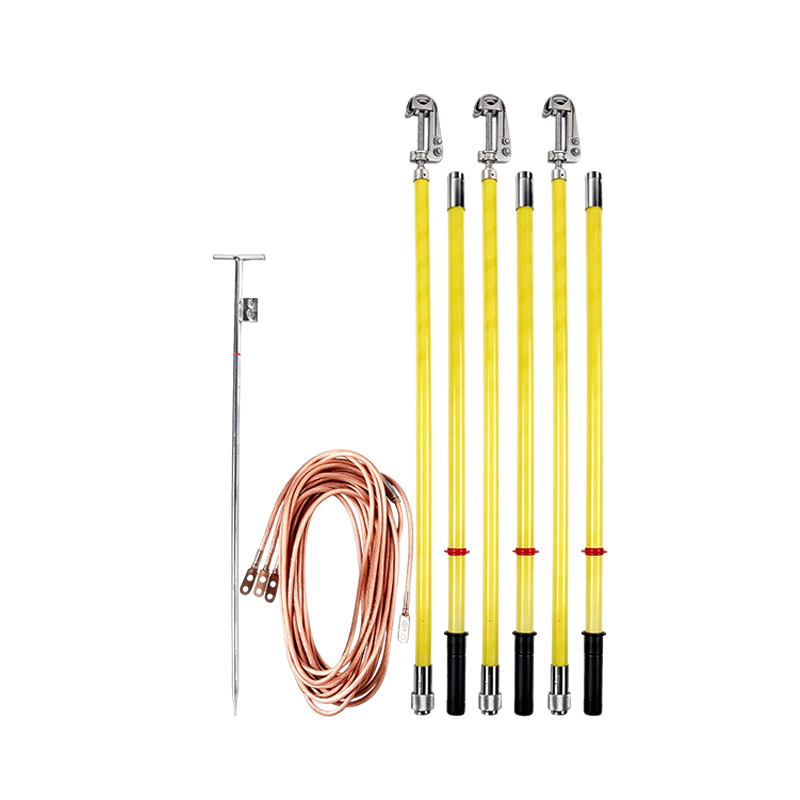

Portable Monkey Head Type Short-Circuit Grounding Wire Set, FRP Insulated Operating Rod Oxygen-Free Soft Copper Earthing Wire with Galvanized Grounding Pin for Power Maintenance

  • Product Name: Portable Grounding Wire

  • Specifications: Monkey Head Type

  • Copper Wire Specifications: 16 / 25 / 35 / 50mm²

  • Product Materials: Die-Cast Aluminum / Fiberglass Reinforced Plastic (FRP) / Oxygen-Free Copper

  • Voltage Levels: 0.4 / 10 / 35 / 110 / 220KV

  • Pole Colors: Green, Yellow, Red

  • Product Applications: Maintenance operations, Grounding protection devices


Product Code:  07573

Description

Portable Short-Circuit Grounding Wire – Monkey Head Type


  • Diverse Specifications

  • Convenient to Use

  • High Conductivity

  • Insulated Handle

  • Aluminum Clamp Head

  • Oxygen-Free Soft Copper


Cast Aluminum Clamp Head – One-Piece Molding

Surface sandblasted – not easily corroded – long service life

  • Electroplated Fastening Bolts

Monkey Head Clamp Head Design

Smooth and flat surface


Oxygen-Free Copper Grounding Wire

Dual-Hole Copper Lug
Oxygen-free copper strands – excellent and stable electrical performance – conducts without overheating

  • Terminal
    Tight connection – does not fall off

  • PVC Soft Plastic Sheath
    Does not harden easily in winter

  • Multi-Strand Braided Copper Wire
    Fast conduction – low resistance

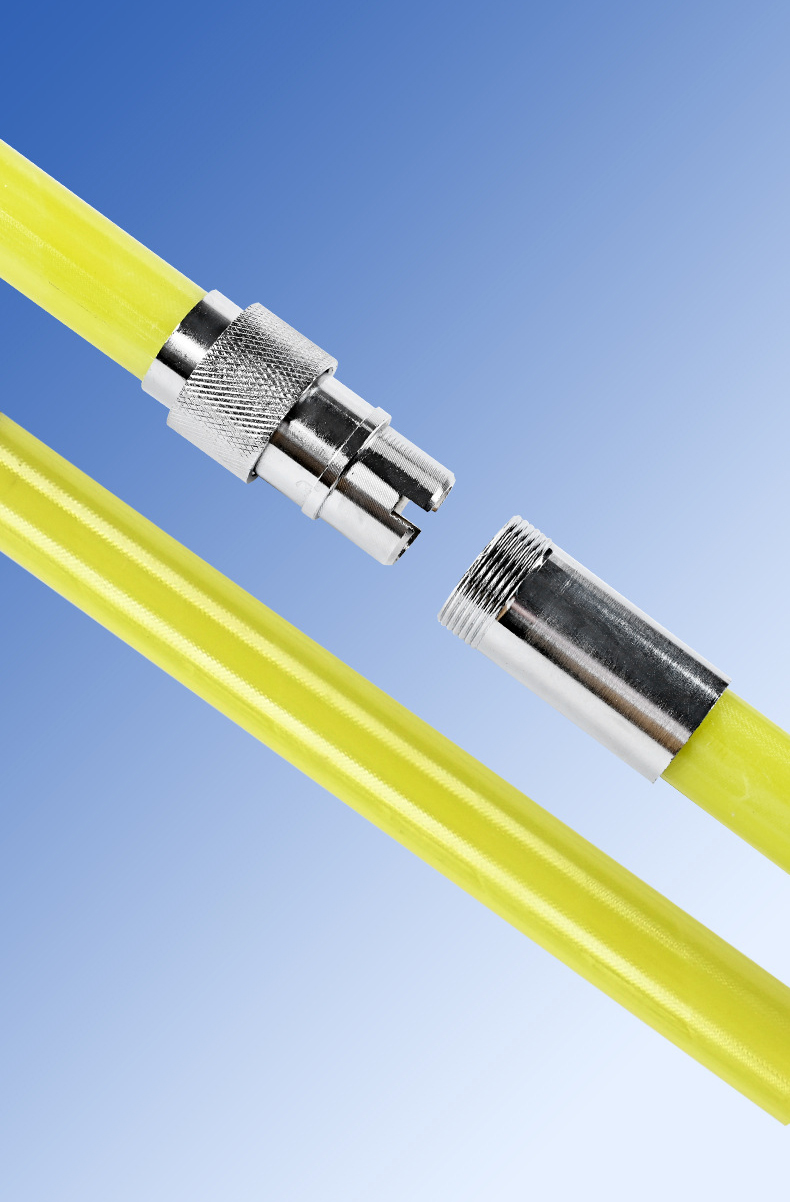

Fiberglass Reinforced Plastic Operating Rod – Extendable via Connection

Epoxy resin insulated operating rod – multi-section threaded connection

Available in 1 / 1.5 / 2 / 3M lengths – freely connect and extend

Fiberglass Reinforced Plastic Operating Rod
High hardness – not easily bent – good insulation – lightweight and easy to operate – available in red/yellow/green

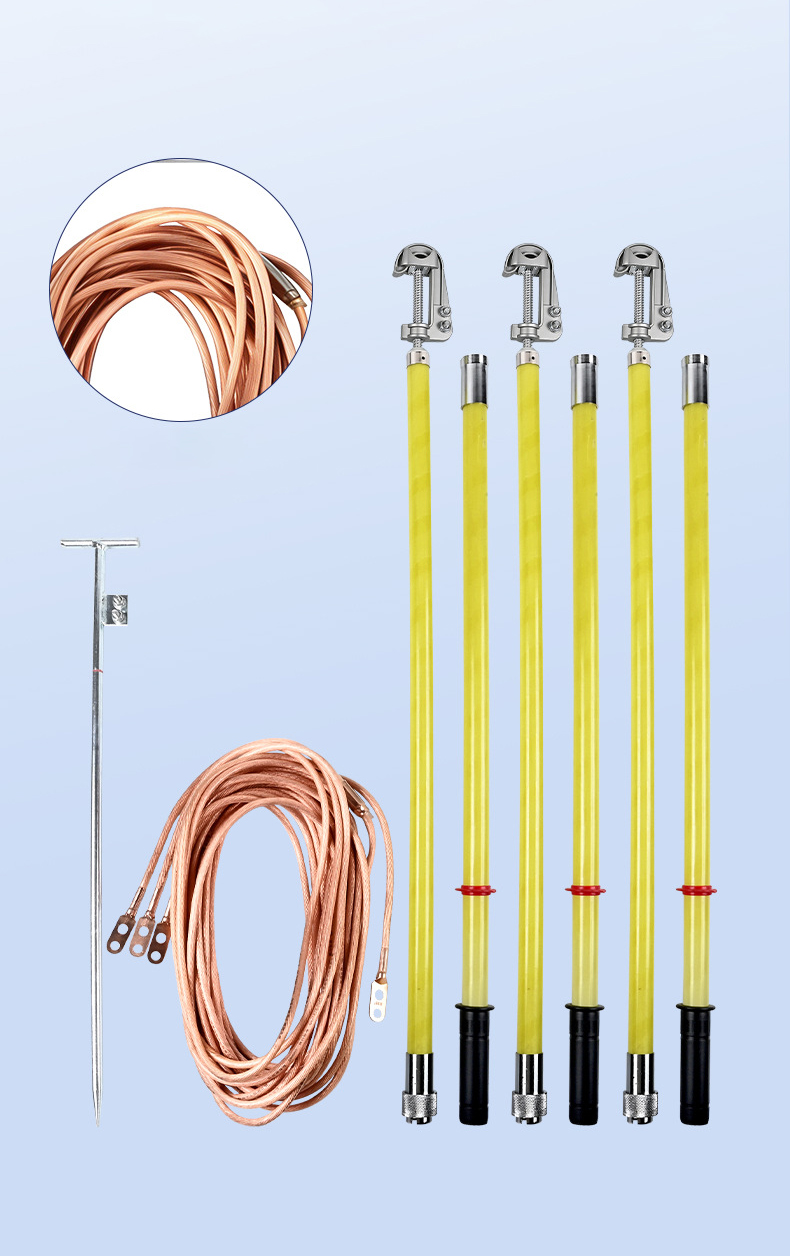

Grounding Rod Set

Excellent Insulation – High Safety

Can be extended via multi-section connection – national standard copper wire – high conductivity

Braided from multi-strand copper wire – outer wrapped with transparent insulating sheath


Product Breakdown

Artisan Quality – Quality You Can See

  • Monkey Head Clamp Head

  • Aluminum Grounding Clamp Head

  • Galvanized Grounding Pin

  • Epoxy Resin Operating Rod

  • PVC Plastic-Coated Sheath

  • Oxygen-Free Copper Grounding Wire

  • Safety Limit Ring

  • Dual-Hole Terminal

  • Rubber Anti-Slip Handle

  • Threaded Lock Connection


Product Details Showcase

Beyond Appearance – In Every Detail

  1. Insulated rubber anti-slip operating handle – rounded skirt edge for comfortable grip

  2. One-piece die-cast aluminum clamp head – surface sandblasted – electroplated fastening bolts

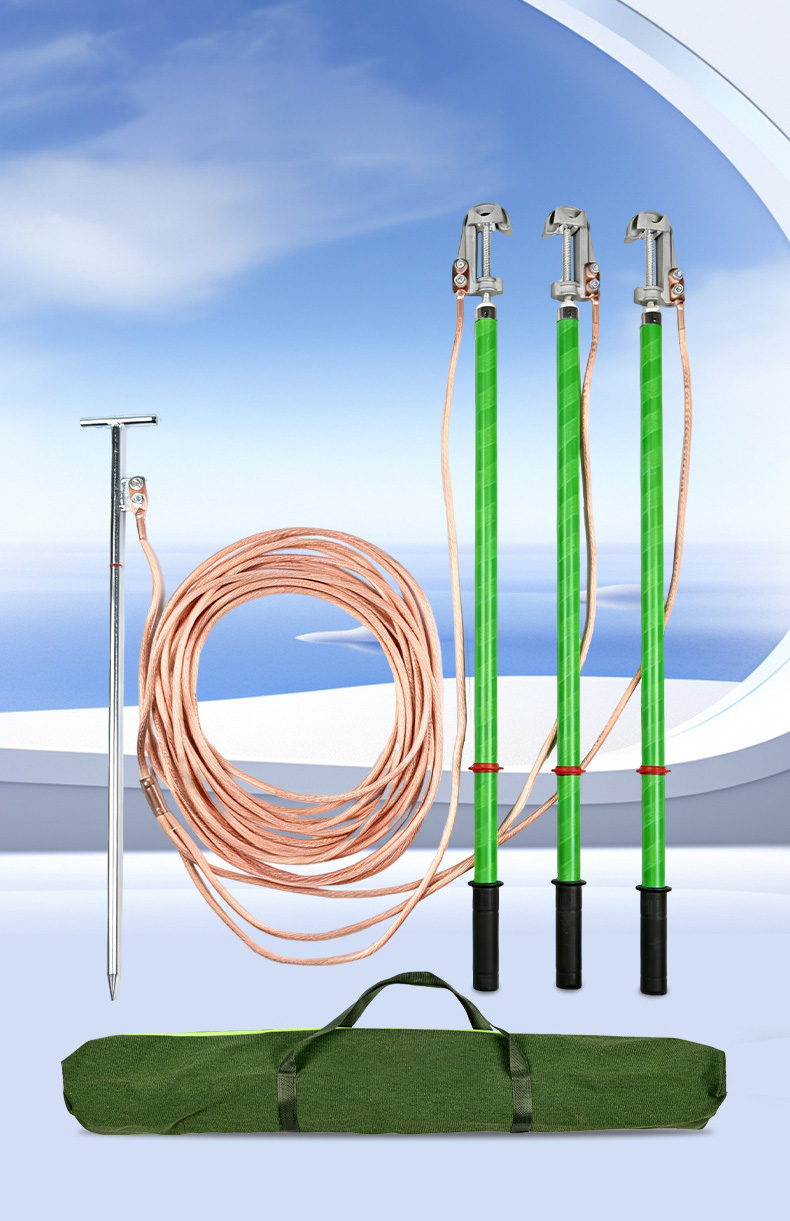

  3. Convenient canvas handbag – making power operations more convenient

  4. Galvanized grounding pin – smooth and flat surface – stable grounding

  5. Epoxy resin insulated rod – colors available (red/yellow/green)


Three-Phase Schematic Diagram

  • Grounding Rod

  • Grounding Wire

  • Grounding Pin
