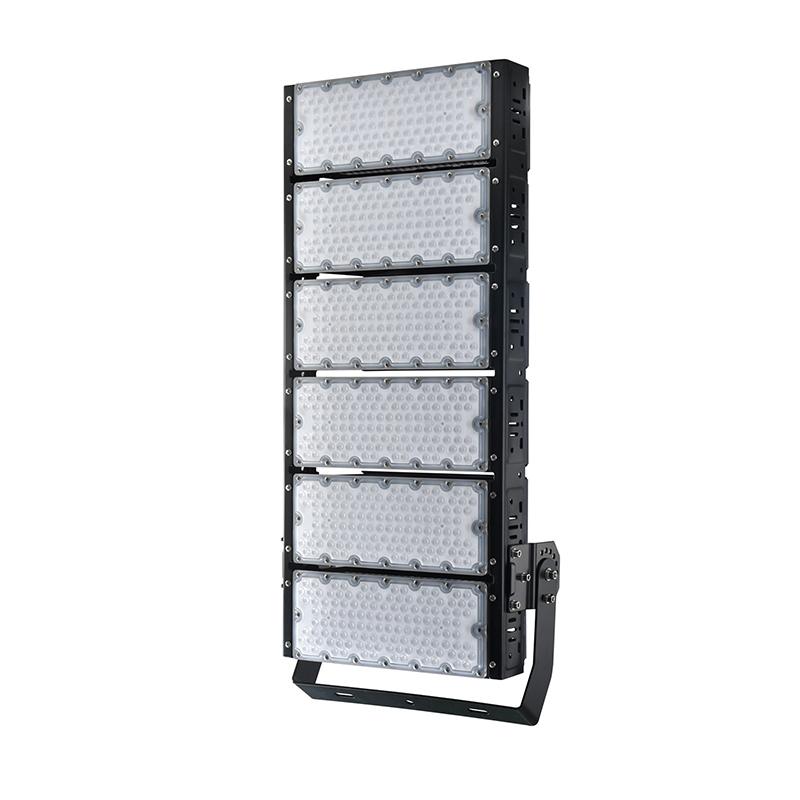

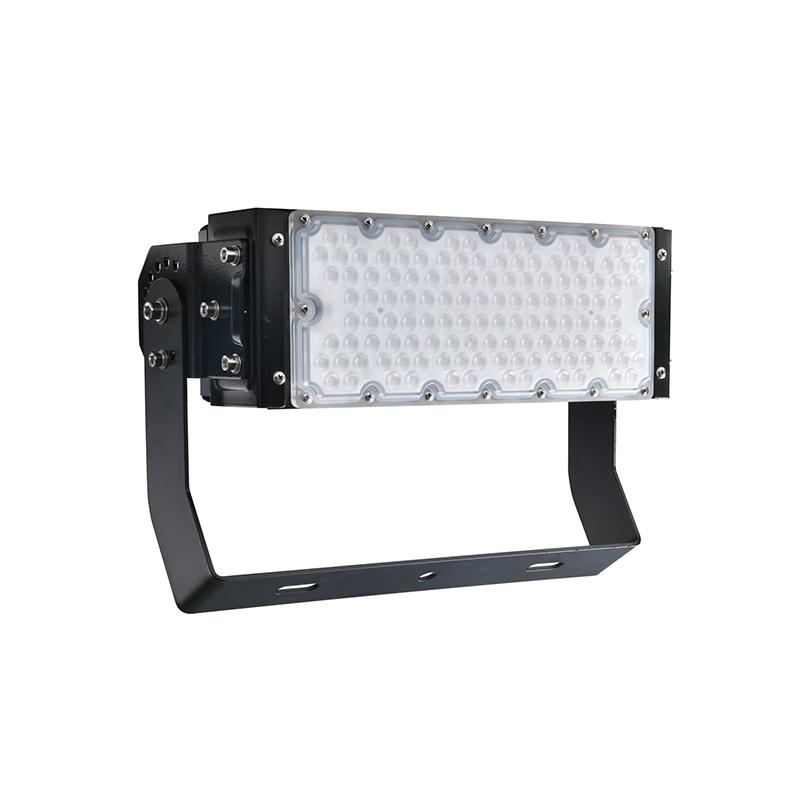

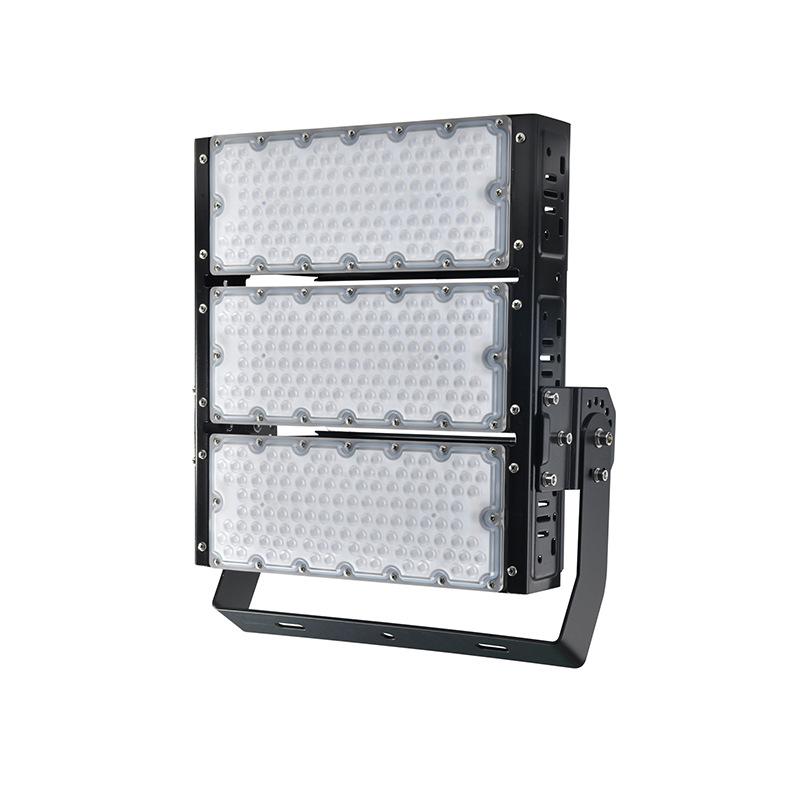

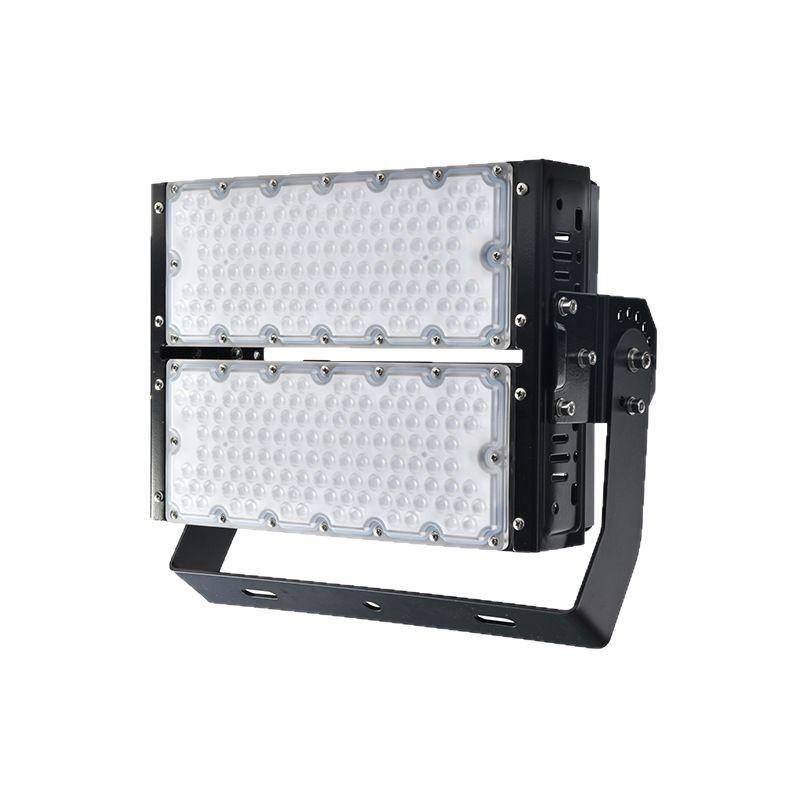

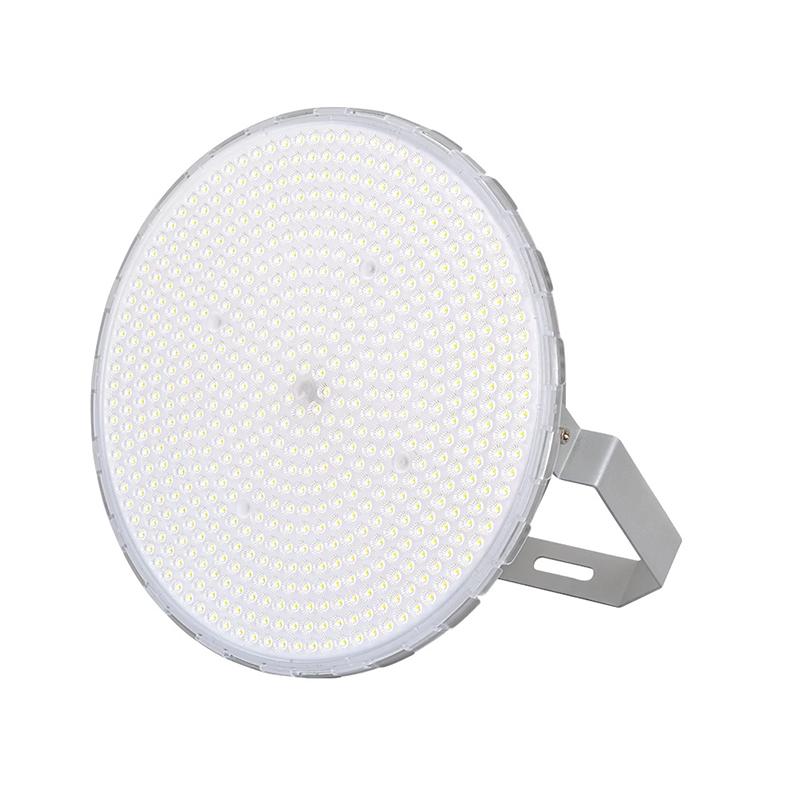

LED Floodlight

  • Product Name: LED Floodlight

  • Product Specifications: 100W, 200W, 300W, 400W, 500W, 600W

  • Input Voltage: AC85-265 (V)

  • Power Supply Method: Socket power supply

  • Housing Material: Aluminum

  • Protection Rating: IP65

  • Luminous Flux: 1000 (LM)

  • Beam Angle: 30/40/60/90 (degrees)

  • True Power Rating: True power

  • Color Rendering Index: 80

  • Average Illuminance: 120

  • Lifespan: 50000 (H)

  • Color: Black

  • Applicable Places: Stadiums, high mast, court lighting, etc.

Description

Cross-border quality chips
Selected high-quality chips provide bright illumination, long service life, slow light decay, and low-carbon energy efficiency.

  • High luminous efficacy

  • Low light decay

  • Long lifespan

  • Low energy consumption

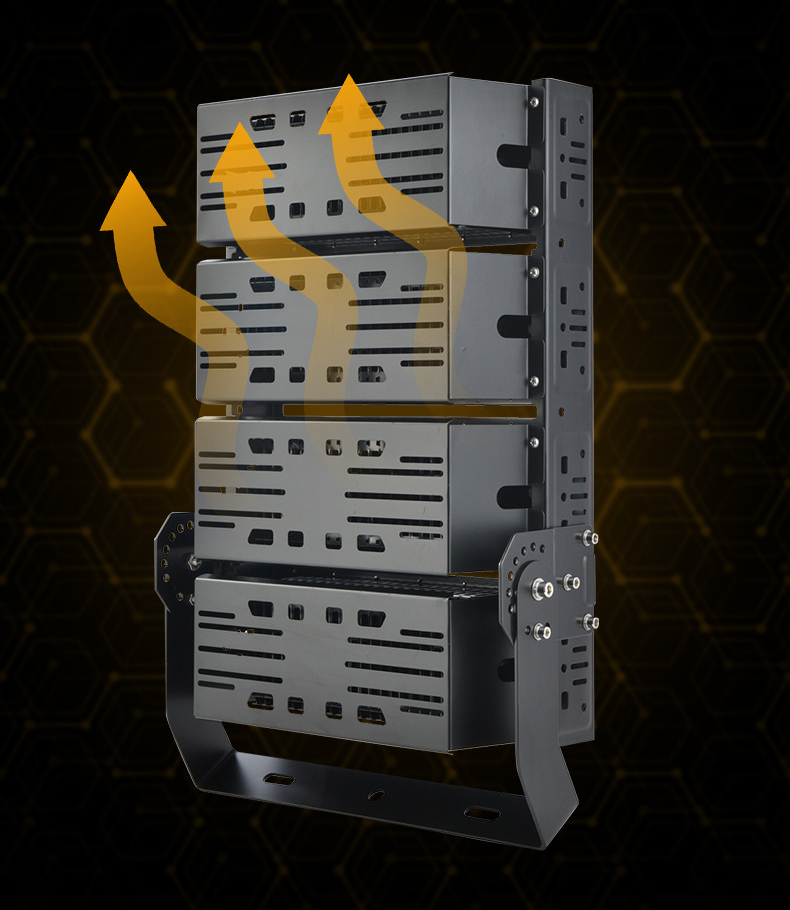

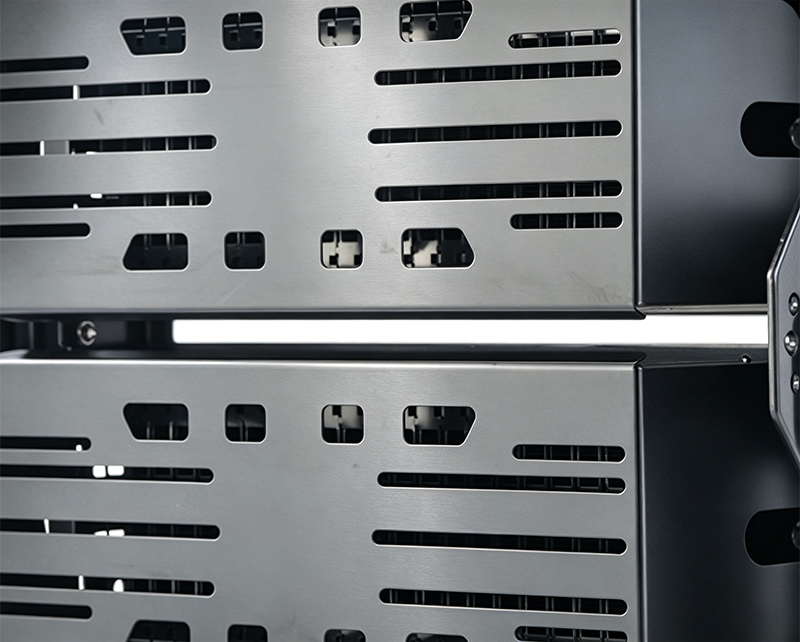

Full aluminum lamp body with fin heat dissipation
The all-aluminum housing has the characteristic of rapid heat dissipation and can prevent rust and corrosion for a long time outdoors. This is a quality that plastic and iron housings cannot match.

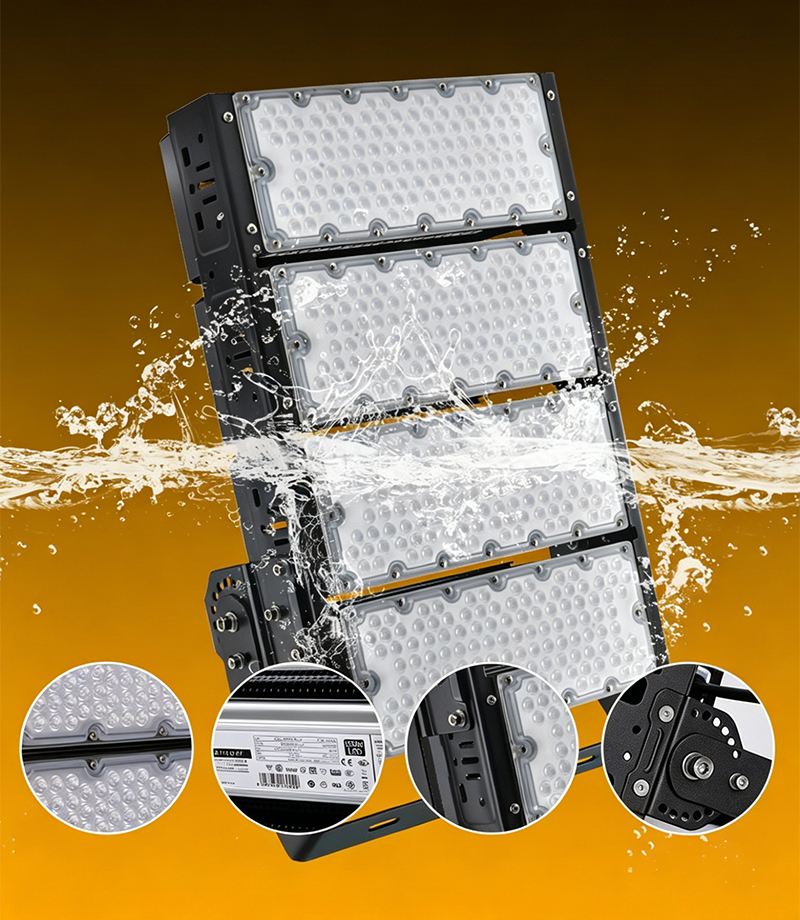

IP65 Waterproof and Dustproof Rating
Fully sealed waterproof design effectively prevents the intrusion of foreign objects and dust. No need to worry even in rainy and humid environments, meeting outdoor usage requirements.

  • Sealed waterproof gasket

  • Mean Well power supply

  • Pre-designed drainage channel

  • Dustproof and waterproof plug

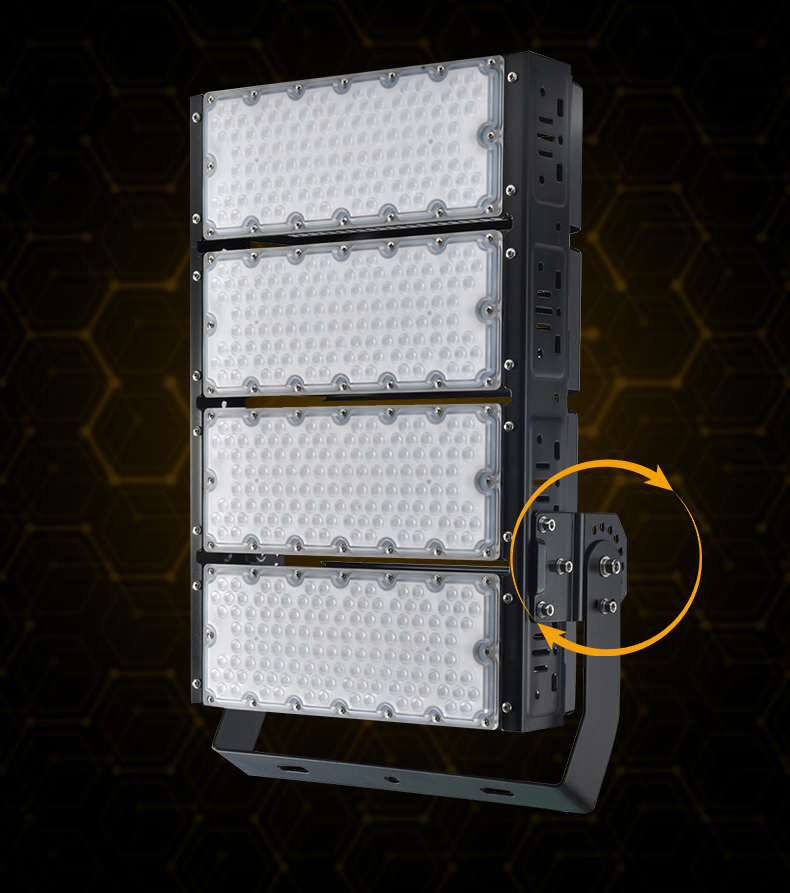

Adjustable angles for multi-directional lighting
Large-angle adjustable bracket allows flexible adjustment of lighting direction. Installation is unrestricted with wide applicability.

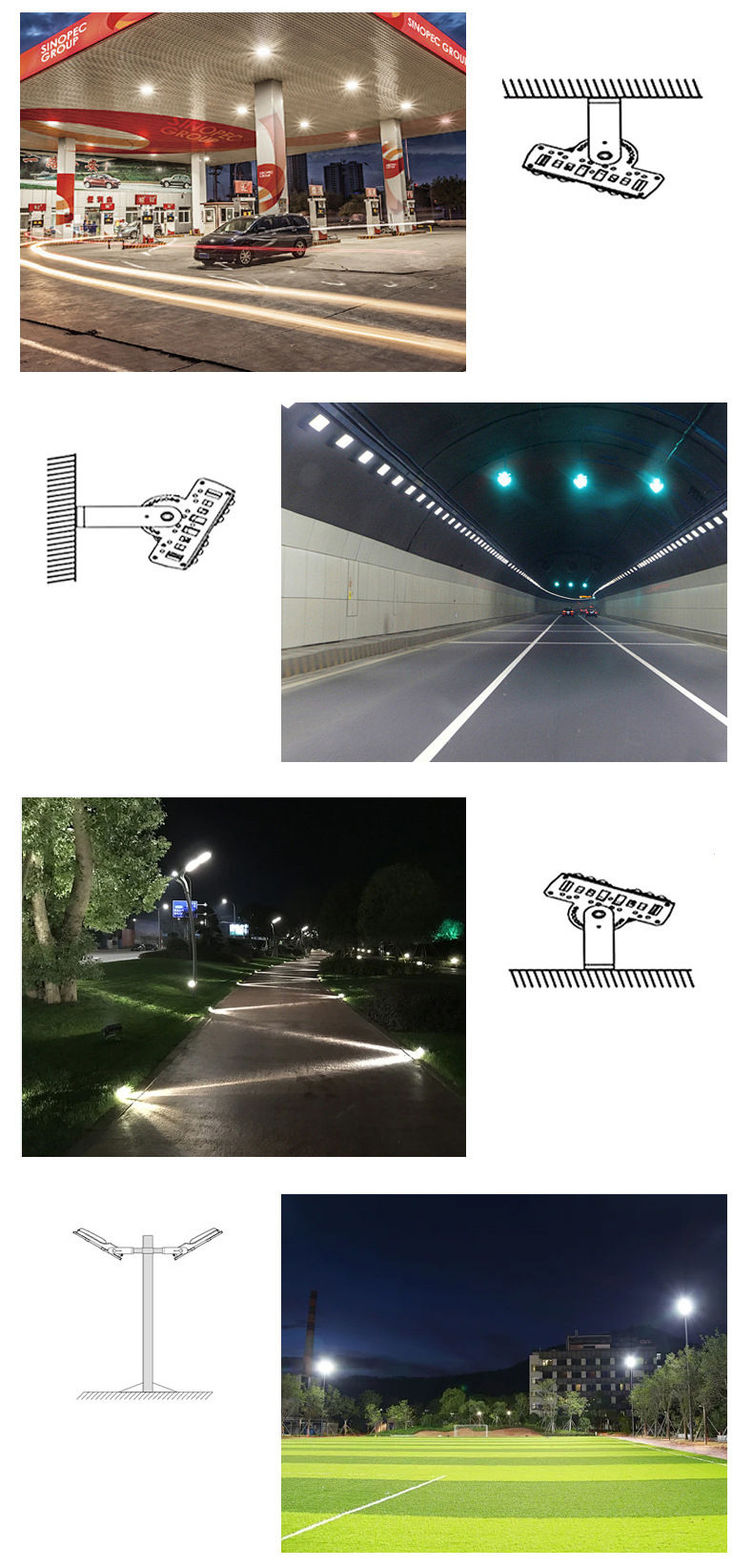

Multiple Installation Methods

  1. Ceiling mounting

  2. Wall mounting

  3. Free-standing mounting

  4. Straight rod mounting

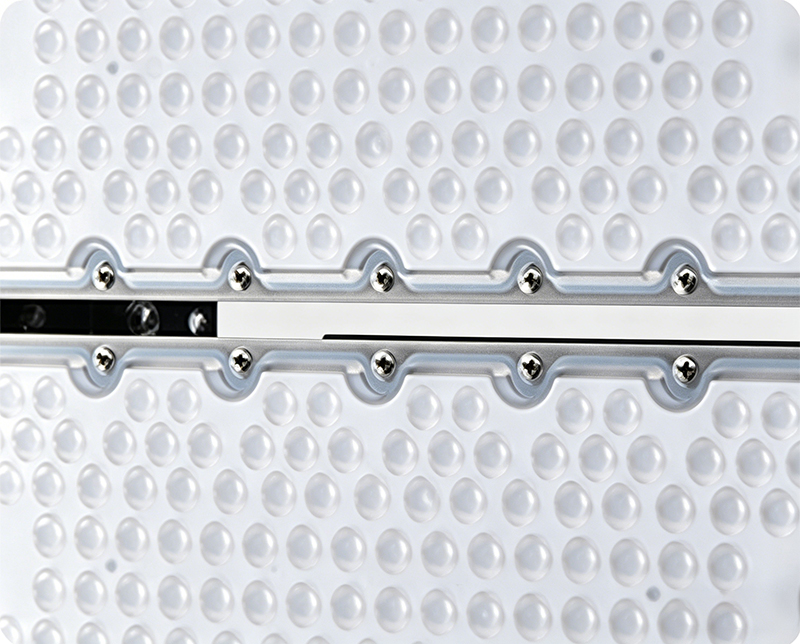

Optical PC lens
UV-resistant material, resistant to yellowing and high temperature with long-term use.

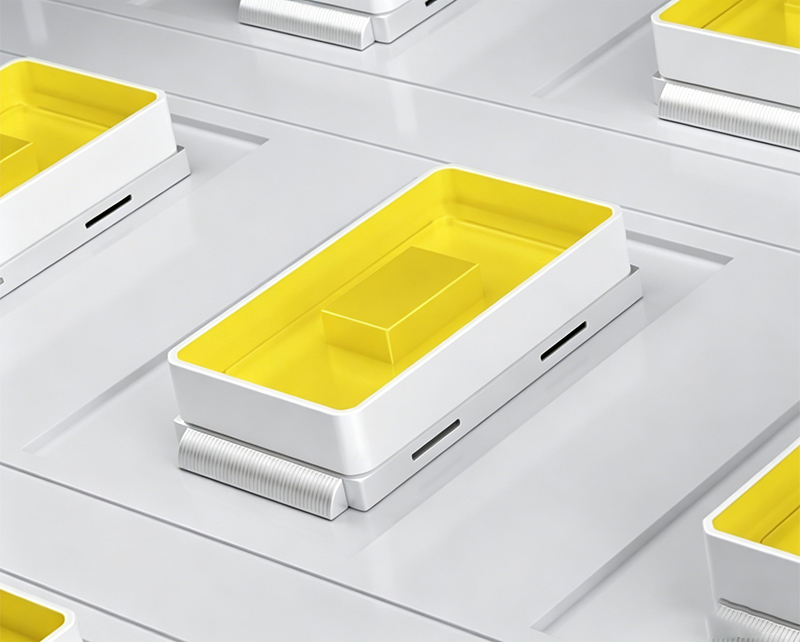

Brand-name lamp bead
Stronger luminous efficacy, illuminates farther.

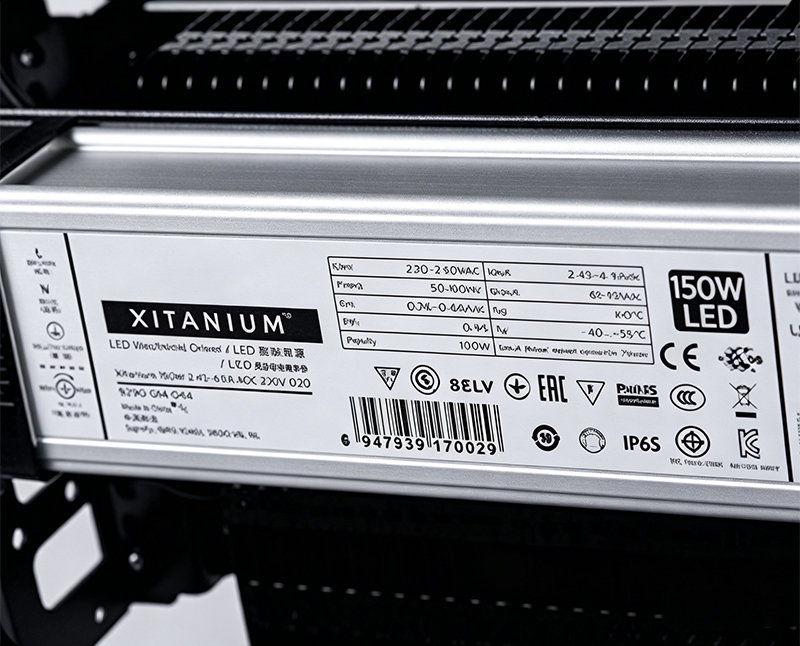

Mean Well power supply
External power supply, no contact with the lamp body for thermal and electrical separation, resulting in longer service life.


Aluminum lamp body
Made of aluminum with spray-painted surface treatment for anti-corrosion, rust prevention, and fade resistance.


The product details are as follows in the table below:

Product Specifications100W200W300W400W500W600W
Housing + packaging weight3.2kg
4.9kg6.4kg8kg9.6kg11.1kg
Whole lamp dimensions366*249*142mm366*311*142mm366*436*142mm366*561*142mm366*686*142mm366*811*142mm
Package dimensions39.5*17*31.5cm37.5*34.5*20cm47*37.5*20cm59*37.5*20cm72*37.5*20cm83.5*37.5*20cm
Housing weight2.8kg
4.2kg5.7kg7.1kg8.6kg
10kg
3030 aluminum substrate solution6 series 21 parallel * 1 group, 126 pieces of 3030, 184 pieces of 8C23B6 series 21 parallel * 2 group, 252 pieces of 30306 series 21 parallel * 3 group, 378 pieces of 30306 series 21 parallel * 4 group, 504 pieces of 30306 series 21 parallel * 5 group, 630 pieces of 30306 series 21 parallel * 6 group, 756 pieces of 3030
3030 lens solution20°, 40°, 60°, 90° use all-in-one lens, 184 pieces of 8C23B for 60° and 90°
5050 aluminum substrate solution5050-2C23B-46 pieces
5050 lens solution20°, 40°, 60°, 90°20°, 40°, 60°, 90°20°, 40°, 60°, 90°20°, 40°, 60°, 90°, 140*100°20°, 40°, 60°, 90°20°, 40°, 60°, 90°
