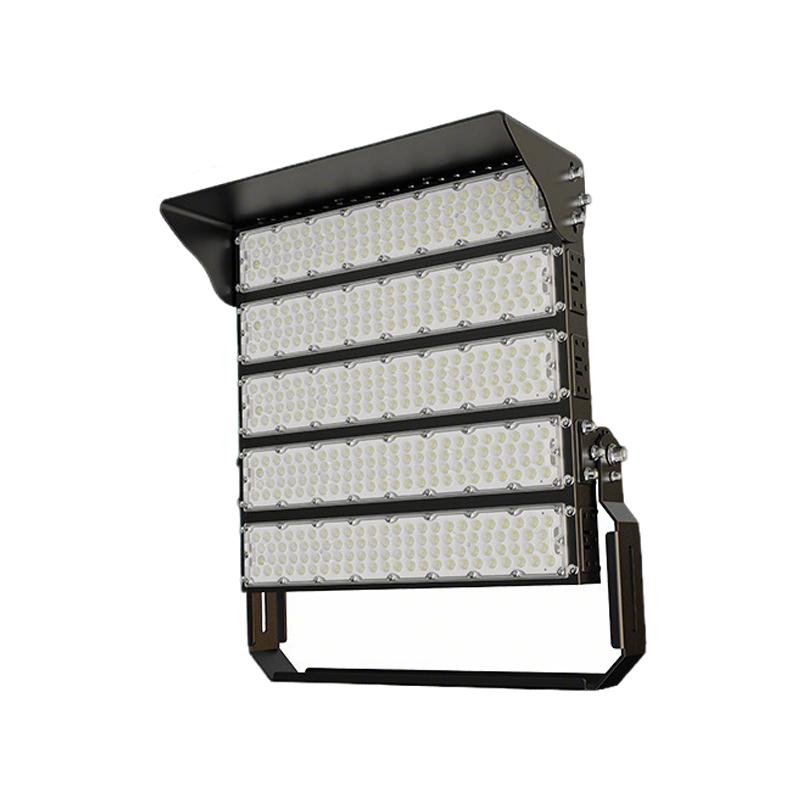

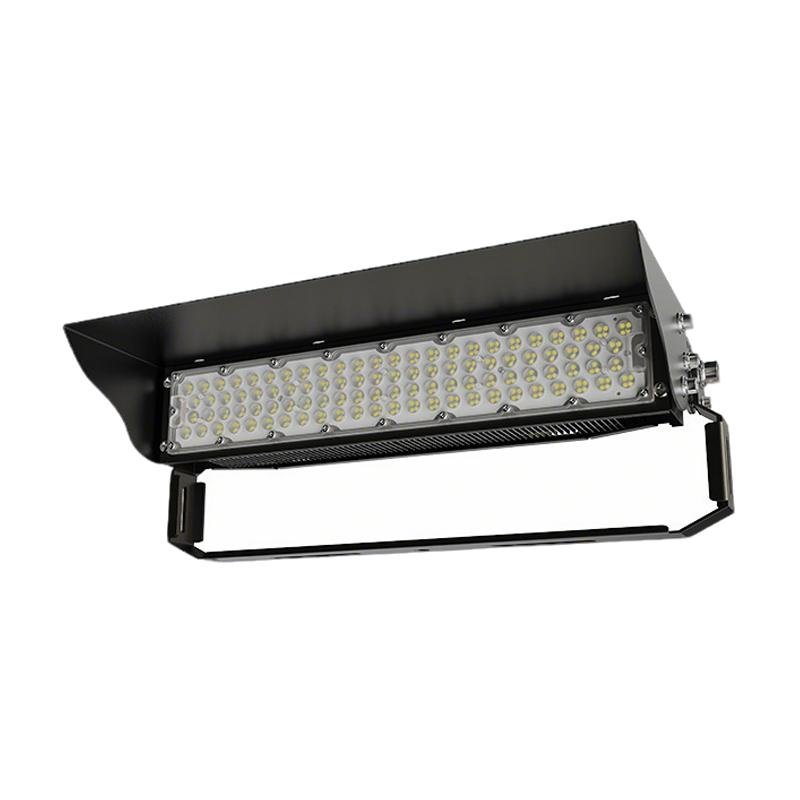

LED Floodlight
Description
High luminous efficiency (lm < 168), imported high-end chips — bright, high-intensity light, full wattage, durable with no power reduction.
High-brightness chip
Rapid heat dissipation
PC acrylic
IP65 waterproof
Engineering case — quality defines everything.
Attention to detail, high brightness, and durable.
Outdoor waterproof court light, 250W per unit, with lens options of 15/30/60/90 degrees.

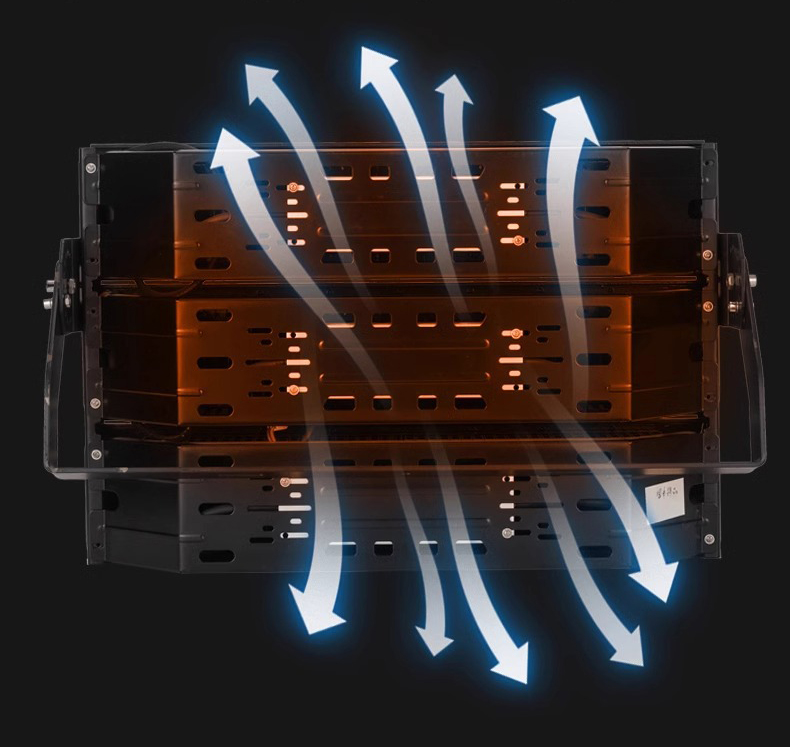

The key to choosing a floodlight is heat dissipation. When high-power LED lights are in operation, the temperature of the LED beads can reach 150°C. A good heat dissipation design can effectively extend the lifespan of the LED beads.

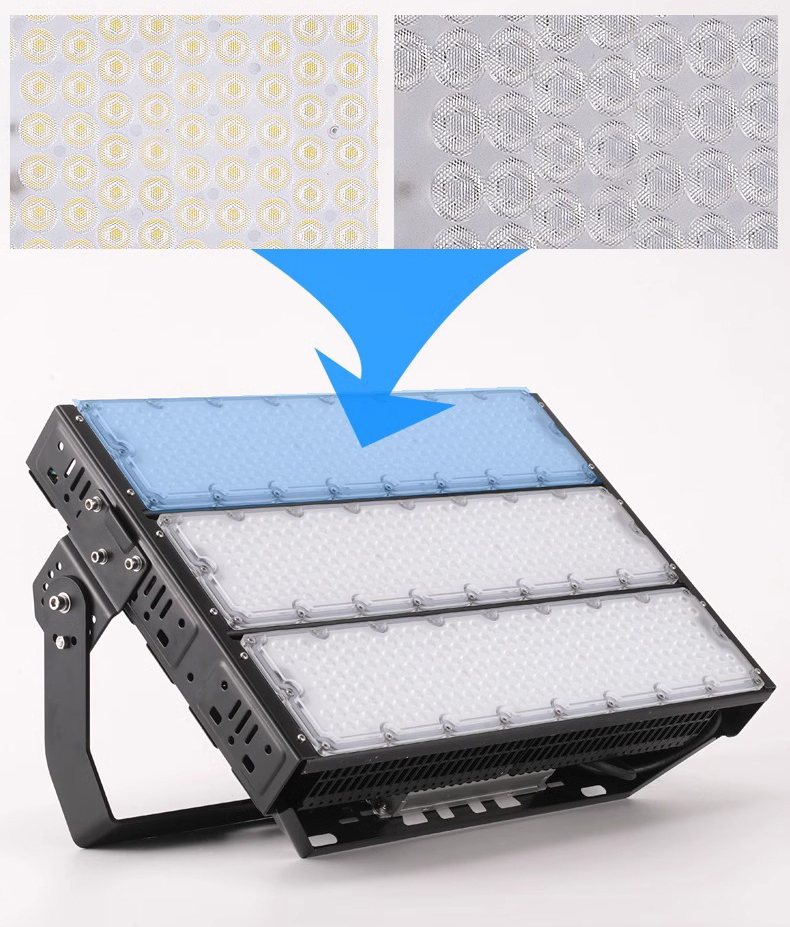

PC optical lens
Made of PC optical lens material with high transmittance. It optimizes lighting performance while reducing glare. Optional beam angles: 30°, 60°, 90°, 120°, and T2M degree.

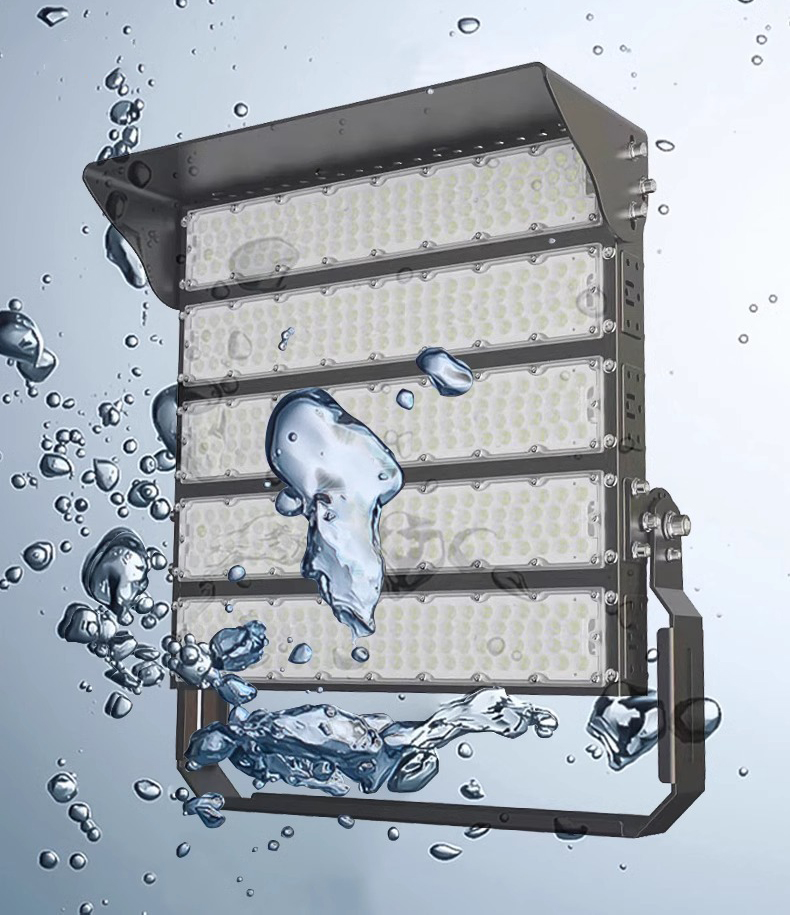

Multi-level waterproofing — withstands outdoor wind and rain. Integrated lamp body with waterproof rubber ring technology prevents rainwater from penetrating, ensuring reliable outdoor use.

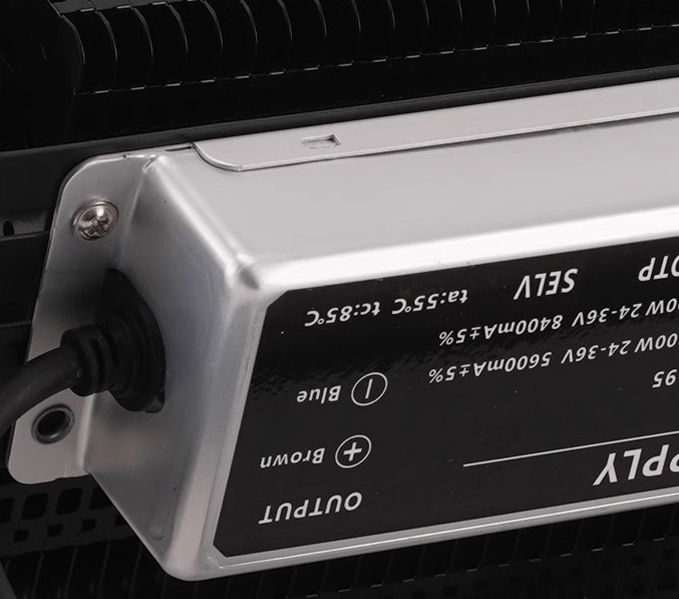

Independent driver for greater stability
Constant voltage and constant current driver power supply with output voltage of 85-305V. Features over-temperature protection, over-voltage protection, short circuit protection, lightning protection, 6KV surge protection, and lumen depreciation compensation.
*Note: The actual product shall prevail. Effect images are for reference only.

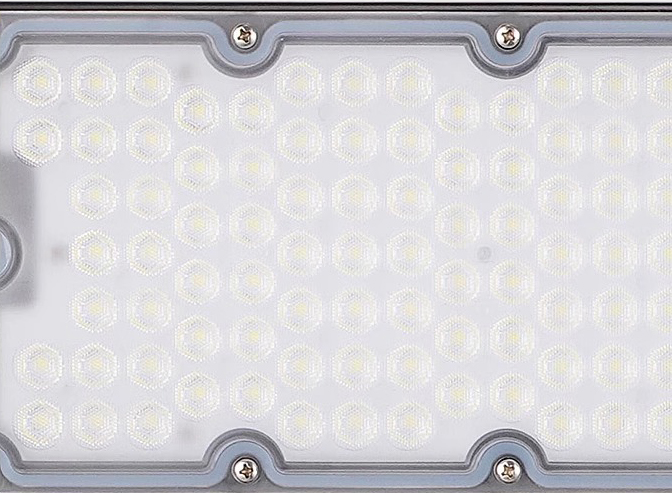

High-brightness LED chips — stable illumination over a wide area
High-brightness LED chips with scientifically designed dense array provide more uniform lighting and broader coverage.

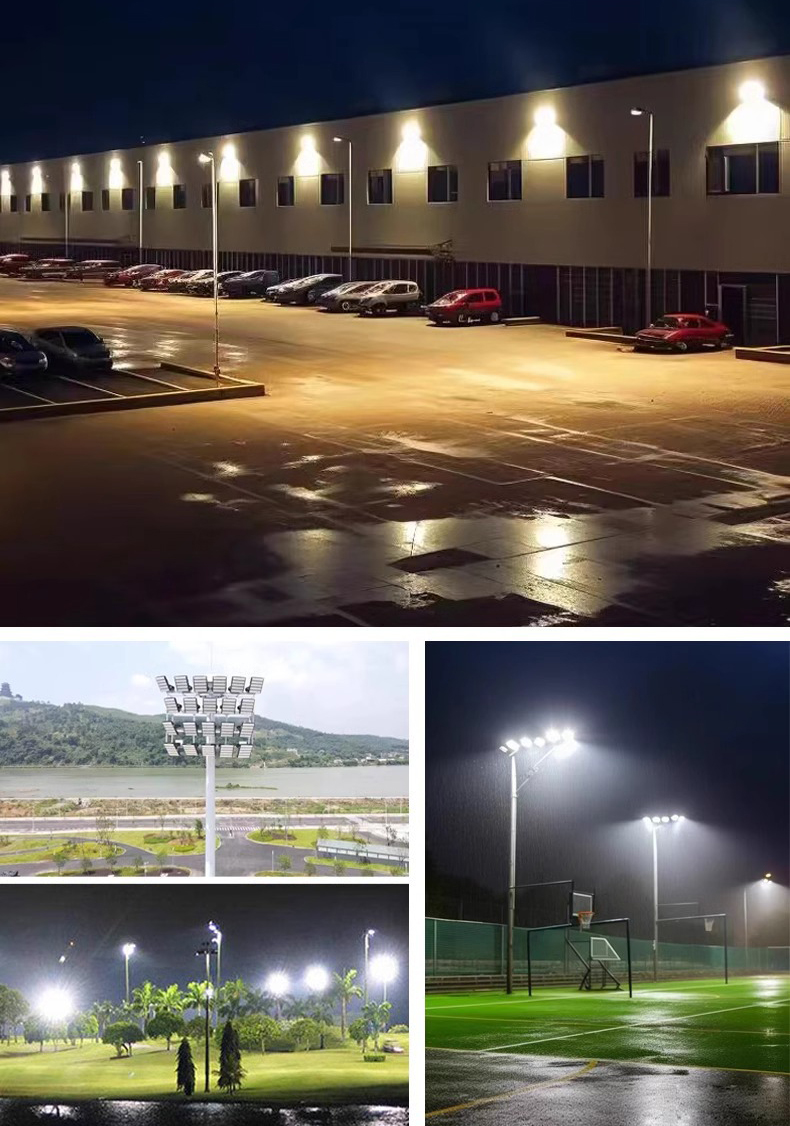

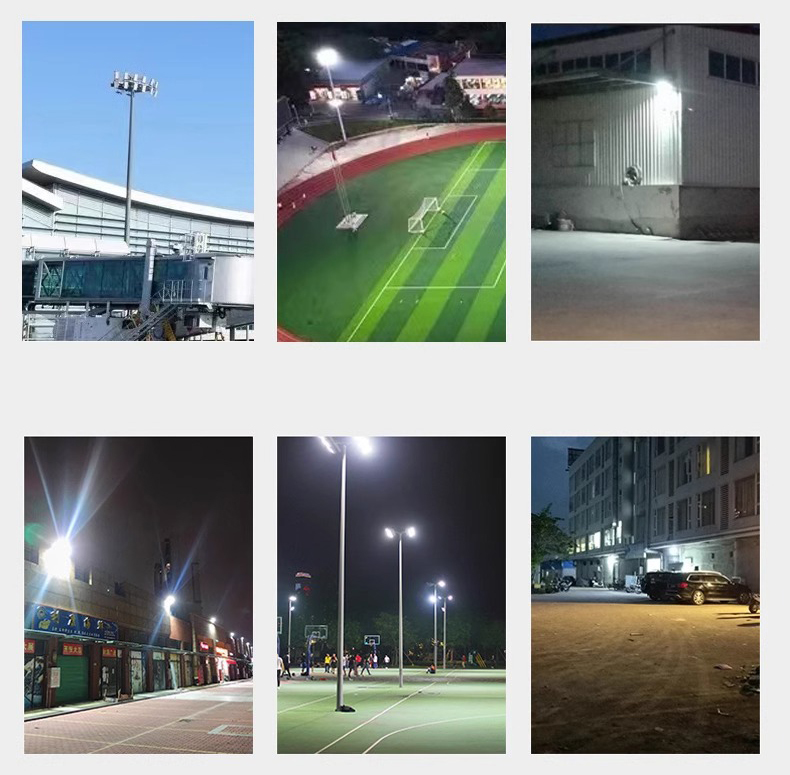

Applicable places
180-degree rotatable bracket suitable for pole mounting, pendant mounting, wall mounting, and other installation methods — install wherever needed.
Square
Landscape lighting
Factory corner

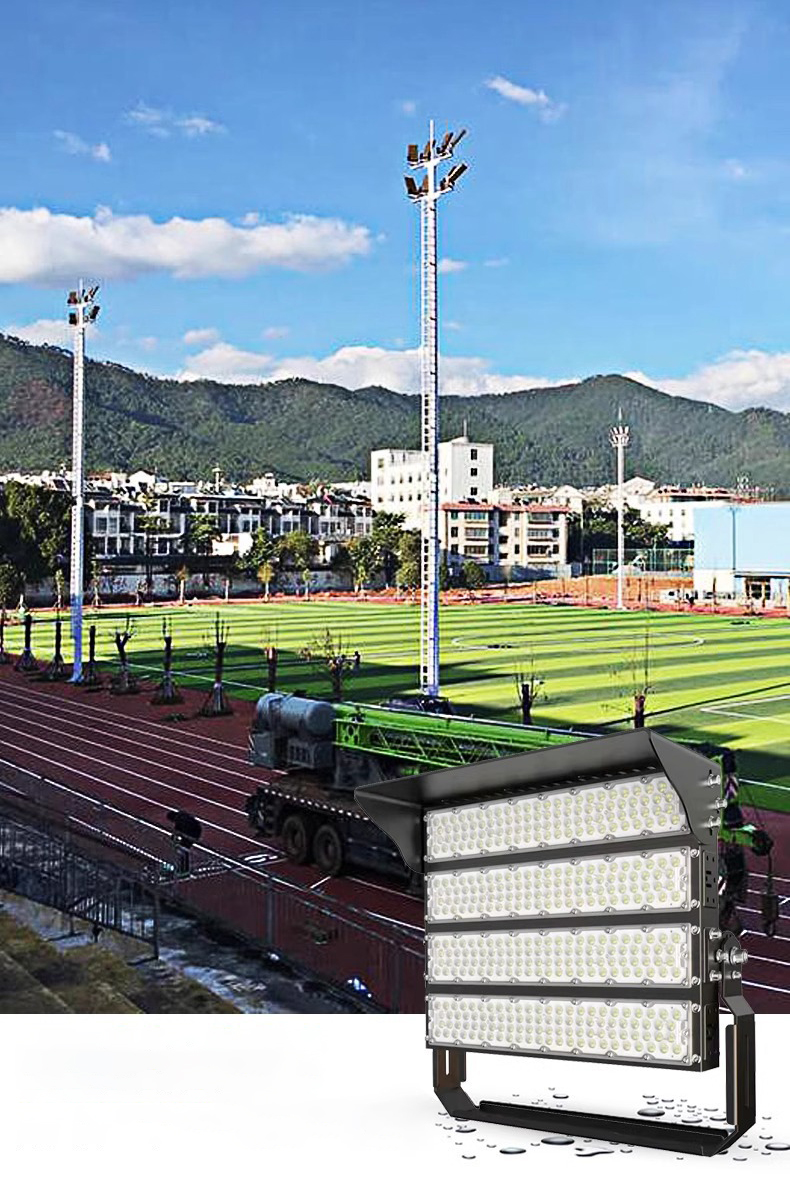

Football field case
4 poles with 32 units of 1000W lights, 30/60 degree angles.

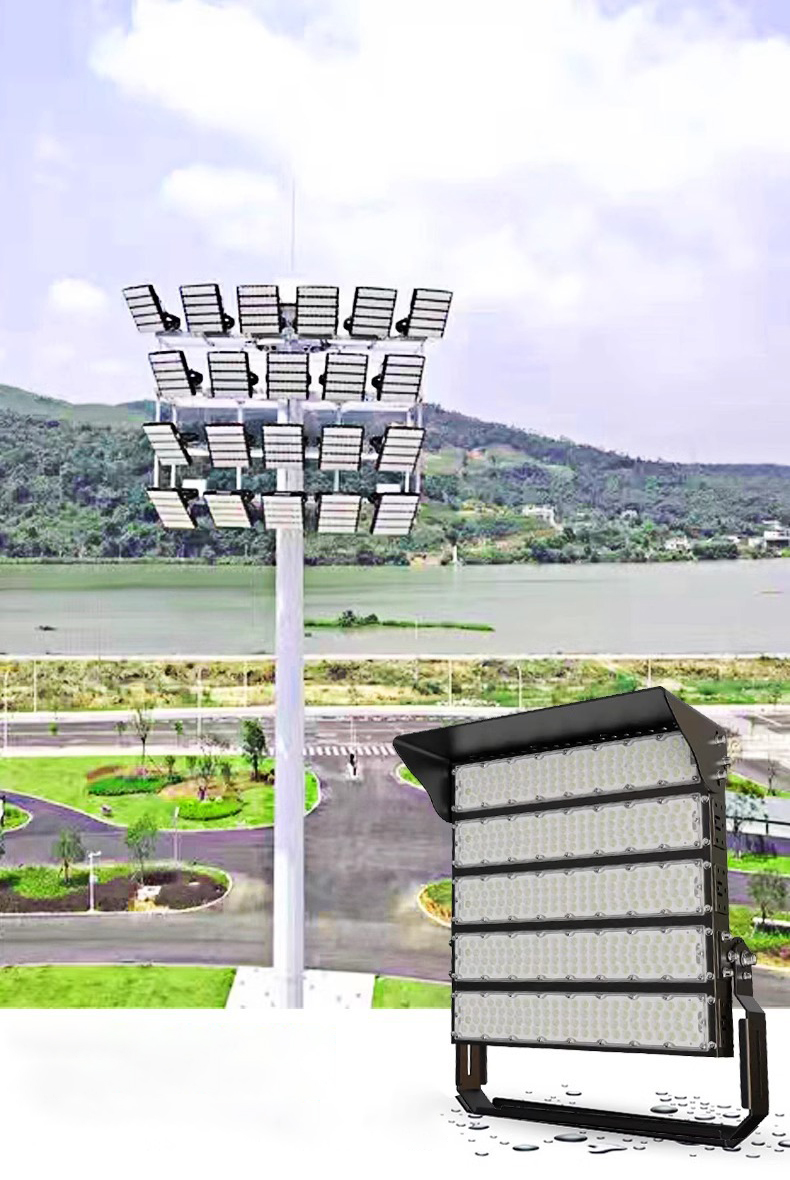

Square high mast light
1 pole with 21 units of 1250W lights, 15/60 degree angles.

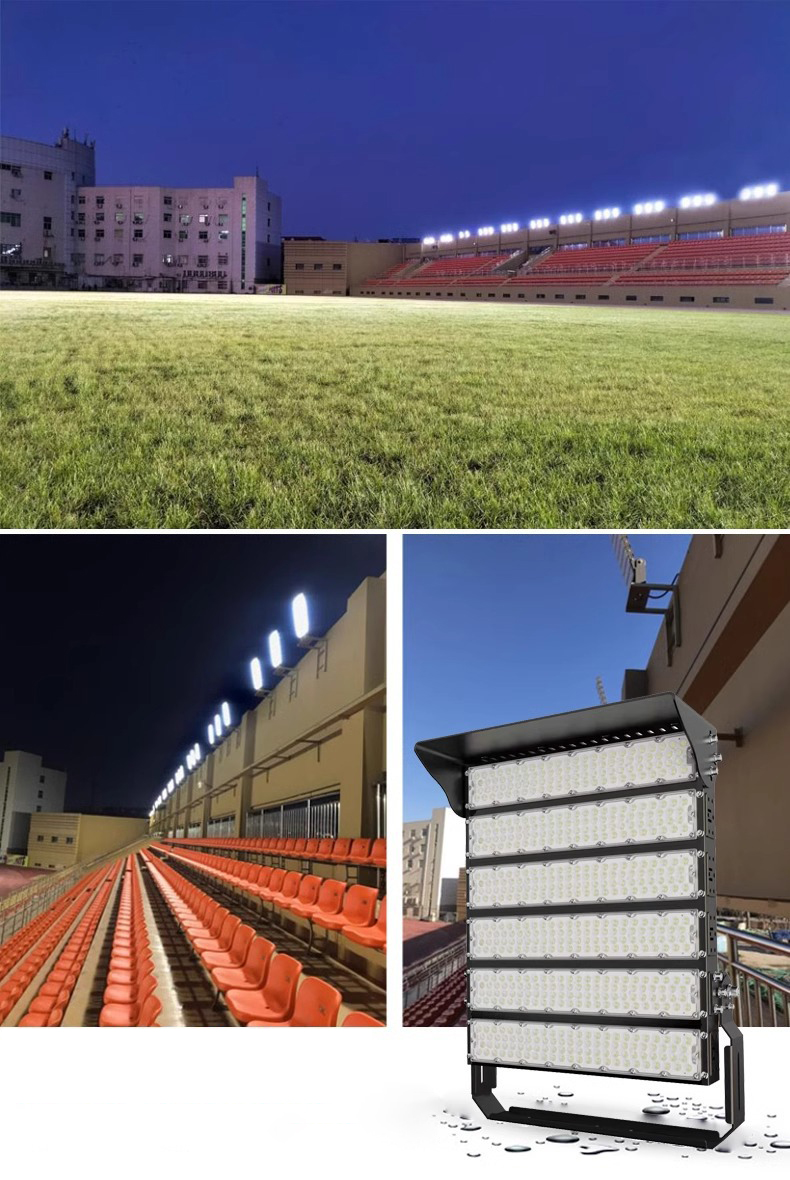

Football field lights
Wall-mounted directly with 60 units of 1500W lights, 15/90 degree angles.
Adapts effortlessly to different ambient temperatures
Operates normally in temperatures as low as -60°C and as high as 40°C — resistant to extreme cold and high heat, maintaining stable performance even in harsh weather conditions.
-60°C low-temperature resistant lights — stable operation even at the lowest temperatures.
+40°C high-temperature resistant lights — stable operation even at the highest temperatures.

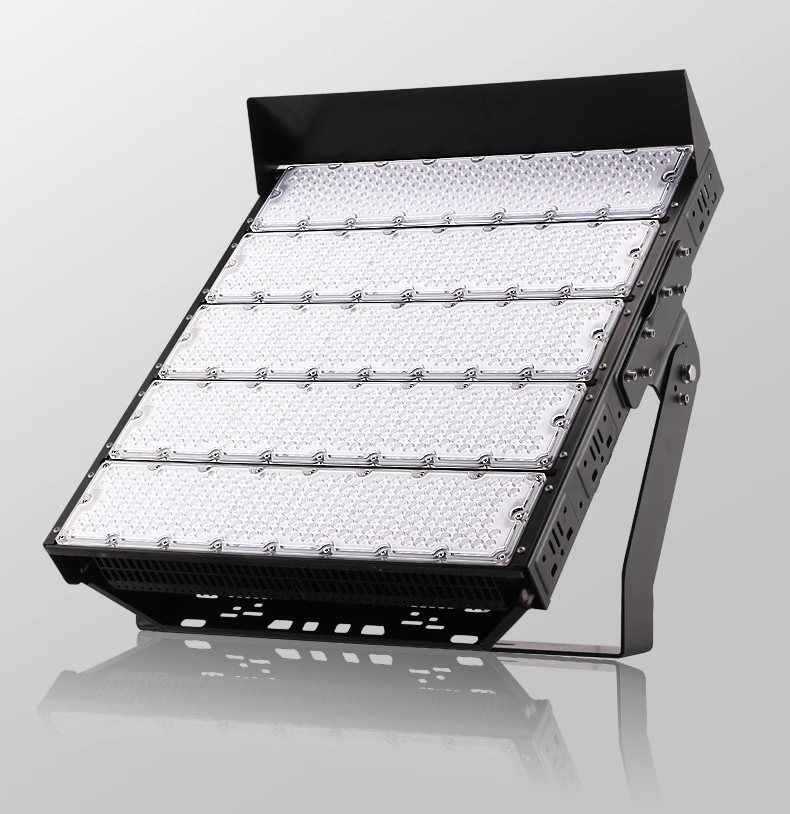

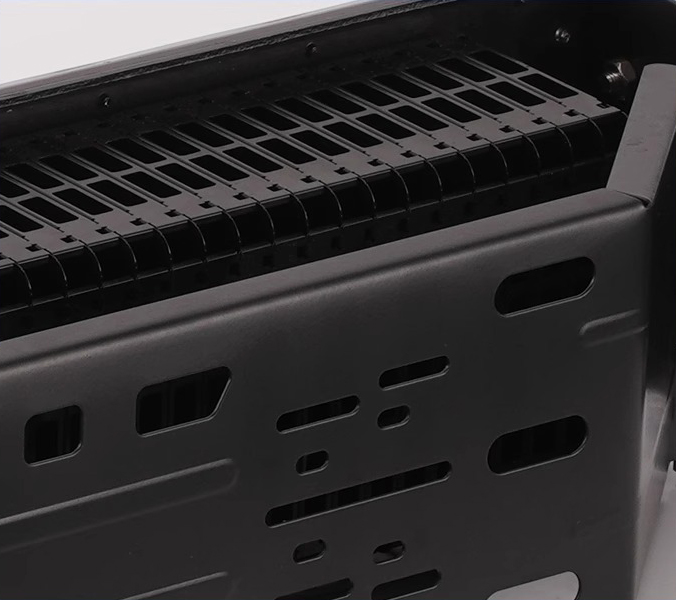

High-density heat sink fins
The lamp body features high-density heat sink fins — high hardness, strong impact resistance, and fast heat dissipation.

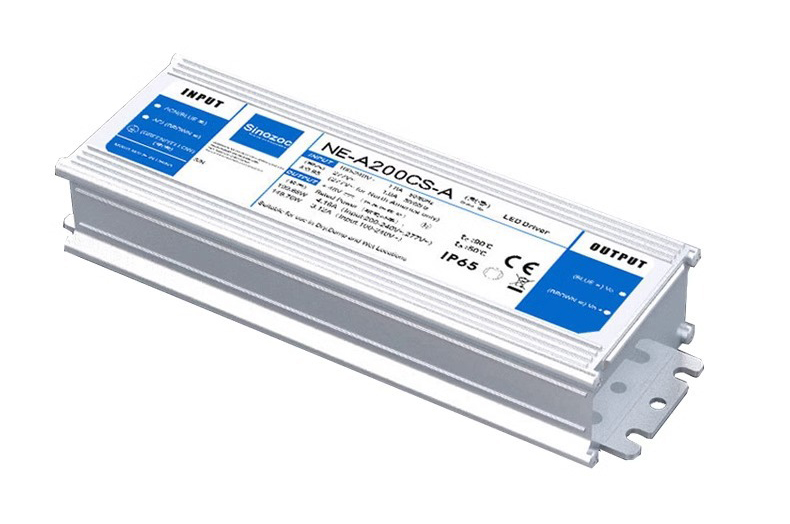

All-aluminum waterproof driver
Features full-range 85-265V input and has undergone tens of thousands of tests for stable and durable performance.

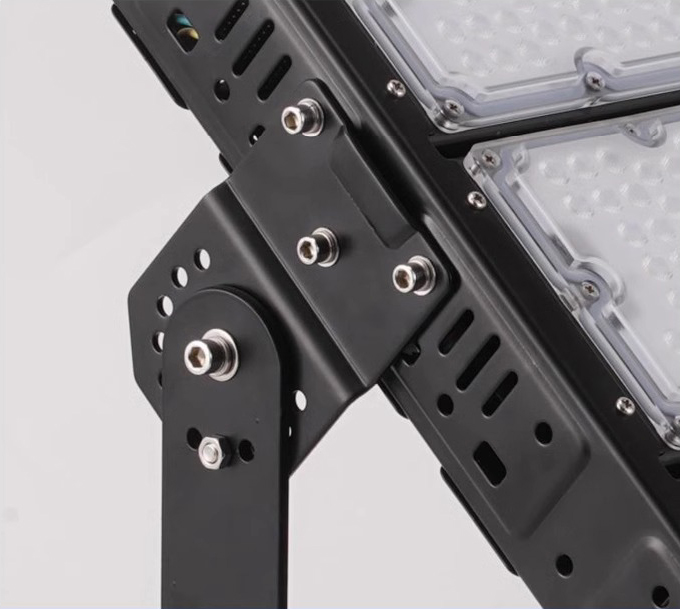

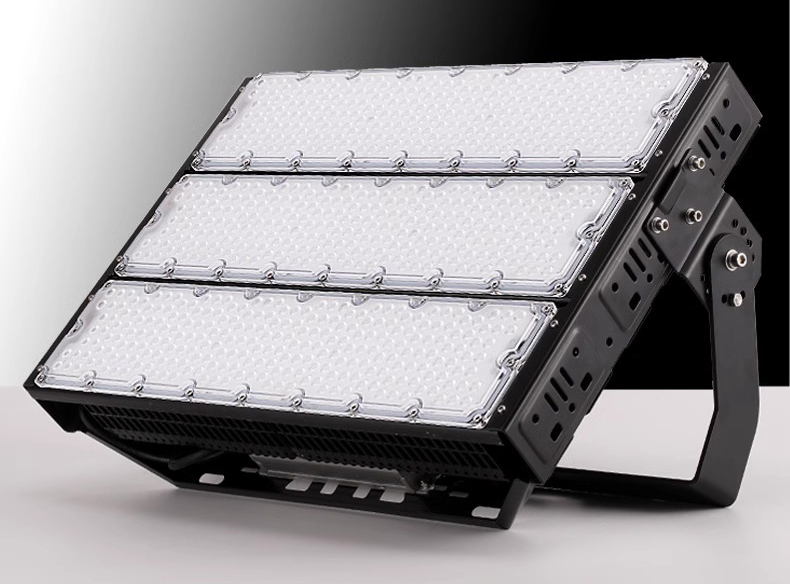

Thickened adjustable bracket
Allows free angle adjustment to select the appropriate illumination range, suitable for various environments.
Osram chips
Not only bright but also durable. High-quality LED chips paired with optical lenses — double the brightness.
Product details are as follows in the table:
| Product Specifications | HDB-250W — Full wattage high brightness model | HDB-500W — Full wattage high brightness model | HDB-750W — Full wattage high brightness model | HDB-1000W — Full wattage high brightness model | HDB-1200W — Full wattage high brightness model | HDB-1500W — Full wattage high brightness model |
| Product Dimensions | 580*138*123mm | 580*138*250mm | 580*138*378mm | 580*138*505mm | 580*138*632mm | 580*138*760mm |
| Number of LED beads | 336 beads (6V 1W 3030) / 96 beads (5050) | 672 beads (6V 1W 3030) / 192 beads (5050) | 1008 beads (6V 1W 3030) / 288 beads (5050) | 1344 beads (6V 1W 3030) / 384 beads (5050) | 1680 beads (6V 1W 3030) / 480 beads (5050) | 2016 beads (6V 1W 3030) / 576 beads (5050) |
| Luminous output | 31,000 lm | 62,000 lm | 93,000 lm | 124,000 lm | 155,000 lm | 217,000 lm |
| Rated power | 250W | 500W | 750W | 1000W | 1200W | 1500W |
| Luminous efficacy | 130 lm/W | 130 lm/W | 130 lm/W | 130 lm/W | 130 lm/W | 130 lm/W |
| Color temperature | CW (5700K) / NW (4000K) / WW (3000K) | CW (5700K) / NW (4000K) / WW (3000K) | CW (5700K) / NW (4000K) / WW (3000K) | CW (5700K) / NW (4000K) / WW (3000K) | CW (5700K) / NW (4000K) / WW (3000K) | CW (5700K) / NW (4000K) / WW (3000K) |
| Color rendering index | CRI > 80 | CRI > 80 | CRI > 80 | CRI > 80 | CRI > 80 | CRI > 80 |
