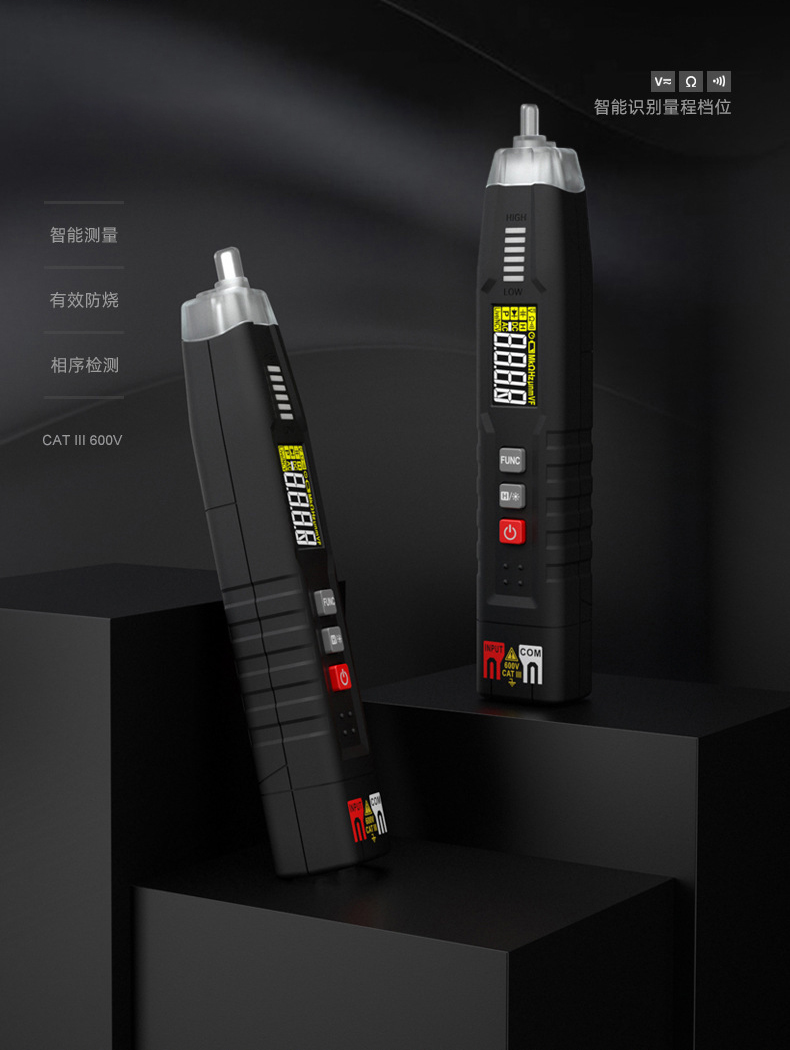

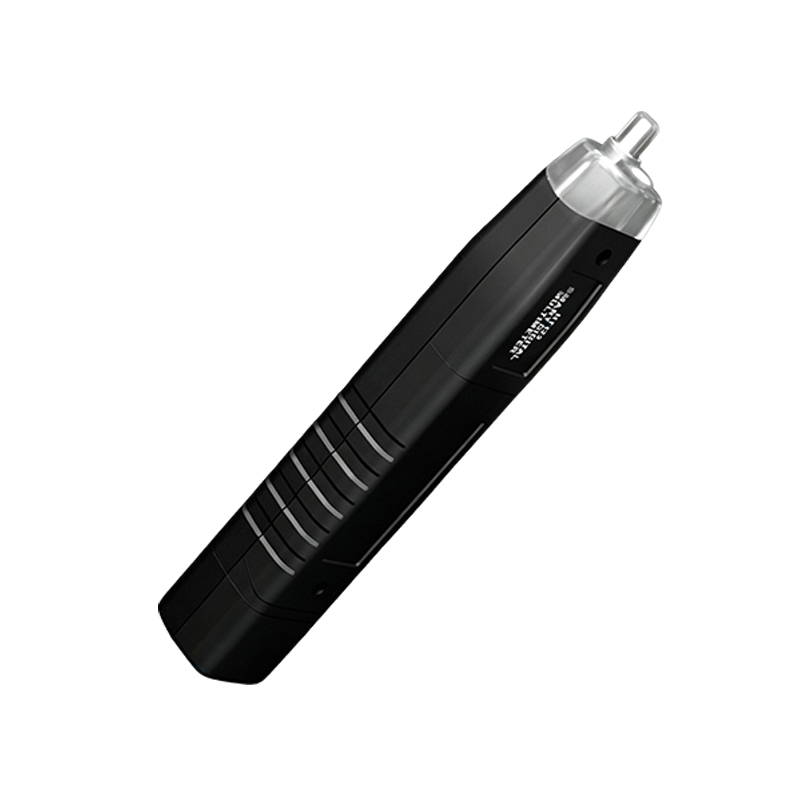

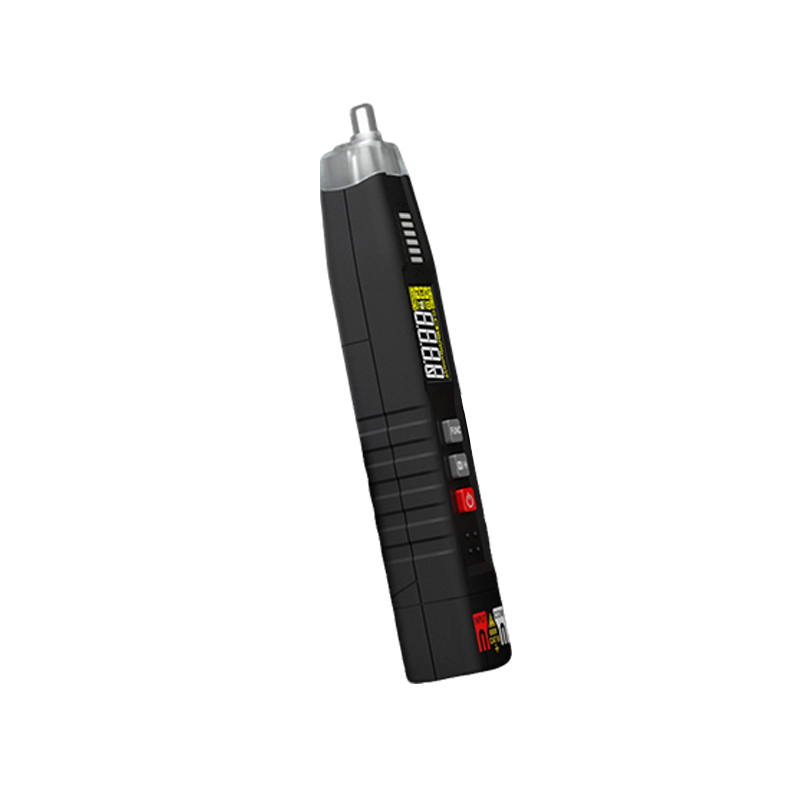

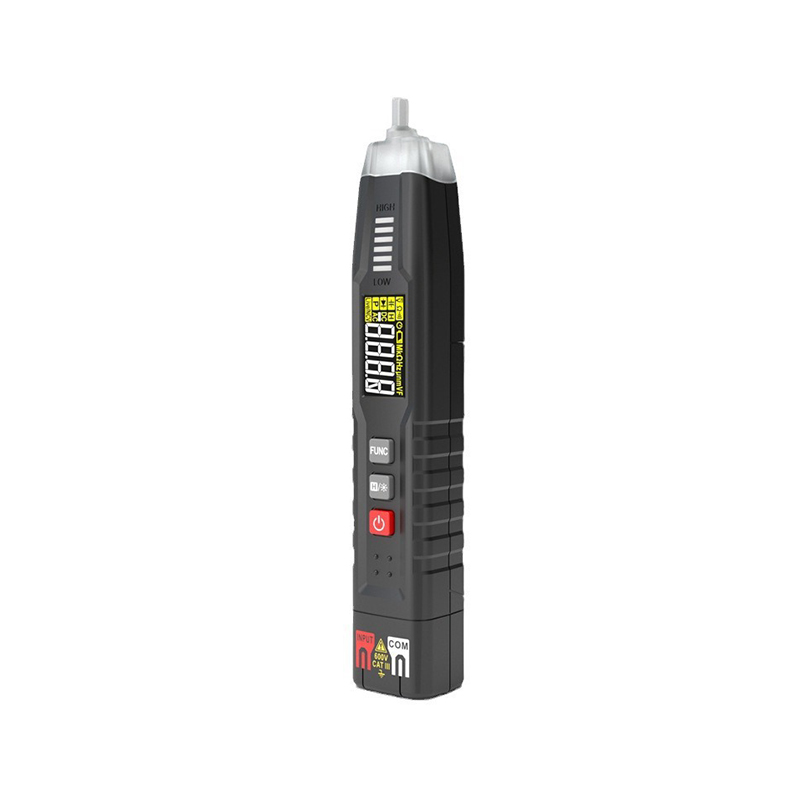

Pen-Style Multimeter

  • Product Name: Pen-Style Multimeter

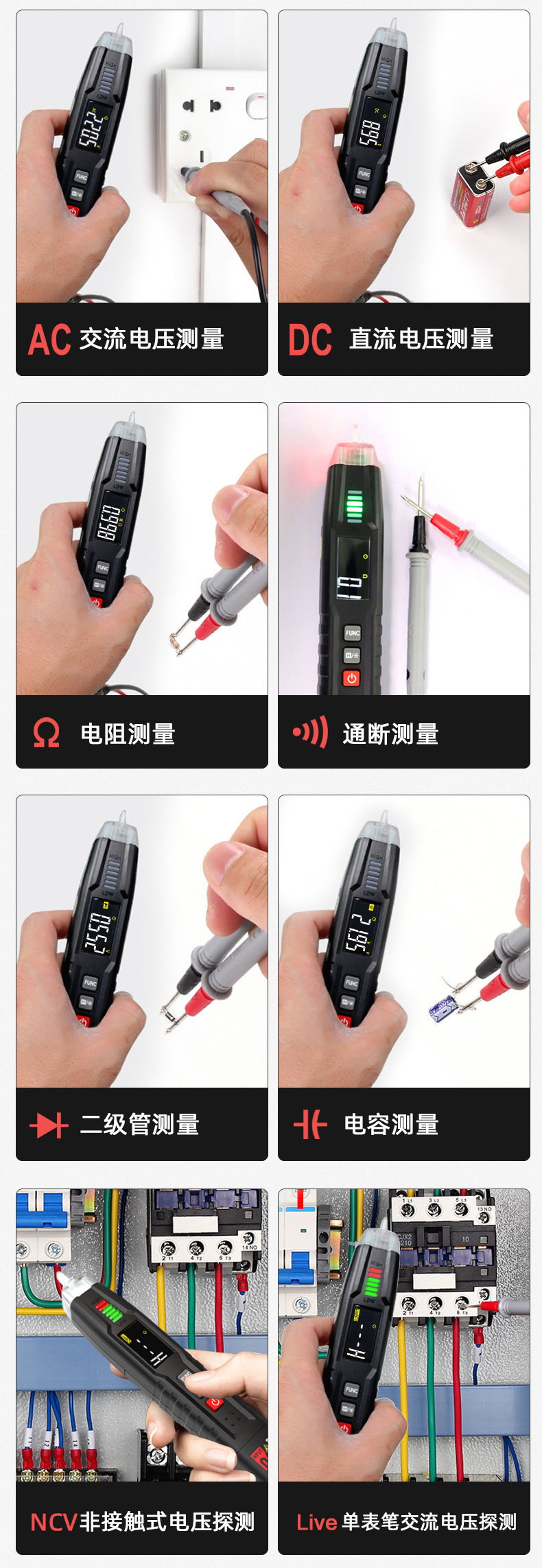

  • DC Voltage: 4.000V / 40.00V / 400.0V / 600V

  • AC Voltage: 4.000V / 40.00V / 400.0V / 600V

  • Resistance: 400.0Ω / 4.000kΩ / 40.00kΩ / 400.0kΩ / 4.000MΩ / 40.00MΩ

  • Capacitance: 4.000nF / 40.00nF / 400.0nF / 4.000mF / 40.00mF

  • Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz

  • Display: 4000 counts

  • Ranging: Auto-ranging

  • SMART Function: Yes – (auto-sensing for AC voltage, DC voltage, resistance, continuity)

  • Live Single-Probe Live Wire Detection: Yes

  • NCV Non-Contact Voltage Detection: Yes

  • Diode Test: Yes

  • Three-Phase Phase Sequence Detection: Yes

  • Continuity Test: Yes

  • True RMS: Yes

  • Low Battery Indication: Yes

  • Auto Power-Off: Yes

  • Backlight: Yes

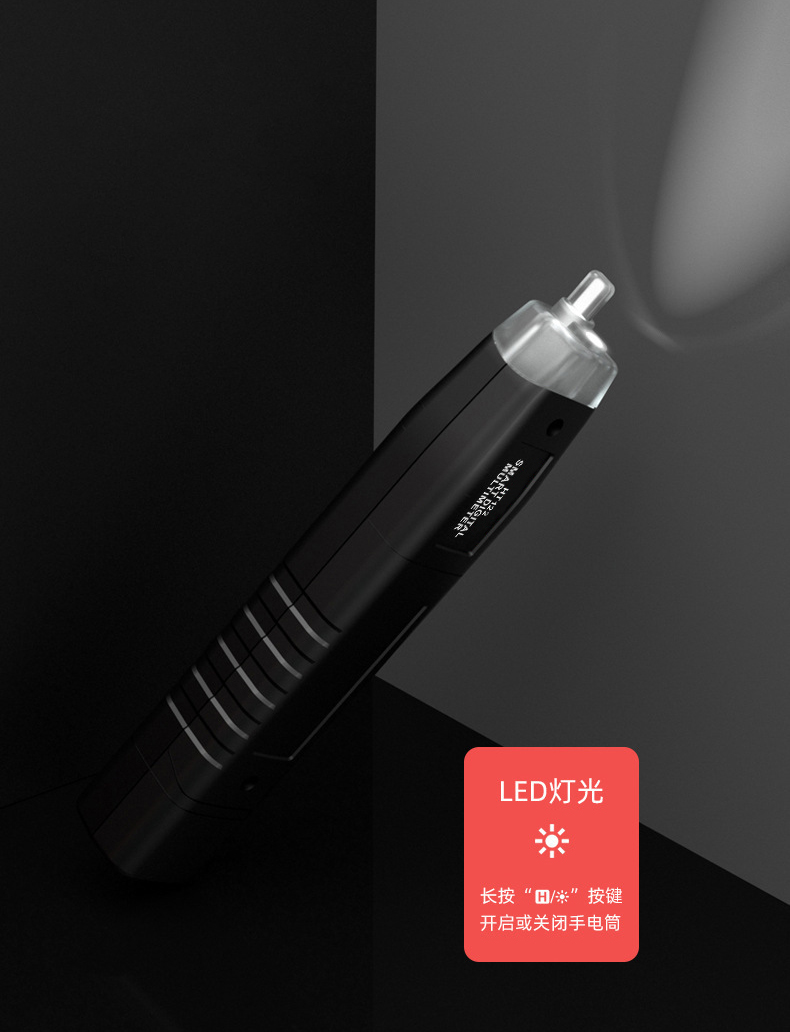

  • Flashlight: Yes

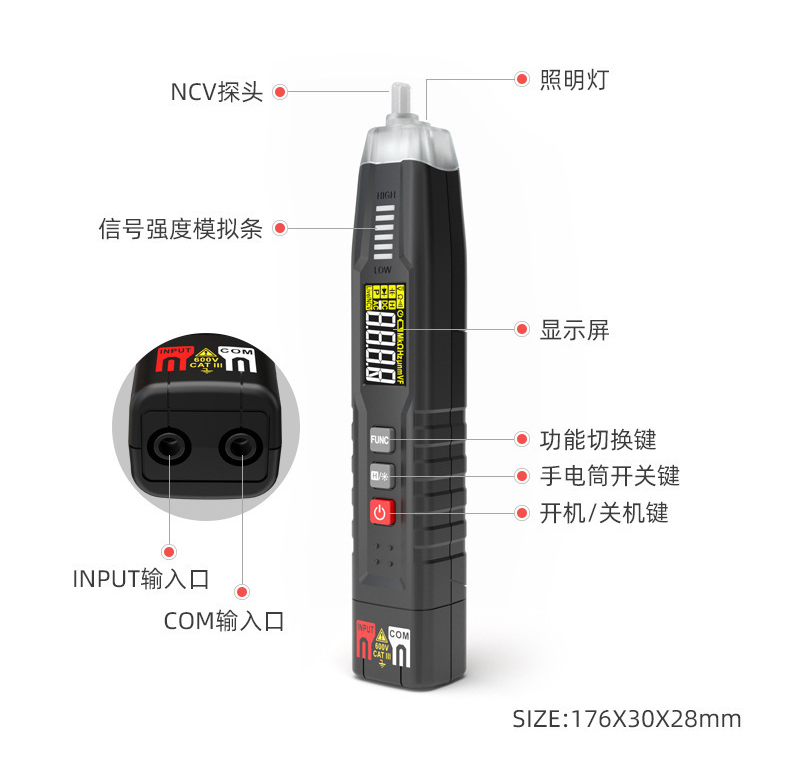

  • Dimensions (L x W x H): 176 x 30 x 28 mm

  • Weight: 77g

  • Color: Black

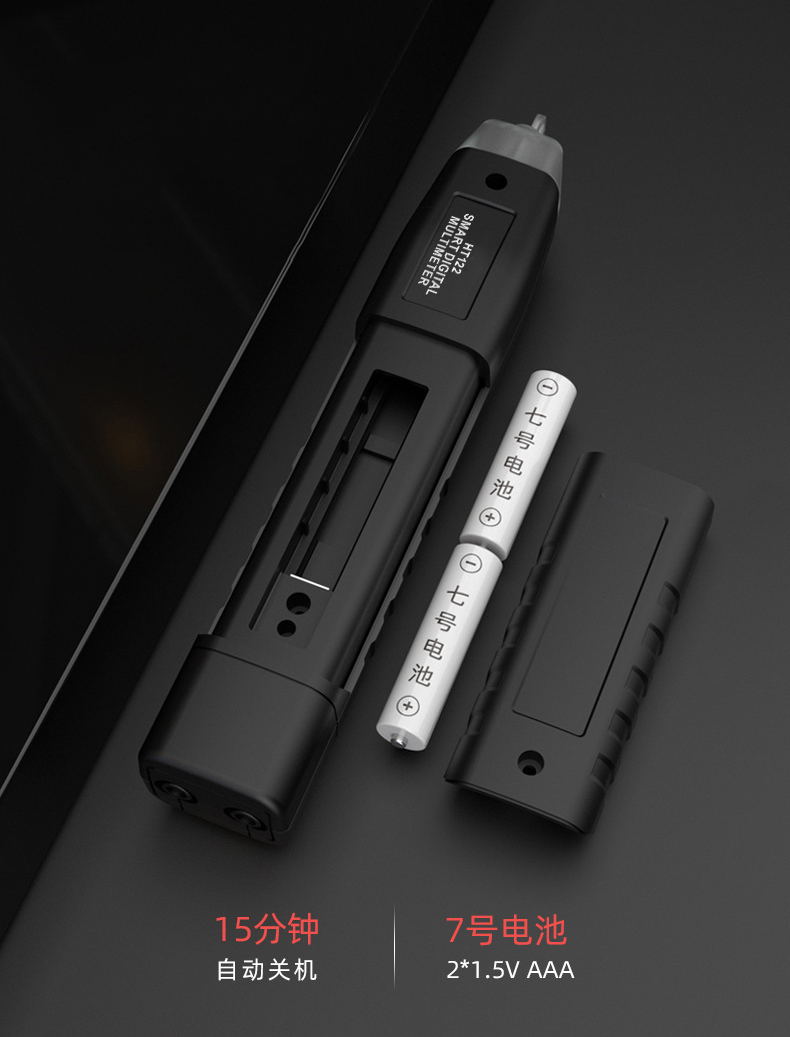

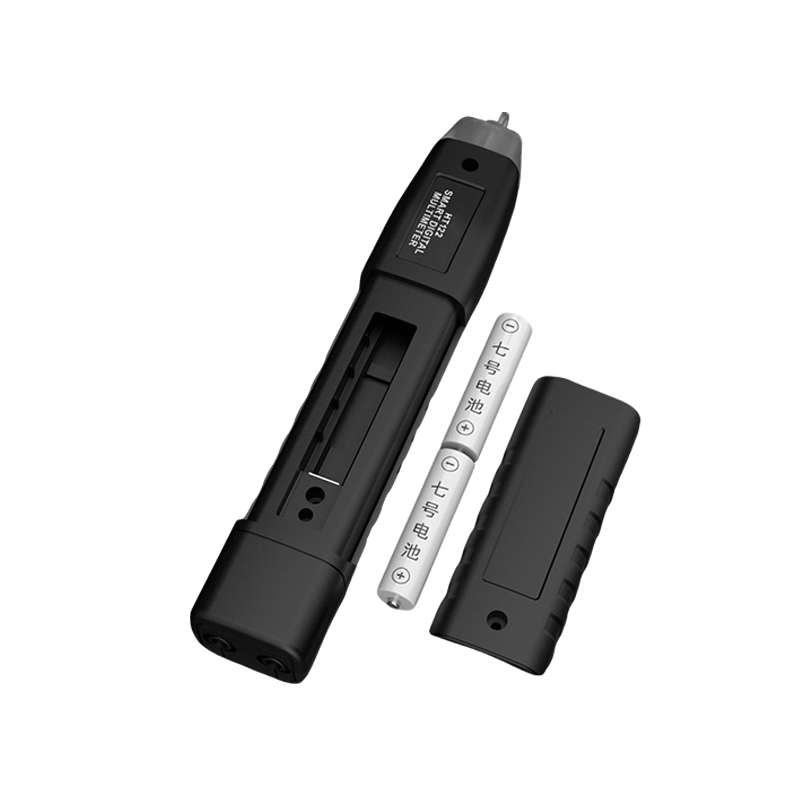

  • Battery Type: x 1.5v AAA battery
