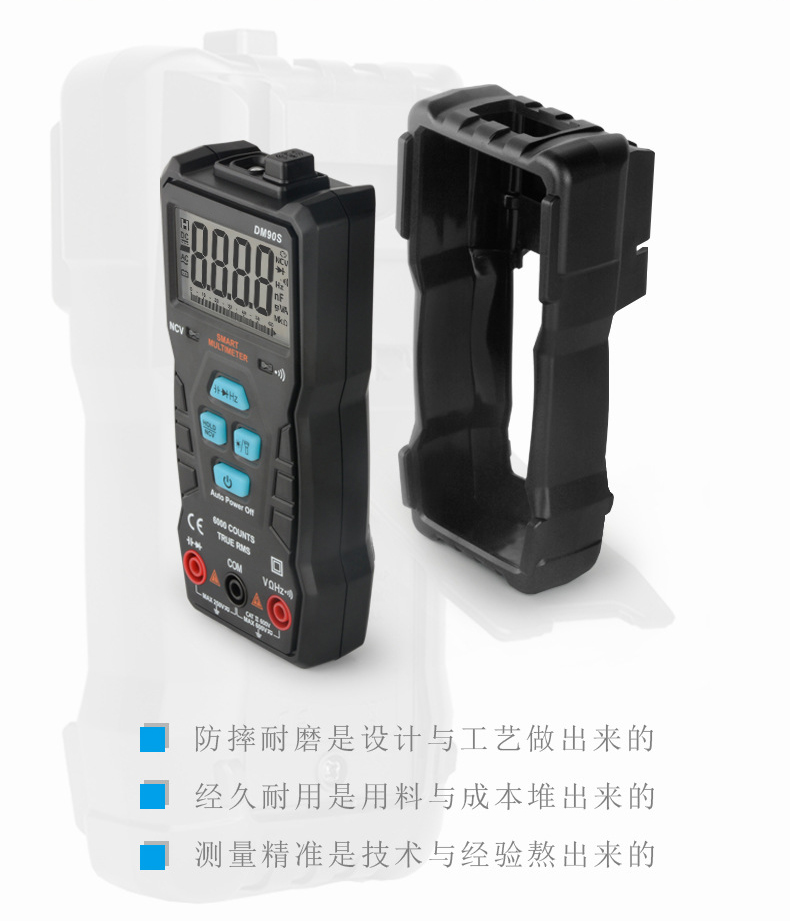

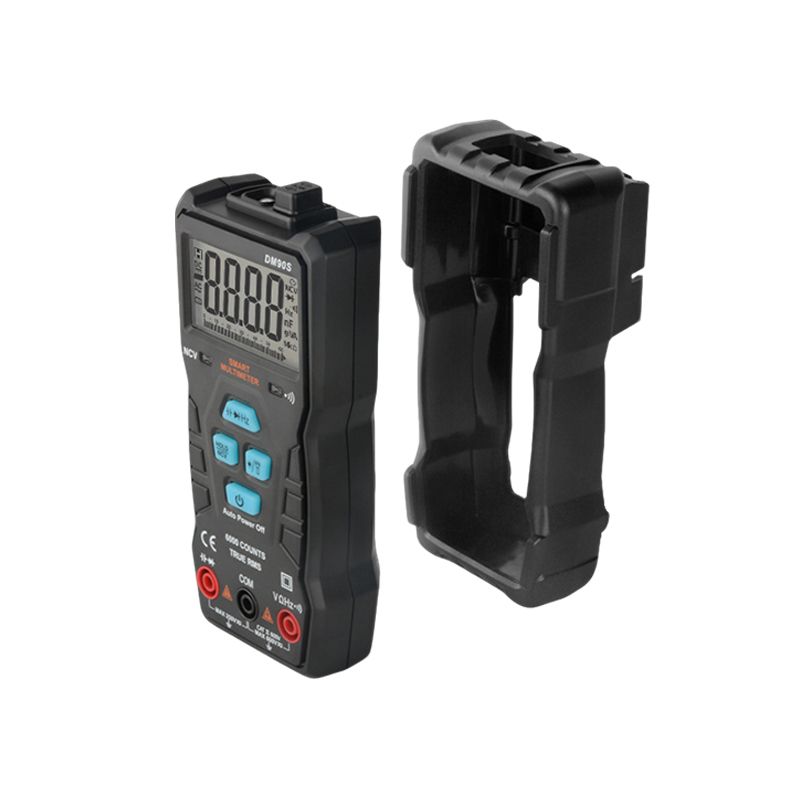

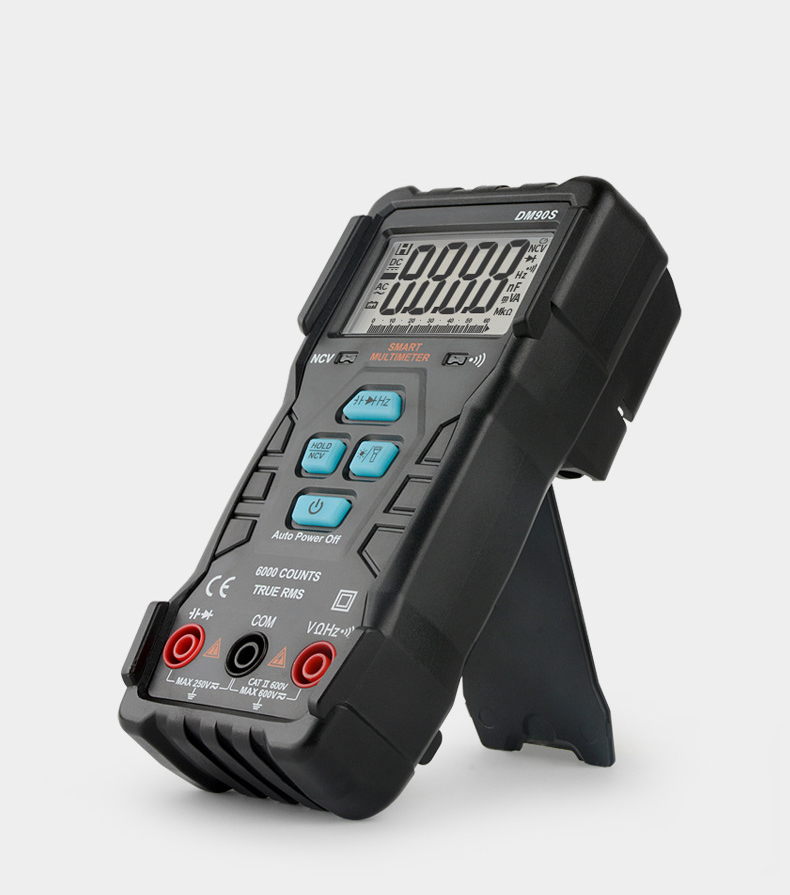

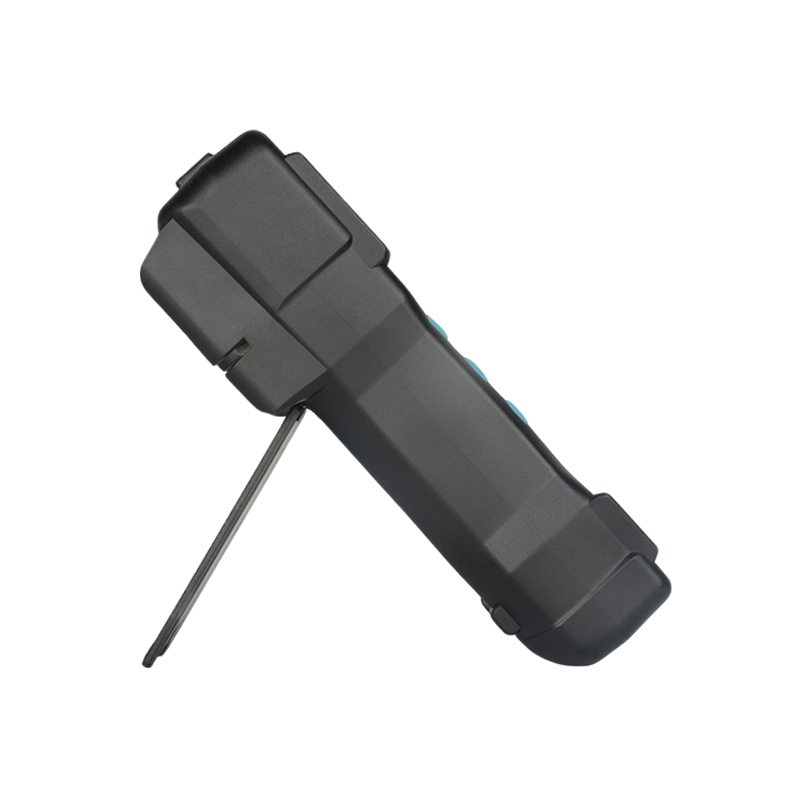

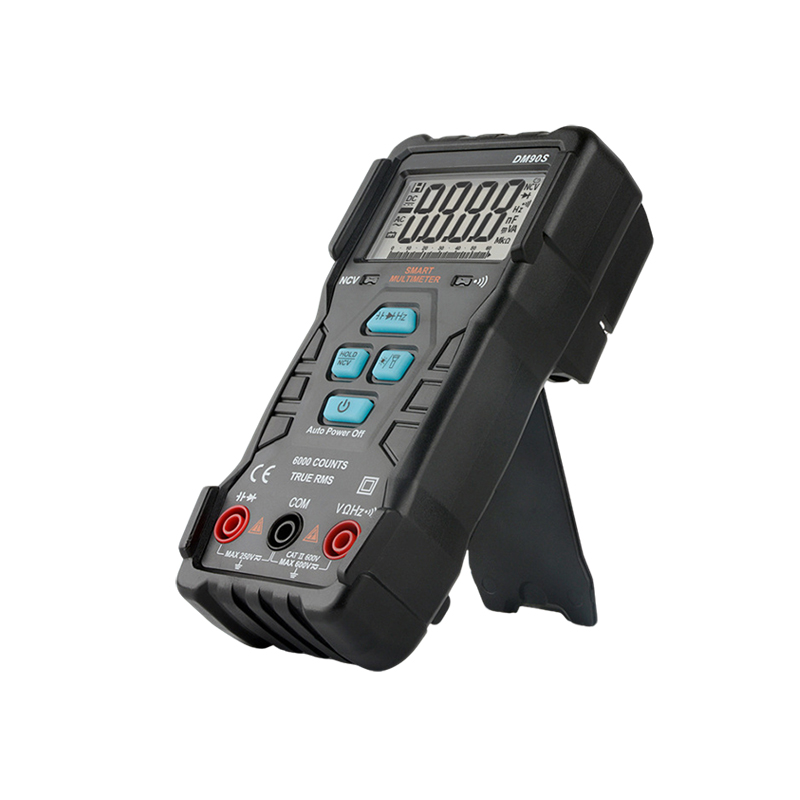

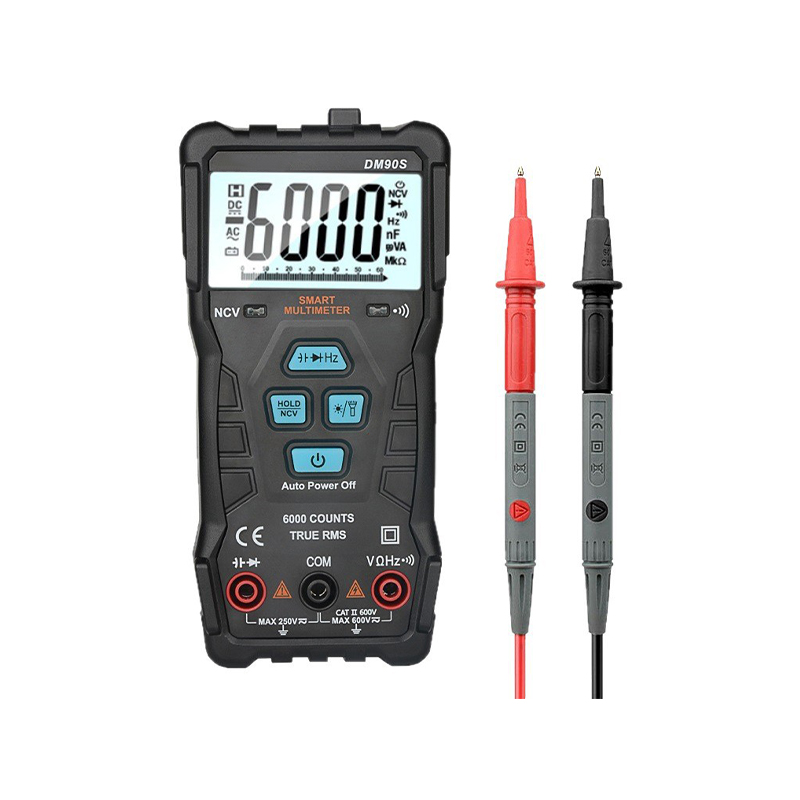

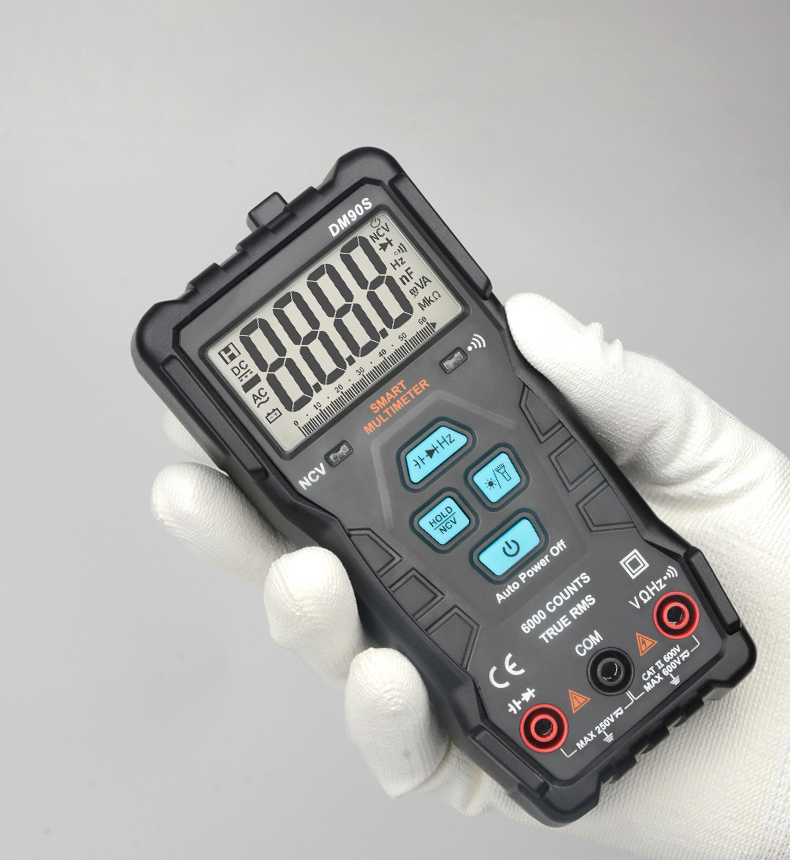

Multimeter

  • Product Name: Multimeter

  • DC Voltage (DCV): 0.5V ~ 600V

  • AC Voltage (ACV): 1V ~ 600V (50–60Hz) / 1V ~ 600V (10–400Hz)

  • DC Resistance (Ω): 1Ω ~ 10MΩ

  • Capacitance (μF): 600μF / 6000μF

  • Frequency (Hz): 10Hz ~ 1000Hz (AC frequency measurement)

  • Display Count: 6000

  • Auto Power-Off: After 5 minutes of inactivity

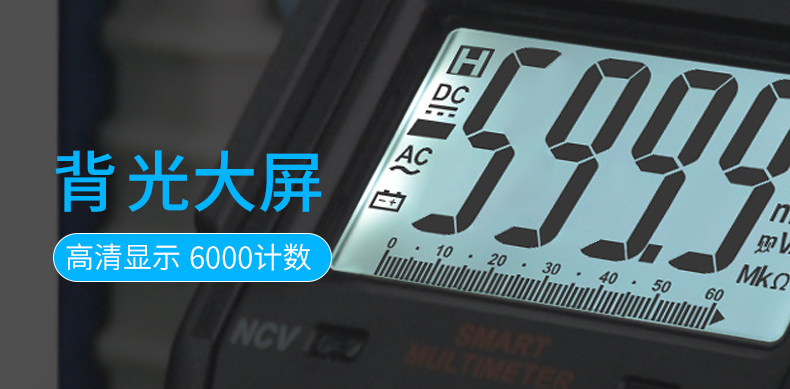

  • Backlight: Automatically turns off after 30 seconds

  • Flashlight: Automatically turns off after 30 seconds

  • Diode Test: Voltage drop 2.0V

  • Buzzer: Overload protection 600V AC/DC

  • Buzzer Indicator Light: Internal resistance < 30Ω

  • NCV: 3-2-1 corresponding to Strong-Medium-Weak

  • NCV Indicator Light: Yes

  • Live Wire Identification: 3-2-1 corresponding to Strong-Medium-Weak

  • True RMS: 10–400Hz

  • Data Hold: Yes

  • Low Battery Indication: Yes

  • Capacitance / Diode Overvoltage Alarm: Overload protection 250V AC/DC

  • Body Color: Pure Black + Blue

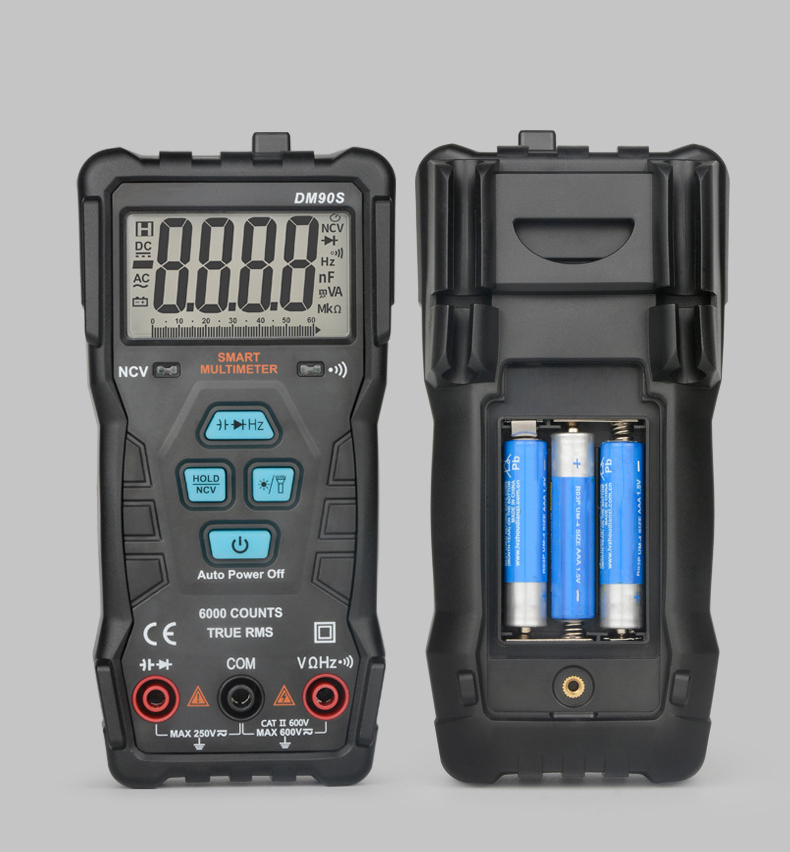

  • Battery: 3 x 1.5V AAA (3 x AAA batteries)

  • Dimensions (bare unit): 147 x 71 x 45 mm

  • Weight (bare unit): Approx. 220g

  • Safety Rating: CAT II
