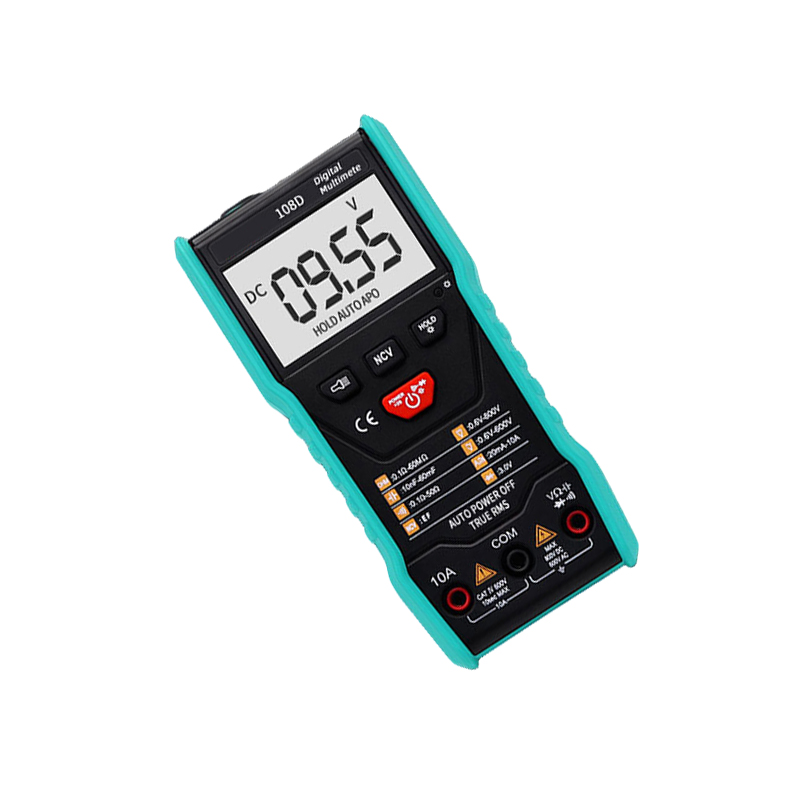

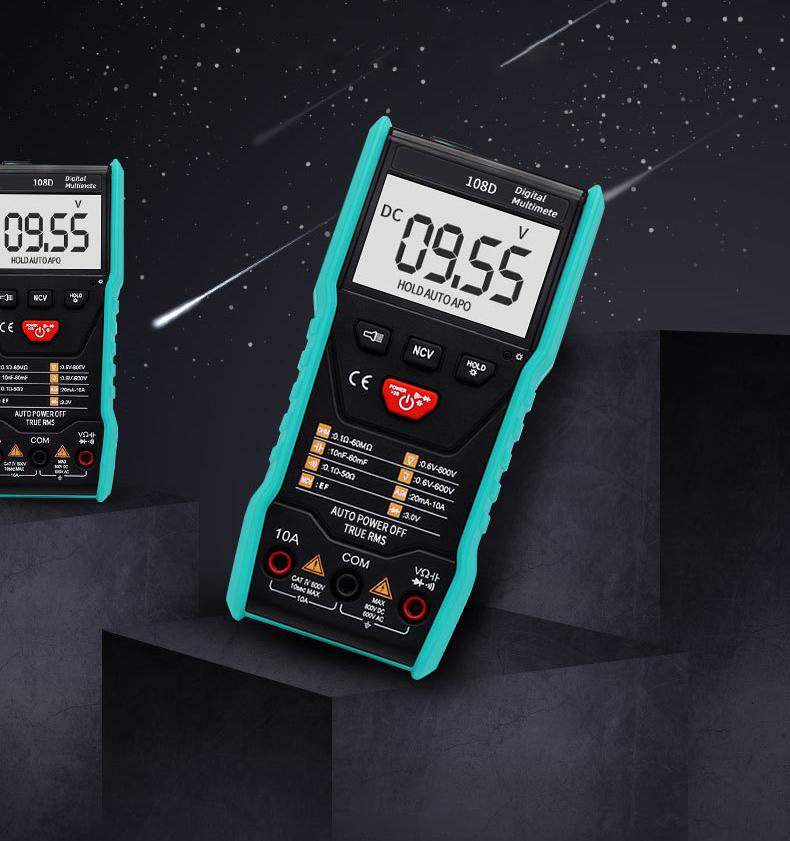

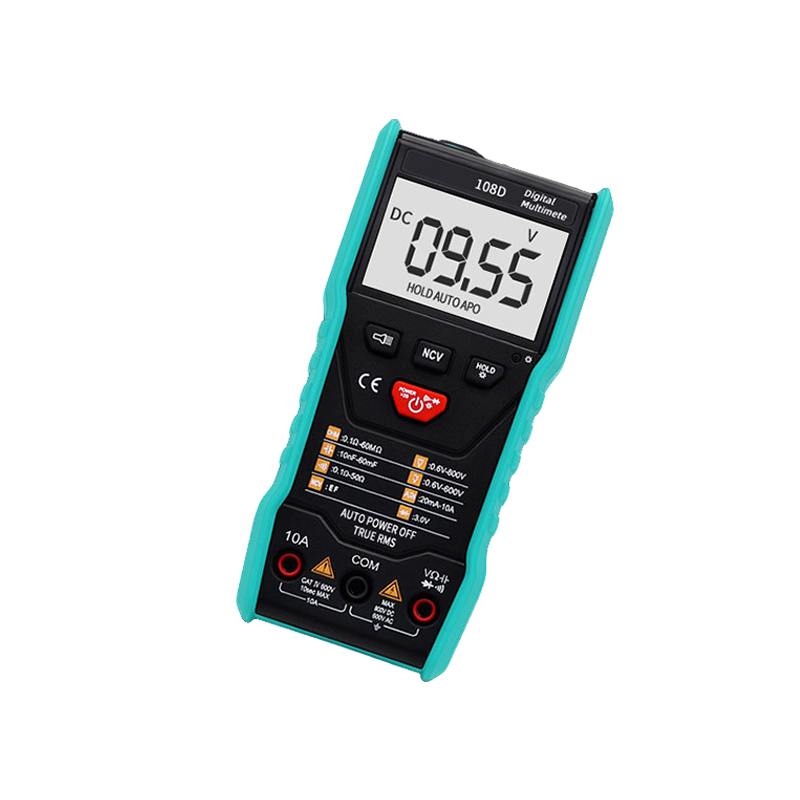

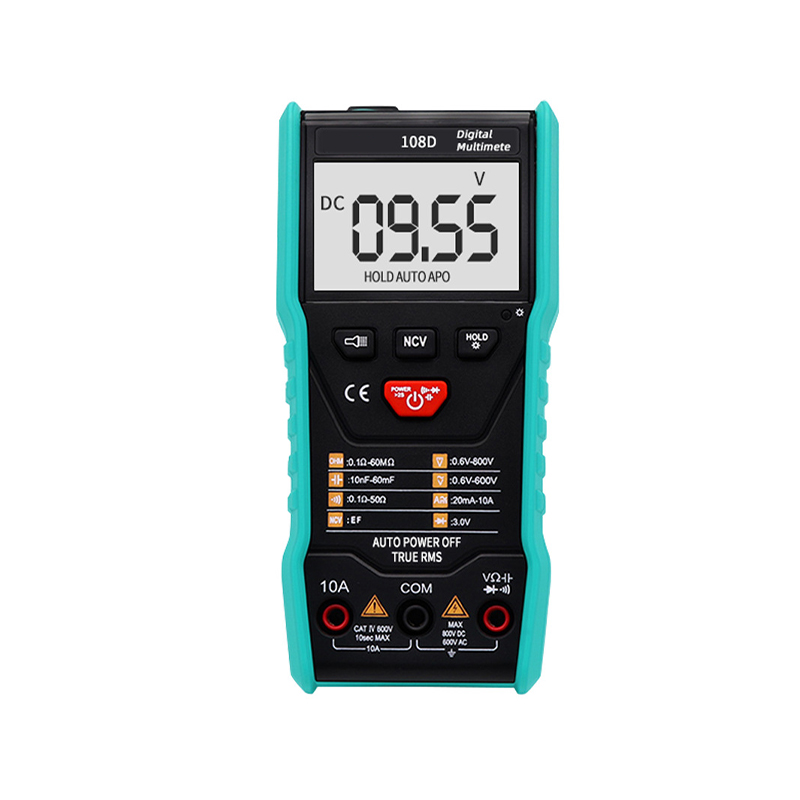

Digital Multimeter

  • Product Name: Digital Multimeter

  • DC Voltage: 0.6V ~ 800V

  • AC Voltage: 0.6V ~ 600V

  • DC Current: 20mA ~ 10A

  • AC Current: 20mA ~ 10A

  • Resistance: 0.1Ω ~ 60MΩ

  • Capacitance: 10nF ~ 60mF

  • Auto-Ranging: Yes

  • Data Hold: Yes

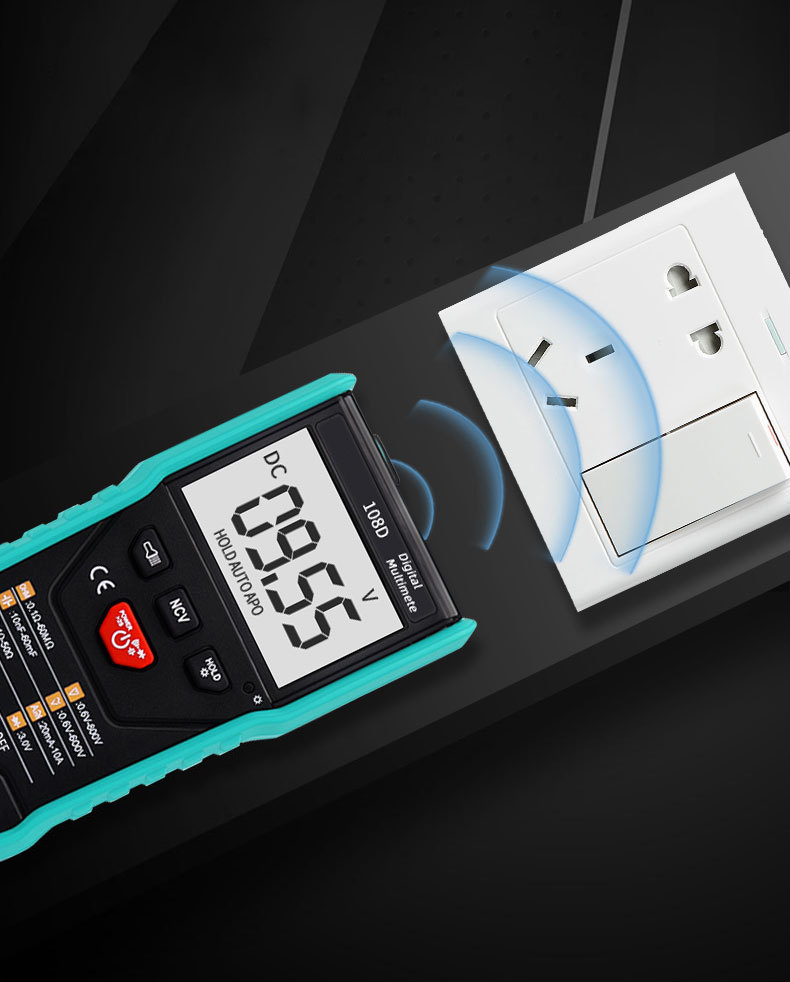

  • NCV Non-Contact Voltage Detection: Open circuit voltage approx. 0.4V

  • Diode Test: Yes

  • Continuity Buzzer Test: Yes

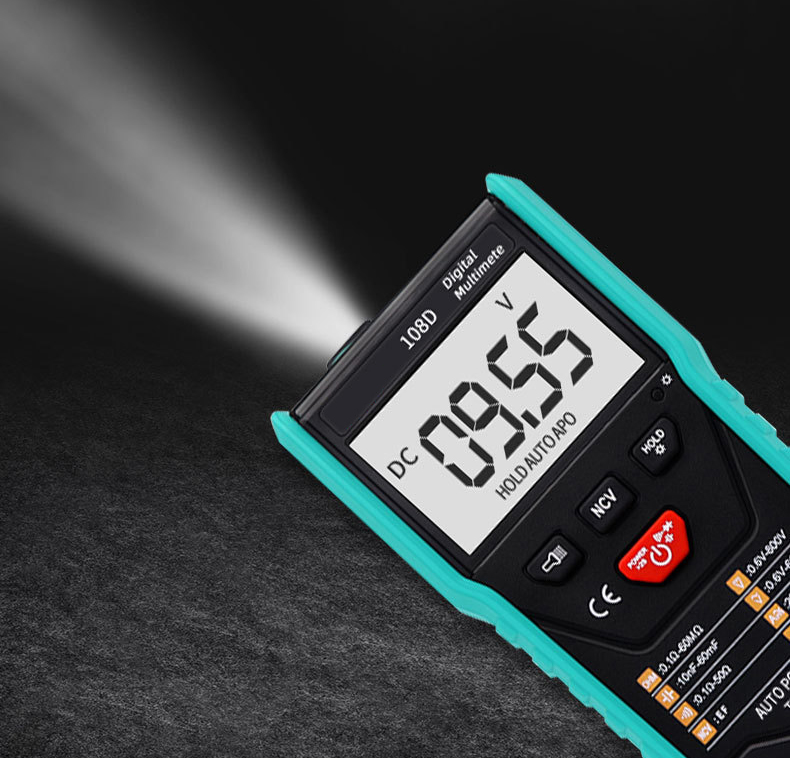

  • High-Brightness Flashlight: Yes

  • LCD Backlight: Yes

  • Low Battery Indication: Yes

  • Auto Power-Off: 15 minutes

  • Input Impedance: ≥ 10MΩ

  • Maximum Display: 5999 (3-5/6) digits with automatic polarity indication

  • Sampling Rate: Approx. 3 times/second

  • Overrange Indication: Highest digit shows "OL"

  • Power Supply: 2 x 1.5V AAA batteries

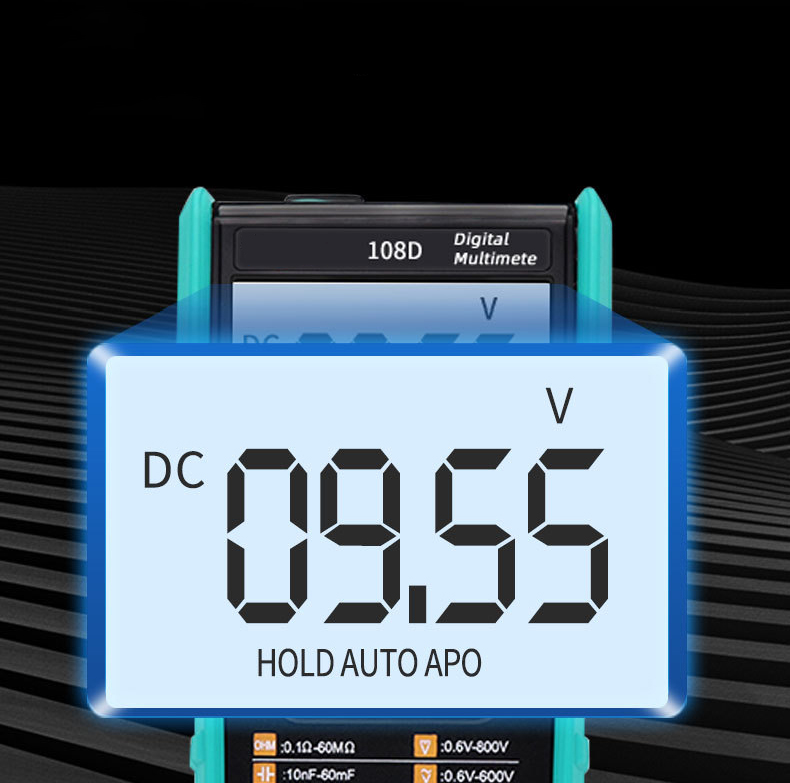

  • LCD Size: 49 x 30 mm

  • Body Color: Gray + Green

  • Weight (approx.): 205g (including batteries)

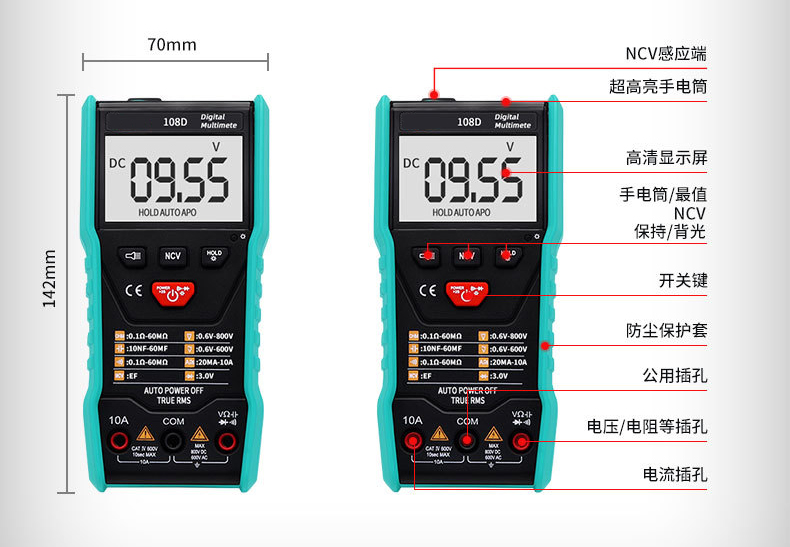

  • Dimensions: 142 x 70 x 30 mm
