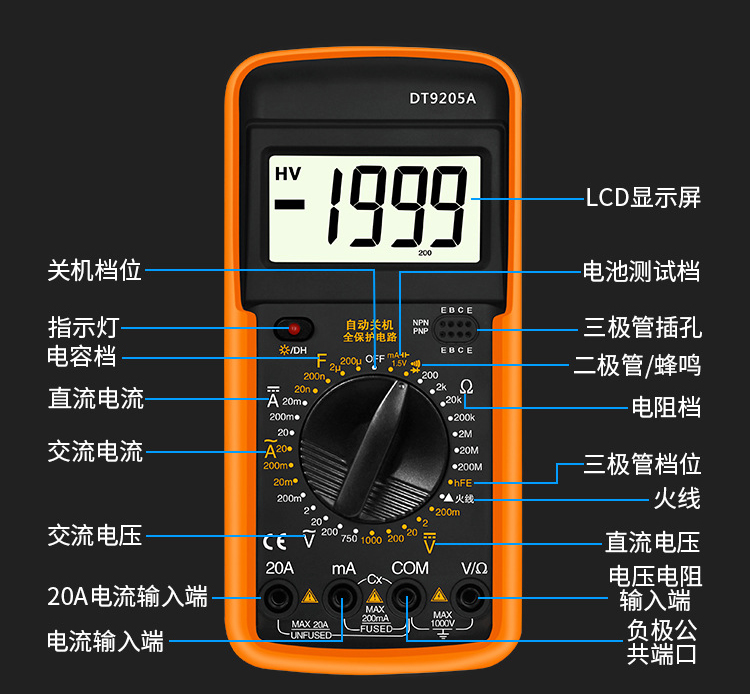

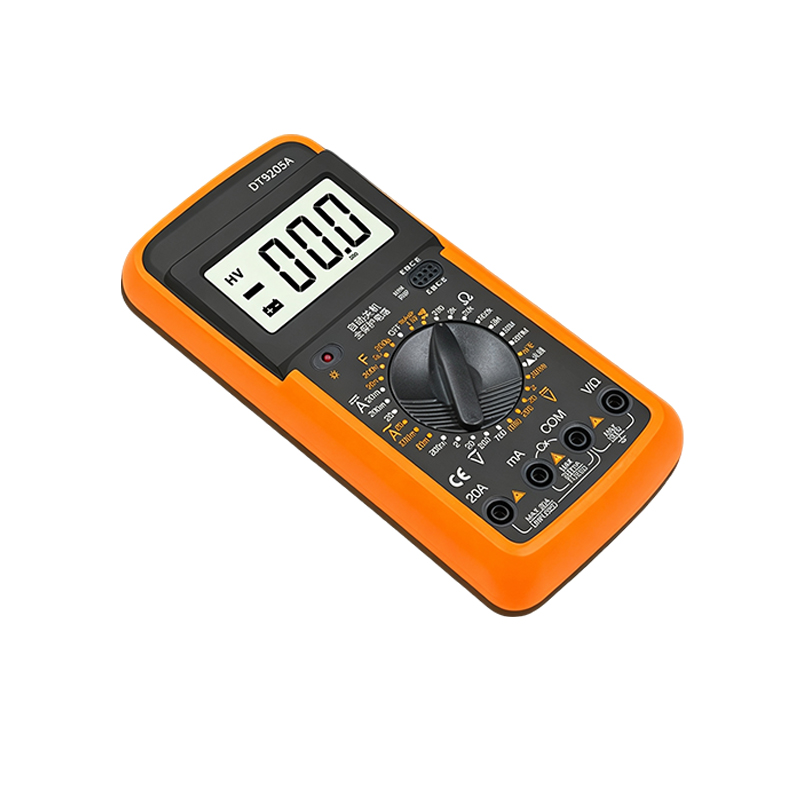

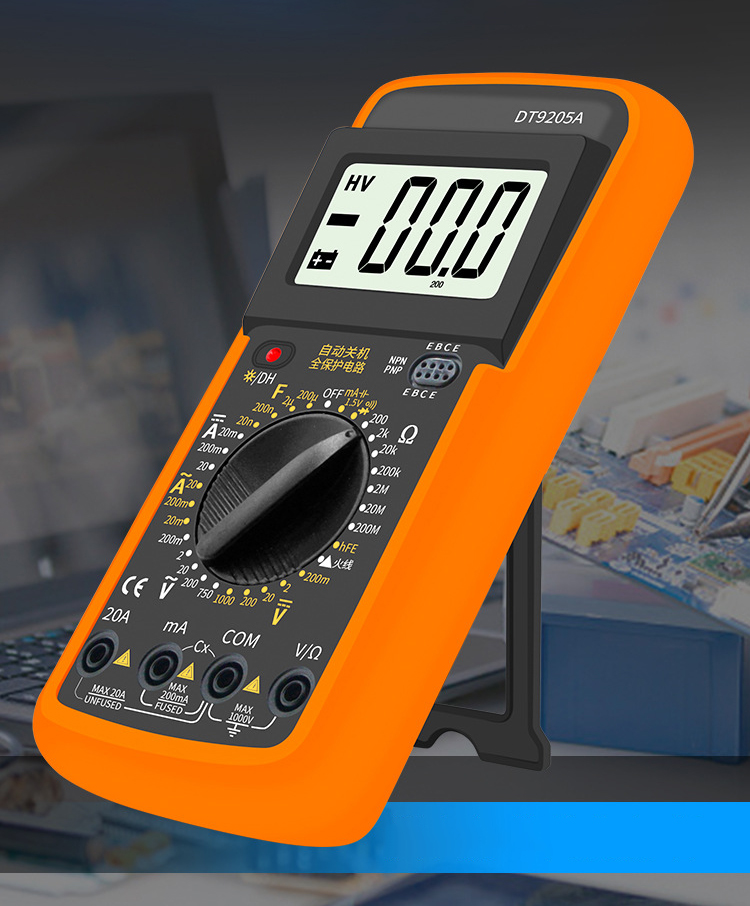

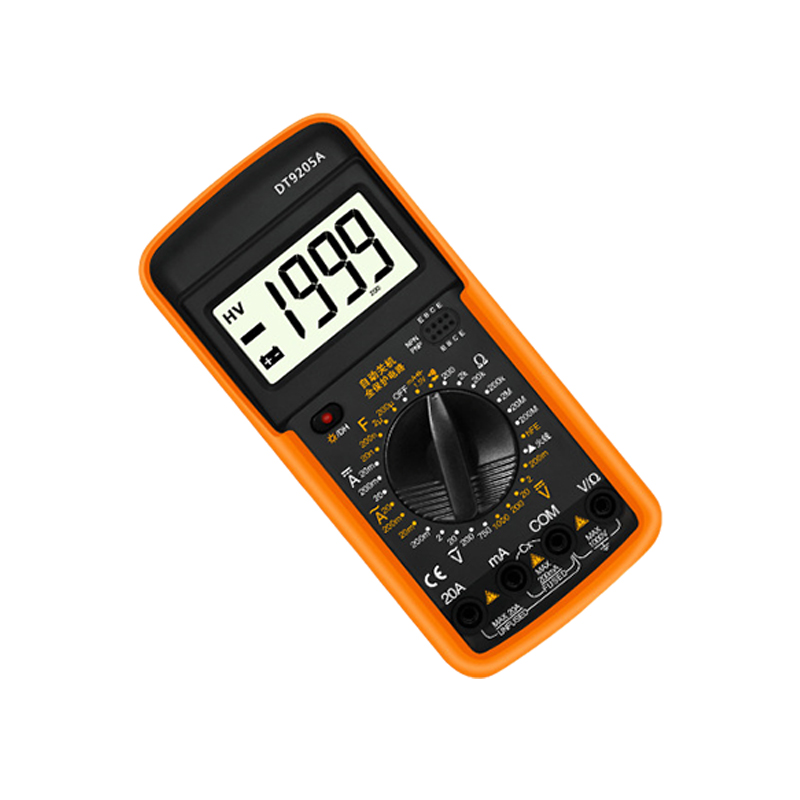

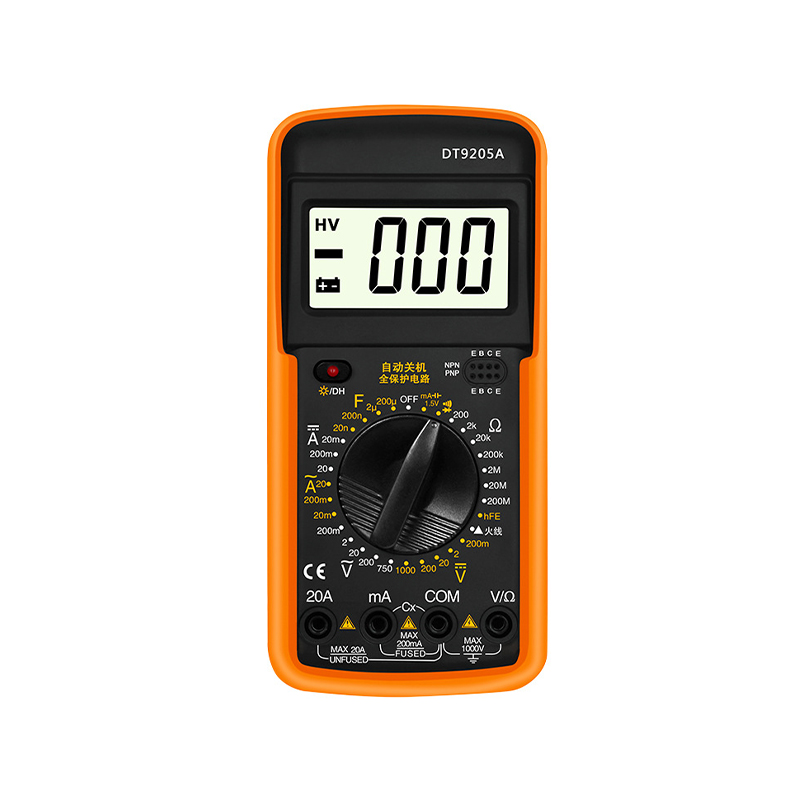

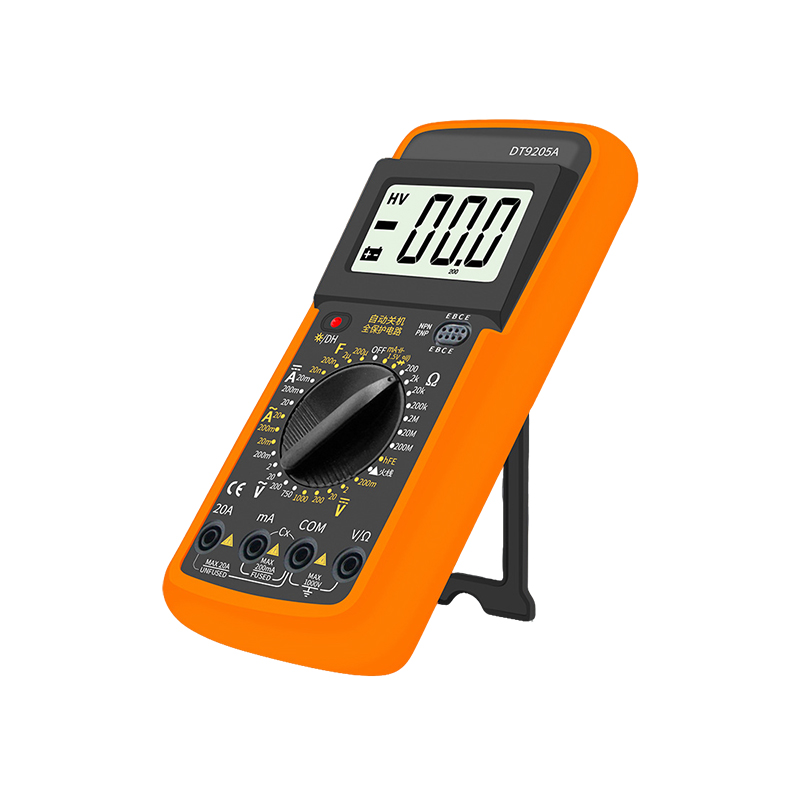

Multimeter

  • Product Name: Multimeter

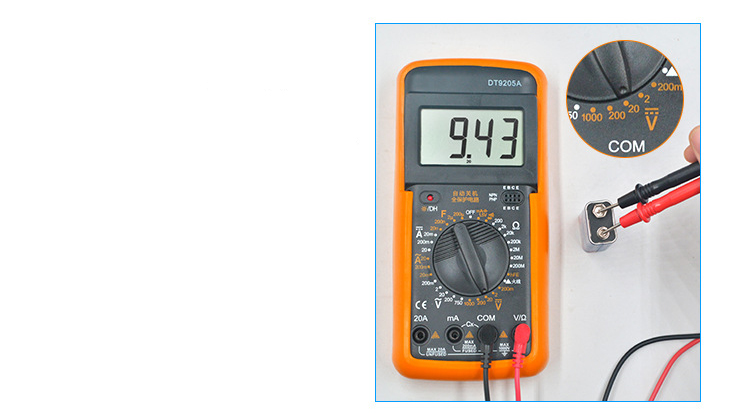

  • DC Voltage: 200mV / 2V / 200V / 1000V

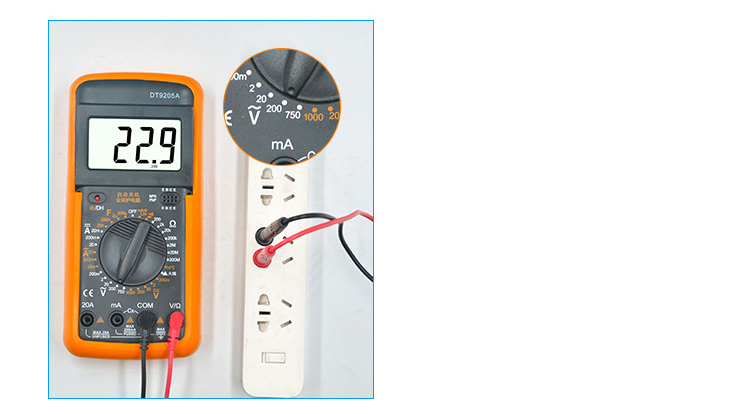

  • AC Voltage: 2V / 20V / 200V / 750V

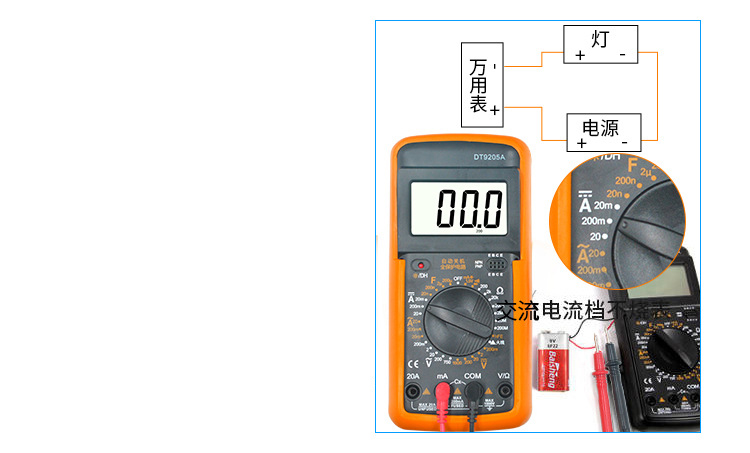

  • DC Current: 2mA / 20mA / 200mA / 10A

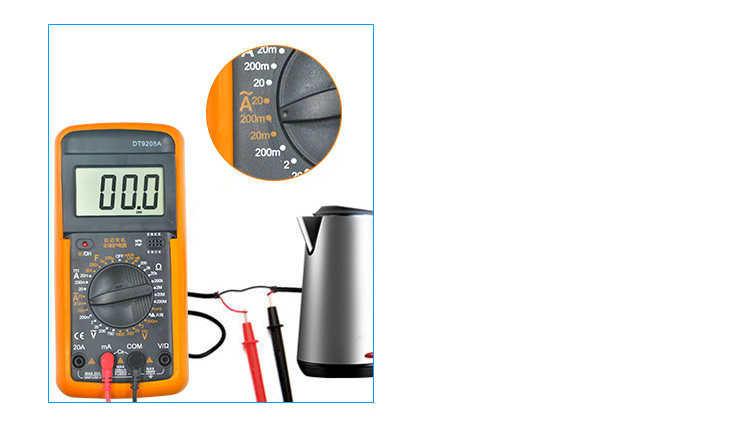

  • AC Current: 2mA / 20mA / 200mA / 10A

  • Maximum Display: 3-1/2 digit with automatic polarity indication

  • Display Type: LCD display

  • Measurement Method: Dual-slope integration A/D conversion

  • Sampling Rate: Approx. 3 times/second

  • Overrange Indication: Highest digit shows "1" or "-1"

  • Low Battery Indication: "+ -" symbol appears

  • Operating Environment: (0~40)°C, relative humidity < 80%

  • Accuracy: ±(a% of reading + digits) – guaranteed at ambient temperature (23±5)°C, relative humidity < 75%

  • Weight: Approx. 400g (including 9V battery)

  • Dimensions: 178mm x 88mm x 35mm

  • Power Supply: One 9V battery (NEDA1604 / 6F22 or equivalent)
