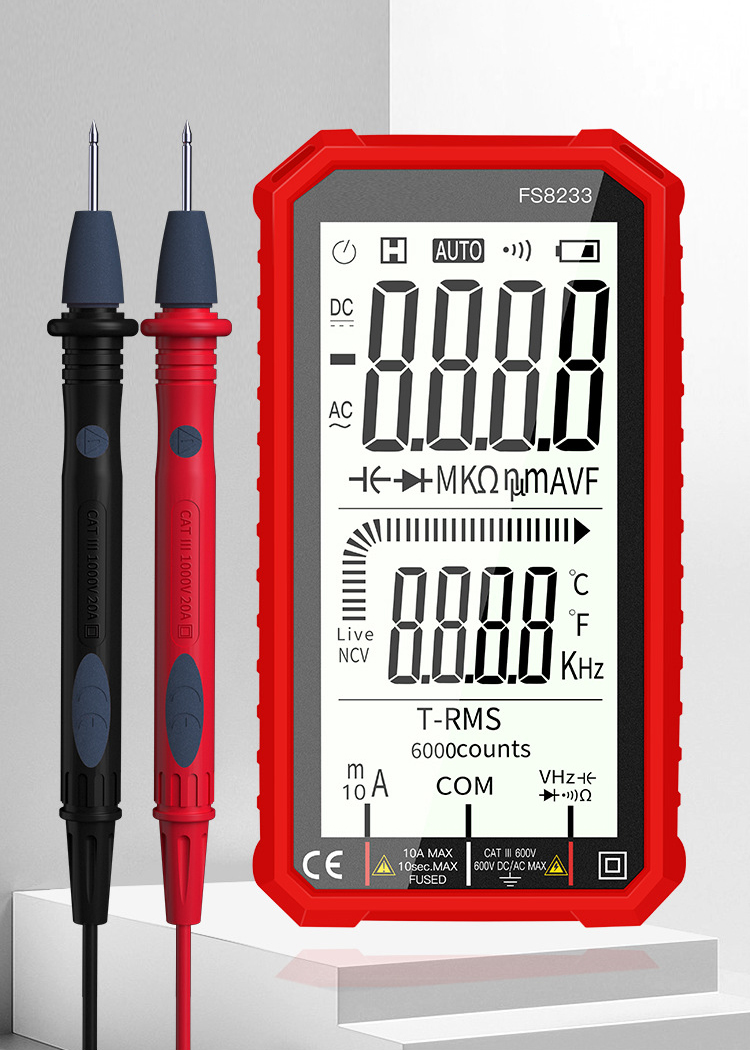

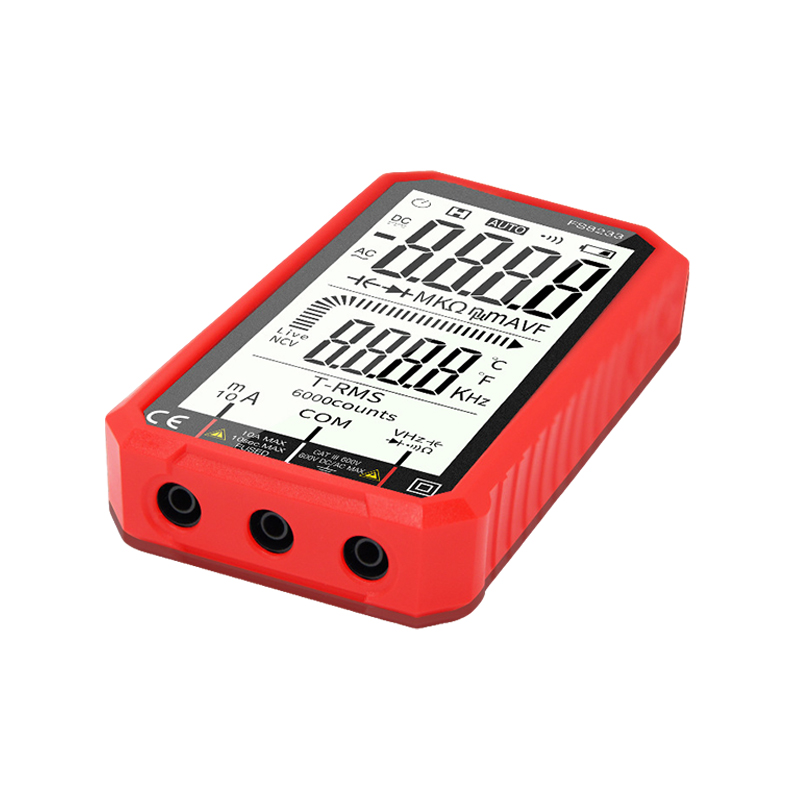

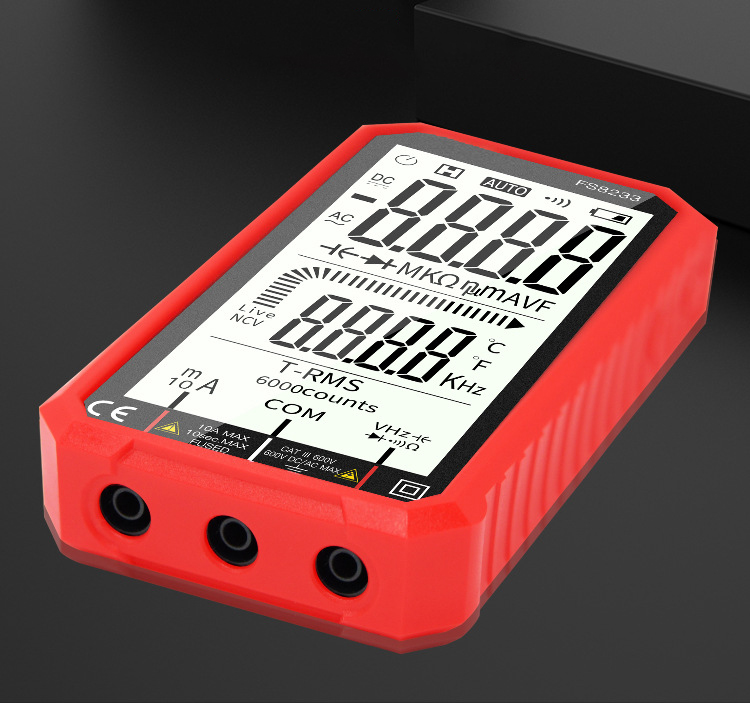

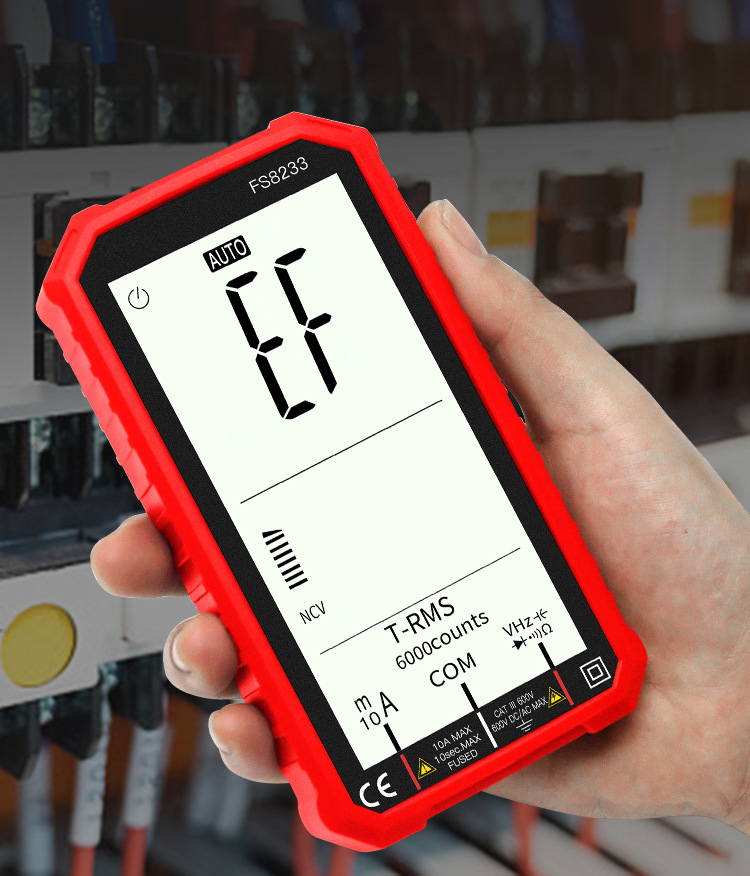

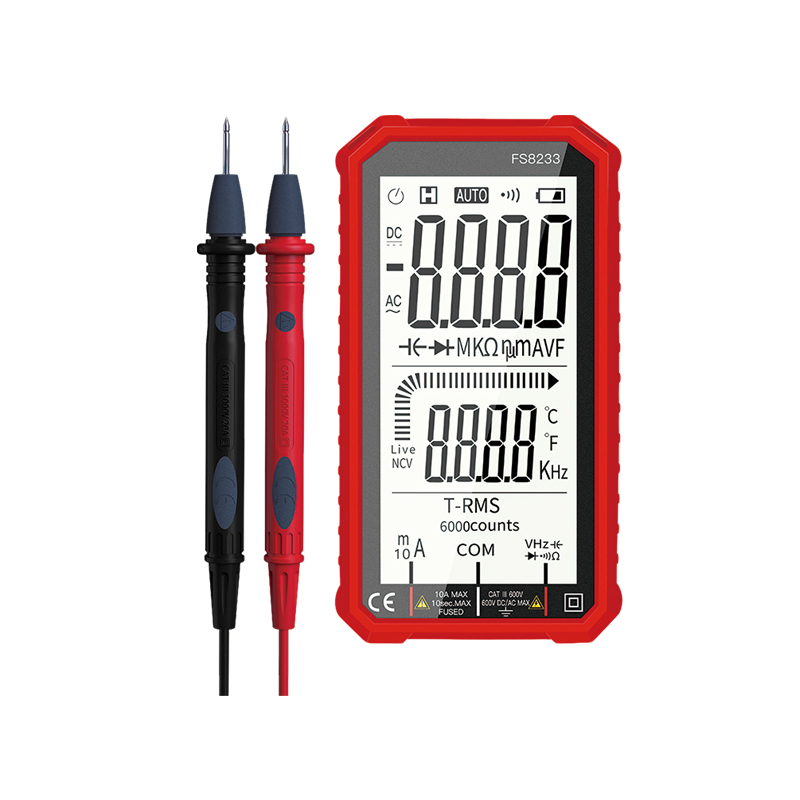

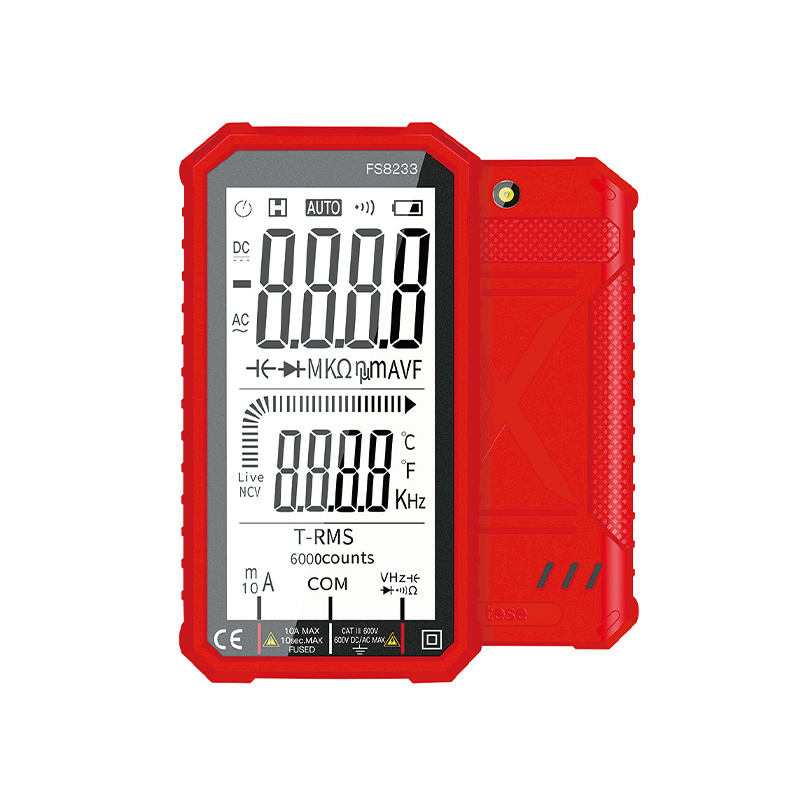

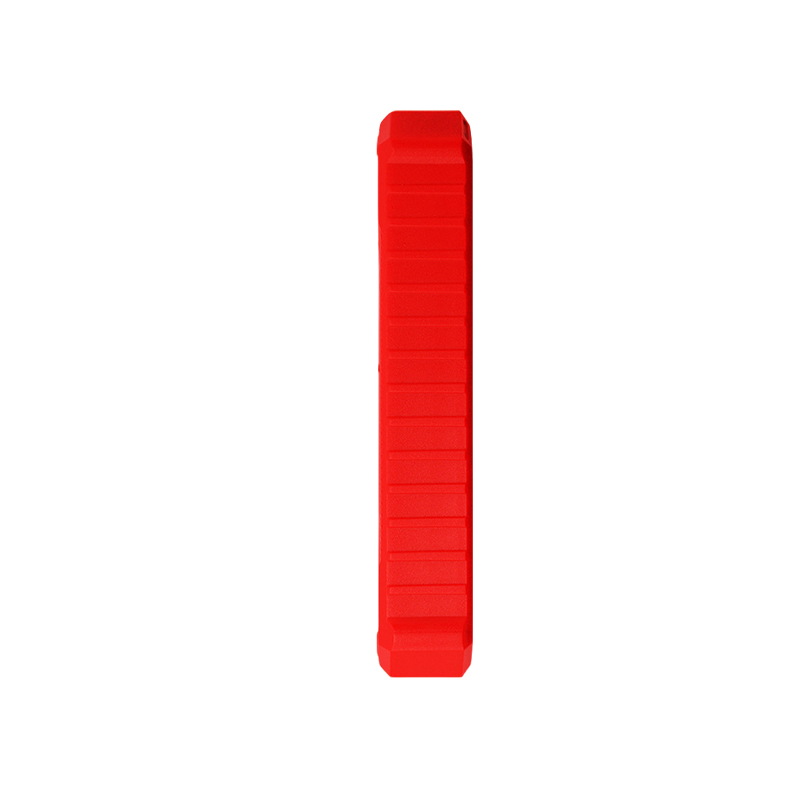

Digital Multimeter

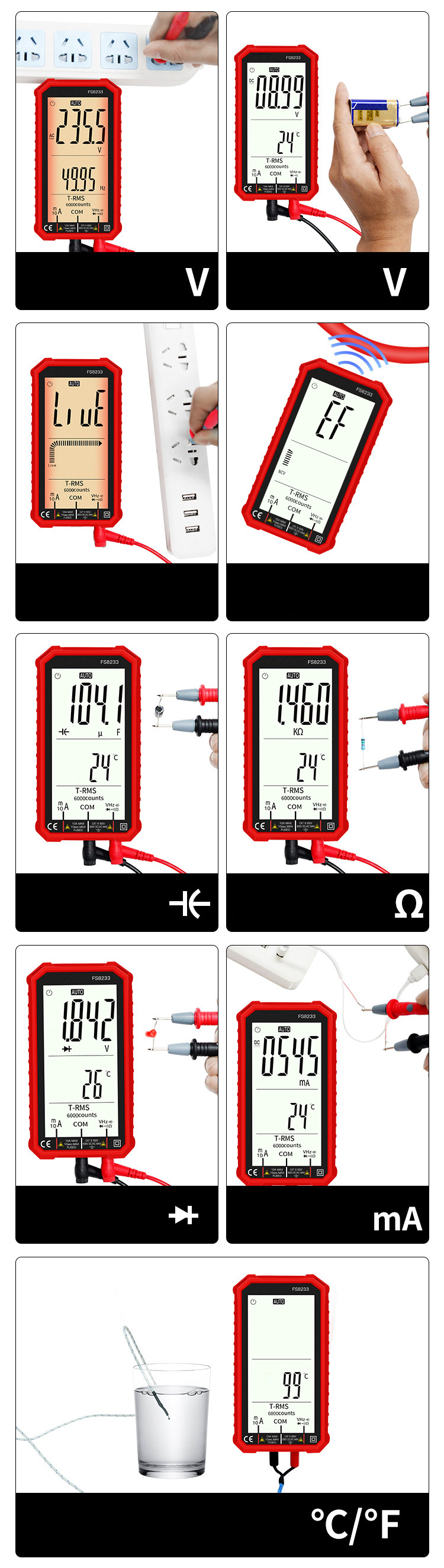

  • Product Name: Digital Multimeter

  • AC Current: 10A ~ 600mA

  • DC Current: 10A ~ 6000mA

  • DC Voltage: 6V ~ 600V

  • AC Voltage: 6V ~ 600V

  • Resistance: 600Ω ~ 60MΩ

  • Capacitance: 6nF ~ 60mF

  • Frequency: 40Hz ~ 1000Hz

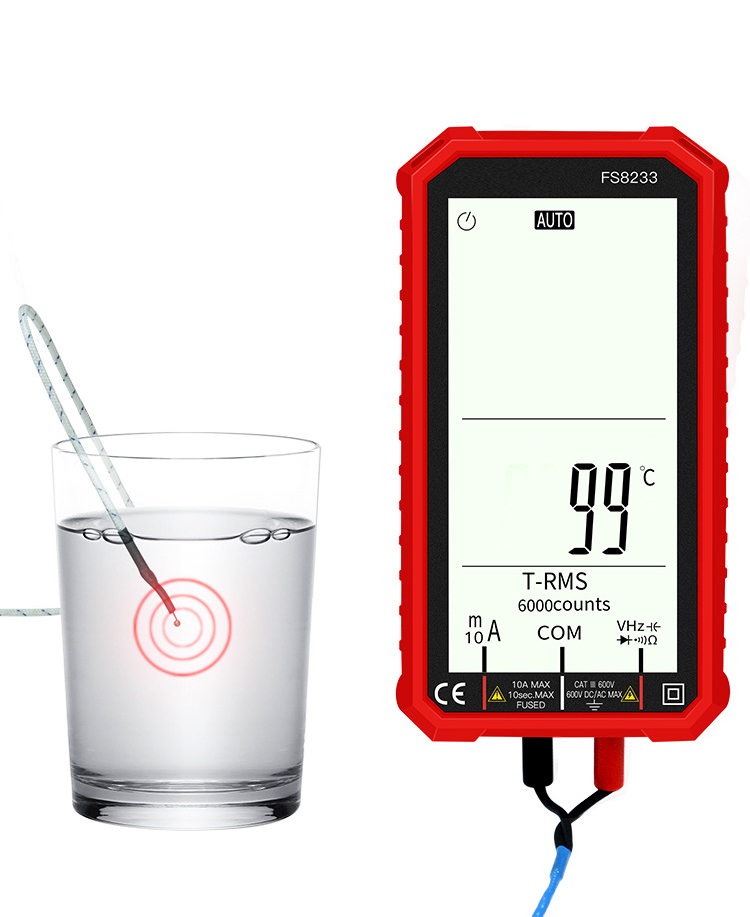

  • Temperature: -40°C ~ 1000°C / -40°F ~ 1832°F

  • Continuity Buzzer: If the resistance of the tested circuit is less than 50Ω, the buzzer will sound continuously.

  • Diode Test: Test current: approx. 1mA; Open circuit voltage: approx. 2.8V. The display shows the approximate forward voltage drop of the diode.

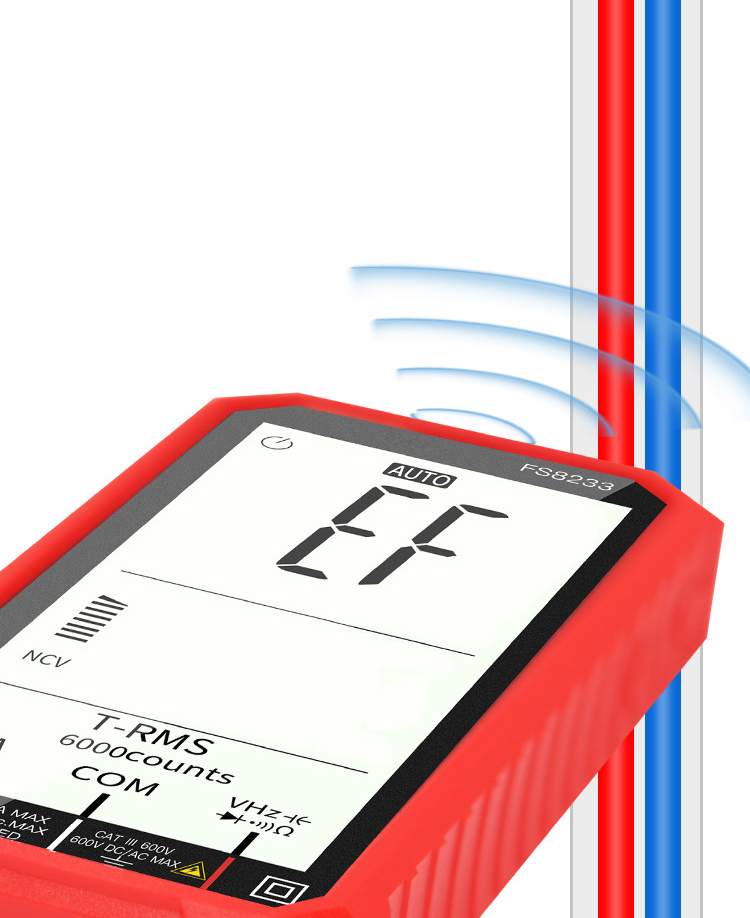

  • NCV Voltage Detection: Non-contact measurement

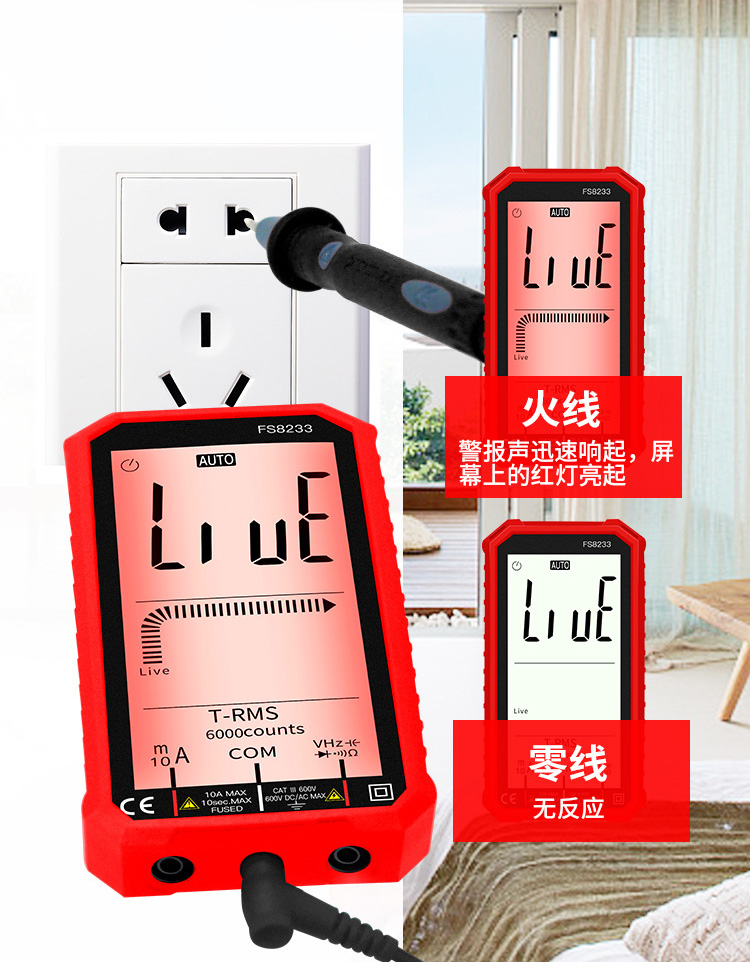

  • LIVE Live/Neutral Wire: Live wire displays "LIVE" – screen backlight turns red with audible alarm. Neutral wire shows no response.

  • Auto Power-Off: Automatically shuts down after 15 minutes of inactivity

  • Dimensions: 142 x 77 x 25 mm

  • Weight: Approx. 852g

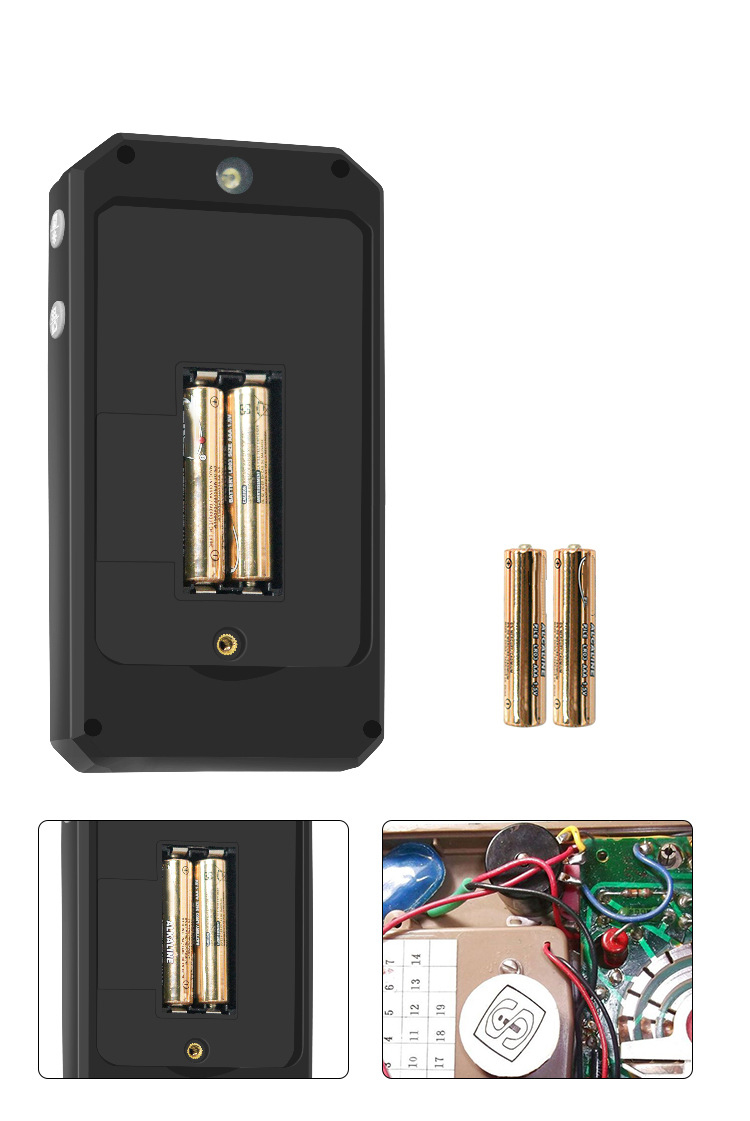

  • Battery: 1.5V AAA battery x 2
