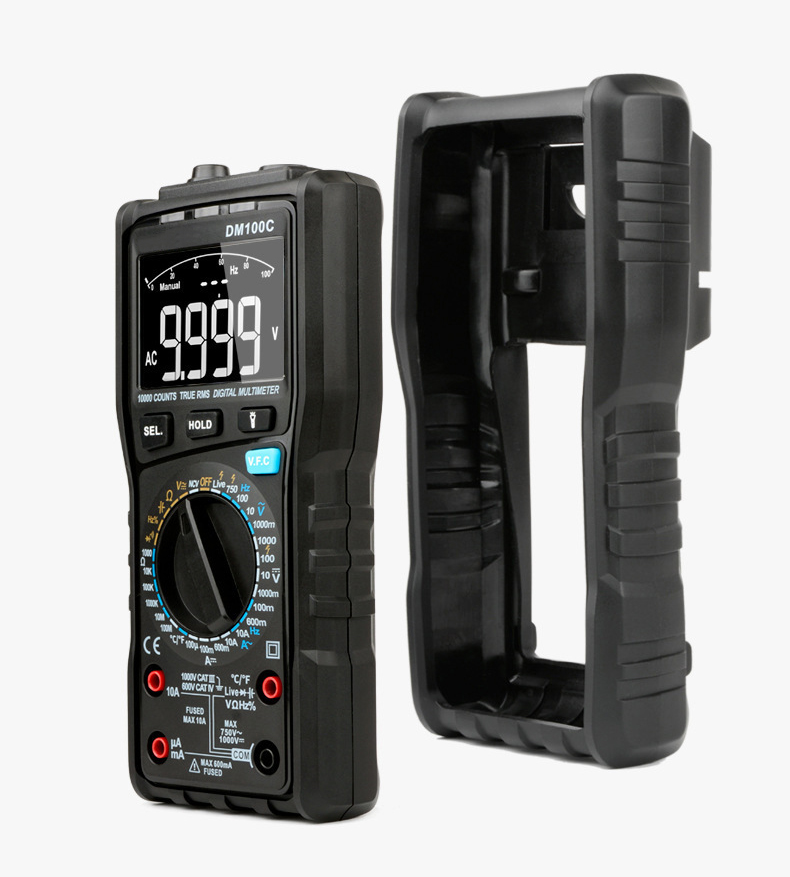

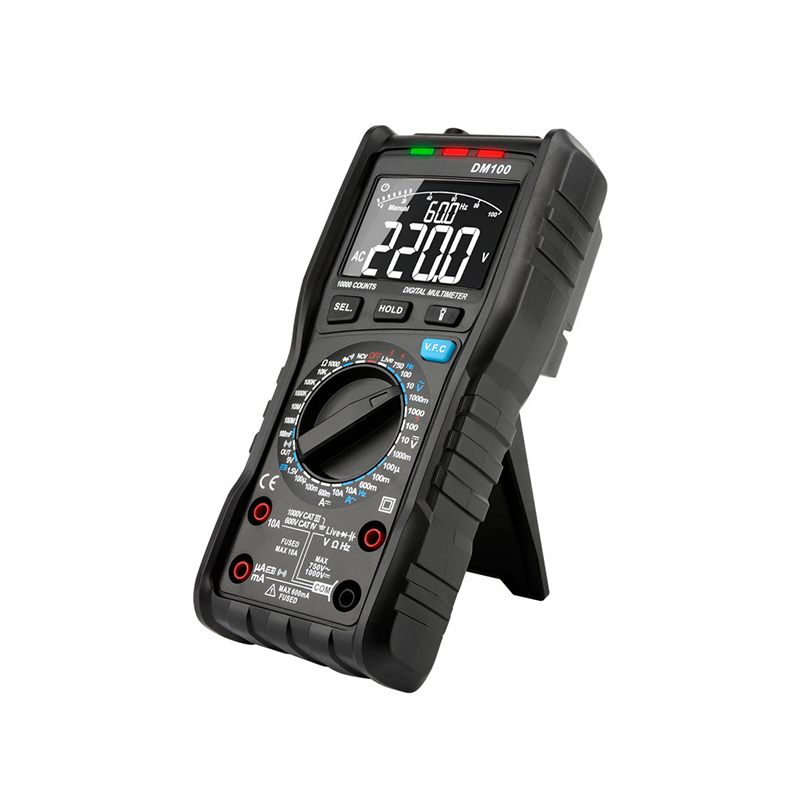

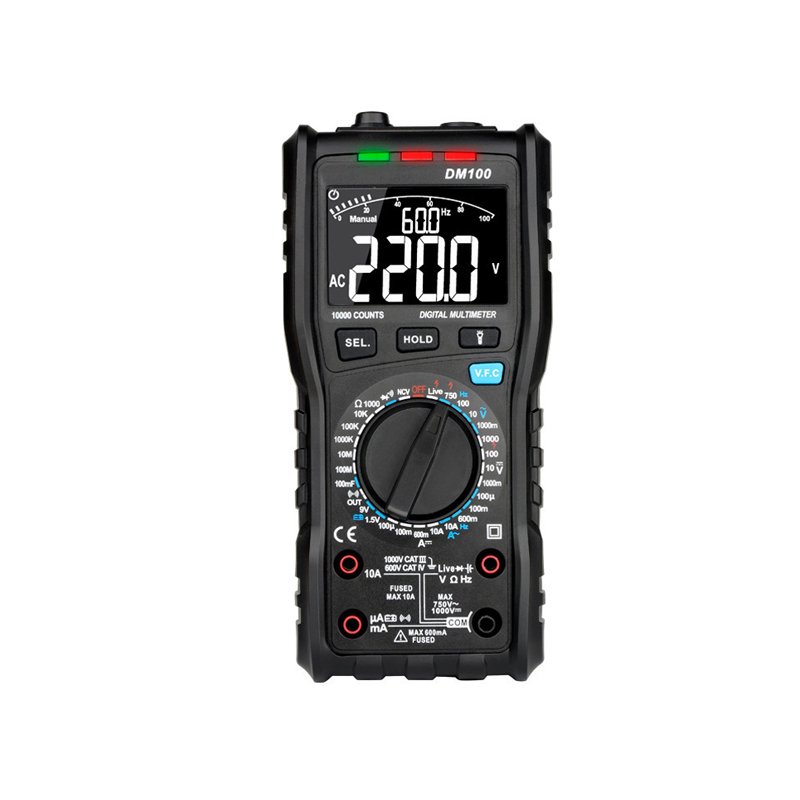

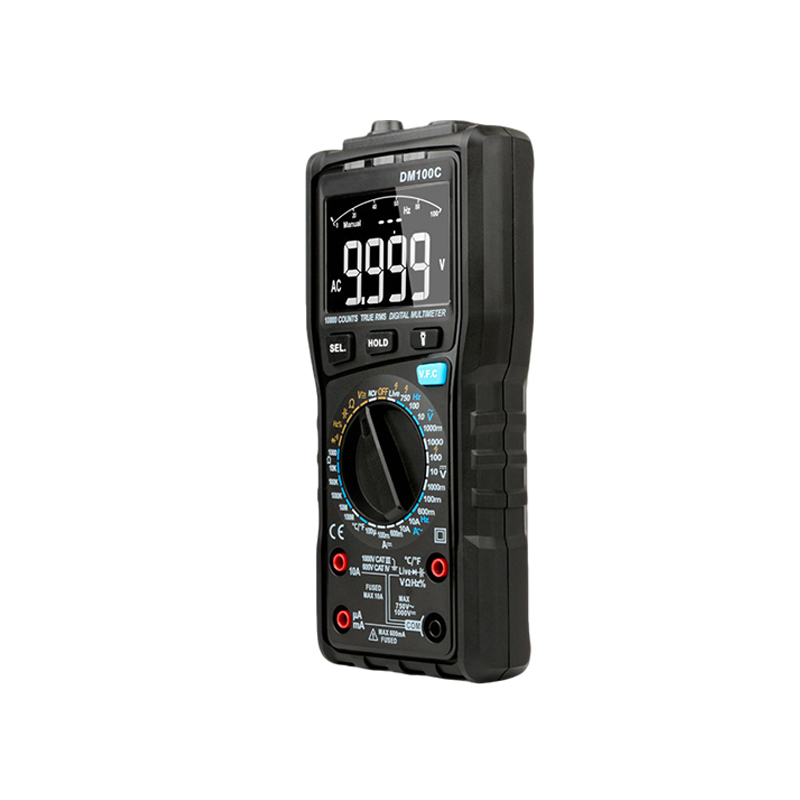

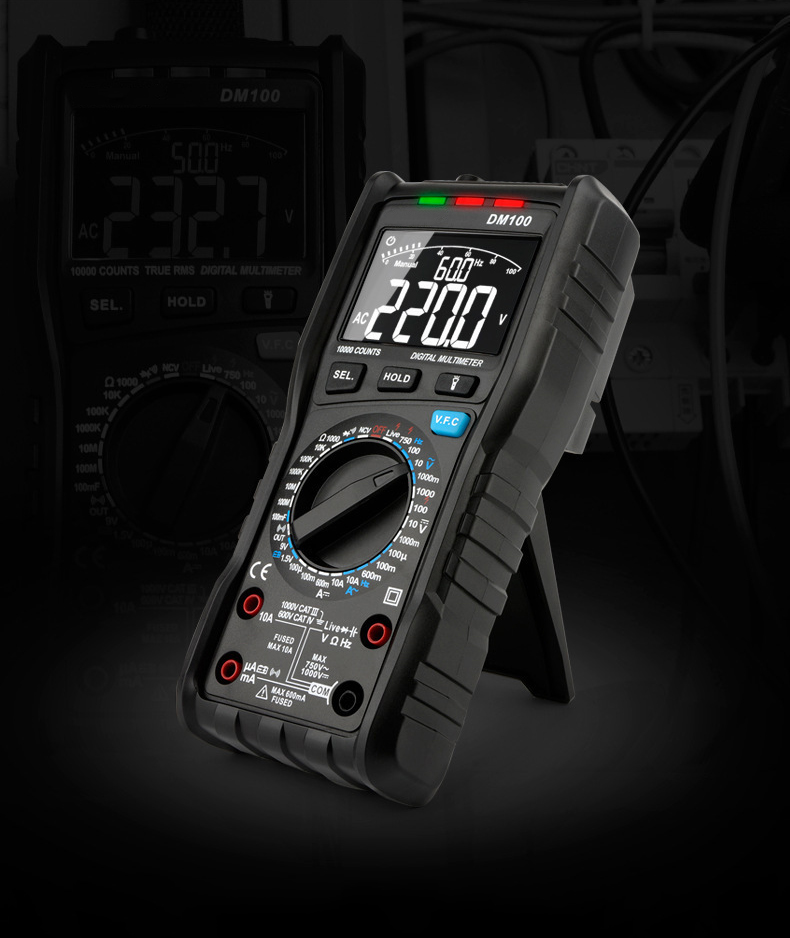

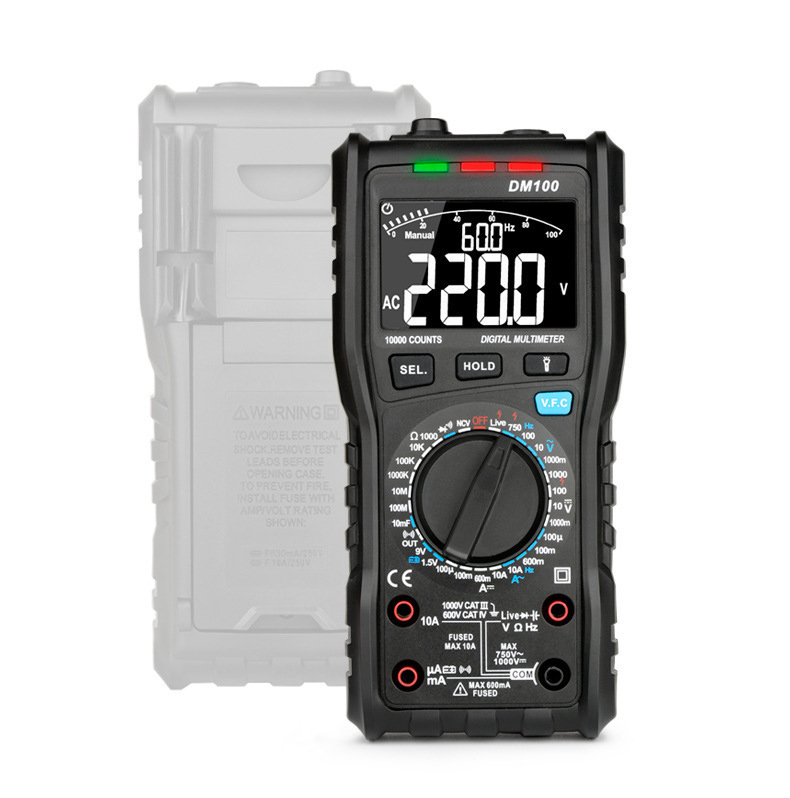

Multimeter

  • Product Name: Multimeter

  • DC Voltage: 0~999.9mV / 9.999V / 99.99V / 999.9V

  • AC Voltage: 0~999.9mV / 9.999V / 99.99V / 750V

  • DC Current: 0~99.99mA / 99.99mA / 600mA / 10.00A

  • AC Current: 0~99.99mA / 600mA / 10.00A

  • Resistance: 0~999.9Ω / 0~9.999kΩ / 99.99kΩ / 999.9kΩ / 0~9.999MΩ / 99.99MΩ

  • Capacitance: 0~9.999nF / 99.99nF / 999.9nF / 0~9.999μF / 99.99μF / 999.9μF / 0~9.999mF

  • Diode Test: 0.15V~3V; Forward DC current: approx. 1mA; Open circuit voltage: approx. 3.2V

  • Continuity Buzzer: 0~100Ω – Resistance < 15Ω: buzzer sounds continuously with green indicator steady on. Resistance between approx. 15Ω and 30Ω: buzzer sounds intermittently with green indicator flashing.

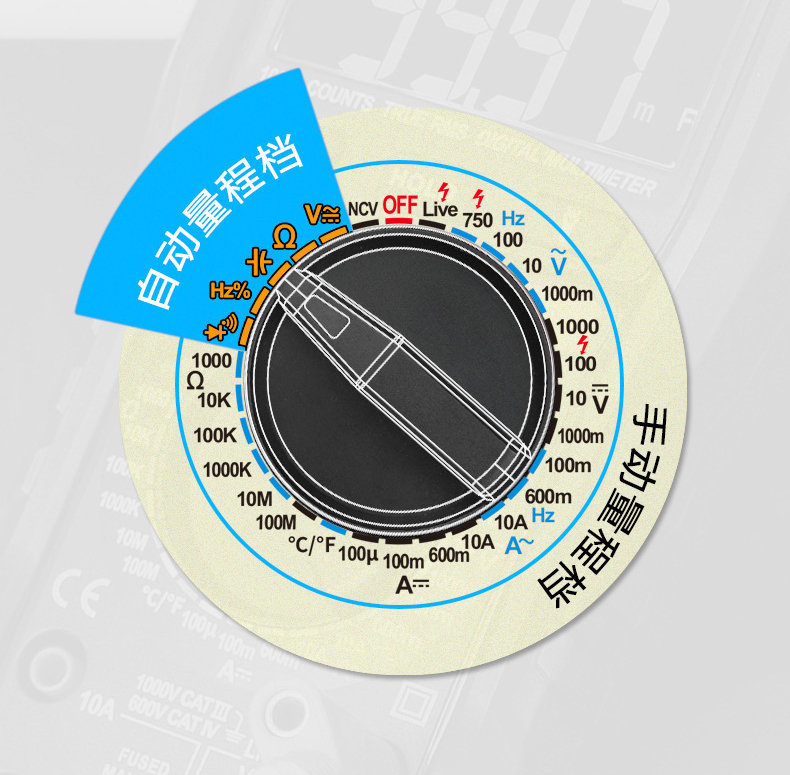

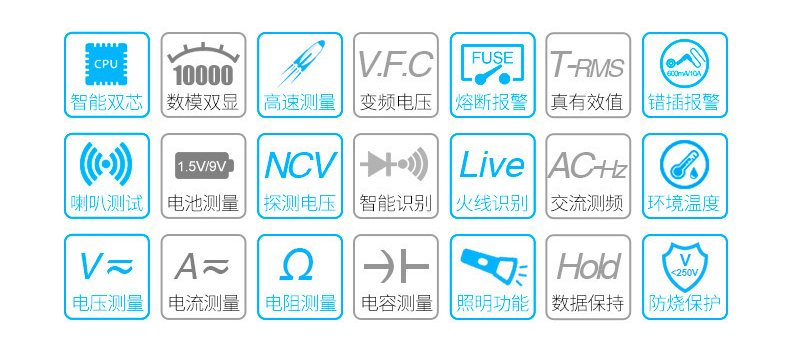

  • Special Features: Manual + Auto Ranging (combined)

  • Display Count: 10000 counts

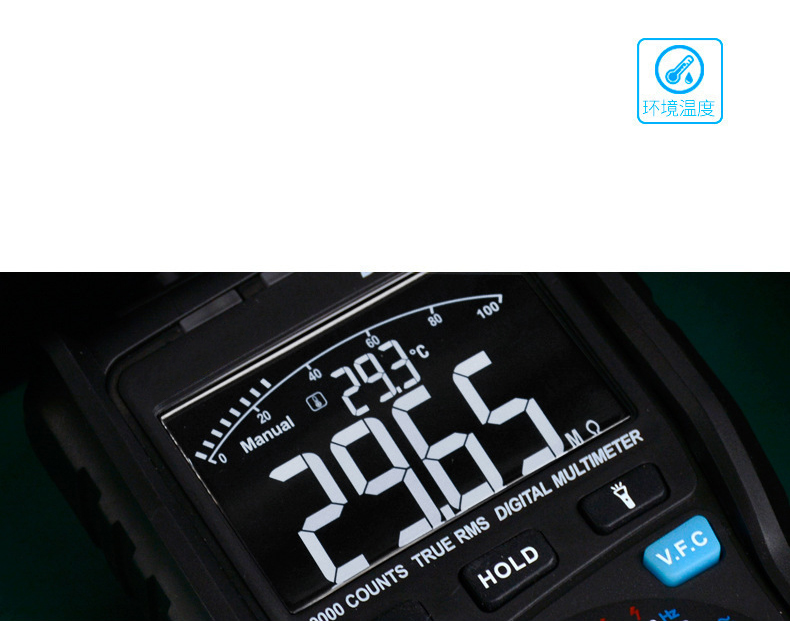

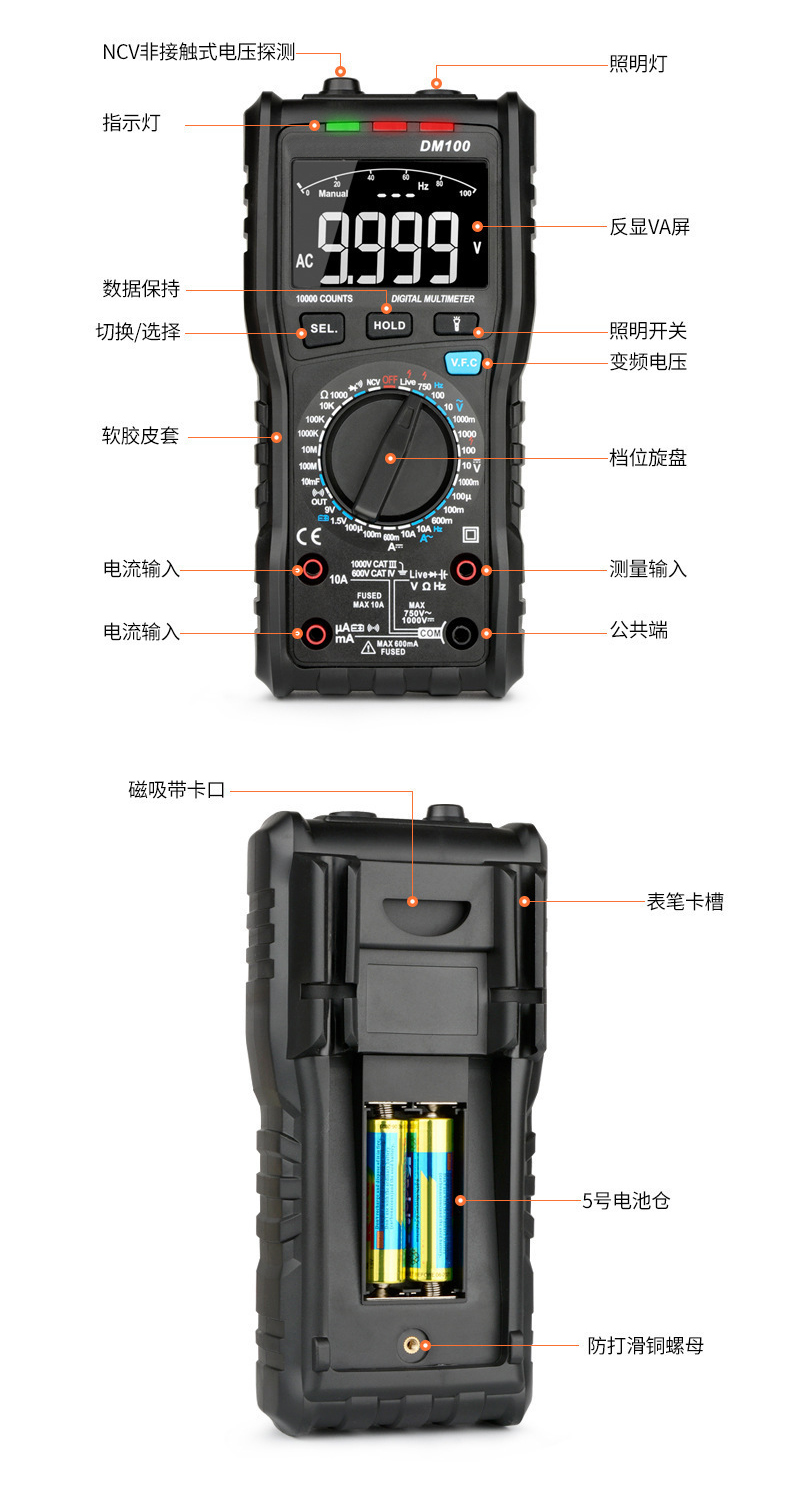

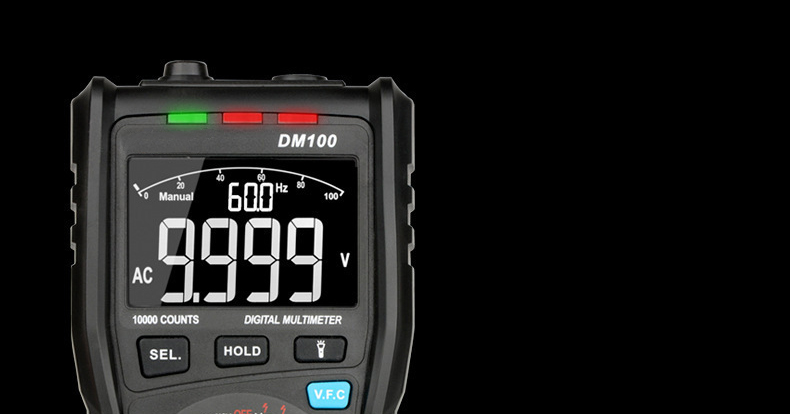

  • Display Type: Reverse display VA screen – analog bar + digital dual display

  • Operating Temperature: 0°C ~ 60°C

  • Operating Humidity: 20–95%

  • Battery Test: 0~1.5V (discharge current approx. 40mA) / 0~9V (discharge current approx. 20mA)

  • Buzzer Test: 2kHz / 2.7kHz / 3V – (can detect active or passive small speaker/buzzer)

  • True RMS: 1kHz

  • AC Frequency Measurement: Displays the frequency value of the current AC voltage while measuring AC voltage

  • High-Speed Sampling: Sampling rate 10 times/second

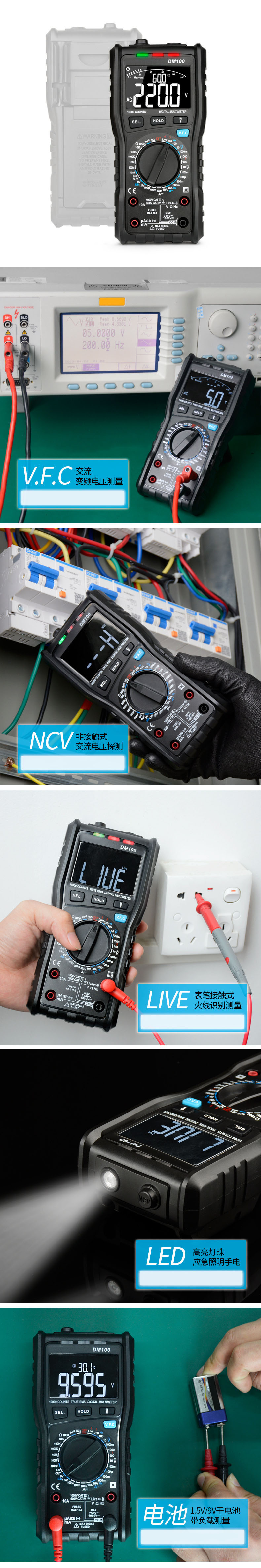

  • V.F.C: Variable Frequency Voltage measurement – frequency response: 40Hz-400Hz true RMS (VFC: 2kHz attenuation -3dB)

  • Fuse Alarm: 600mA / 10A current range fuse blown – screen displays "FUSE" with buzzer alarm

  • Misinsertion Alarm: Probe misinsertion burn-out protection – prevents instrument damage from current range misuse – displays "LUSE" with buzzer alarm

  • Data Hold: Yes

  • Flashlight: Yes

  • Auto Power-Off: Automatically shuts down after approx. 15 minutes of inactivity

  • NCV: Non-contact AC voltage detection (voltage pen function)

  • LIVE: Single probe contact live wire identification

  • Input Impedance: 10MΩ

  • Overload Protection: Full-range overload protection up to 250V

  • Low Battery Indication: Below 2.4V

  • Dimensions: 185 x 85 x 40 mm

  • Battery: 2 x DC 1.5V AA (2 x AA batteries)

  • Safety Rating: CAT IV 600V / CAT III 1000V

  • Weight: Approx. 500g
