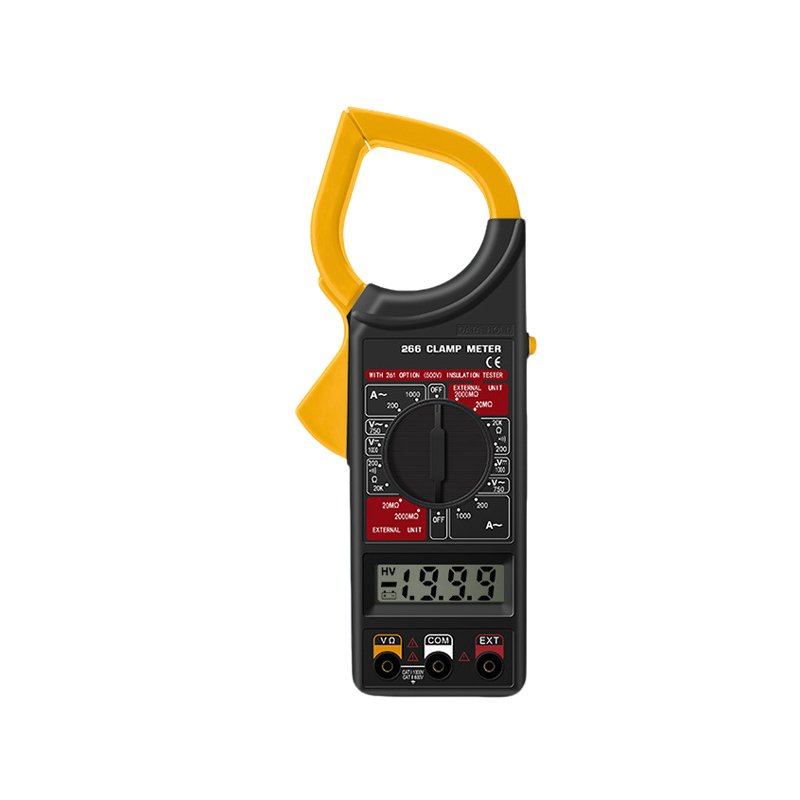

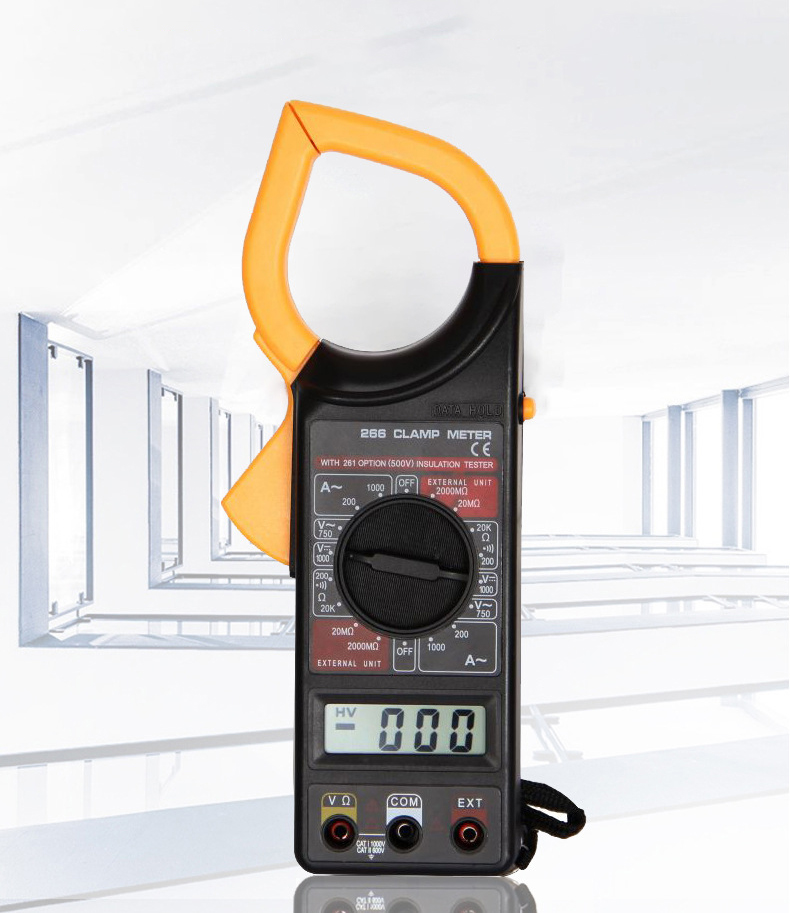

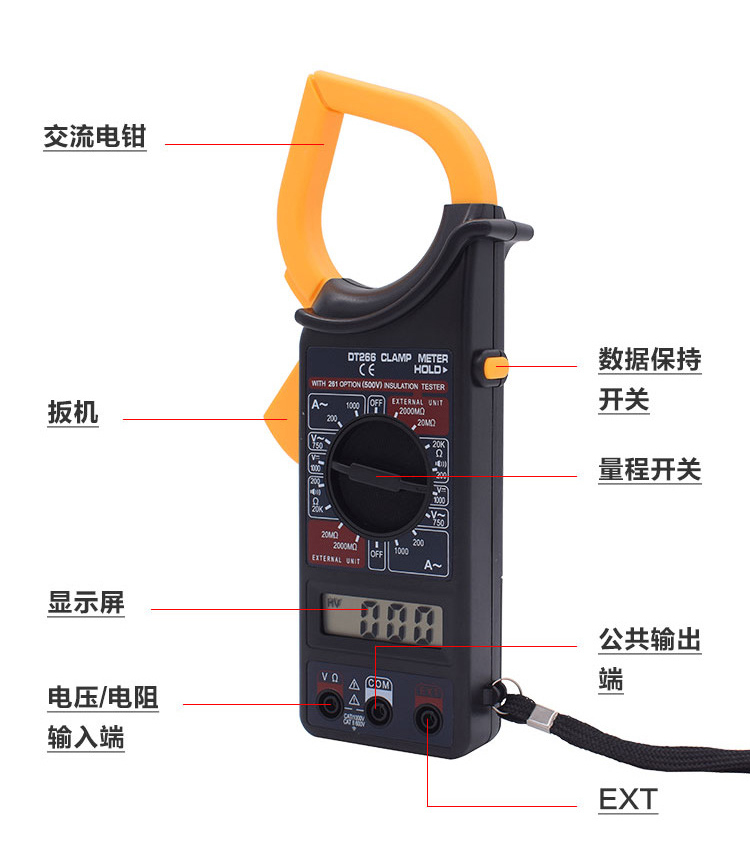

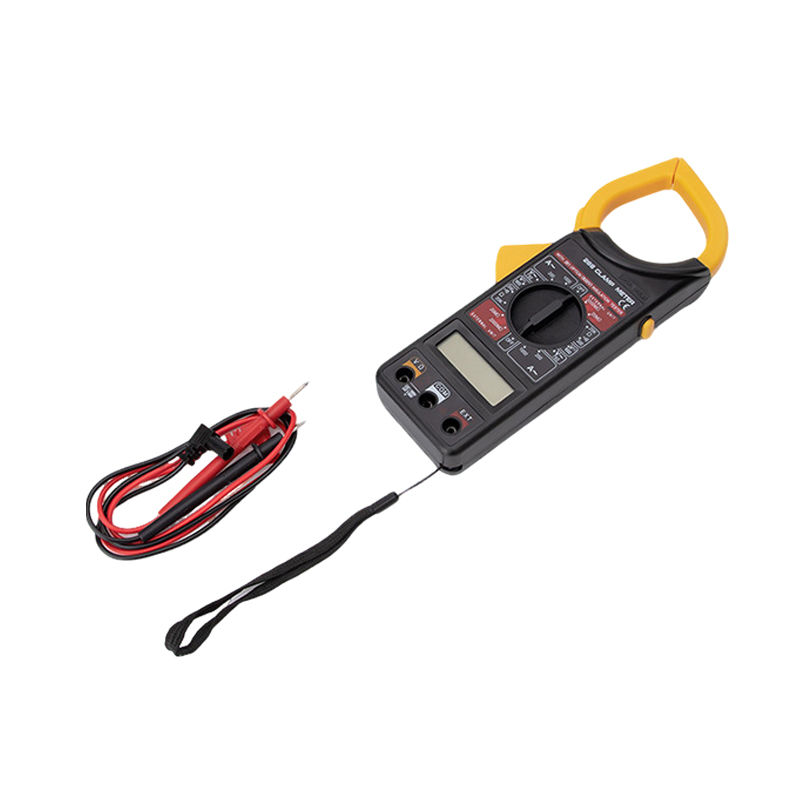

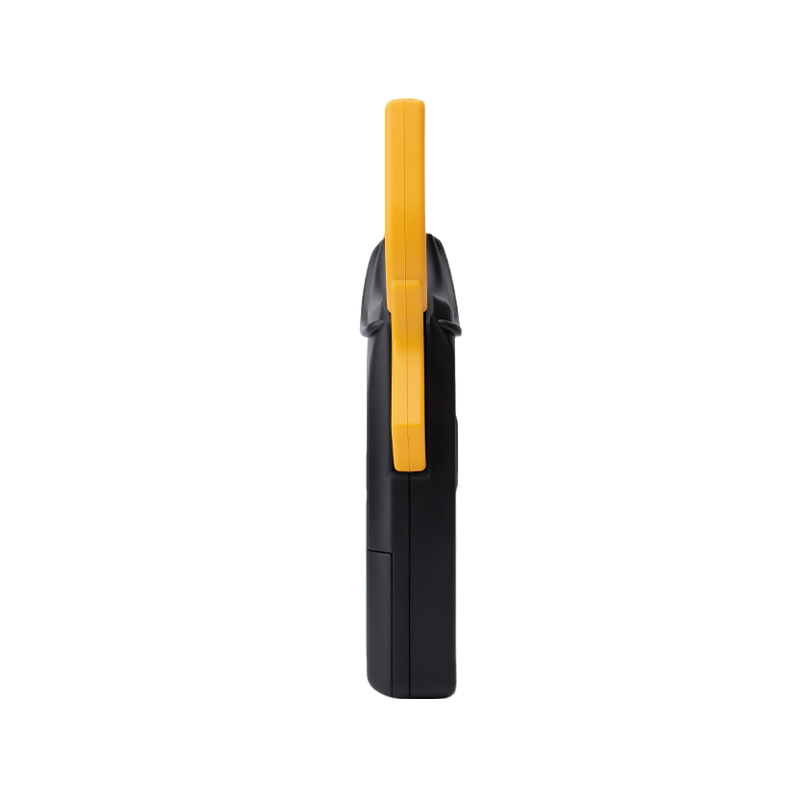

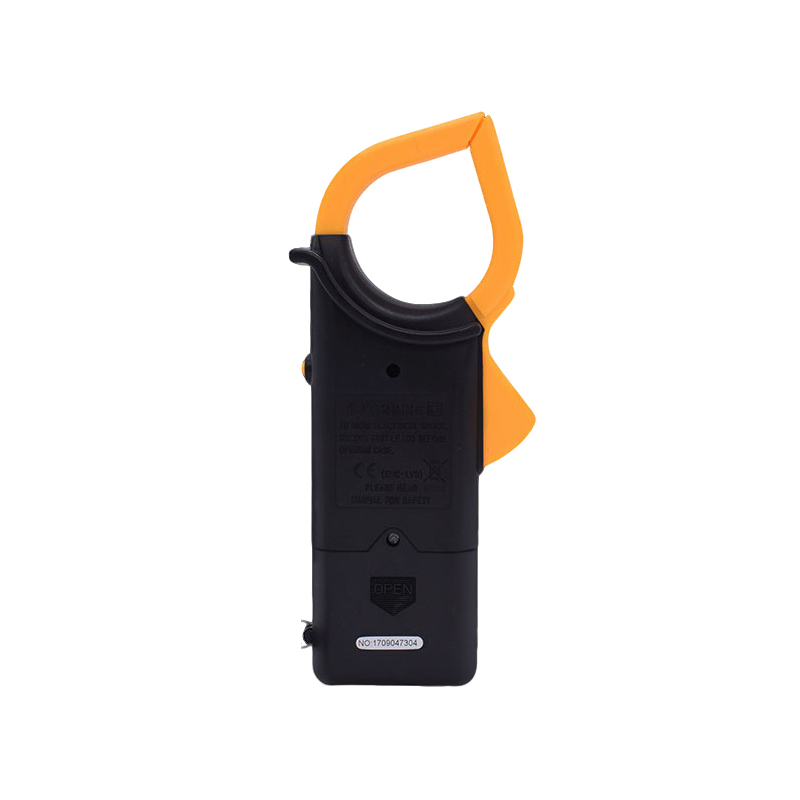

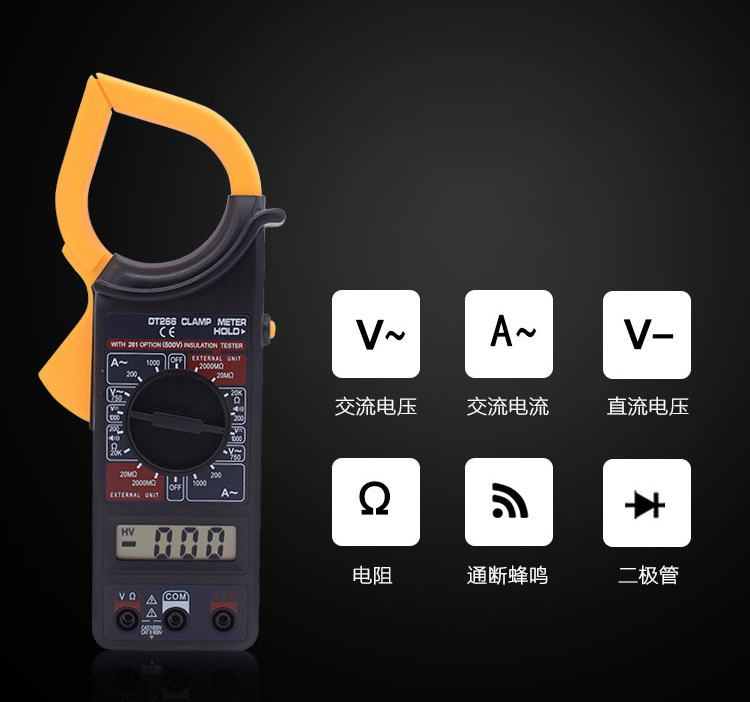

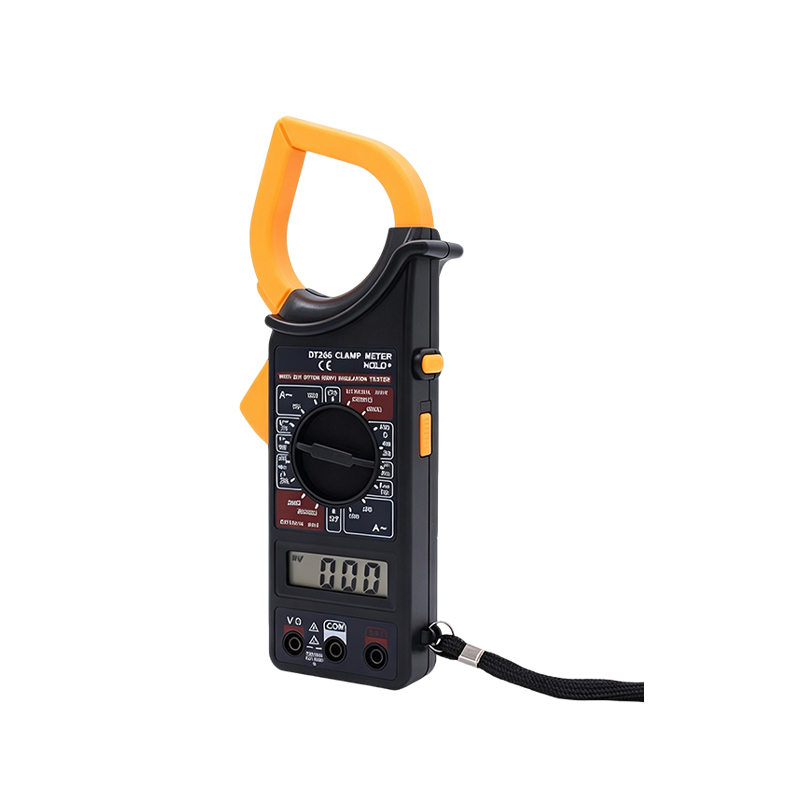

Clamp Meter

  • Product Name: Clamp Meter

  • Product Material: Engineering plastic

  • Operation Mode: Manual ranging

  • Power Supply: 9V battery

  • DC Voltage: 200mV / 2V / 20V / 200V / 1000V – ±(0.8% + 2)

  • AC Voltage: 200V / 750V – ±(1.2% + 4)

  • AC Current: 20A / 200A / 1000A – ±(3% + 5)

  • Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ – ±(1% + 4)

  • Input Impedance: 100MΩ

  • Sampling Rate: 3 times/second

  • Maximum Display: 1999 counts

  • AC Frequency Response: (40–400)Hz

  • Power Supply: 9V (6F22)

  • Dimensions: 230mm x 66mm x 35mm

  • Weight: Approx. 335g

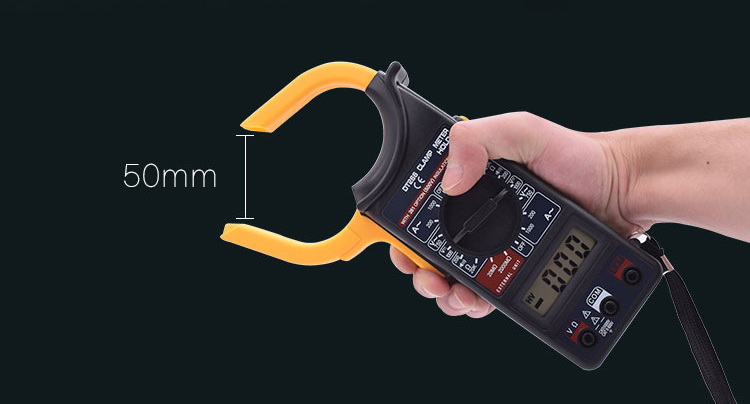

  • Jaw Opening / Clamp Diameter: 50mm

  • Application: Ideal tool for colleges and universities, machine maintenance, communications, power systems, and circuit/equipment maintenance and repair.
