Split-Type Hydraulic Cable Cutter, Openable High Strength Steel Cutting Head, Quick Connector for Hydraulic Pump

  • Product Name: Split-Type Hydraulic Cable Cutter

  • Product Specifications: RF-135 (pump not included), RF-160 (pump not included)

  • Product Length: 680mm / 765mm

  • Output Force: 12 tons

  • Unit Weight: 20kg / 25kg

  • Cutting Range:

    Copper/aluminum cable ≤ Φ135mm, armored cable ≤ Φ135mm (RF-135)

    Copper/aluminum cable ≤ Φ160mm, armored cable ≤ Φ160mm (RF-160)

  • Function Description:

    Convenient for cutting operations inside distribution boxes – suitable for fast cutting of high-voltage PE, IV cables, and telephone wires.

    High-Carbon Tungsten Alloy Steel Blade – Sturdy, heat-treated to HRC 60°C

    Prohibited for cutting steel-core cables, etc.

    The head is secured by a pin and can be flipped open – convenient for placing and removing cables during cutting.

    This product is a split-type product and must be used with a manual hydraulic pump or an electric hydraulic pump.


Product Code:  07629

Description

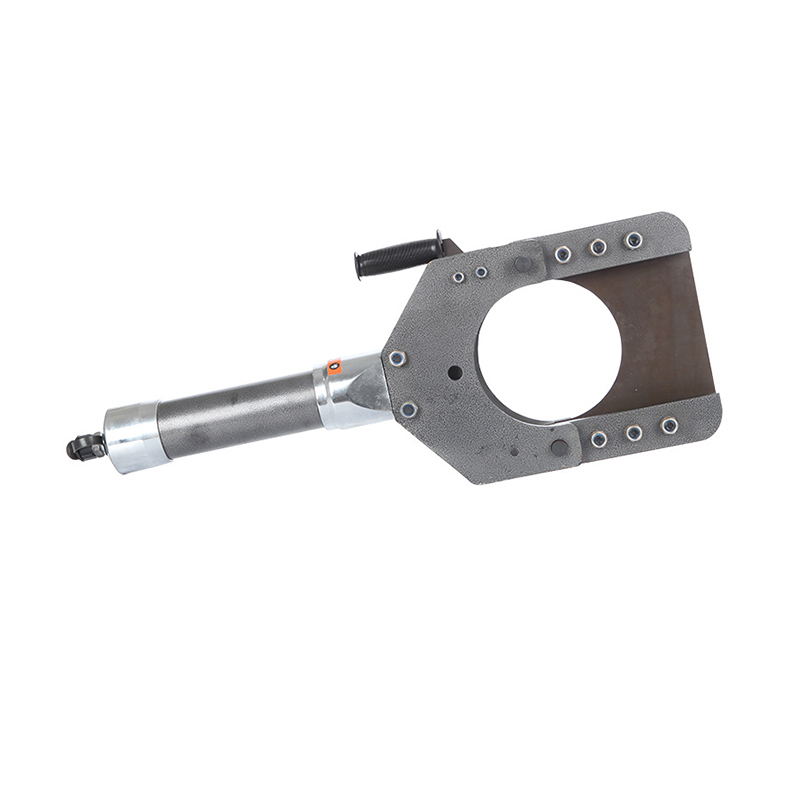

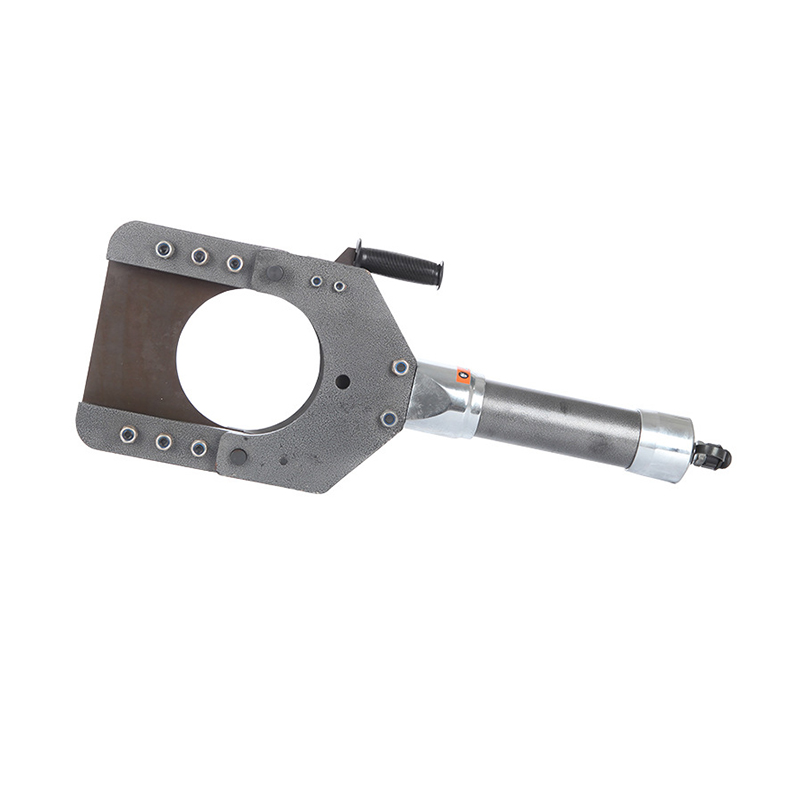

Split-Type Hydraulic Cable Cutter

  • High-Strength Cutter Head

  • Cutting Takes Only 3–6 Seconds

  • Fast Pressure Release

  • Safe & Reliable


Product Breakdown

  • Quick Connector + Dust Cap
    Connects to the female connector on the hydraulic pump – thread specification: ZG3/8"

  • Enlarged Cylinder
    High-density metal material – sturdy and durable – not easily broken

  • Ergonomic Handle
    Comfortable grip – easier and more labor-saving during long-term use

  • High-Strength Cutter Head
    The cutter head can be opened for convenient placement and removal of cables


High-Strength Durable Cutter Head

Special steel undergoes heat treatment – greater hardness – sharper cutting

  • Bolt Fixing

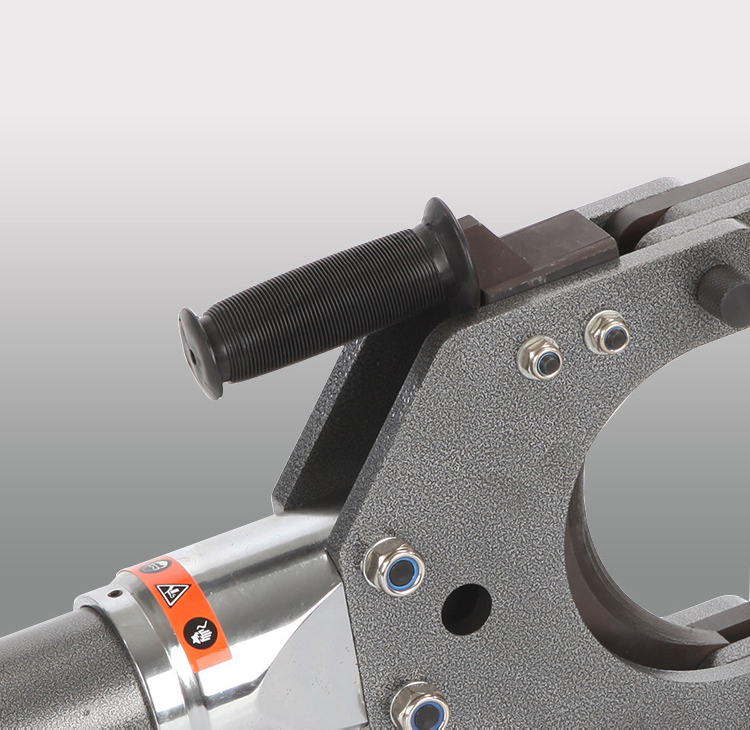

Ergonomic Grip Handle

Comfortable grip design – suitable for long-term work – easy and labor-saving cutting

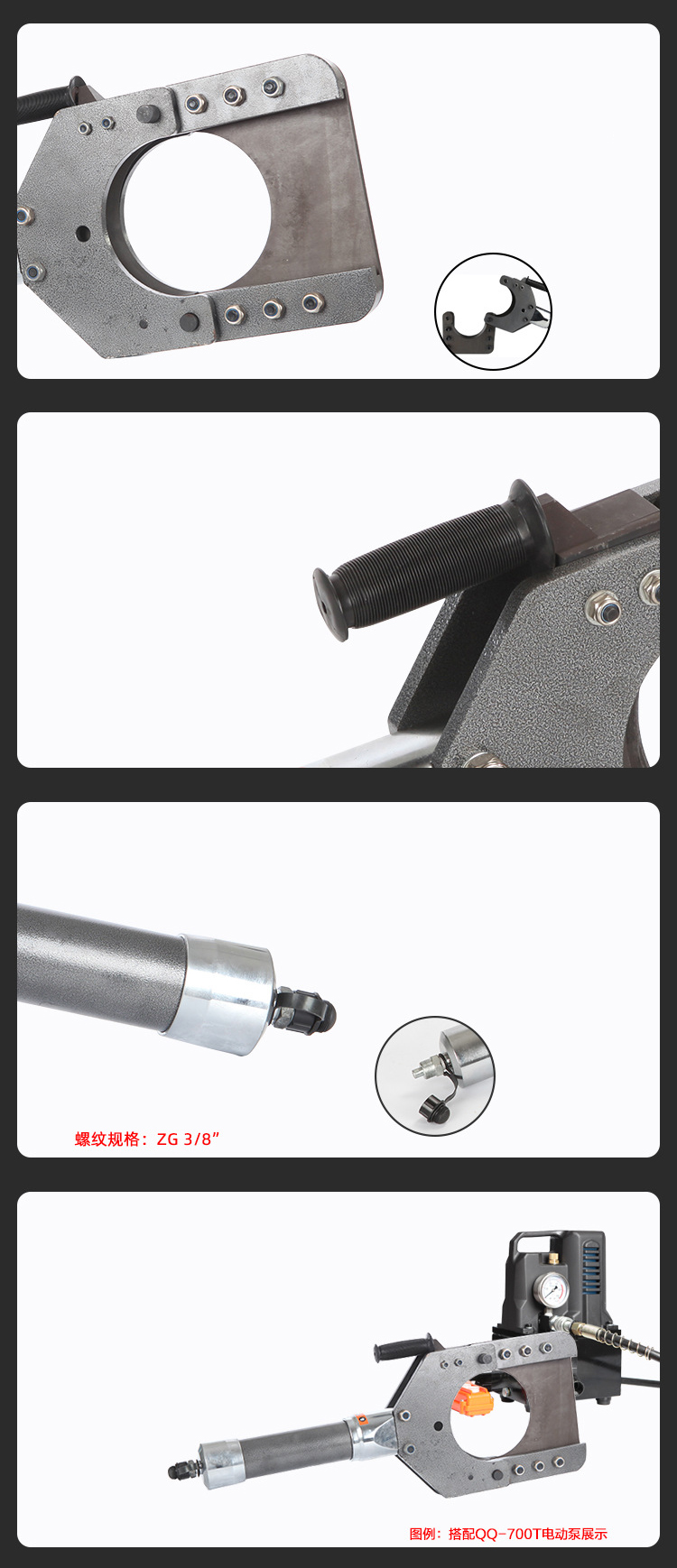

Product Details

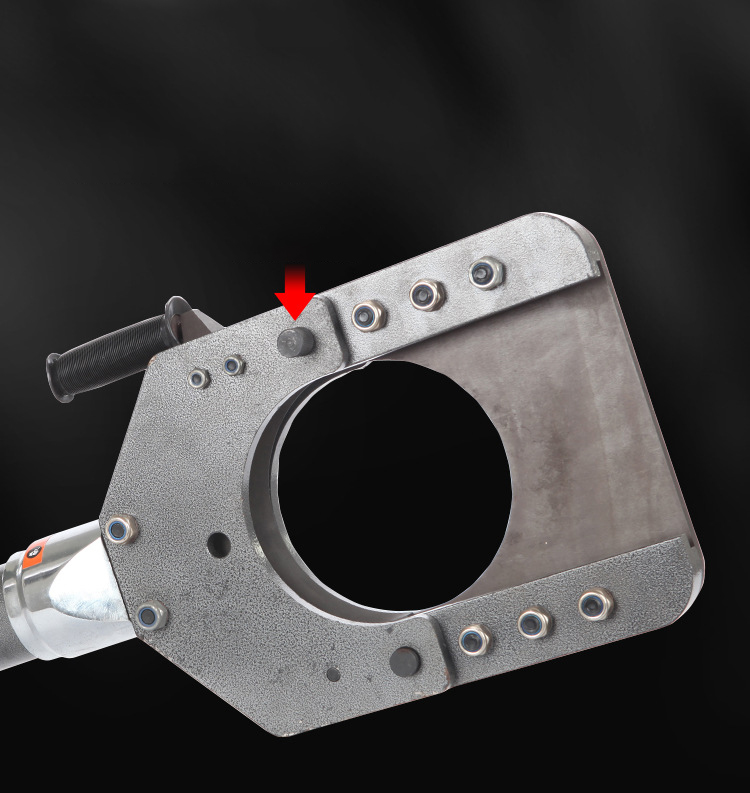

  1. Bolt Fixing – Flip-Open Cutter Head
    The cutter head can be opened for convenient cable placement and removal; can be closed when not in use to prevent scratches

  2. Ergonomic Labor-Saving Handle Design
    Comfortable grip design – easier and more labor-saving during long-term use

  3. Quick Connector + Dust Cap
    Quick connector for connecting to a hydraulic pump; screw on the dust cap when not in use to prevent dust from entering
    Thread specification: ZG3/8"

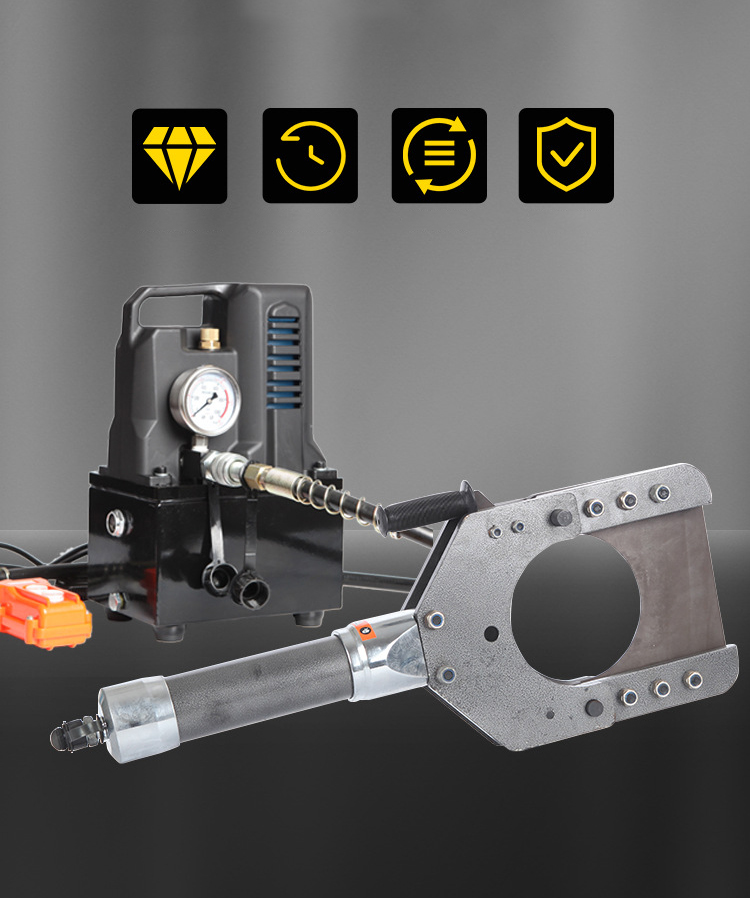

  4. Must be used with a hydraulic pump
    The split-type model must be used with a manual hydraulic pump or an electric hydraulic pump.
