Security Gate

  • Product Name: Security Gate

  • Product Specifications: Single-zone positioning

  • Display Type: Full-zone digital tube display

  • Passenger Throughput: > 40 persons/min

  • Power Supply: 220V AC

  • Power Consumption: 50/60 Hz, < 18W

  • Operating Environment: -10°C to 50°C

  • Channel Dimensions (mm): 1980(H) × 800(W) × 300(D)

  • Overall Dimensions (mm): 2220(H) × 900(W) × 400(D)

  • Gross Weight: 55 kg


Description

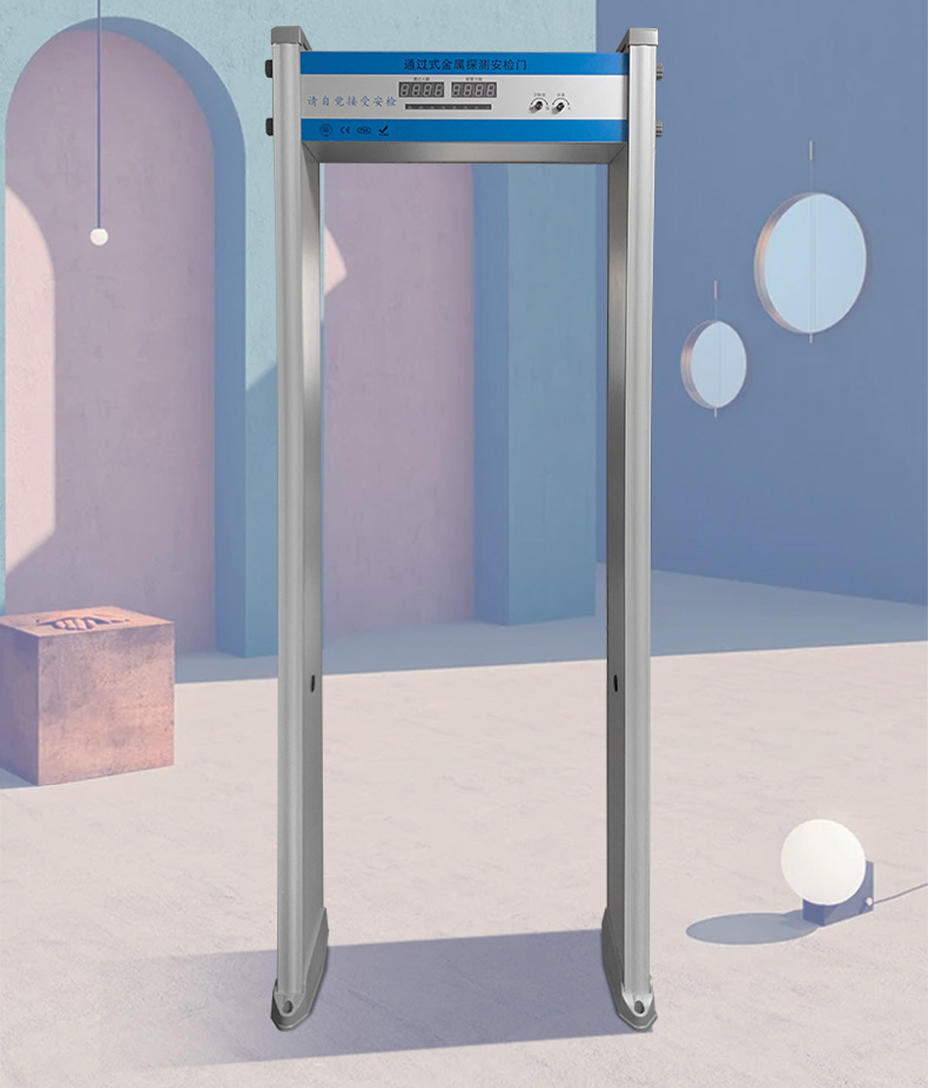

Full-Zone Digital Tube Display Security Door – No Blind Spots, No Missed Detections.xq1.jpg

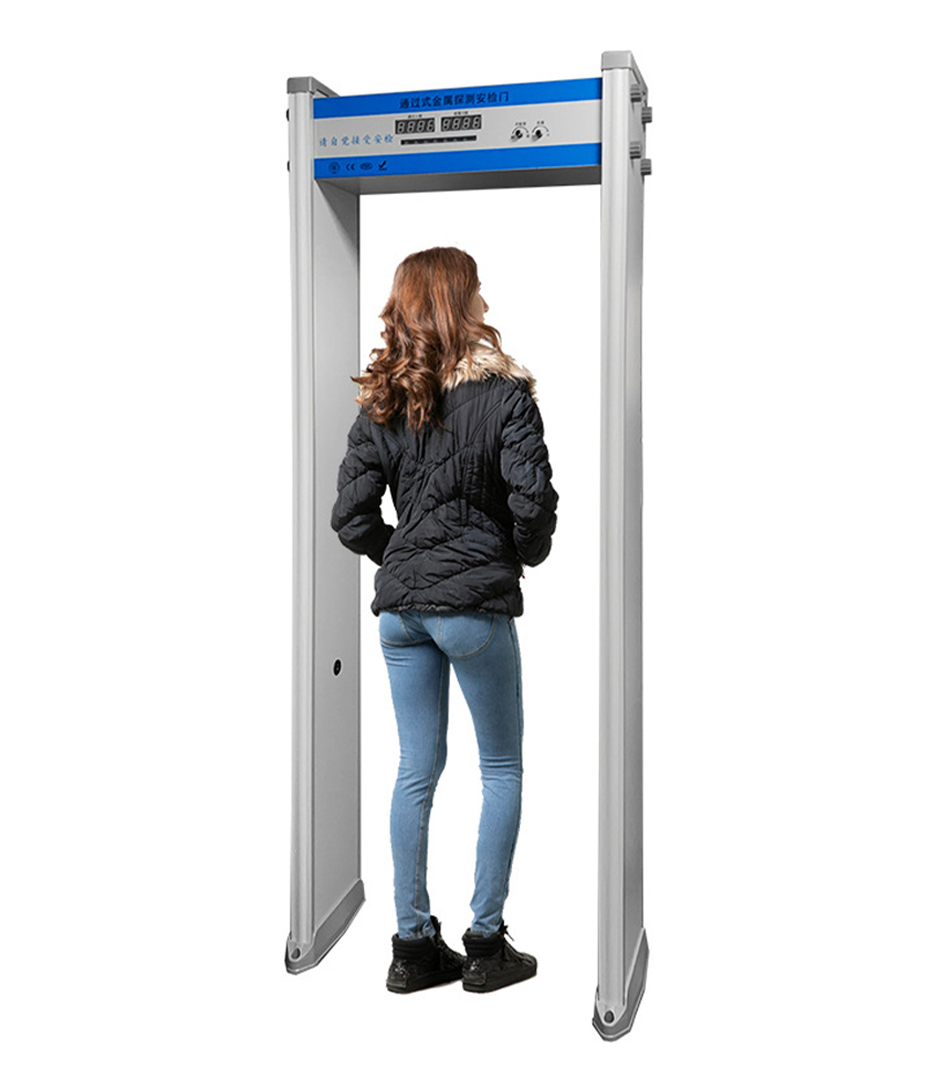

Full-Zone Digital Tube Display

The entire detection area uses dual-side transmitting and receiving to quickly locate metal objects.

Head zone – detects metal accessories worn on the head, such as earrings and glasses

Neck zone – detects metal accessories worn around the neck, such as earrings and glasses

Waist zone – detects metal objects concealed around the waist

Hip zone – detects metal objects concealed around the hips

Knee zone – detects metal objects concealed around the knees

Foot zone – detects metal objects concealed around the feetxq2.jpg

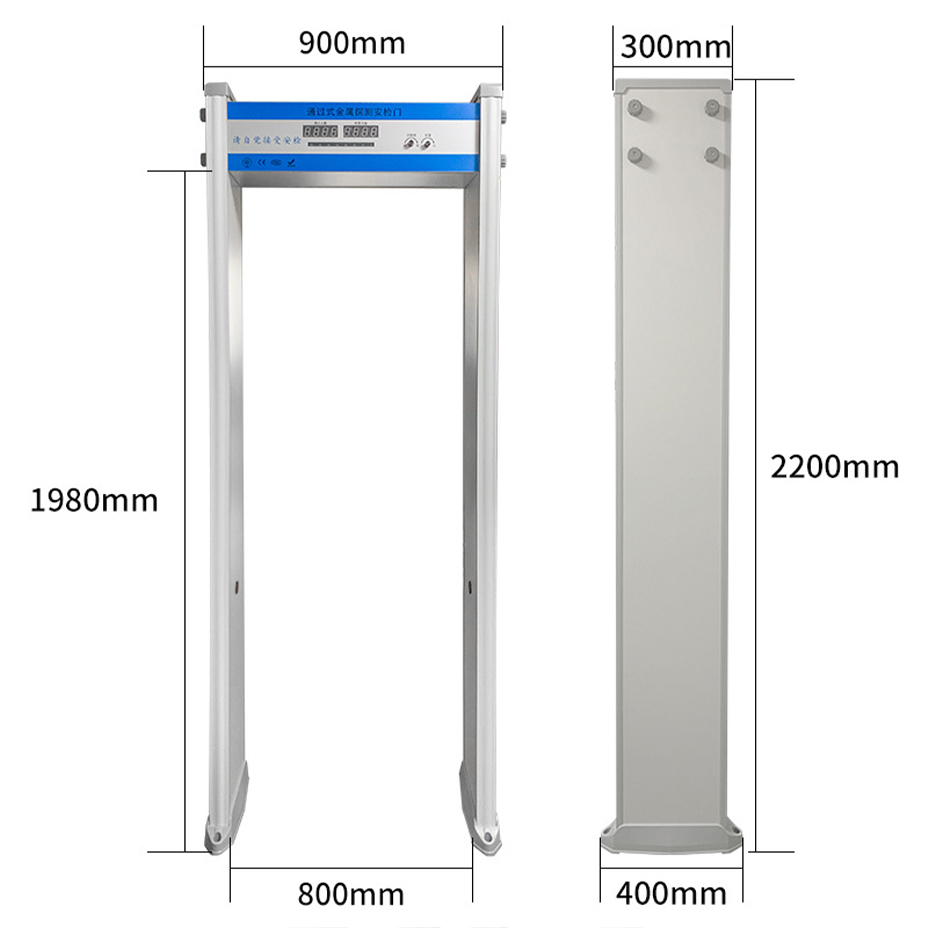

Product Specificationsxq3.jpg

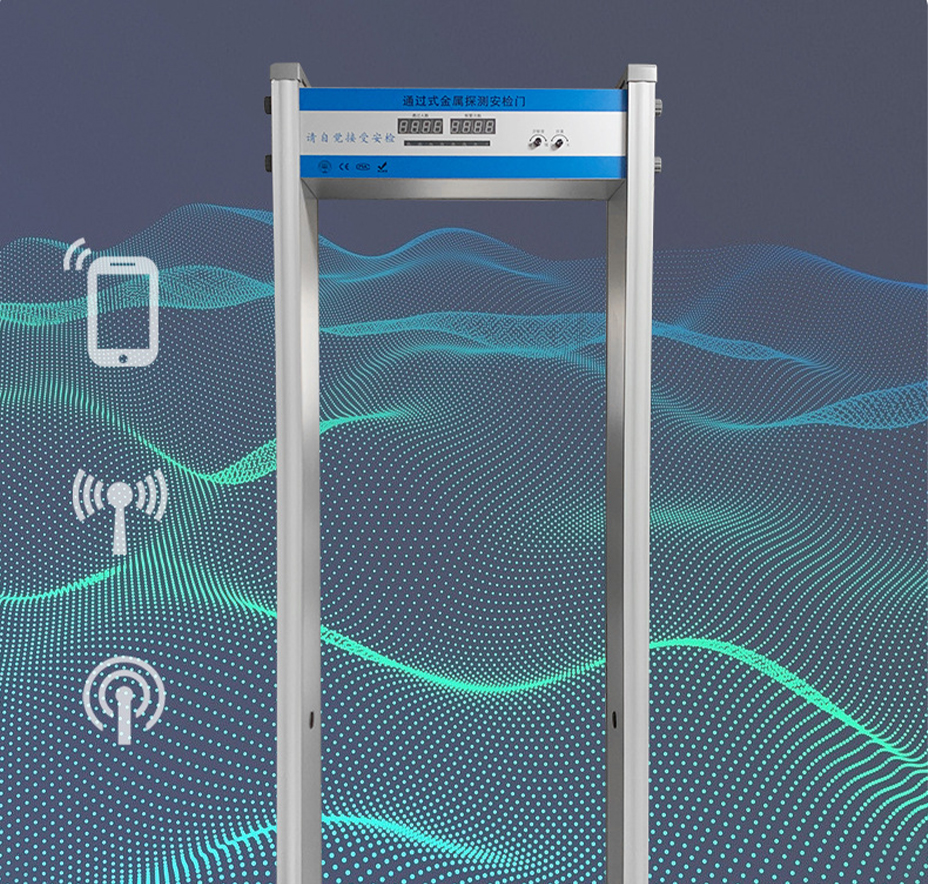

Digital Pulse Technology

Equipped with a digital signal processing and filtering system, and designed with strong anti-electromagnetic interference capability.xq4.jpg
