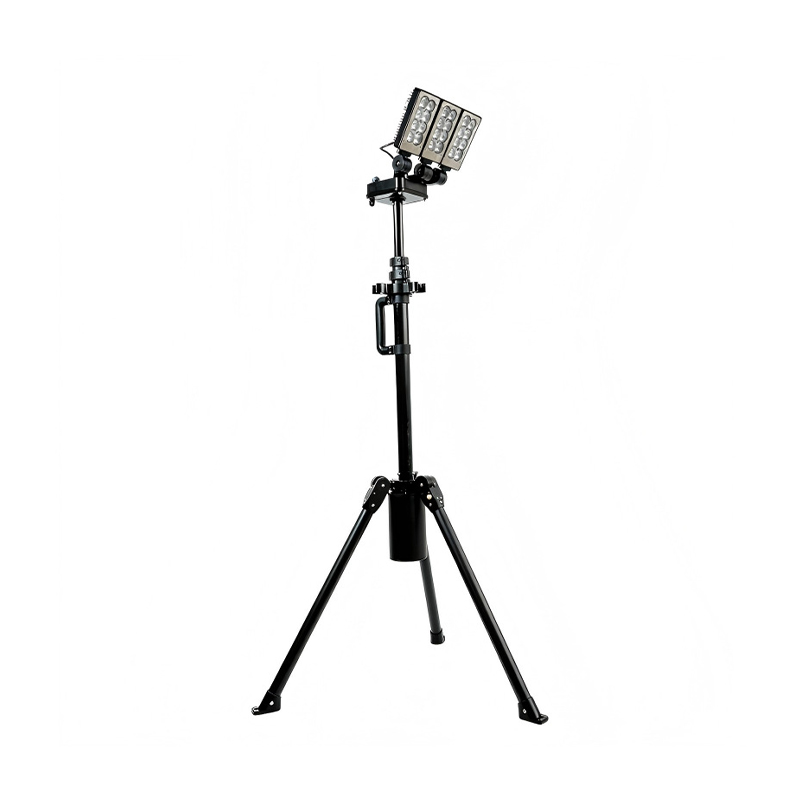

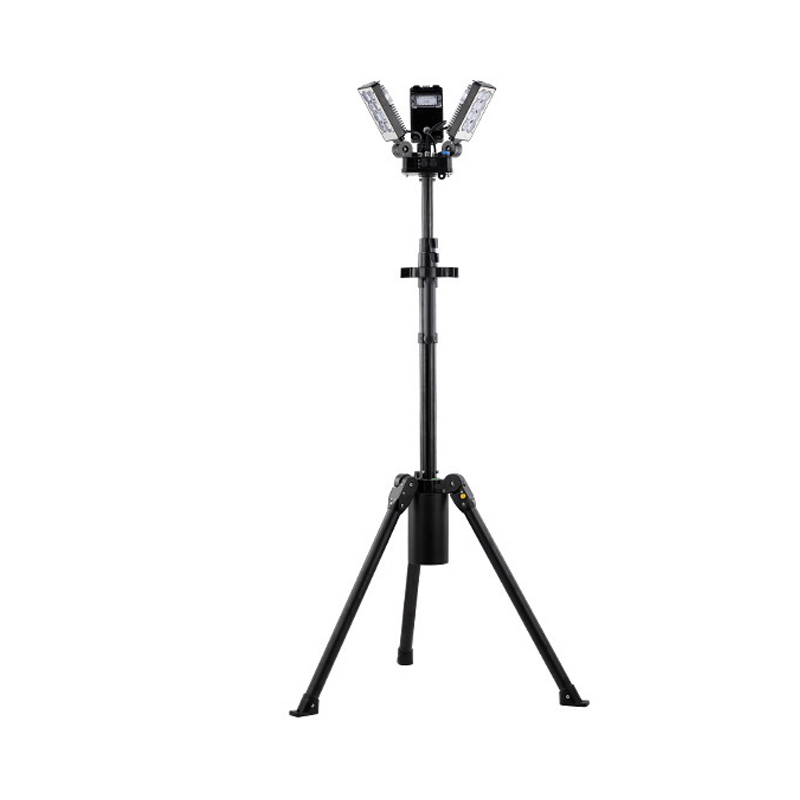

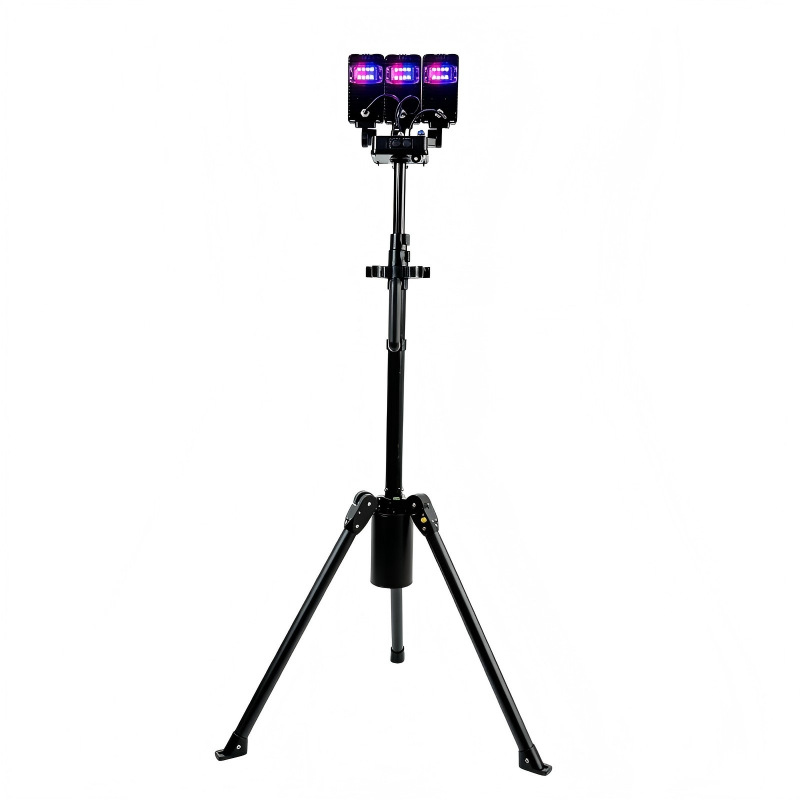

IP66 Explosion Proof Tripod LED Work Light, 4M Max Height, 3 Lamp Heads Bluetooth APP Control Panoramic Mobile Lighting System

  • Product Name: Mobile Lifting Work Light

  • Rated Voltage: DC 22.2V

  • Battery Rated Capacity: 15Ah

  • Rated Power: 100–120W

  • Maximum Initial Illuminance at 10 Meters:

    High Light: 750 lx

    Medium Light: 450 lx

    Working Light: 300 lx

  • Illumination Mode: Flood + Spot

  • Warning Light Color: Yellow

  • Lighting Time (Flood + Spot):

    High Light: 5 hours

    Medium Light: 10 hours

    Working Light: 14 hours

  • Battery Service Life: > 1,000 cycles

  • Charging Time: < 6 hours

  • External Dimensions:

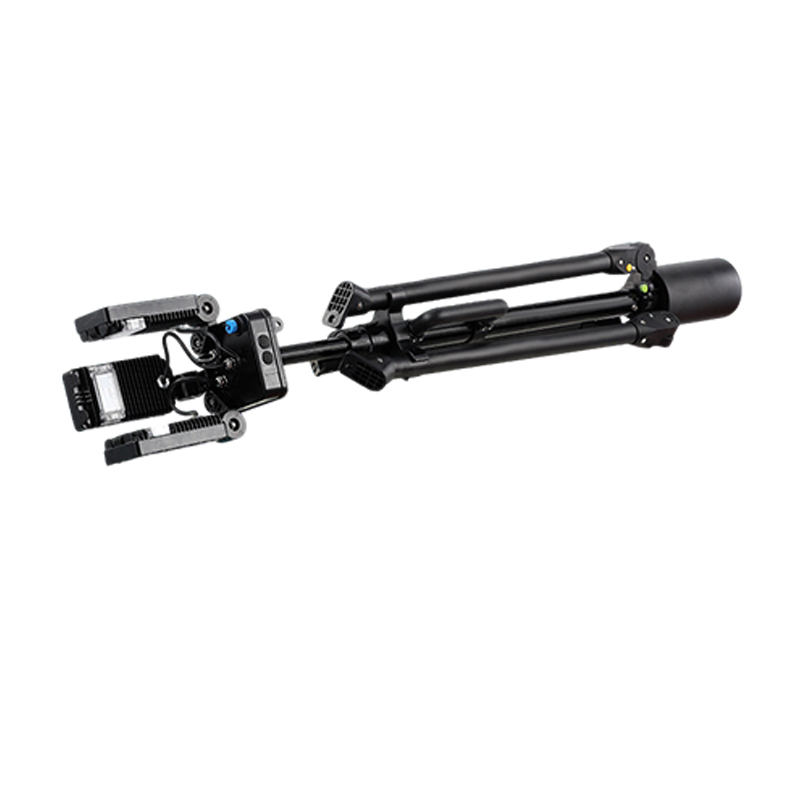

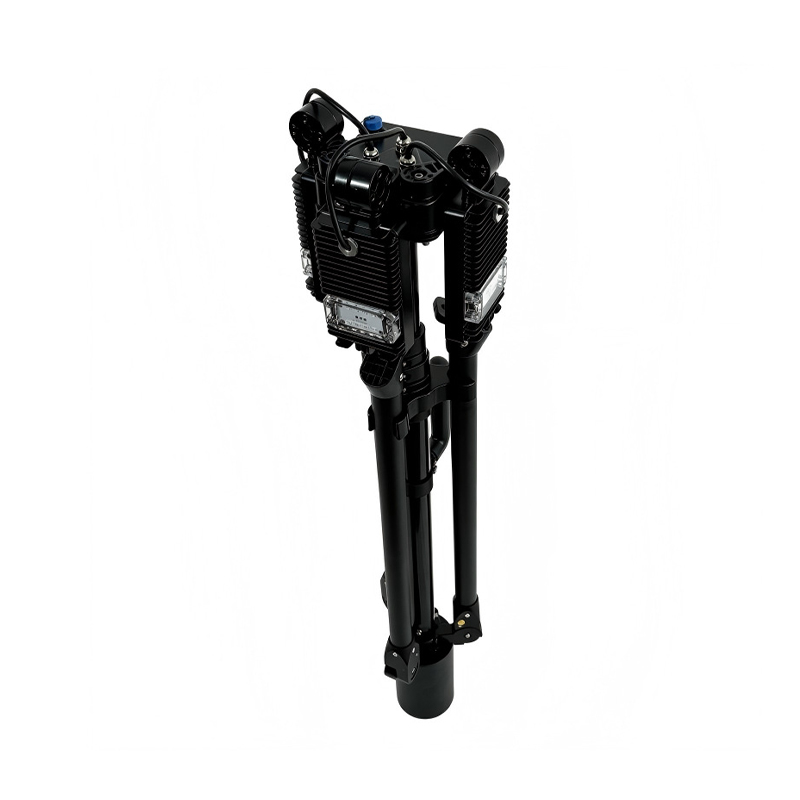

    Telescopic Pole Retracted: 200 x 1035mm

    Telescopic Pole Extended: 780 x 2390mm

  • Weight: 8.5kg

  • Operating Environment: -20°C ~ 40°C

  • Protection Rating: IP67

  • Wind Resistance Rating: Level 6


Product Code:  07529

Description

Panoramic Mobile Lighting System

[Lighting / Portable / Waterproof / High Luminous Efficacy / Adjustable Angle]

  • High illumination brightness

  • Premium materials

  • Uniform light emission

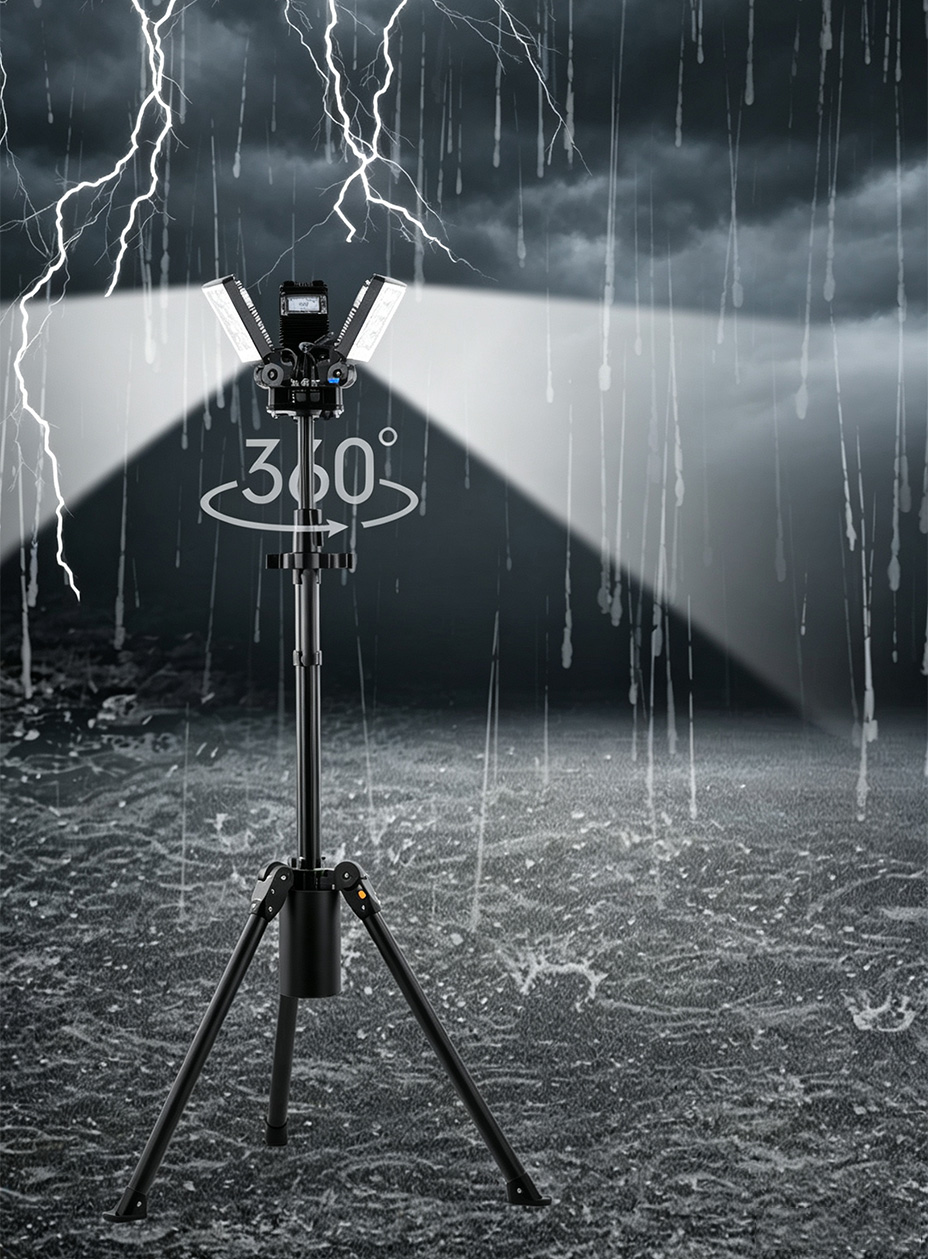

IP66 Engineering Protection – Bright Light

Uses a three-lamp head design – adjustable horizontally and vertically for illumination direction and angle – 360° surround lighting and single-side illumination – maximum raised height up to 4M – operates normally even in harsh environments

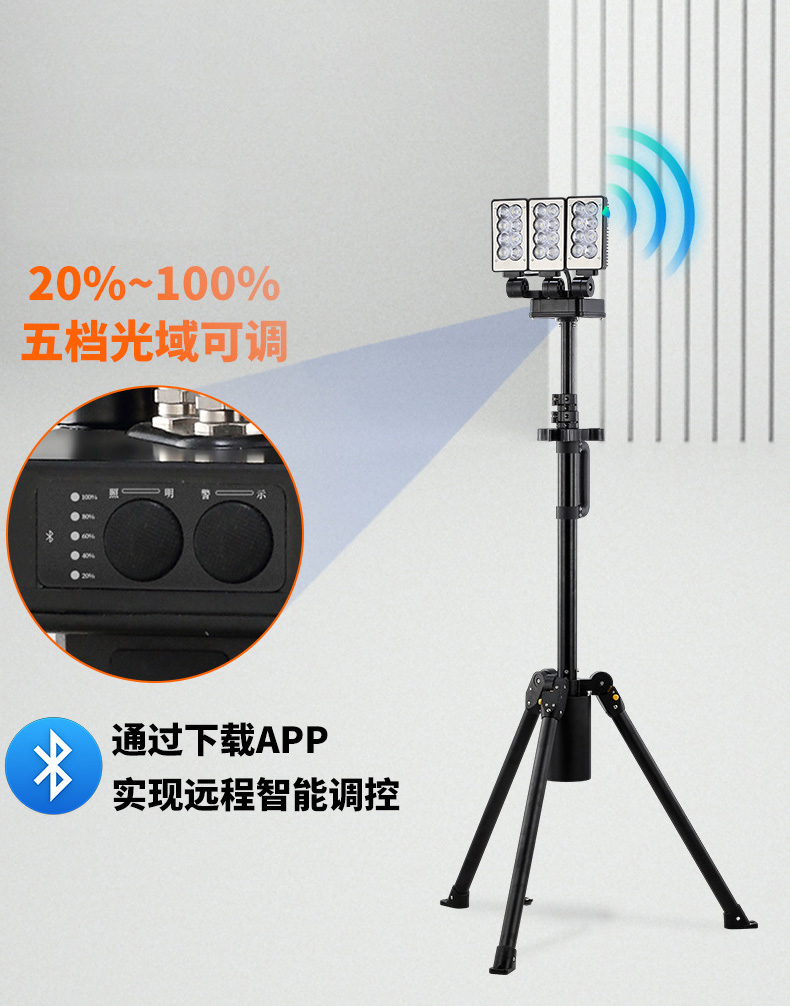

Five-Level Quick Adjustment – Enhancing Lamp Applicability

Five-level quick dimming – warning light on/off – can be controlled via Bluetooth connection through the downloaded APP

  • 20%–100% Five-Level Light Range Adjustable

  • Achieve remote smart control through the downloaded APP

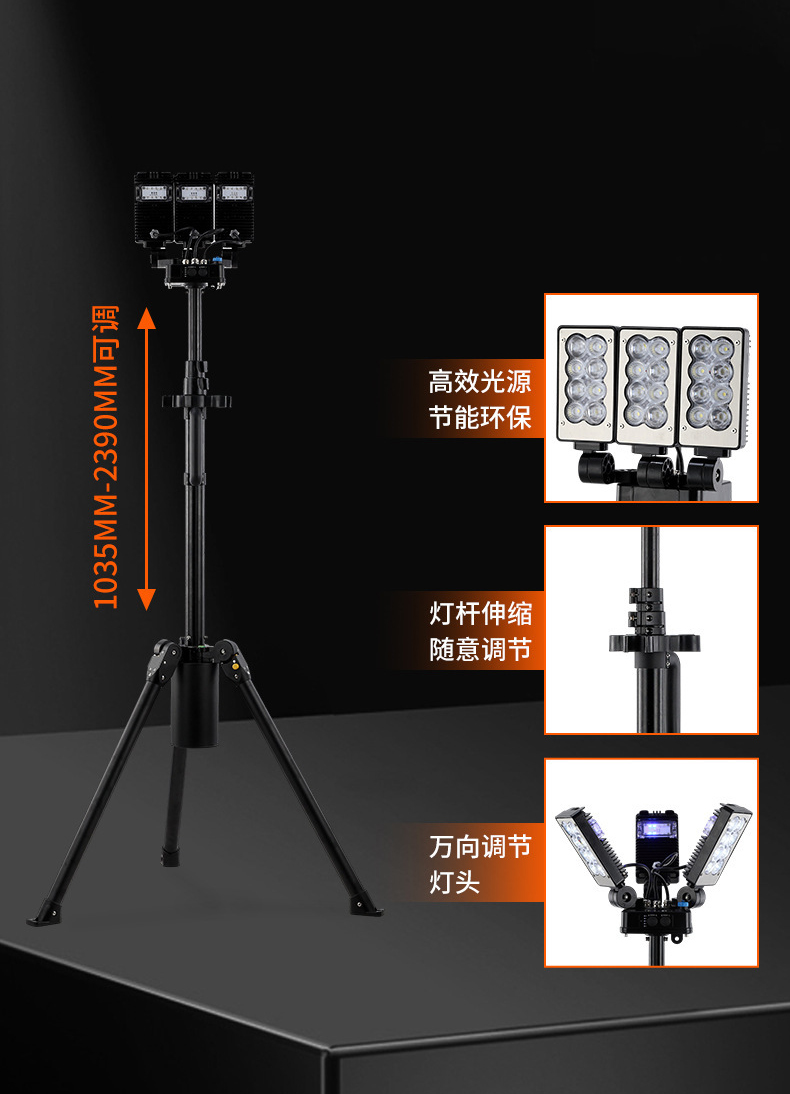

Telescopic Pole – Multi-Directional Illumination

Uses a three-section telescopic pole for lamp head height adjustment – paired with a unique lamp head design – adjustable up, down, left, and right at any angle

1035MM–2390MM Adjustable

  • High-efficiency light source – energy-saving and eco-friendly

  • Telescopic pole – freely adjustable

  • Universal adjustable lamp head


More Details Showcase – Just to Give You a Better Experience

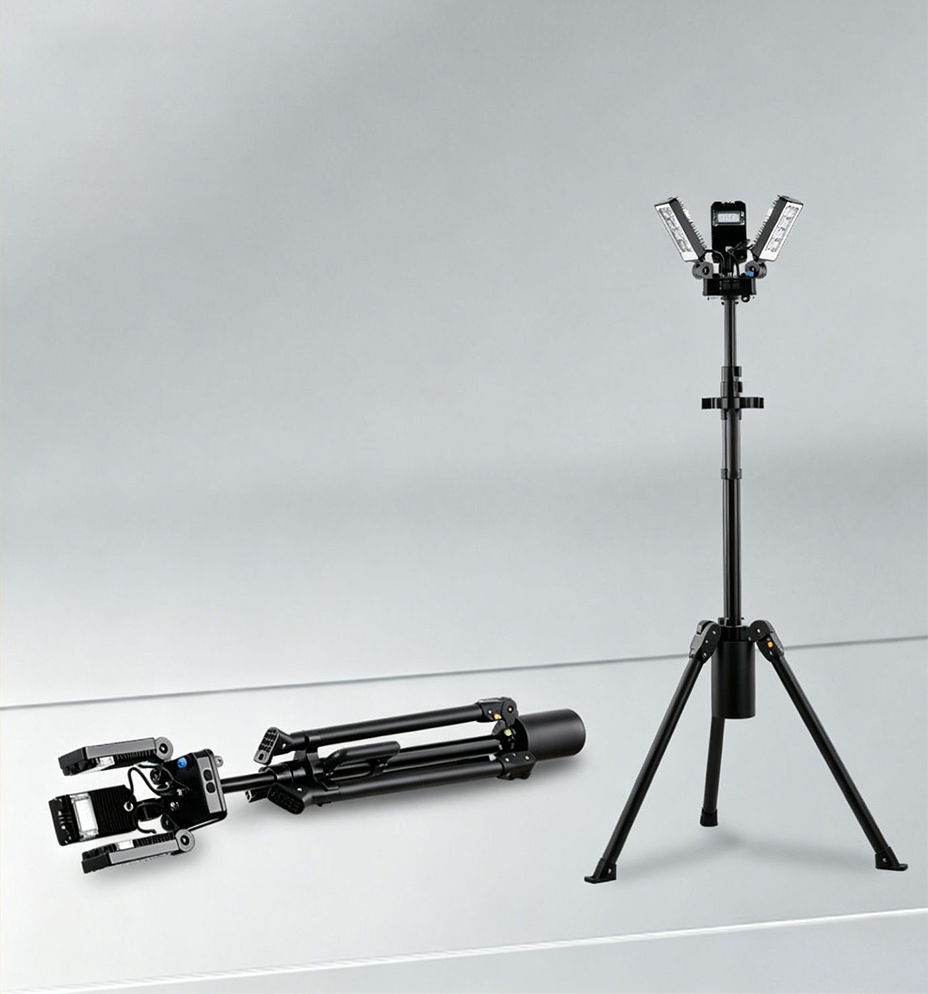

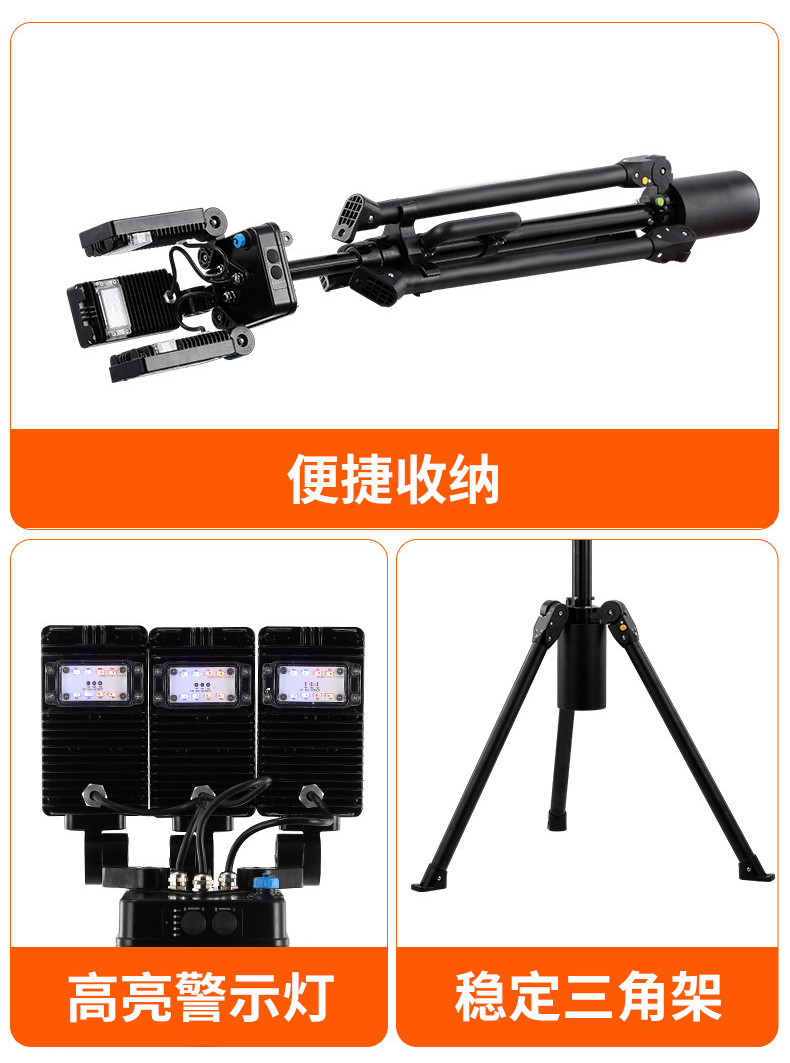

  • Convenient Storage

  • High-Brightness Warning Light

  • Stable Tripod


Crafted with Care – Details You Can See

Details determine quality – making your use safer and more reliable

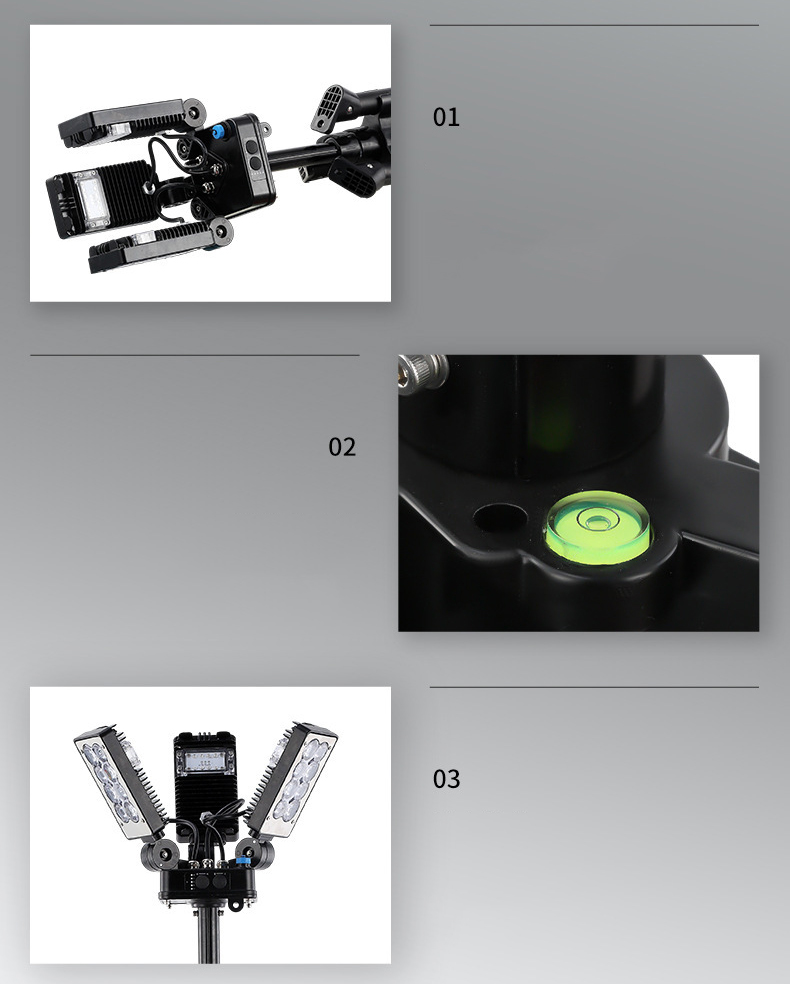

  1. Premium Materials – Rainproof & Dustproof
    The lamp adopts an intrinsically safe, encapsulated, increased safety composite explosion-proof structure design – can be used safely in Zone 1 and Zone 2 flammable and explosive gas environments

  2. Standard Bubble Level
    Quick horizontal identification – further enhances lamp stability – meets lighting needs on uneven ground

  3. Long-Lasting Battery Life
    One charge provides continuous lighting ≥ 5 hours – uninterrupted long-lasting illumination – meets different environmental and work needs
