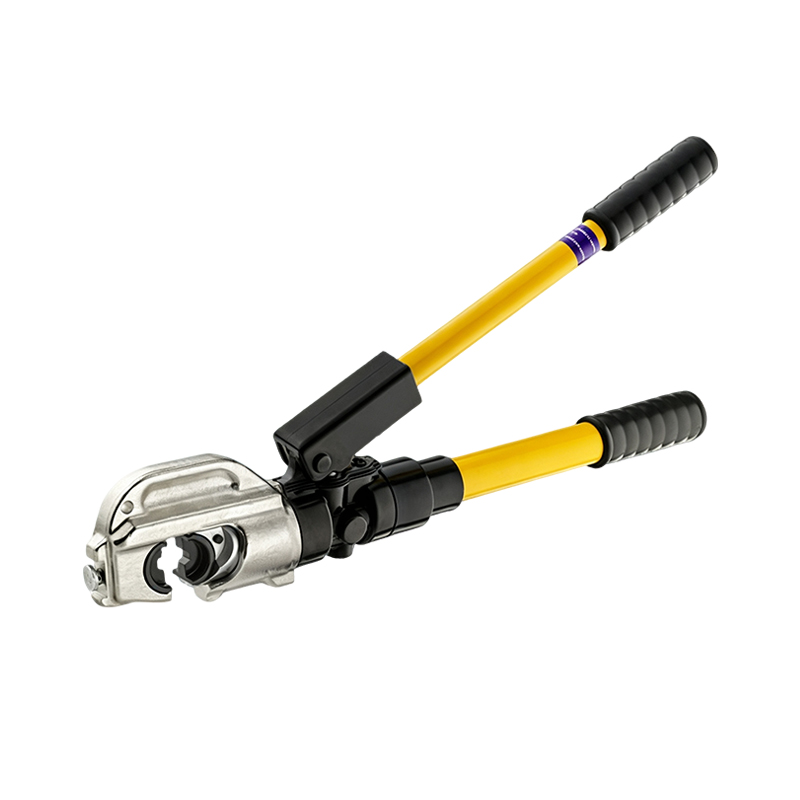

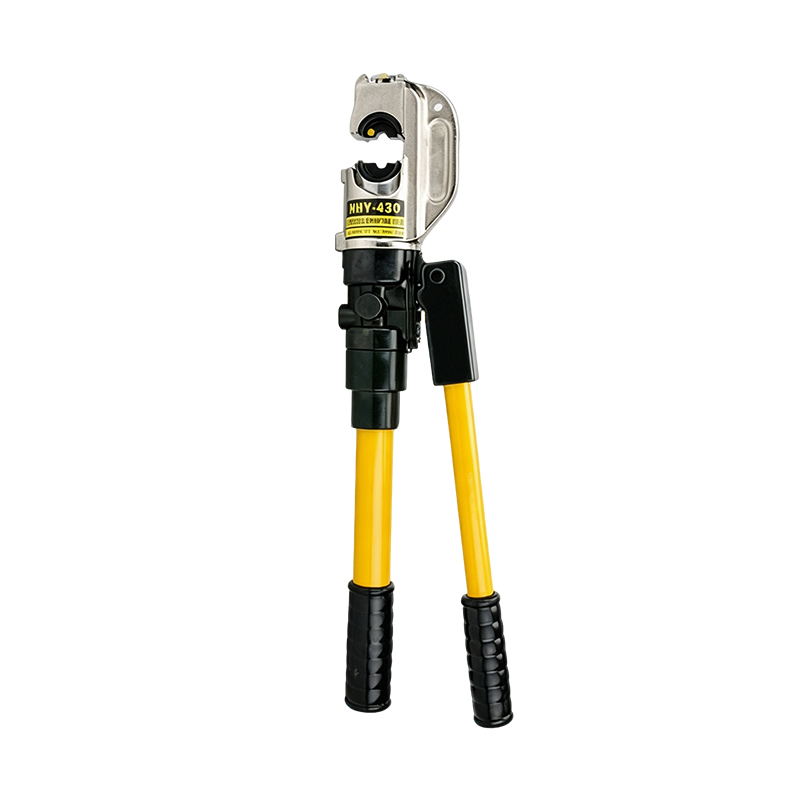

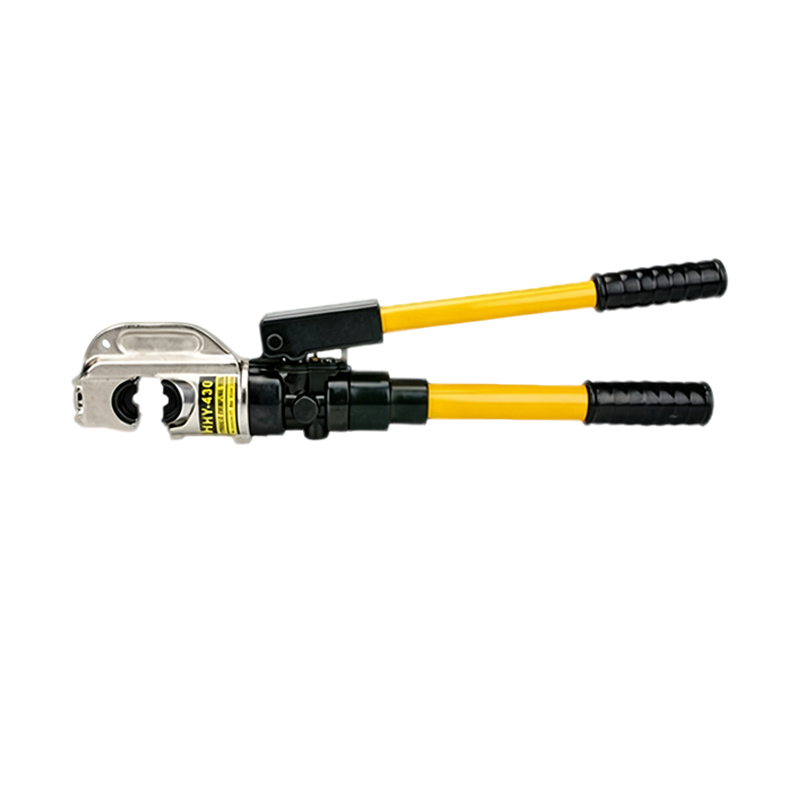

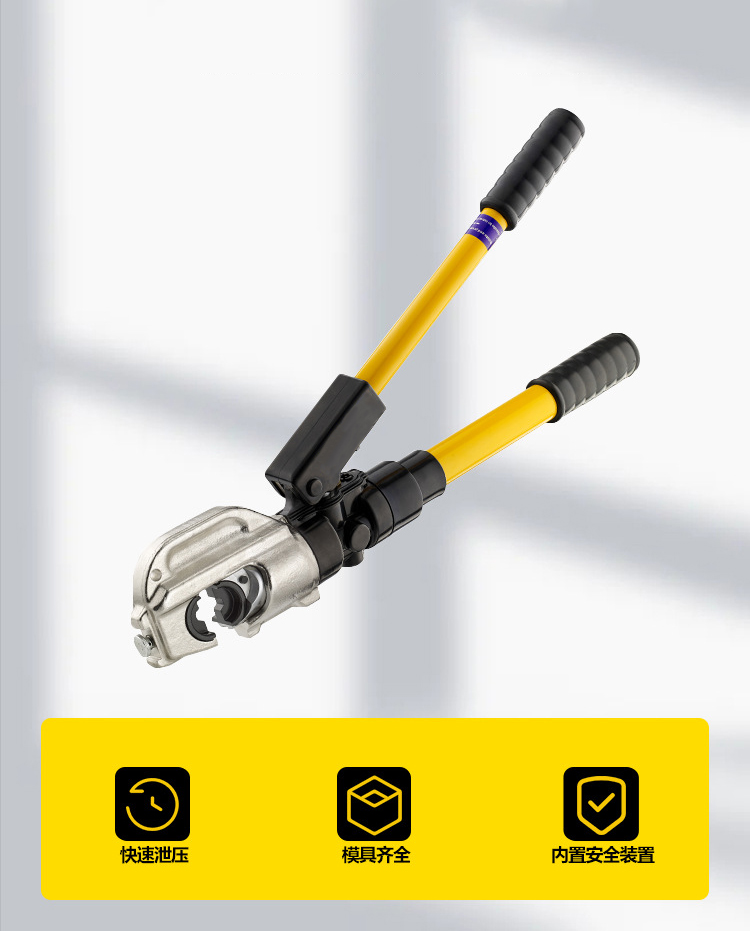

Manual Hydraulic Crimping Tool

  • Product Name: Manual Hydraulic Crimping Tool

  • Model: HHY-430

  • Output Force: 11 tons

  • Stroke: 32mm

  • Crimping Range: 50–400mm²

  • Die Type: Hexagonal

  • Unit Weight: 11kg

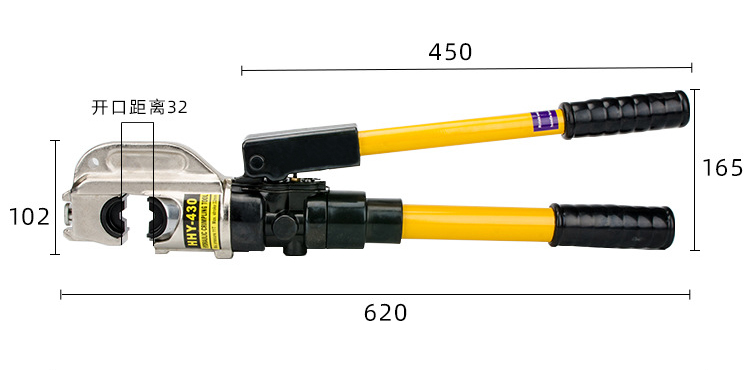

  • Product Dimensions: 620 x 102 x 165mm

  • Packaging Dimensions: 770 x 230 x 130mm

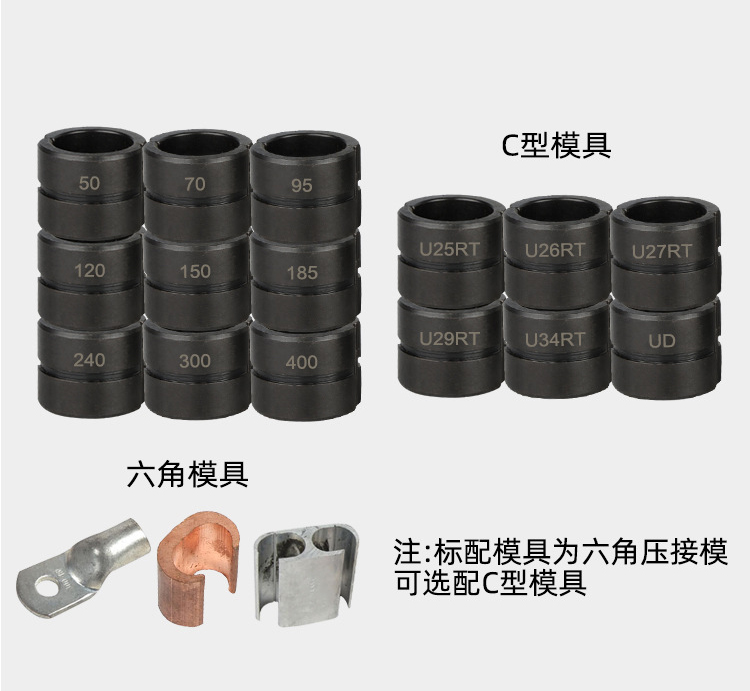

  • Included Dies: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²

  • Product Features:

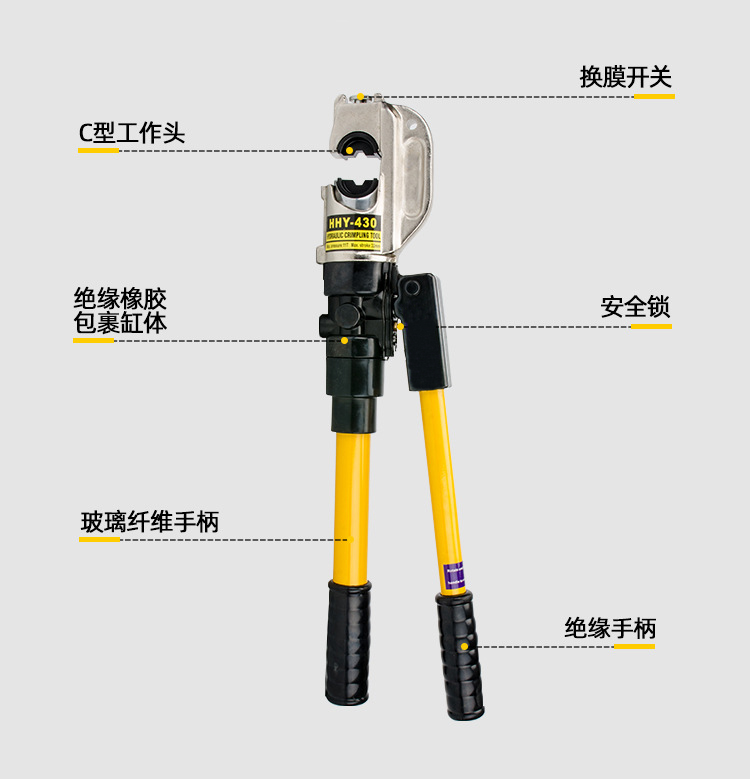

    High-quality materials – compact structure

    Handle made of fiberglass – non-conductive – suitable for 10kV live-line work

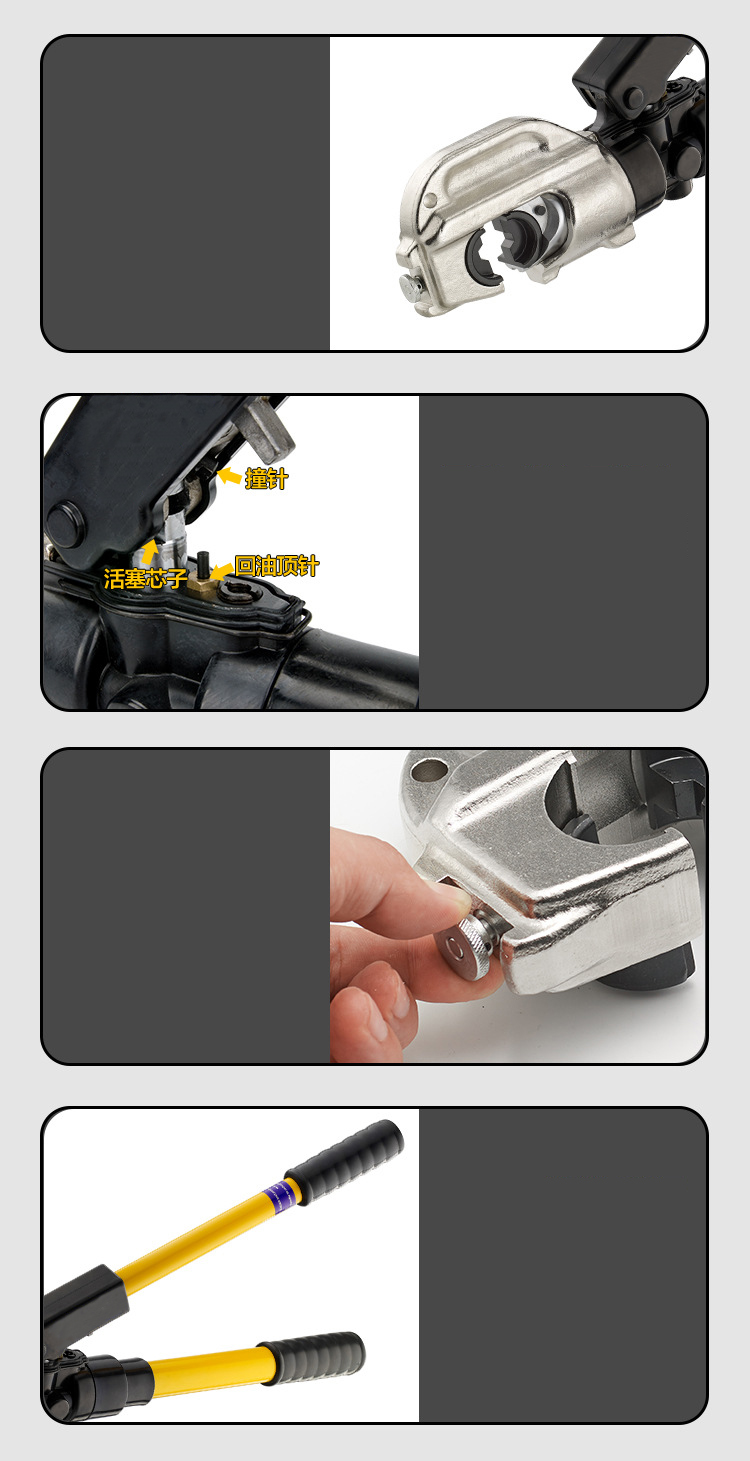

    C-shaped compact opening design – head rotates 180° – easy to use

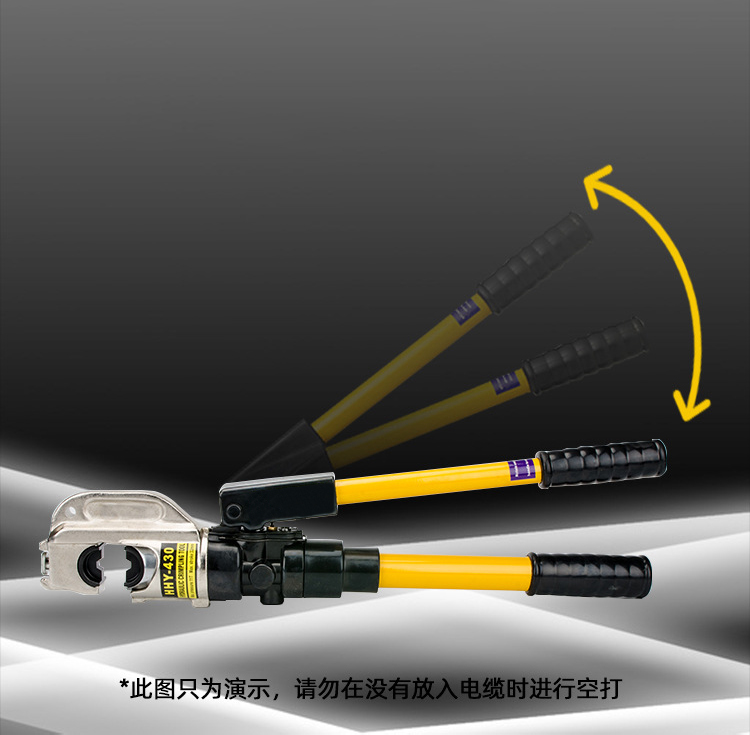

    Two-stage hydraulic design – ensures fast crimping with minimal effort

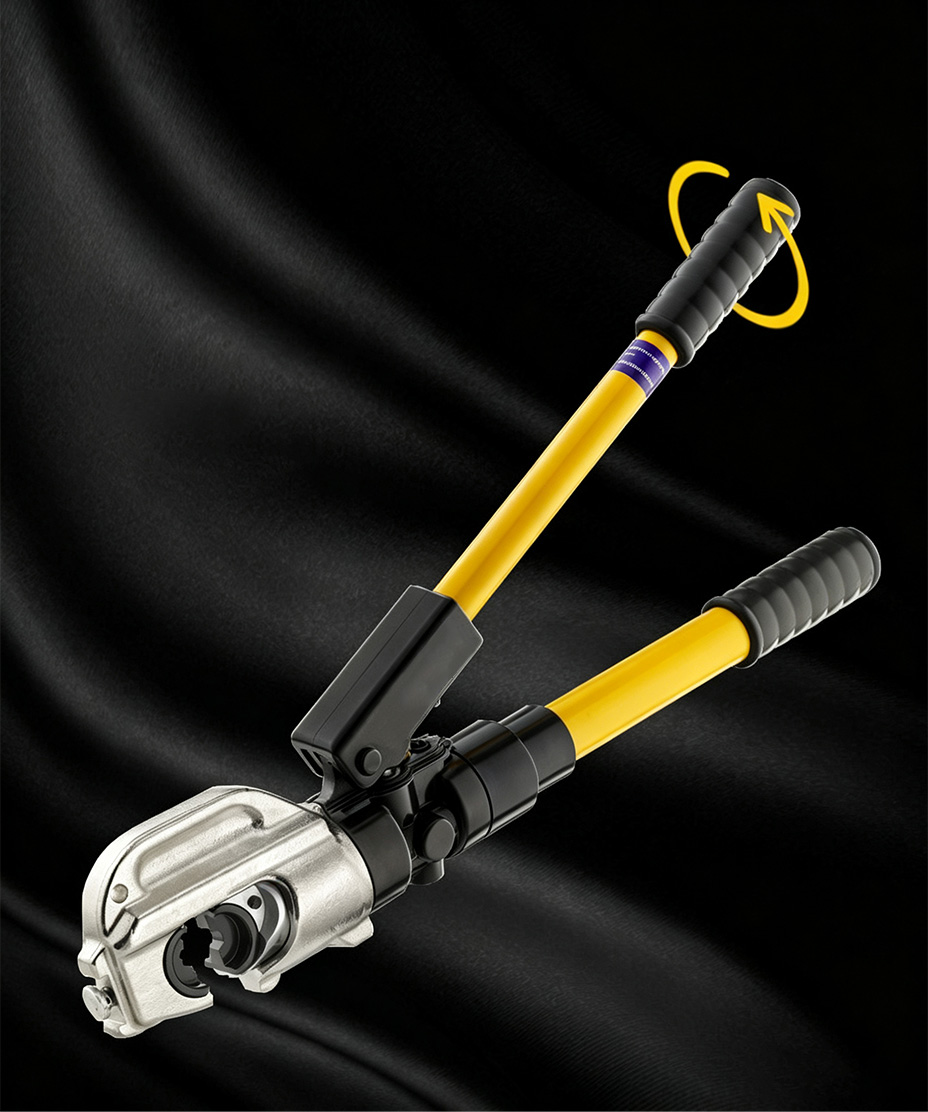

    Delicate pressure release valve – no need to remove hand from handle – rotate the movable handle downward to release pressure

    Built-in overload safety relief valve – automatically releases pressure after crimping is complete

    Plastic portable case for storing tools and accessories
