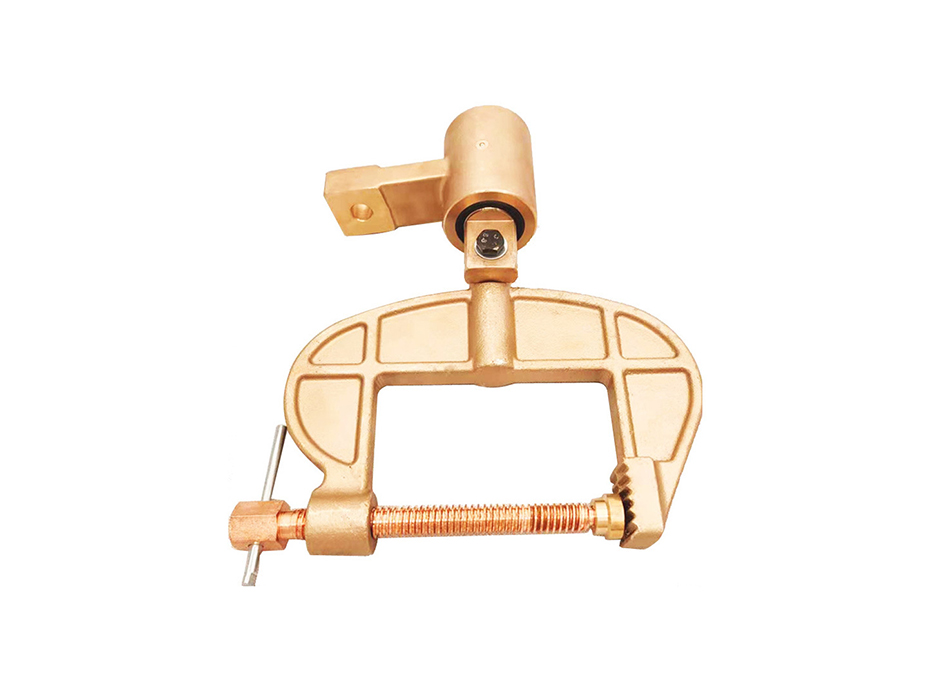

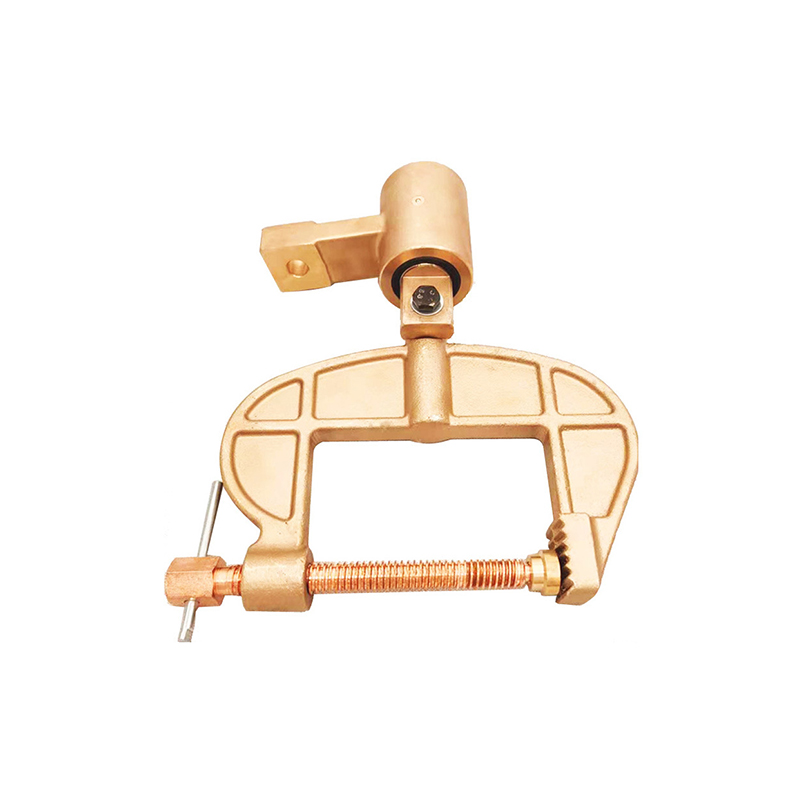

Grounding pliers

  • Product name: Grounding pliers

  • Country of Origin: China

  • Model: 3000A

  • Type: High-Power Grounding Clamp

  • Current capacity: 1500A (A)

  • Purpose: Connection for high-power welding equipment

  • Dimensions: 55 (mm)

  • Material: Copper

  • Rated voltage range: AC single-phase and DC up to 50V

  • Net weight: 1.05 (kg)

  • Maximum clampable wire diameter: 10 (mm)

  • Scope of application: Connecting cables


Description

Overall made of solid copper, it has strong electrical conductivity, can withstand high temperatures and large currents, and is less prone to damage during prolonged heavy-duty welding.

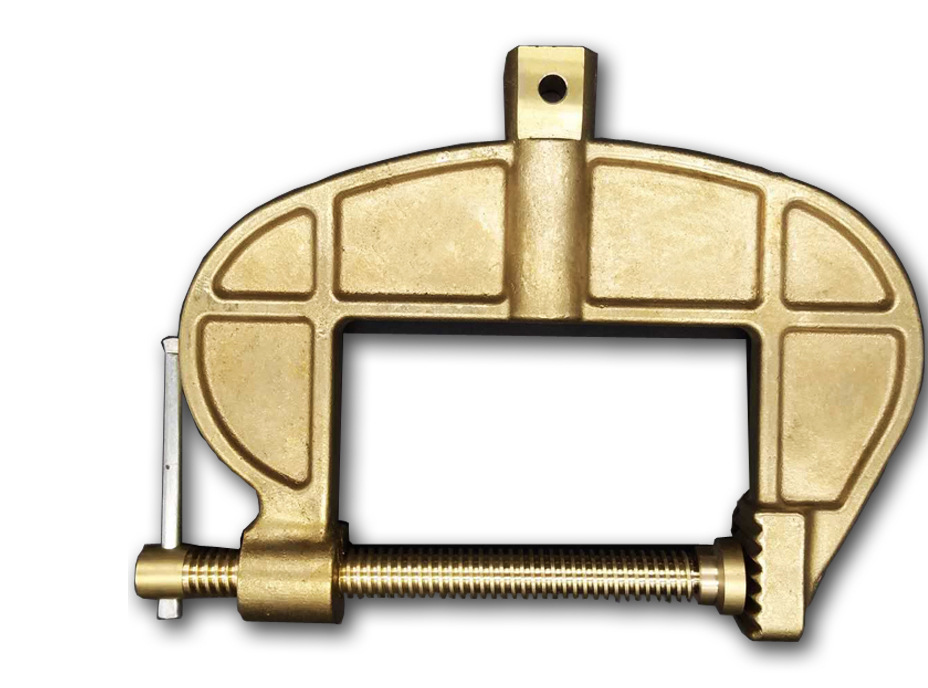

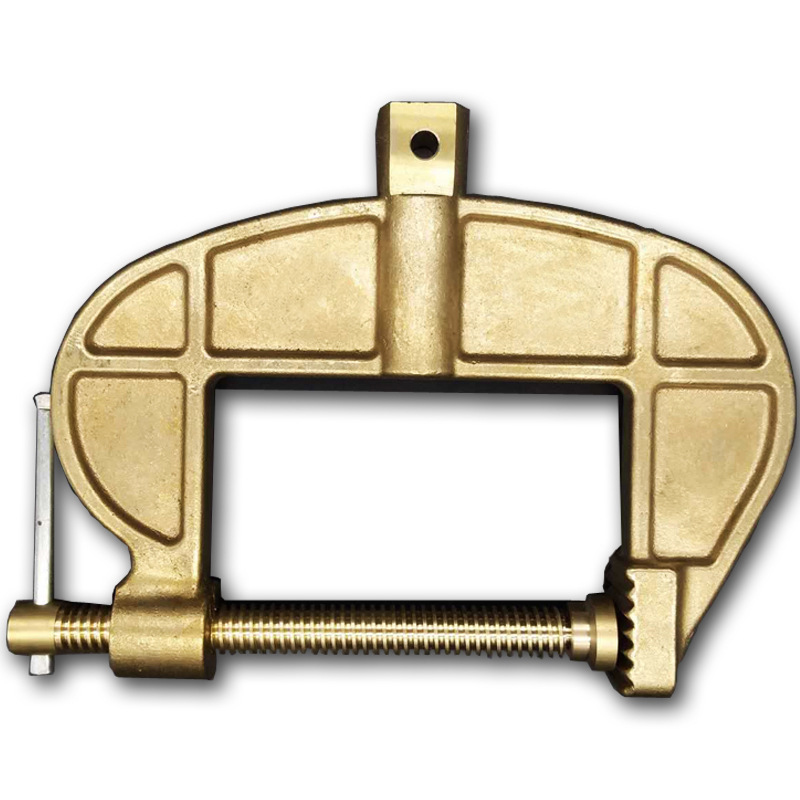

Screw locking mechanism provides immense clamping force, ensuring stable holding of heavy workpieces and thick sheets of metal, and preventing false connections and arc formation.

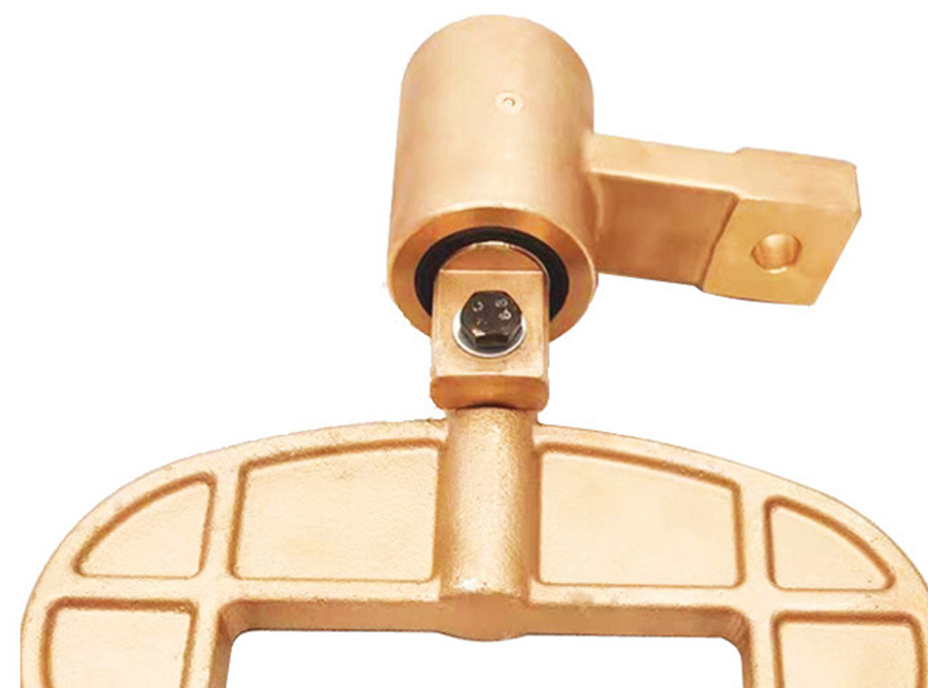

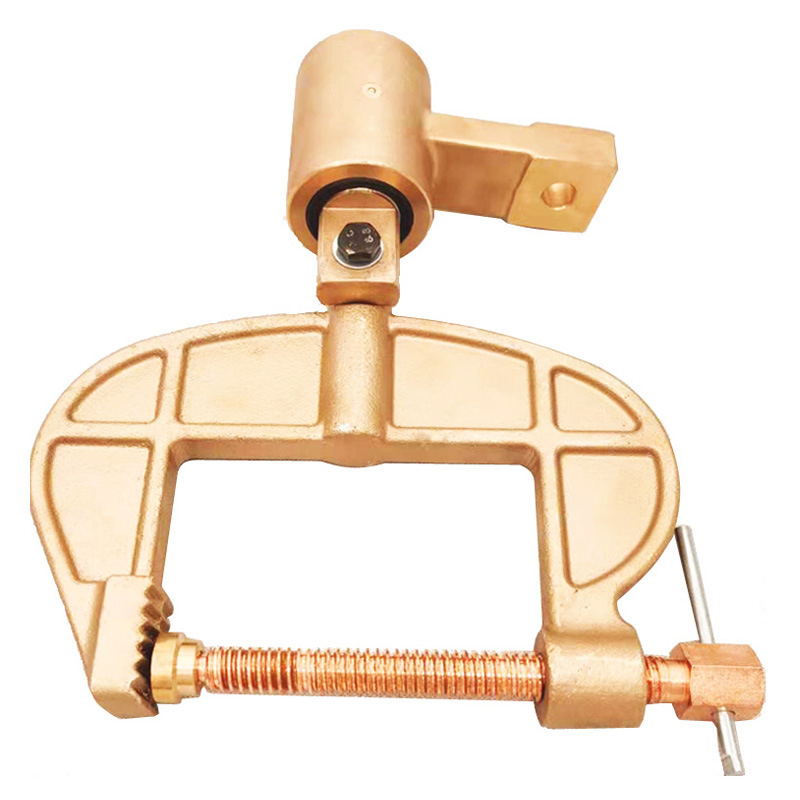

Optional 360° rotational connector allows the cables to rotate freely from various angles, preventing cable twists and kinks, and enabling flexible wiring in complex scenarios.
